Primera DMC large area seed drill

The Primera DMC's hopper system can carry enough seed and fertiliser for long working periods. These large hopper capacities reduce non-productive time. More time in the field, for cost-effective sowing at the optimum time.

The benefits of the Primera DMC hopper system

• The hopper system can be laid out for up to 4 applied materials and allows the applied materials to be placed in the soil at up to 3 different placement depths.
• Non-slip sieves with good flow characteristics provide safe access to the distributor heads
• Steep and smooth walls to prevent any residues being left and facilitate easy cleaning
• The roll-over hopper cover protects from dust and moisture
• Integrated hopper scale and permanently fixed level sensors

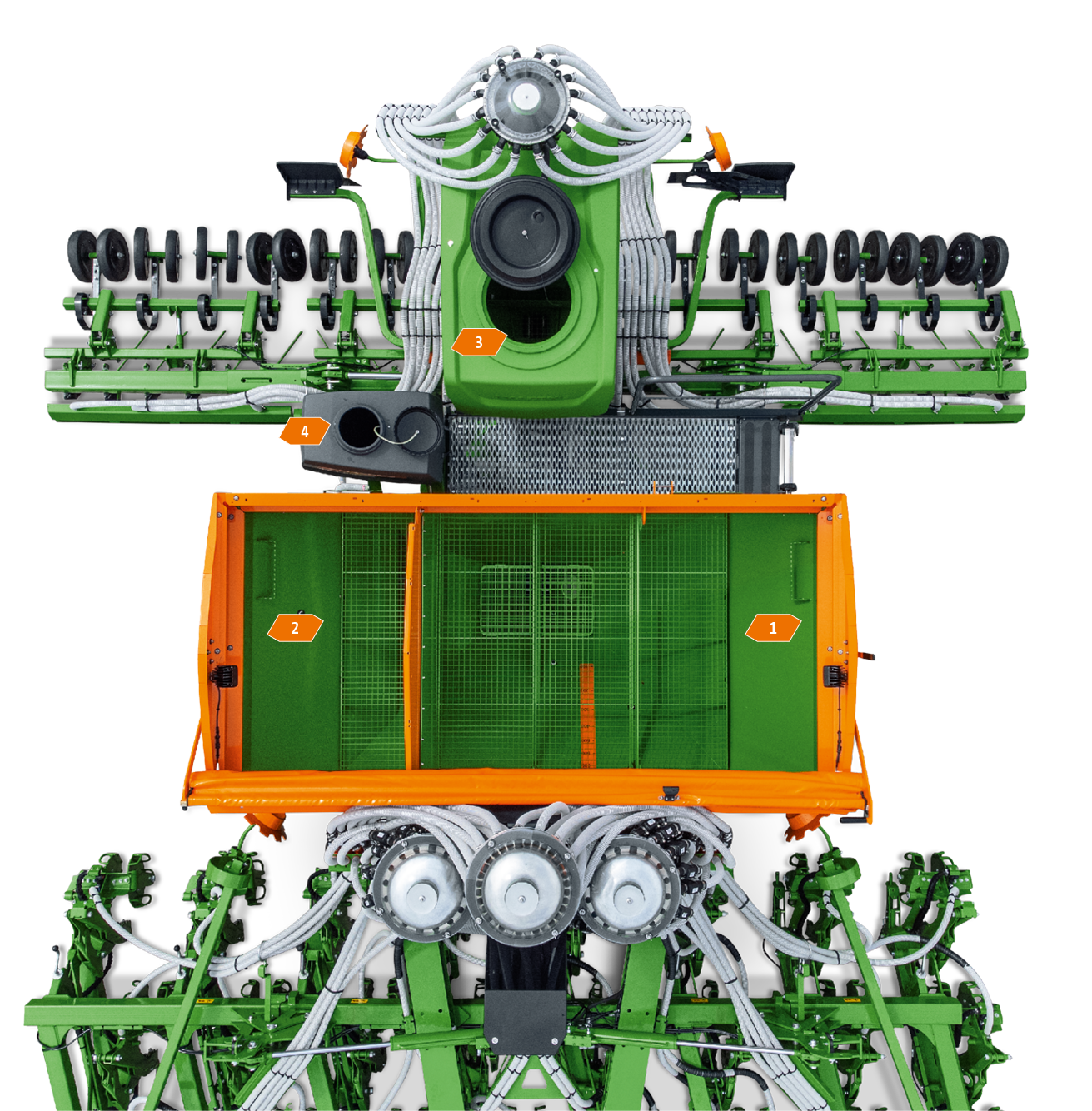

1. Hopper chamber holding 75% of the volume
2. Hopper chamber holding 25% of the volume
3. GreenDrill 501 rear-mounted seeder box with a capacity of 500 l
4. Micro plus micro-granular applicator with a hopper capacity of 120 l

The GreenDrill 501 rear-mounted seeder box, with a capacity of 500 l, can apply an additional applied material such as seed, a starter fertiliser or slug pellets. The delivery point can be selected at will – via baffle plates in front of the harrows or by a simple tool-free repositioning of the conveyor section at the coulter into the seed furrow.

1. Baffle plates

Precise electric metering of the GreenDrill

The metering of the seed is carried out by an electrically driven metering unit. The electric drive facilitates easy setting of the seed rate using the ISOBUS terminal in the tractor cab. Alternatively, the electric drive can also be controlled fully automatically using application maps. It is furthermore possible to calibrate the system at the push of a button and to do pre-metering in field corners.

Benefits of GreenDrill:

• Flexible placement in the coulter or on the surface using the baffle plates
• Easily accessible via the loading board
• Fully integrated operation using the AmaTron 4 ISOBUS terminal or any other ISOBUS terminal
• Efficient air supply using the main fan
• Good visibility at night thanks to LED work lights

Equipped with the Micro plus micro-granular applicator, small quantities of another applied material can be applied to the seed furrow at the same time as sowing using the Single-Shoot method.

In conjunction with the GreenDrill, the Micro plus's applied material can also be broadcast on the ground as an option.

The Micro plus has a central electric metering system located underneath the easily accessible 110 l hopper. The generous filling opening, having a diameter of 195 mm, allows the hopper to be quickly and easily filled. The micro-granular applicator’s control system is fully incorporated in the ISOBUS software of the seed drill.
