Electronics | Terminals | Software

Electric metering drive and ISOBUS control

For Primera DMC 3000-C, 4500-C, 6000-2C, 9000-2C, 9001-2C and 12001-2C

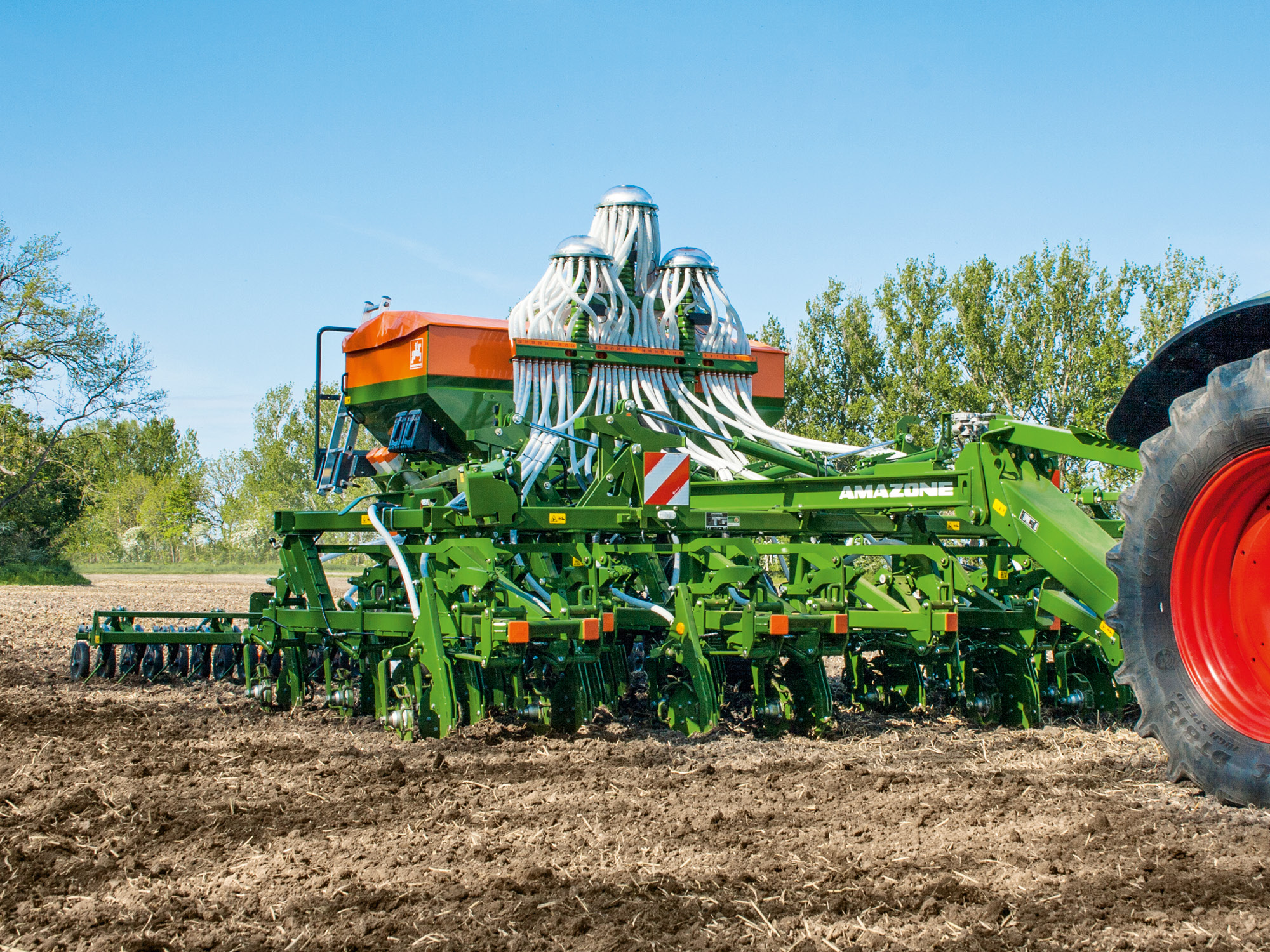

AMAZONE offers the Primera DMC 3000-C, 4500-C, 2C, 6000-2C, 9000-2C, 9001-2C and 12001-2C chisel opener seed drill with fully electric metering and state-of-the-art ISOBUS control.

When equipped with the TwinTerminal 3.0, the Primera DMC is calibrated in no time and any cumbersome climbing up and down from the tractor cab is no longer necessary. The automatic headland control via Section Control (GPS-Switch) or the automatic seed rate matching can be specified as optional equipment, as can automatic track marker control, tramlining control and a water hole function for sowing with lifted coulters in wet hollows.

The basic documentation of the work done is stored directly on the machine. For further use in a farm management information system, the job data can be made available in an ISO-XML format. The Primera DMC, with a working width from 3 m to 12 m, can be operated via the AMAZONE AmaTron 4 ISOBUS terminal. However, any other ISOBUS compatible ISOBUS terminal can be utilised for machine operation.

More information + Less information -

AmaPilot+ – everything in one hand!

Thanks to the AUX-N feature, you can operate multiple functions on the machine via AmaPilot+ or any other ISOBUS multi-function joysticks.

Advantages of AmaPilot+:

  • Almost all the functions directly to hand via the 3 levels
  • Adjustable palm rest
  • Freely available key assignment
More information + Less information -

AmaCam

Software licence for displaying a camera image on AmaTron 4.

  • Automatic display of the camera image on AmaTron 4 when reversing
More information + Less information -

AmaLog+ in-cab terminal

Reasonably priced in-cab terminal in conjunction with the mechanical metering drive. The AmaLog+ in-cab terminal offers an electronic control and regulating system with electric tramline control, electronic fill level sensor, hectare meter and monitoring of the seed shaft.

More information + Less information -

ISOBUS as the basis for intelligent communication

One language, many benefits!

Each ISOBUS-enabled machine from AMAZONE comes with the latest technology and almost unlimited possibilities. It makes no difference whether you use an operator terminal from AMAZONE or an ISOBUS terminal fitted directly in the tractor. ISOBUS is an internationally recognised standard for communication between the operator terminal, tractors and connected implements on the one hand and Farm Management Information Systems on the other.


Operation with a wide variety of ISOBUS terminals

Which means that ISOBUS enables you to take control of all your ISOBUS compatible equipment. You only have to connect the machine to the respective ISOBUS terminal and the usual operator interface appears on the monitor in your tractor cab.


Benefits of ISOBUS at a glance:

  • This worldwide standard provides a uniform interface and data exchange format that ensures compatibility even with third party manufacturers
  • Plug and Play between machine, tractor and additional ISOBUS implements
More information + Less information -

AMAZONE – more than just ISOBUS: Improved control, more yield! Precision Farming 4.0

Our competence in electronics: To increase the operational comfort, AMAZONE implements and operator terminals feature a level of functionality far beyond ISOBUS standards.


The benefits of more than just ISOBUS:

  • Highest compatibility and function flexibility of your ISOBUS equipment
  • No additional modules on the machine side. All ISOBUS machinery from AMAZONE is already equipped with the necessary ISOBUS functionality as standard
  • Practice-oriented machine software and logical menu structure
  • MiniView display with all AMAZONE terminals and additional ISOBUS terminals. See, for instance, the machine information in the GPS view
  • Possibility of operating the machine via the tractor terminal or a twin terminal solution
  • Flexible assignment of the field and machine view between the tractor and the operator terminal
  • Unique operation concept. Freely-configurable displays and individual user interfaces for each driver
  • Freely-configurable machine operation, e.g. folding of the boom of your AMAZONE crop protection sprayer
  • Integrated TaskController data logger function


Advantages of the AMAZONE machine software:

  • User-oriented and intuitive
  • Tailored to the machine
  • Functional range above and beyond the ISOBUS standard
More information + Less information -

AmaTron 4 – Manager for all

Simple and convenient operation as intuitive as your tablet

Why not handle a terminal as intuitively as a tablet or a smartphone? With this in mind, AMAZONE has developed the operator-friendly AmaTron 4 which offers a noticeably smoother operational procedure, especially when it comes to job management. The AmaTron 4, with its 8"multi-touch colour display meets the highest expectations and offers maximum user-friendliness. A swipe of the finger or use of the App carousel allows quick changes between applications and the simple and clearly structured operating menu. A useful MiniView, a freely configurable status bar as well as a virtual light bar make the use of the AmaTron 4 particularly clear and convenient.

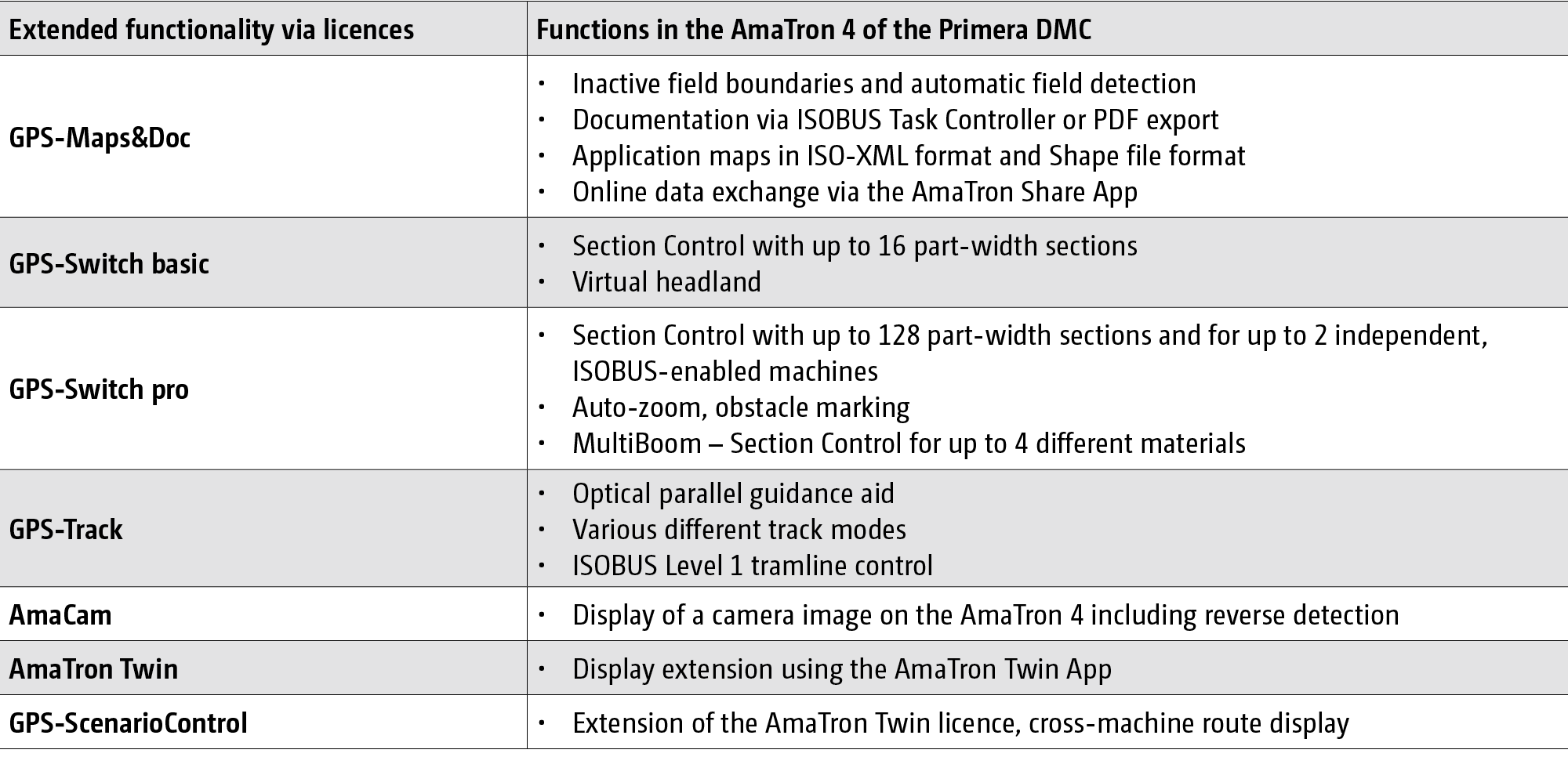

Benefits of AmaTron 4:

  • Automatic full screen mode when not in use
  • Automatic control button display via a proximity sensor
  • Practical MiniView concept
  • Actuation via multi-touch colour display or soft keys
  • Especially intuitive and user-friendly
  • Field-related documentation
  • Practice oriented and intelligent menu navigation
  • Practical quick-start menu with import and export of job data, help windows, day/night mode and the AUX-N assignment
  • One camera input and automatic reversing detection
  • Free trial period for all chargeable licences
  • AmaTron Connect – for yet more access to the digital age


Equipped as standard with:

  • GPS-Maps&Doc
More information + Less information -

GPS-Track

The GPS-Track parallel guidance greatly helps with orientation in the field, especially on grassland or in areas without tramlines.

  • With a virtual light bar in the status bar
  • Automatic tramline control via GPS for seed drills
  • Various track modes such as A-B lines or contour driving
  • Supplied as standard with AmaPad 2
  • Optional with AmaTron 4
More information + Less information -

GPS-Maps&Doc

All standard ISOBUS terminals from AMAZONE can collect and save machine and site-specific data using Task Controller. Part-area, site-specific operation via the processing of application maps in a Shape file format and ISO-XML format is also possible.

  • Easy creation, loading and processing of jobs
  • Start a new task straight away and decide later whether the data is saved or not
  • Import and export of jobs in the ISO-XML format
  • Job summary via PDF export
  • Intuitive system for processing application maps in the Shape file format and ISO-XML format
  • Automatic part-area, site specific regulation of the application rate
  • Indication of inactive field boundaries and automatic field detection when approaching the area
  • Optimum crop management via needs-based application
  • Standard with AmaTron 4 and AmaPad 2
More information + Less information -

GPS-Switch

With GPS-Switch, AMAZONE offers GPS-based, fully automatic, part-width section control for all AMAZONE operator terminals and ISOBUS-compatible fertiliser spreaders, crop protection sprayers or seed drills.


GPS-Switch basic

  • Automatic part-width section control with up to 16 part-width sections
  • Creation of a virtual headland
  • Automated boom lowering with an AMAZONE crop protection sprayer
  • Optional with AmaTron 4


GPS-Switch pro (as an extension of GPS-Switch basic)

  • Automatic part-width section control with up to 128 part-width sections, particularly for crop protection sprayers with individual nozzle control
  • Marking of obstacles (e.g. water holes, pylons)
  • Auto-zoom when approaching the headland
  • Optional with AmaTron 4


Automatic switching on and off of the Primera DMC


If the operating terminal has Section Control, e.g. GPS-Switch part-width section control from AMAZONE, the part-width sections can be automatically switched on and off in relation to the GPS position. Once a field has been created, the driver can concentrate fully on operating the vehicle in automatic mode, since the part-width sections are automatically switched on and off in wedge shaped fields and on headlands.

Benefits of automatic control:

  • Stress relief for the driver
  • Increase in precision, especially at night or at higher speeds
  • Less overlaps and gaps
  • Saving inputs
  • Less crop damage and environmental impact


  1. Over- or under-sowing with manual on/off control without GPS-Switch
More information + Less information -

Automatic half-side shut-off with GPS-Switch – for the Primera DMC 9001-2C and 12001-2C

Accurate placement of the seed!
Accurate sowing is very important to avoid excessive or insufficient seeding in critical places, which is very common in practical applications. The remedy for the accurate placement is offered by the half-side control which reduces the relevant working width to half so that, especially in short-work and on the headland, a significant saving is achieved. The two halves of the drill each correspond to one controllable part-width section.


  1. With half-side shut-off
  2. The seed drill automatically switches off precisely
  3. Virtual headland
  4. Field application maps for different seed rates are also possible
  5. Worked area
More information + Less information -

Switch time optimisation – GPS-Switch with AutoPoint

  • Automatic determination of the conveying time of seed flow from the metering unit to the sowing coulter
  • Minimisation of misses and overlaps for good field hygiene
  • Minimisation of the disease pressure results in fewer plant protection measures and simultaneous cost reduction


  1. 2.7 sec.
  2. 3.3 sec.
  3. Metering unit
  4. AutoPoint sensor


More information + Less information -

AmaTron Connect – Connected to your world

Communication in real time
With AmaTron Connect, AMAZONE provides a digital interface to a smartphone or tablet. The mobile device and the ISOBUS terminal AmaTron 4 are simply connected as a hotspot.


AmaTron Twin App – Clear display enhancement
The AmaTron Twin App offers the driver even more comfort in work, as GPS functions in the field view can also be operated via a mobile device (e.g. tablet) in parallel with machine operation in AmaTron 4.


Advantages of the AmaTron Twin display enhancement:

  • Use of an existing mobile device
  • Greater clarity – all applications in view
  • Comfortable control of GPS functions in the field view in parallel via the mobile device
  • Clear, authentic representation of the working machine and its part-width sections
More information + Less information -
