Ceus trailed disc & tine combination cultivator

The narrow drawbar of the Ceus offers a very tight turning radius both in the field and on the road. Ceus-TX models with a rigid frame always have a rigid drawbar. The
implement is lifted at the headland using the tractor's lower links and the hydraulic chassis.

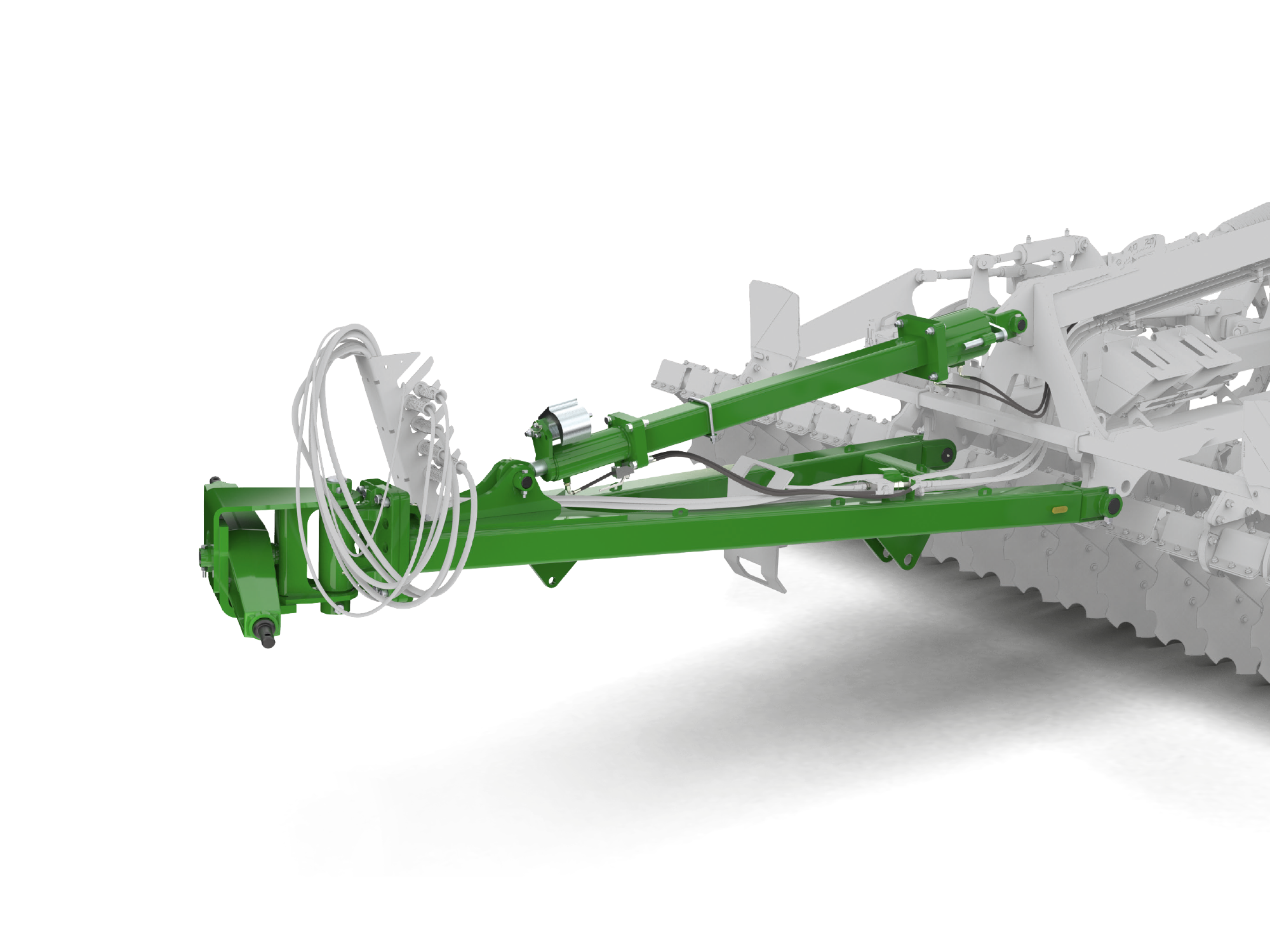

The Ceus-2TX can also be equipped with a rigid drawbar or, optionally, with a hydraulic tie bar. The hydraulic tie bar ensures comfortable lifting and lowering when turning with the implement. In contrast to the rigid drawbar, operation here is carried out solely via a hydraulic spool valve. The drawbar cylinder is connected to the running gear cylinders. The lower links on the tractor do not need to be operated.

Comprehensive and suitable mounting and drawbar options for the Ceus are available for every tractor. The flange plate allows the easy and quick mounting of any of the linkage options. Furthermore, the linkage category can be quickly changed on the lower link cross shaft. Only the linkage pins are interchanged for this purpose. As a result, the appropriate linkage can be selected for any tractor, no matter whether Cat. 3, 3N, 4 or 4N lower link cross shafts, various towing eyes or the K80 ball coupling are used.

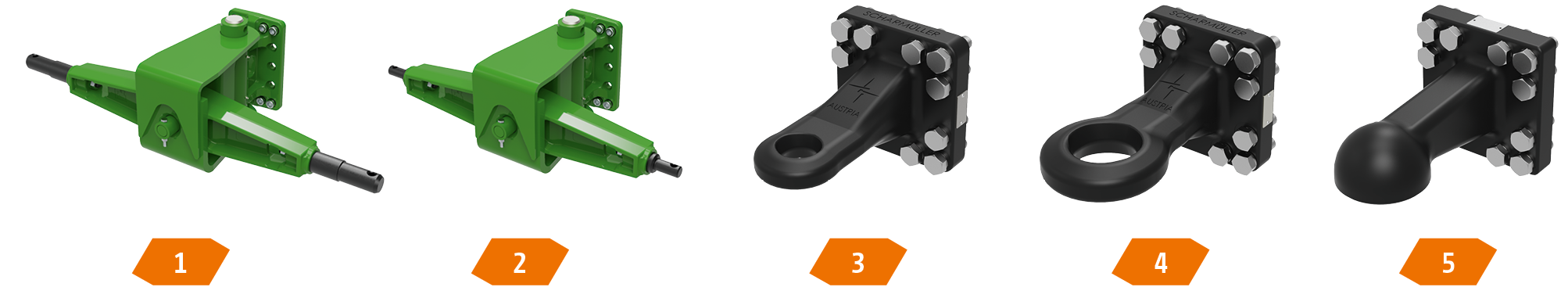

1. Lower linkage Cat. 4N
2. Lower linkage Cat. 3
3. Towing eye D=46
4. Towing eye D=79
5. Ball point coupling M20/K80

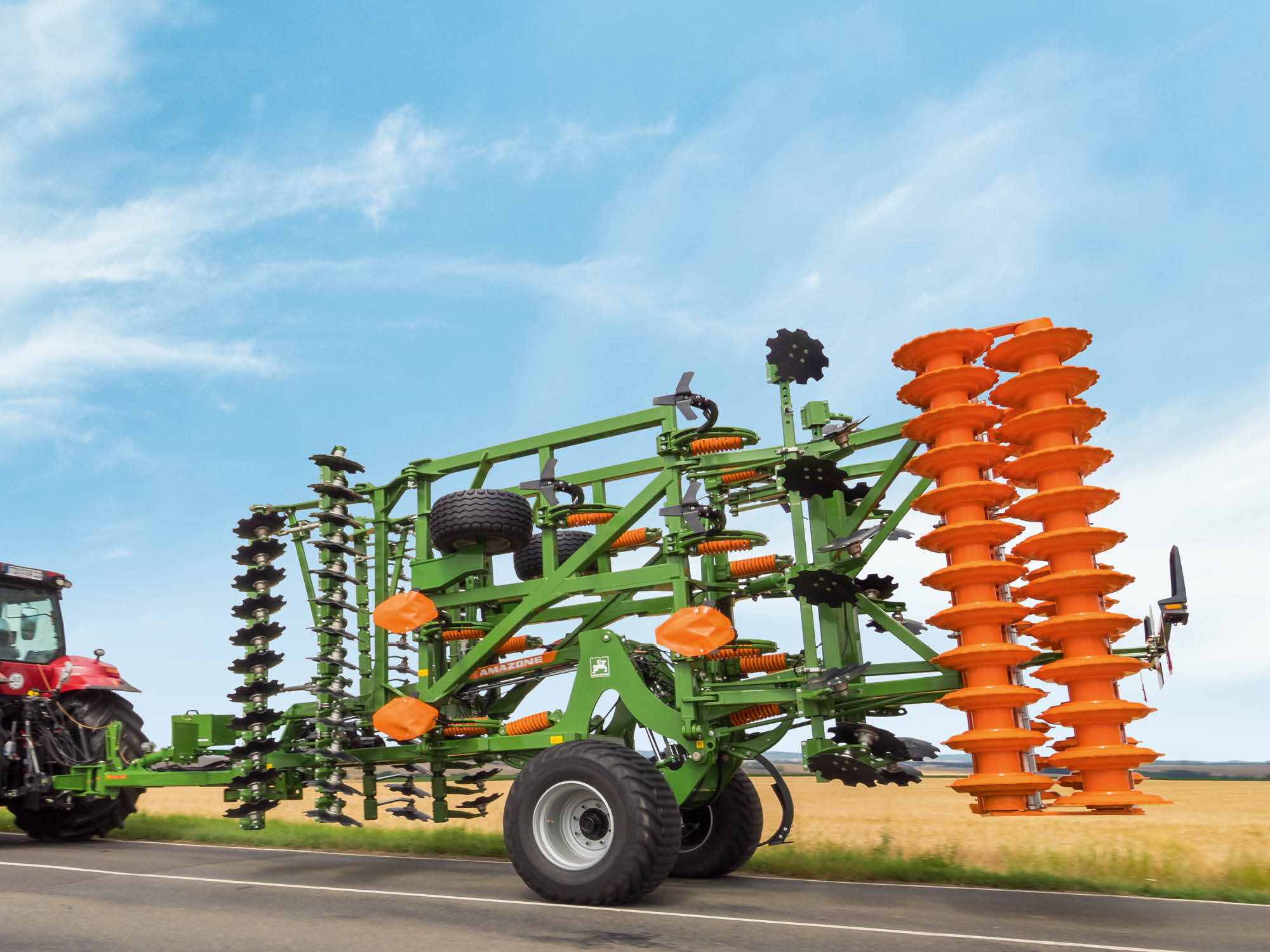

Thanks to its oversized wheels, the integrated TX centre running gear ensures minimal surface pressure on the field. The compact design and the central positioning of the running gear mean that tight turning on the headland, in collaboration with the drawbar, is not a problem. The optimum weight distribution also provides comfortable road transport at speeds of up to 40 km/h.
