Ceus trailed disc & tine combination cultivator

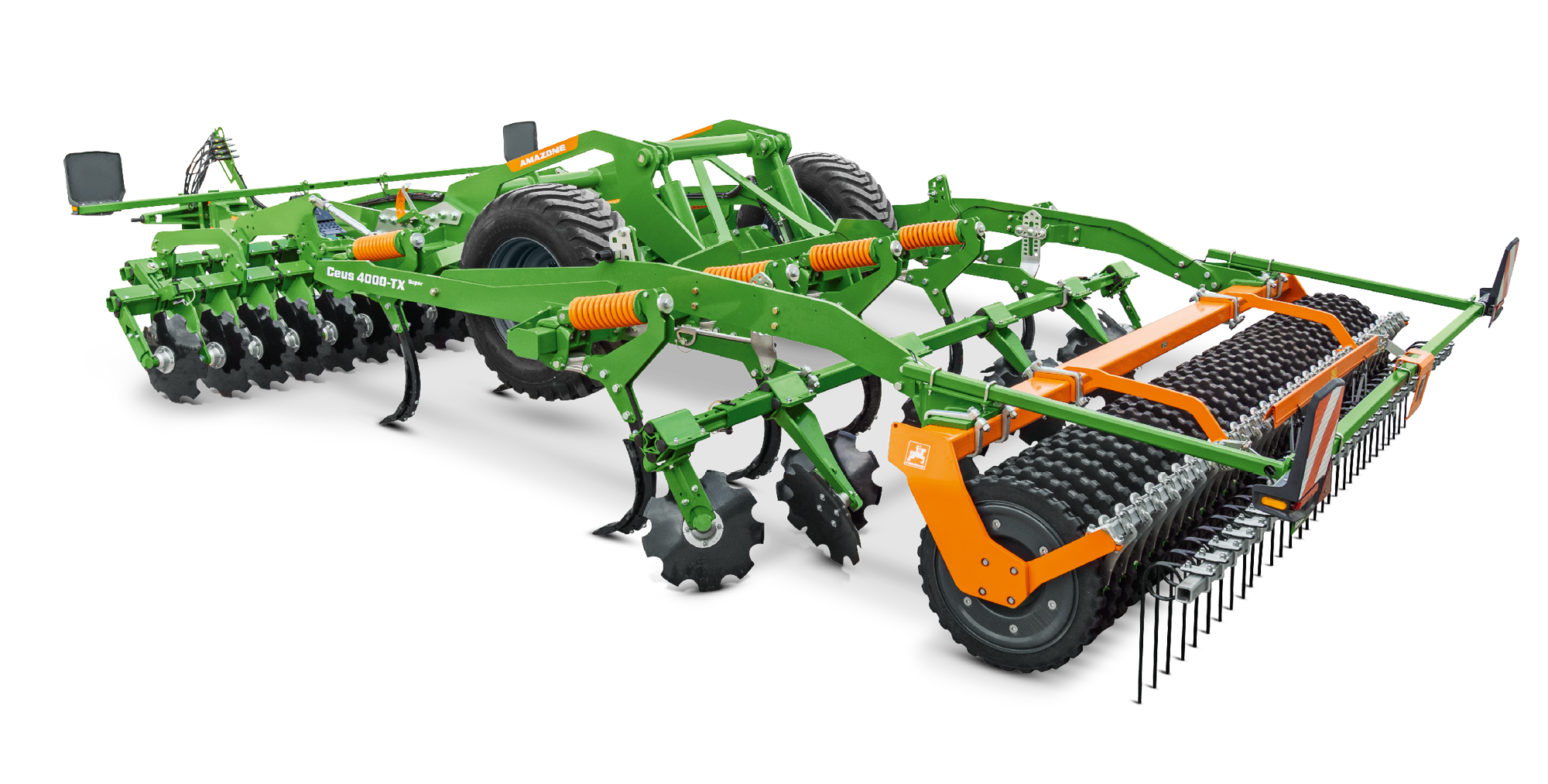

Ceus 3000-TX and 4000-TX

AMAZONE offers the Ceus-TX, in a rigid execution also for smaller farms with tractors from 150 hp. The Ceus 3000-TX and Ceus 4000-TX models are equipped with central running gear. They impress with an excellent quality of work and high manoeuvrability as a result of the narrow working width and the centrally-located TX running gear.

The benefits:

• Hydraulic working depth adjustment of the disc element

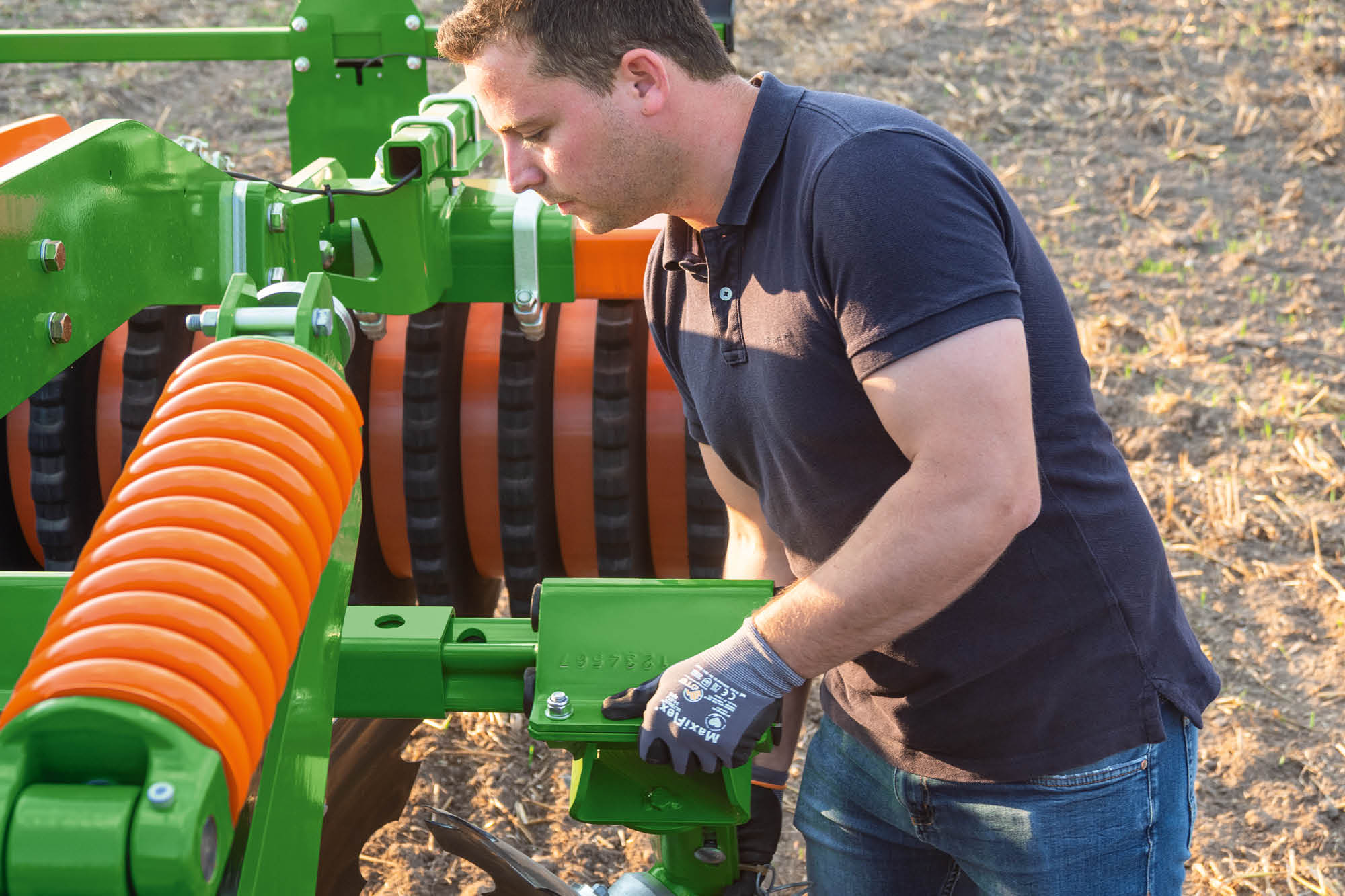

• Simple manual working depth adjustment of the tine element via an eccentric pin
• Flexible use, from cultivating stubbles to basic soil preparation
• The right roller for every soil type

Ceus 4000-2TX, 5000-2TX, 6000-2TX and 7000-2TX

The Ceus-2TX, in working widths from 4 m to 7 m, is designed for farms with large acreages and short application windows. The Ceus offers maximum performance under all conditions thanks to the combination of the disc and tine elements. Depending on the working width, the Ceus-2TX requires tractors of 200 hp or more. The folding frame also means that the Ceus-2TX can be transported comfortably and quickly on the road.

The benefits:

• Optional hydraulic working depth adjustment of the disc element
• Optional hydraulic working depth adjustment of the tine element

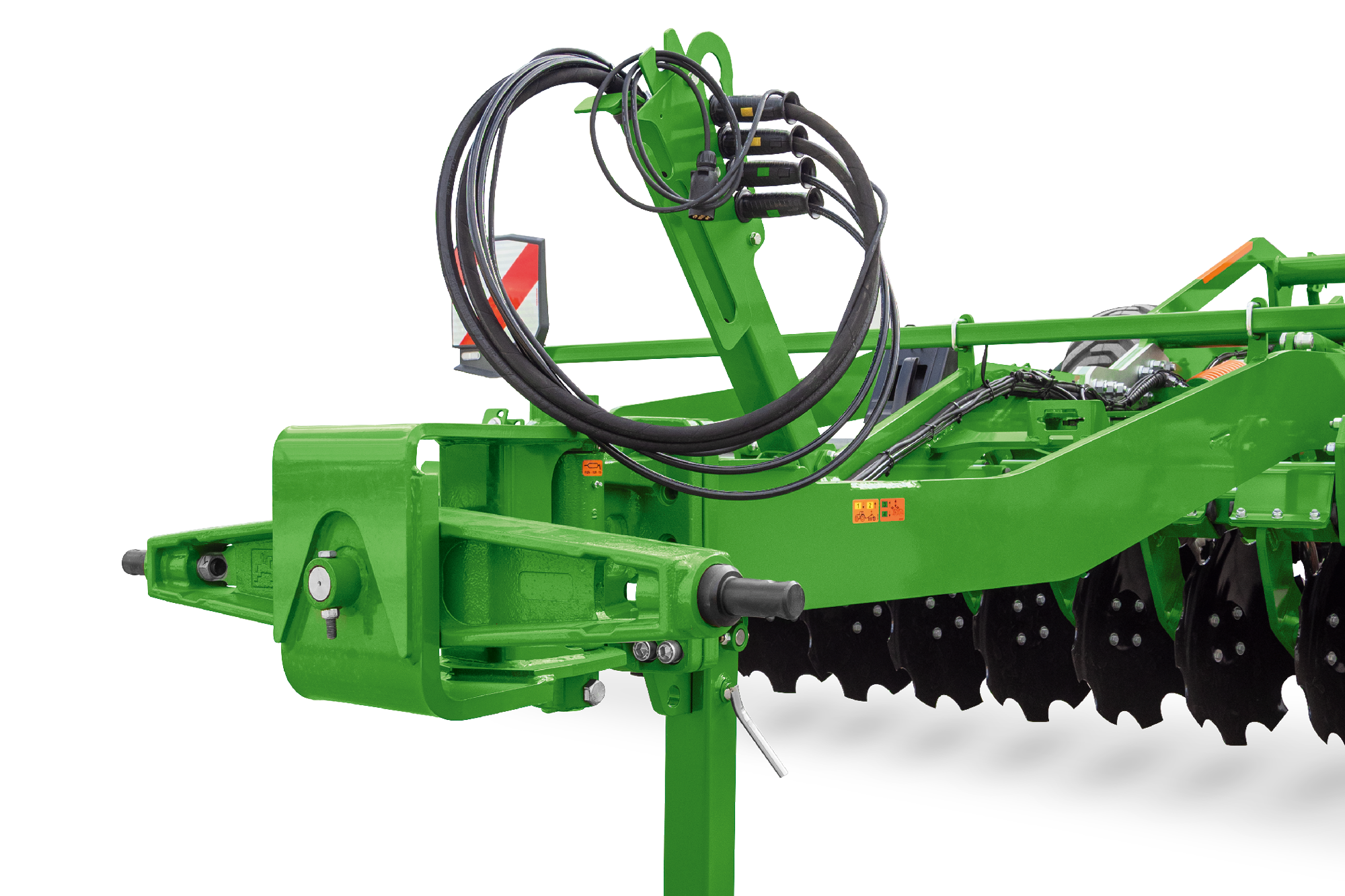

• Exact depth control via drawbar and rear roller and also the additional support wheels at working widths from 6 m
• The right roller for every soil type

Smooth running

To ensure that the implement runs smoothly, even at the larger working widths, and operates at a constant depth, additional support wheels are integrated into the implement, from a working width of 6 m. A track loosener is also mounted behind each wheel, so that the wheel tracks are loosened again.

1. Inner support wheels
