Teres 300 mounted reversible plough

The uncluttered hose rail enables optimum hose routing to the tractor. So nothing stands in the way of quickly attaching the plough. The hose rail sits completely behind the headstock in the working position.

The hollow, over-dimensioned turnover shaft on the Teres 300 with a diameter of 130 mm allows for 2 equally sized bearings. This markedly increases durability. At the same time, the turnover shaft enables clean routing of the hydraulic pipes without the hoses being damaged.

The bearing-mounted ProtectShaft cross-shaft with integrated lower link balls ensures low levels of wear and maximum durability. The pivot bearings have a dampening effect and protect the plough on the headland and when driving on the road. Thanks to the integrated balls, the durability of the cross-shaft is increased markedly on account of the larger diameter. The cross-shaft with a fixed pin including lower link balls and Walterscheid clamp type guide cones is available as an alternative.

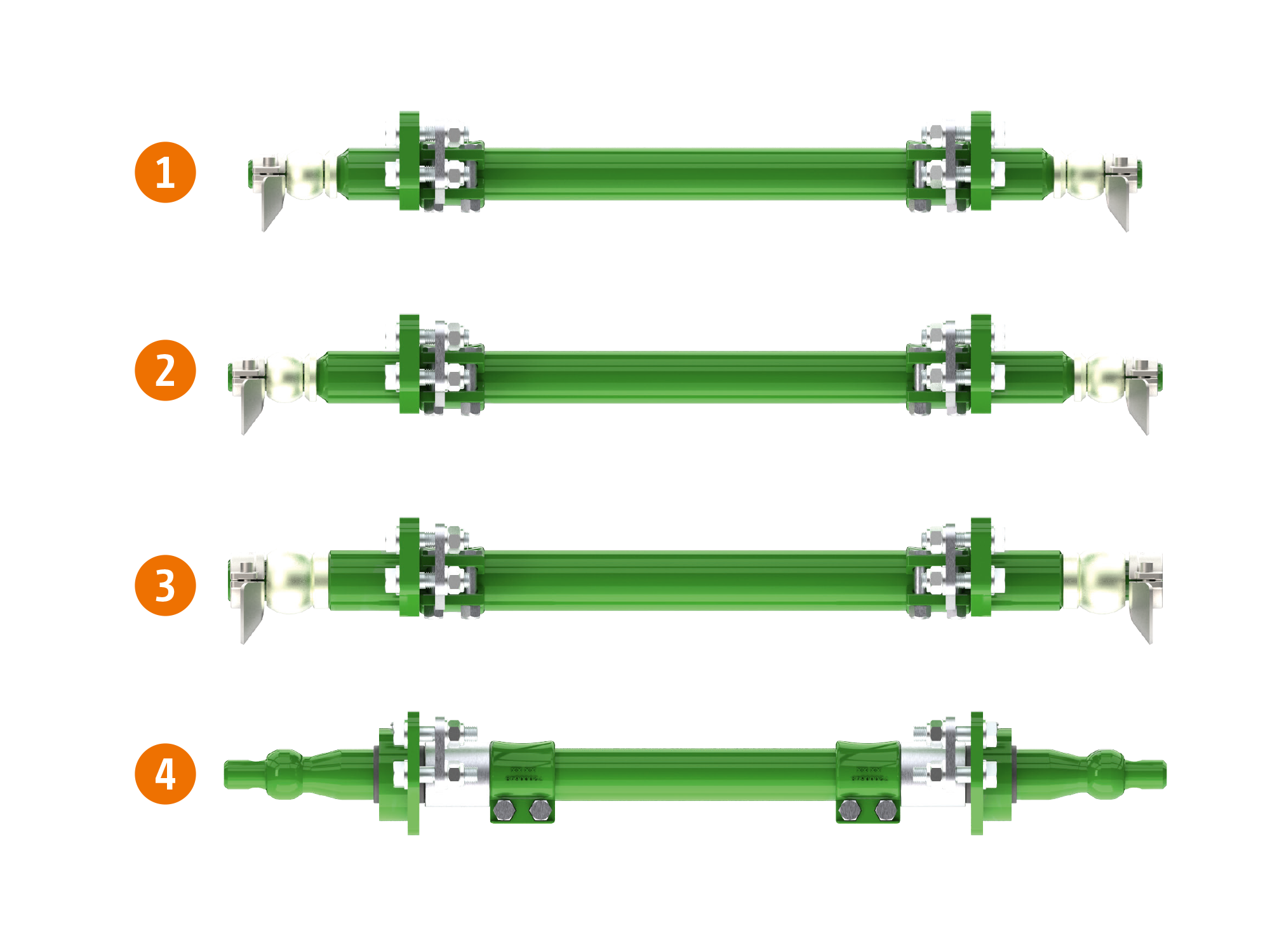

1. Cat. 3N with cylindrical pins
2. Cat. 3 with cylindrical pins
3. Cat. 4N with cylindrical pins
4. Cat. 3 with integrated balls

Optionally, Teres 300 ploughs can be equipped with a memory cylinder for hydraulic tilt adjustment, which allows convenient adjustment of the plough angle from the tractor seat whilst on the move, via a separate hydraulic spool valve. Specifying the plough with Comfort Click is recommended.
