UX Special trailed sprayer

With the air-assisted injector nozzles, crop protection agents can be applied with very little drift. They are universally usable in all crops and all classifications. Because of the coarse droplet application, these nozzles can also be used in higher wind speeds.

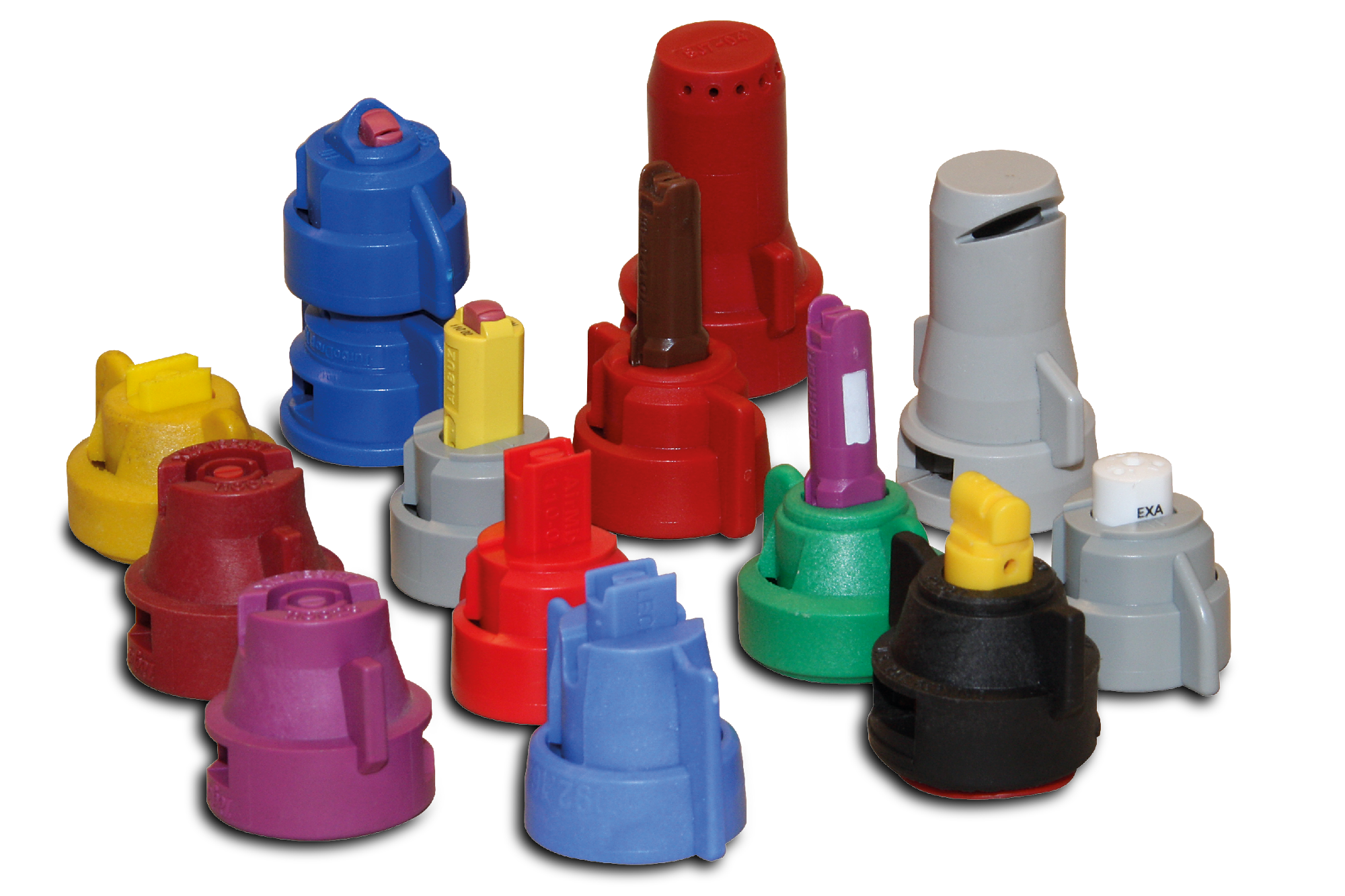

AMAZONE offers a wide range of nozzles from agrotop, Lechler and TeeJet.

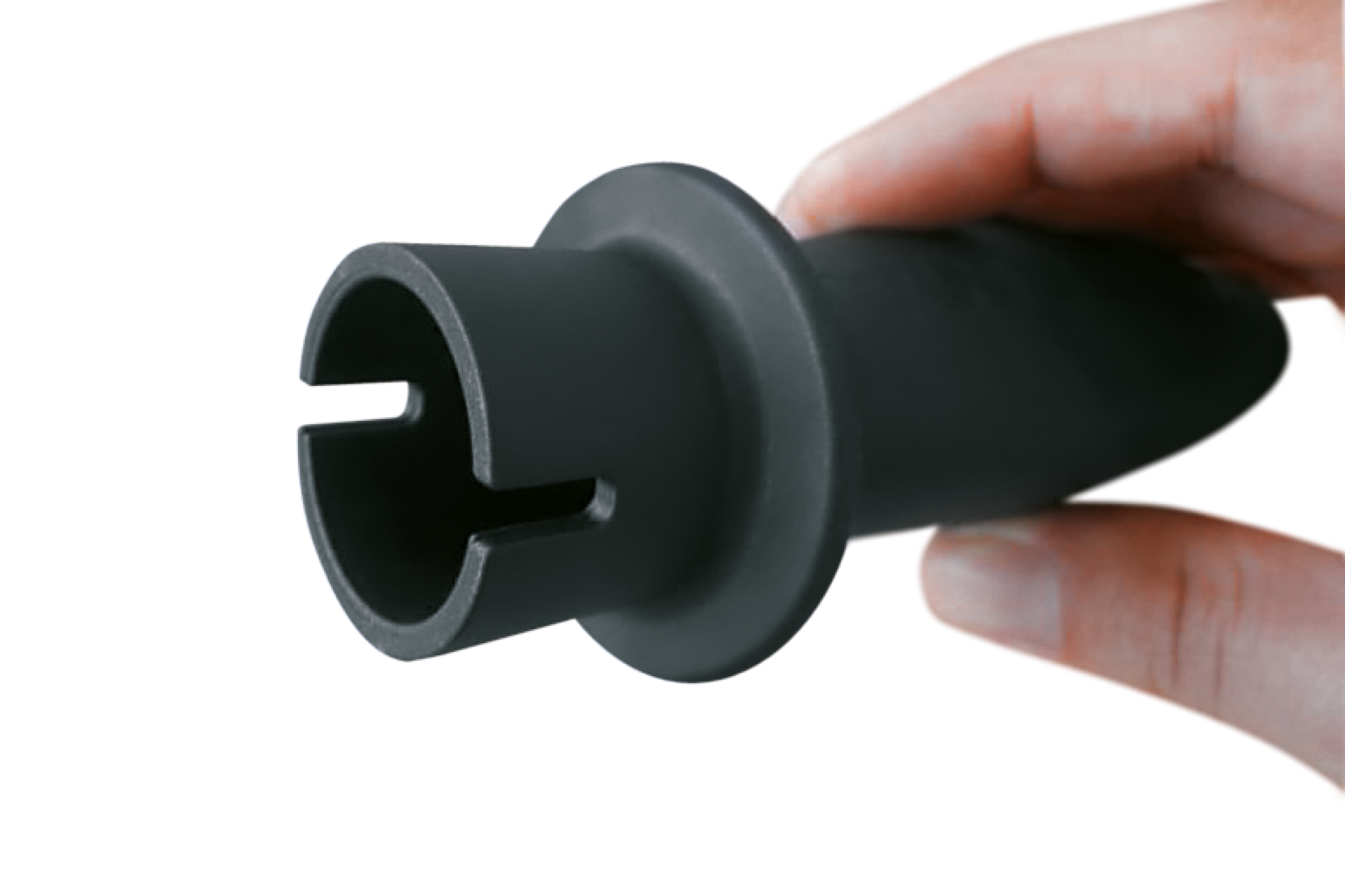

The nozzle bodies with integrated diaphragm non-return anti-drip valves fit up into the boom profiles reliably preventing any dripping at the nozzle. Self-adjusting bayonet fixings ensure a tool-less quick nozzle change. The triple or quad nozzle bodies are suitable for frequent nozzle changes caused by different applications and crops. Nozzle protection tubes, as standard on the outer sections, or, if desired, over the entire boom working width, ensures protection for long injector nozzles and multiple nozzle bodies.

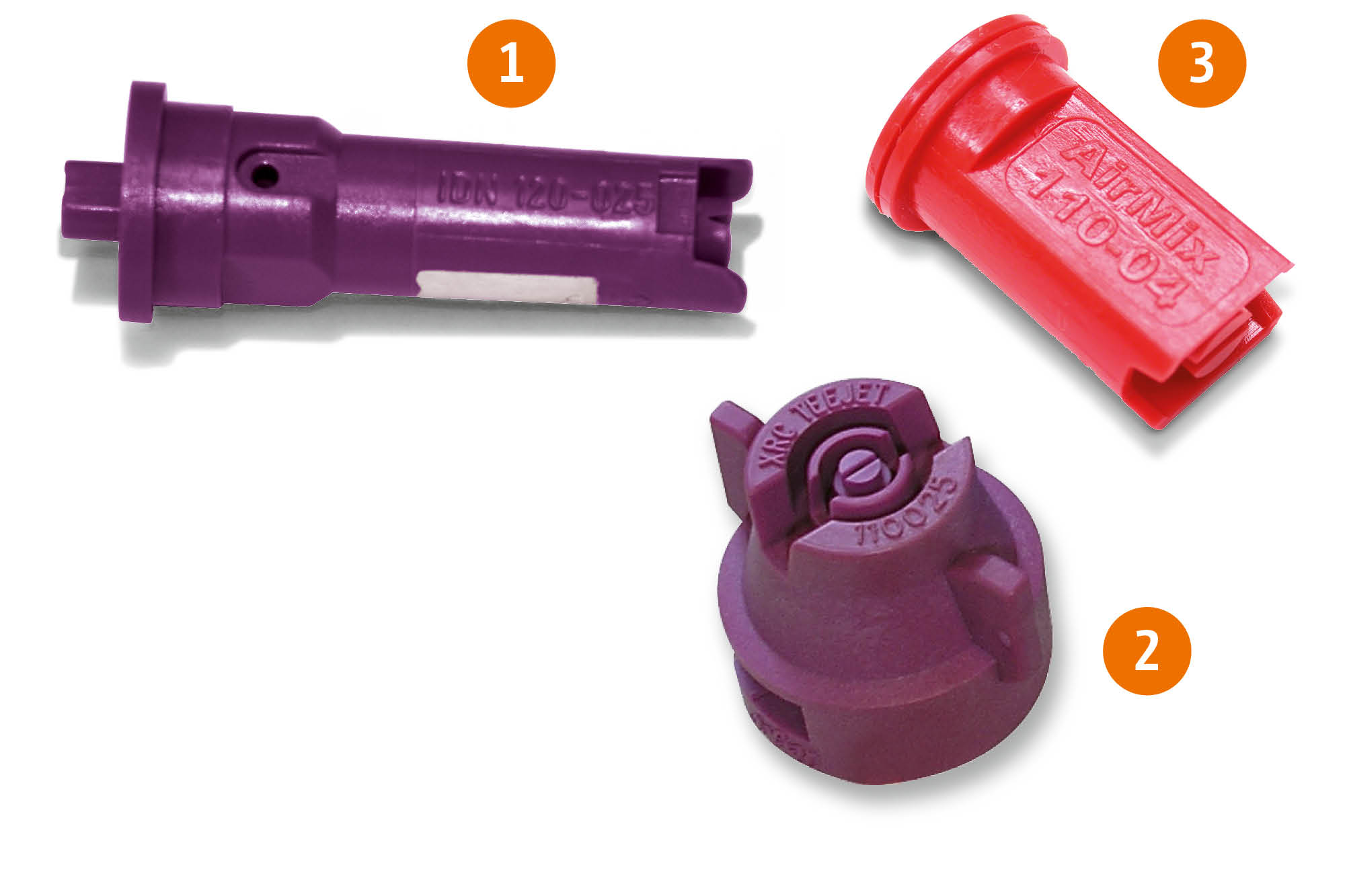

Injector nozzles (ID, TTI) have a relatively coarse droplet spectrum and are particularly versatile with regard to their field of application. A pressure range of 2 to 8 bar is possible.

If coverage quality is at the foreground of the application, the use of standard or anti-drift fine droplet nozzles, such as XR or AD, is recommended. Special care is required here due to their tendency to drift above 3 bar.

A good compromise is provided by the modern ID-K or Airmix compact injector nozzles: These have relatively little drift, but do not have too coarse a droplet spectrum and are operated at 2 to 4 bar.

When it comes to special coverage qualities, the double flat fan nozzle is an interesting alternative: the AVI Twin from Agrotop also produces droplets that are not too fine.

The split spray pattern ensures a more even deposit on the front and back of the plant and is a useful alternative in many applications.

For speeds of more than 10 km/h, the TD HiSpeed nozzle with its asymmetrical spraying angle is becoming a new industry trend.

Additional nozzle switching
In order to extend the normal working width, an asymmetrical nozzle can also be switched on. This is particularly useful if the distances between tramlines are not precise enough.

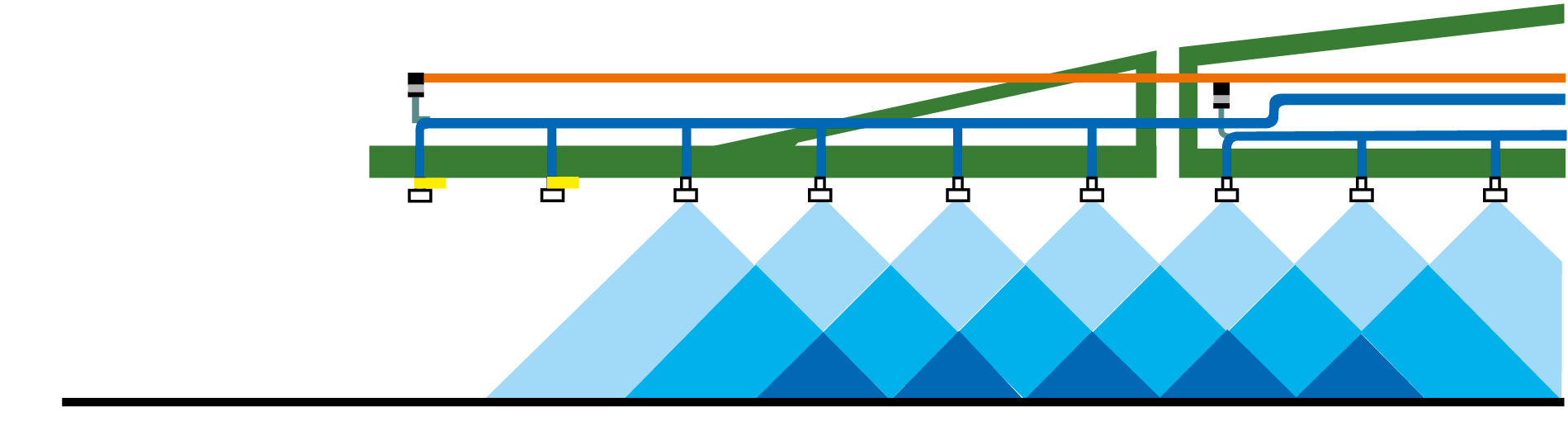

End nozzle switching
If a one metre buffer zone around the edge of the field needs to remain unsprayed due to distance constraints, end nozzle switching can be used.

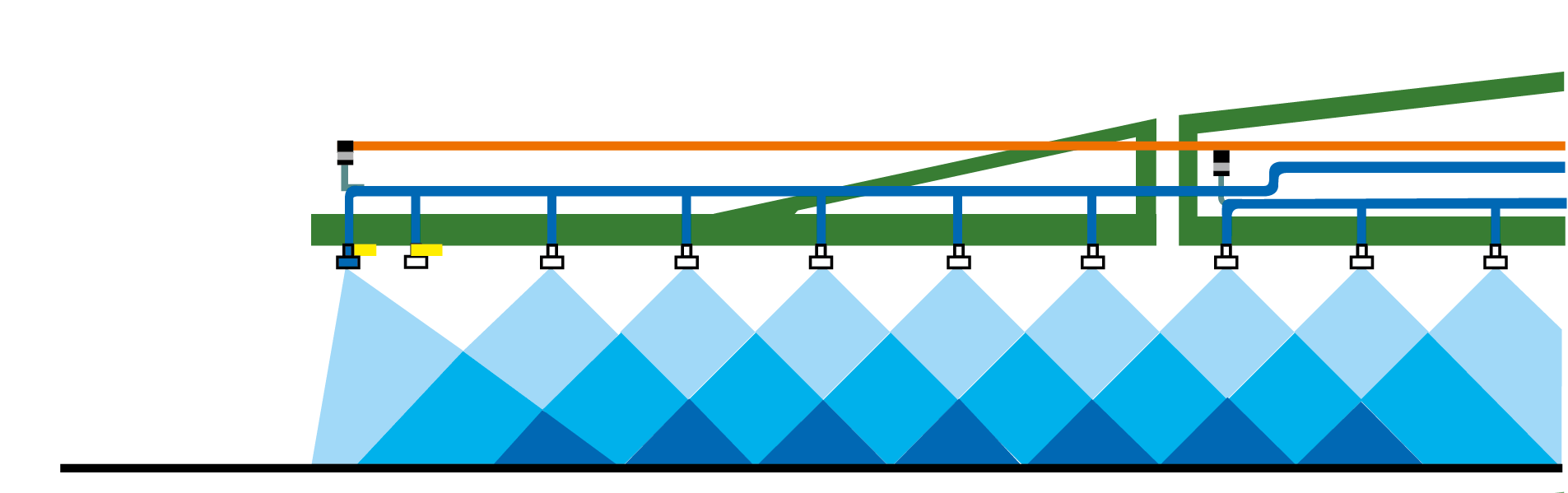

Boundary nozzle switching
For precision border spraying between two sensitive crops, the boundary nozzles can be used to make sure the spray pattern is accurately defined.

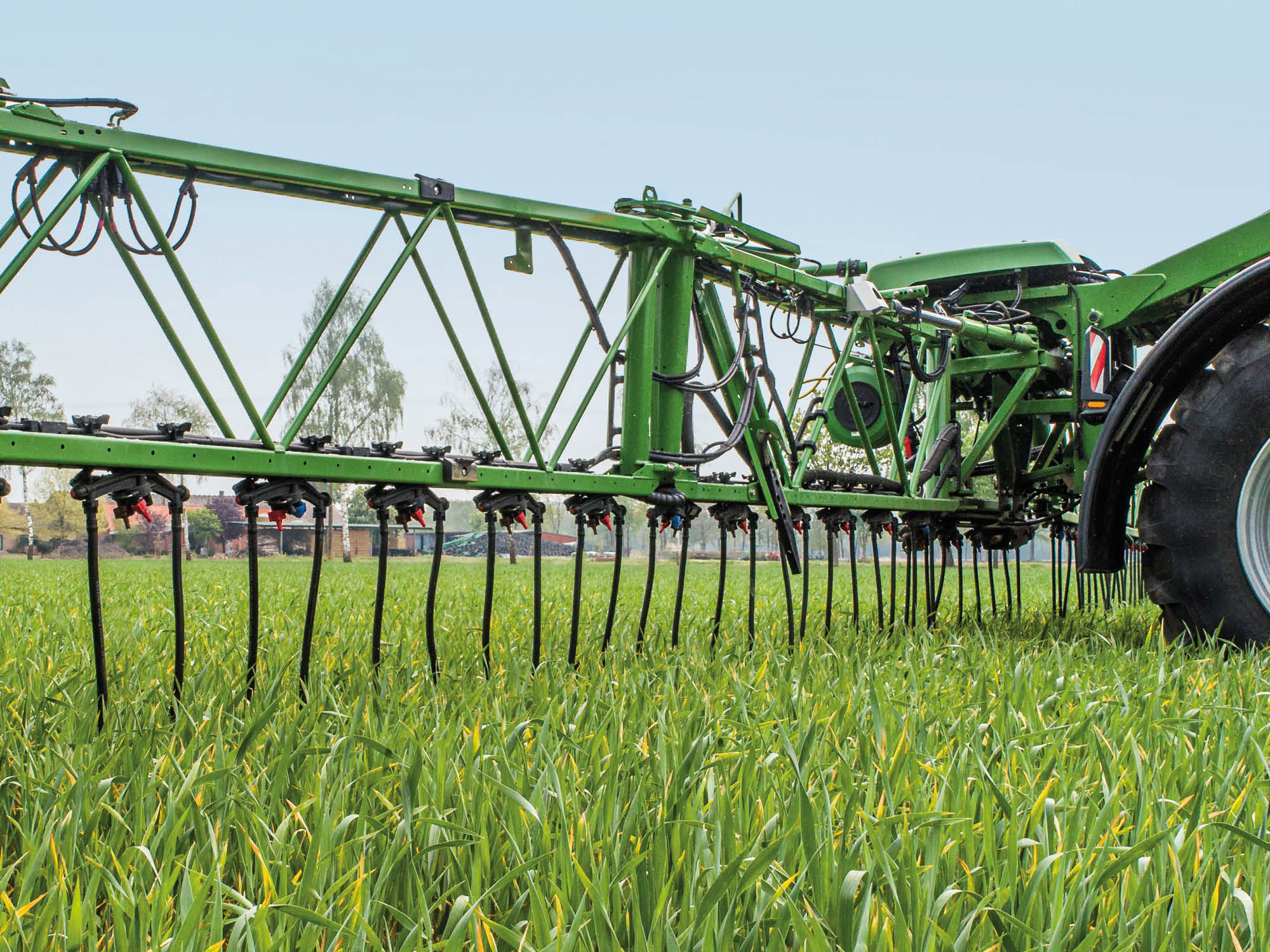

The drag hose equipment for Super-S2 booms consists of an additional spray line unit and a drag hose set.

The drag hose equipment for the Super-L boom consists of a drag hose set and can be combined with an AmaSwitch 4-fold nozzle body or AmaSelect as well as an extension kit for 25 cm nozzle spacing.

Stainless steel weights help keep the position of the drag hoses in the crop.

1. Drag hoses on the Super-S2 boom
2. Stainless steel weights on the drag hose

UX trailed sprayers are particularly suited to liquid fertilising: the use of high grade plastic material, a good paintwork and the virtually exclusive use of stainless steel ensures a long life even with liquid fertiliser operation.

Elegant solutions for successful under-leaf spraying are also possible in combination with AMAZONE crop protection sprayers. For example, the Dropleg system from Lechler is a light and robust under-leaf spraying system for the Super-S2 boom which hangs freely between the rows.

Three-hole or seven-hole nozzles or FD sluice nozzles are also available on request for the coarse droplet application of liquid fertiliser.
