UX Special trailed sprayer

All drawbars are provided with the drawbar shock absorbance system, an important design element in the UX. Minimising the to and fro movements between frame and drawbar it also protects the booms and prevents any rocking movement of the tractor keeping the operator comfortable.

1. Spring damping element

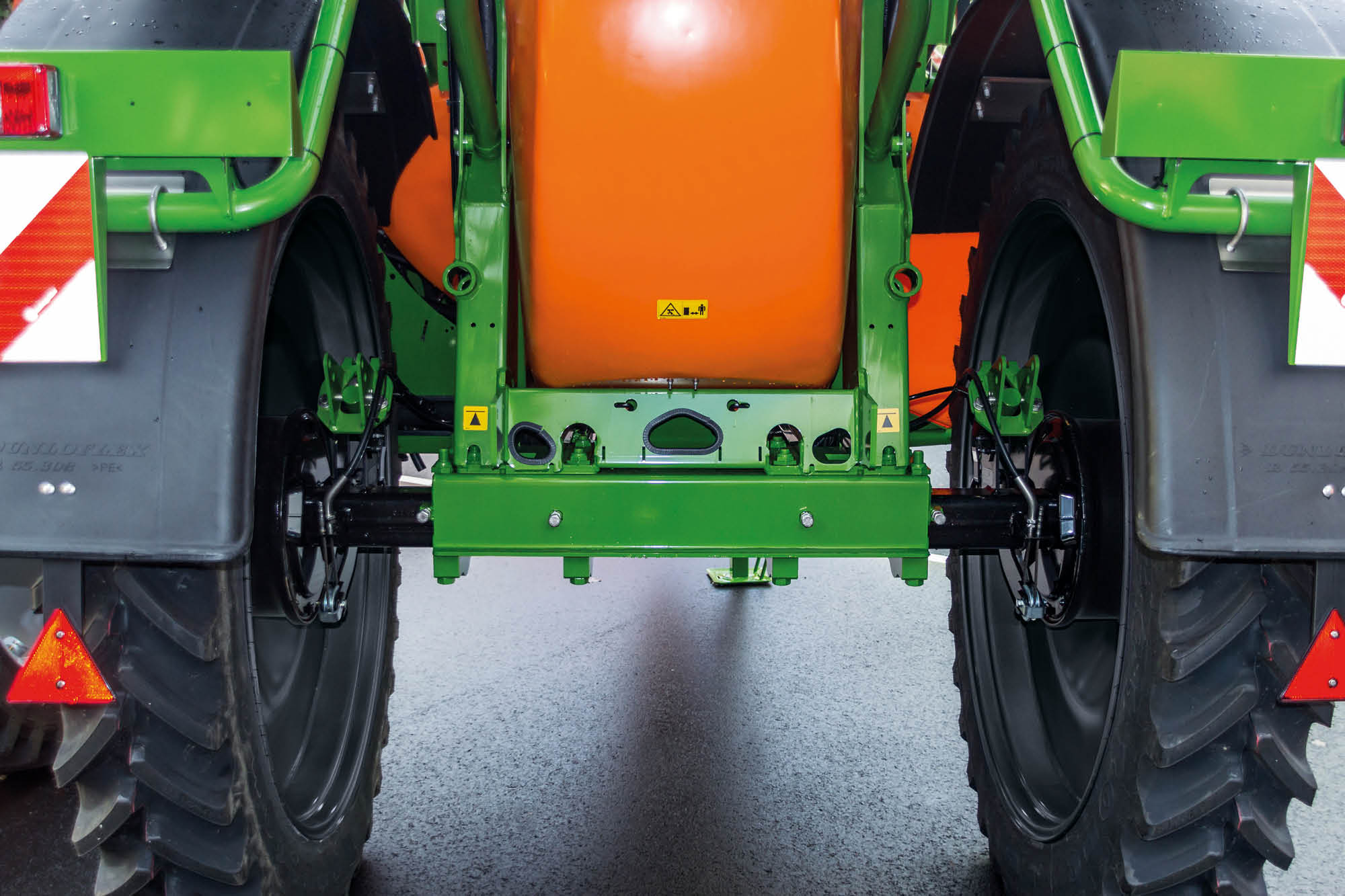

The wide variety of axles offer the right solution for every requirement.

The benefits:

• Tyre sizes up to 520/85 R46 (2.05 m diameter) possible
• Ground clearance up to 82 cm

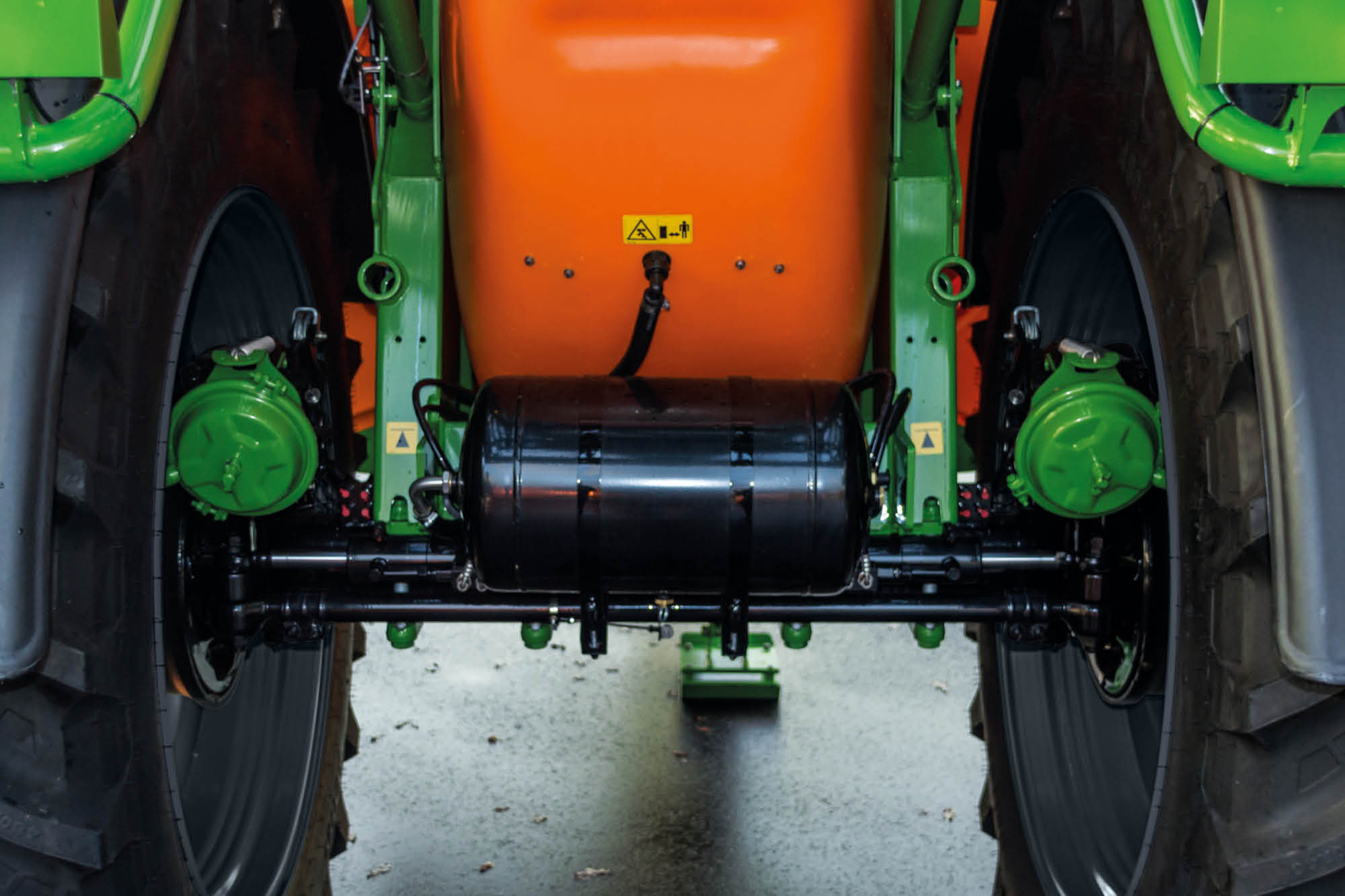

• Permissible speeds of up to 60 km/h with the automatic
• load-dependent braking regulator (ALB)

The options:

• Fixed axles with track widths from 1.50 to 2.25 m – two track widths are possible by reversing the wheels.
• Adjustable axle with infinitely variable track width adjustment from 1.50 m to 2.25 m for the UX 3200 Special and the UX 4200 Special
• AutoTrail axle steering

The AutoTrail axle steering

• “When the wheels are turned in the field, hardly any steering forces are transferred to the booms. Therefore the steering is continuously active in the field – even when on a straight run. Then if the tractor steers, the wheels of the sprayer are immediately also steered. How smoothly this happens we were able to see during operation. It didn’t matter whether we drove fast or slowly, nothing wobbled on the boom when turning.”
  (”dlz agrar magazine” – Test report “Safe in the track“· 06/2011)

For the UX Special, in boom widths up to 30 m, there is the AutoTrail drawbar steering when working on level ground. Alternatively, the steering drawbar can also be controlled by the hydraulic drawbar control, for instance when working in row crops.

• Optional for the UX Special in boom widths of up to 30 m

The AutoTrail axle steering provides the driver with the utmost comfort and ensures an especially smooth boom ride and high stability. The track-following capability, particularly when in the reversing position, is outstanding. This steering of the axle is also possible in the folded-in position.

• Optional

1. Inner turning circle

AutoTrail steering ensures an intelligent, track-true steering behaviour and can be easily calibrated for any tractor type. The AutoTrail steering systems can be activated at any time and can be oversteered using manual readjustment on slopes. Especially helpful in narrow field entrances is, with the Auto-Trail steering, the ability to activate the steering even with the booms folded.

• With steering angles of 20 degrees, the steering axle of the UX Special trailed sprayers can also negotiate tight bends with ease.

As an option, AutoTrail steering can be equipped with a tilt sensor for fully automatic slope compensation. As the steering angle, depending on severity of the terrain, has to be possibly adjusted, the intensity of the setting can be altered at any time via the joystick.

• Optional

1. Slippage downhill with the slope compensation deactivated
2. Activated slope compensation of the AutoTrail steering
