The width adjustable axle can be specified unbraked or equipped with a dual-circuit compressed air, or hydraulic braking system, as required. The track width can be infinitely adjusted to between 1.50 and 2.25 m. 40 km/h type approval on request.

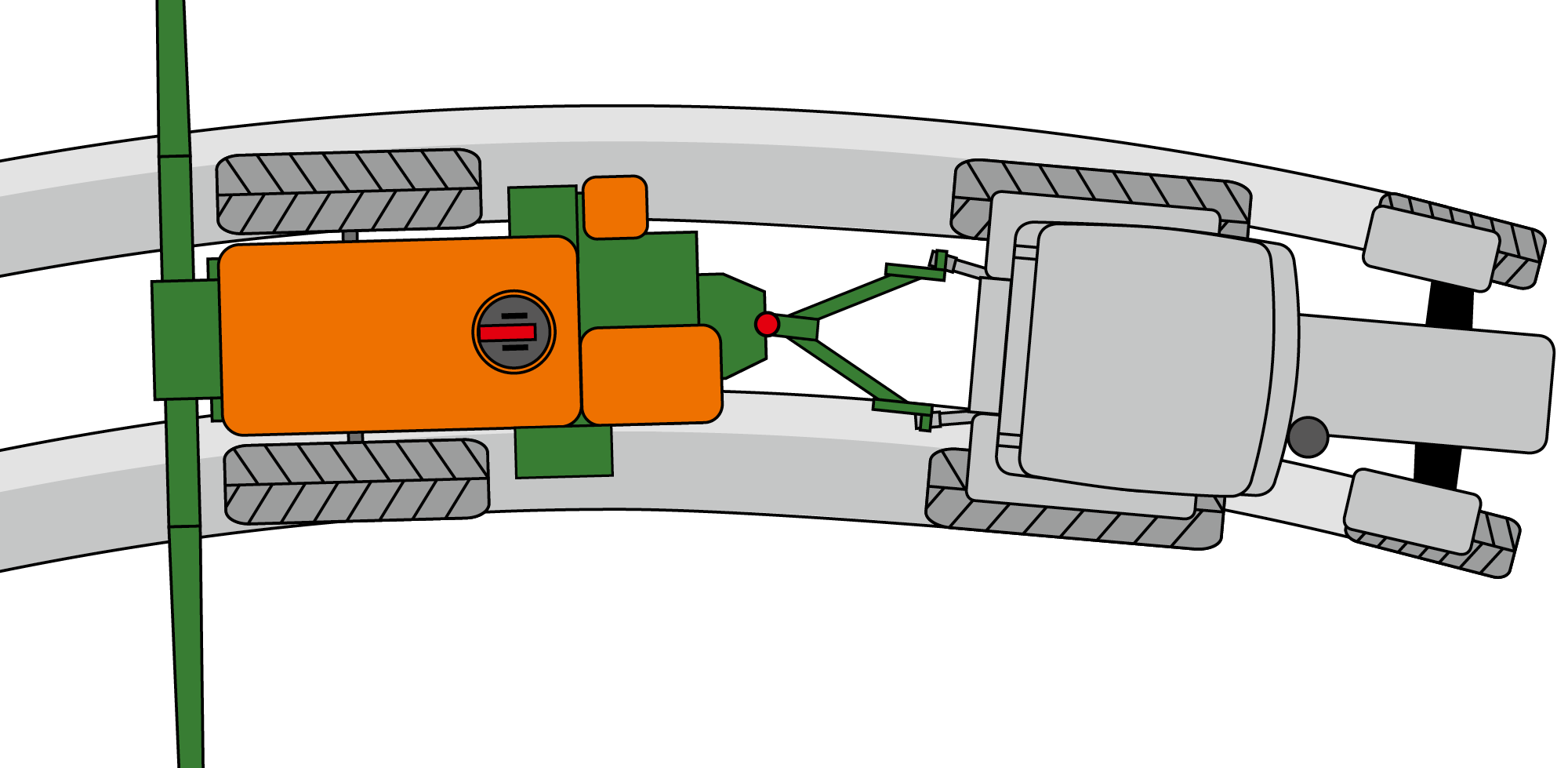

SelfTrail and UniTrail steering systems react directly to the steering action of the tractor. The following sprayer axle oversteers by a little when coming in into the turn. The tracking quality is completely independent from forward speed.

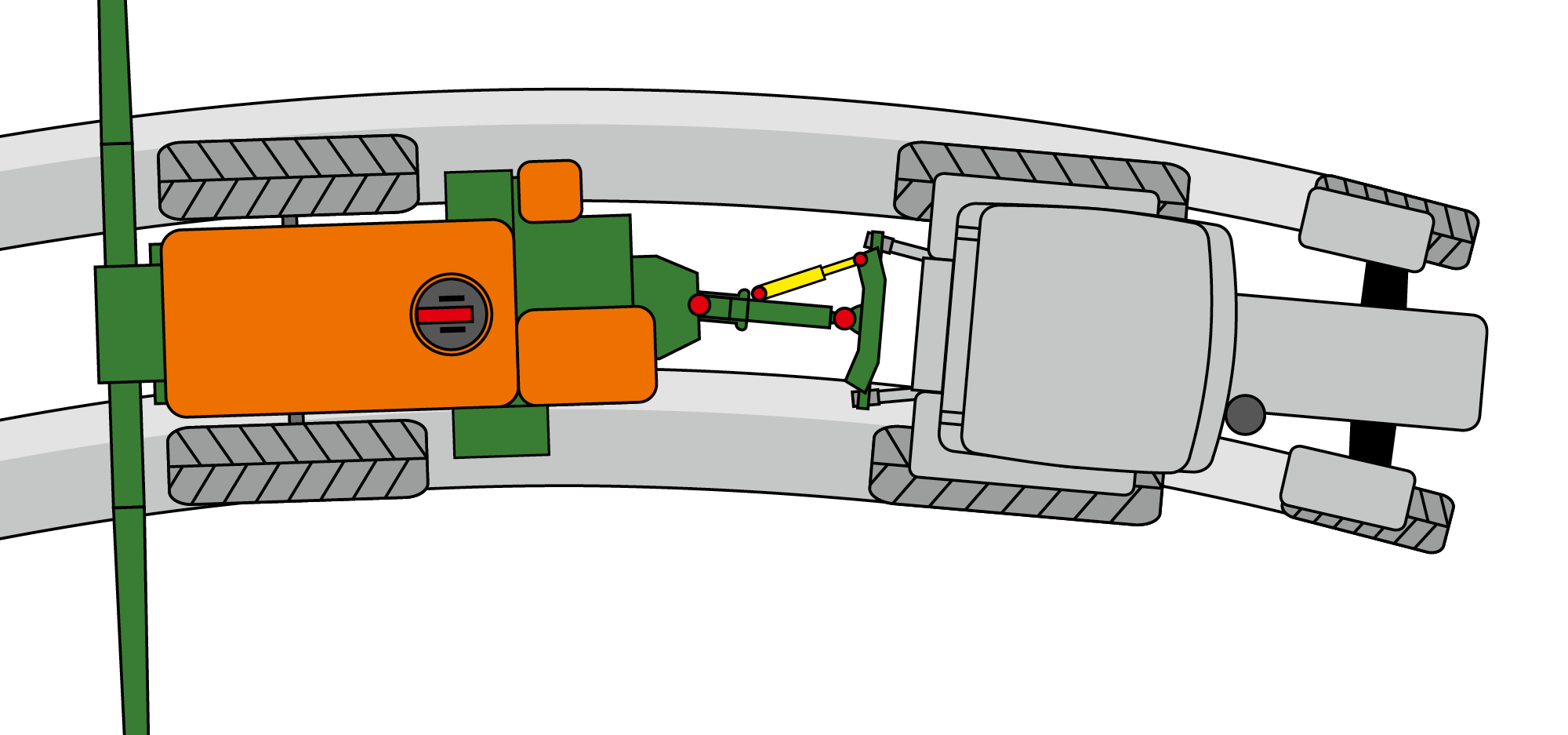

The UniTrail steering system can be quickly converted ready for road transport. Optionally, a hydraulic drawbar steering is available for when working across slopes.

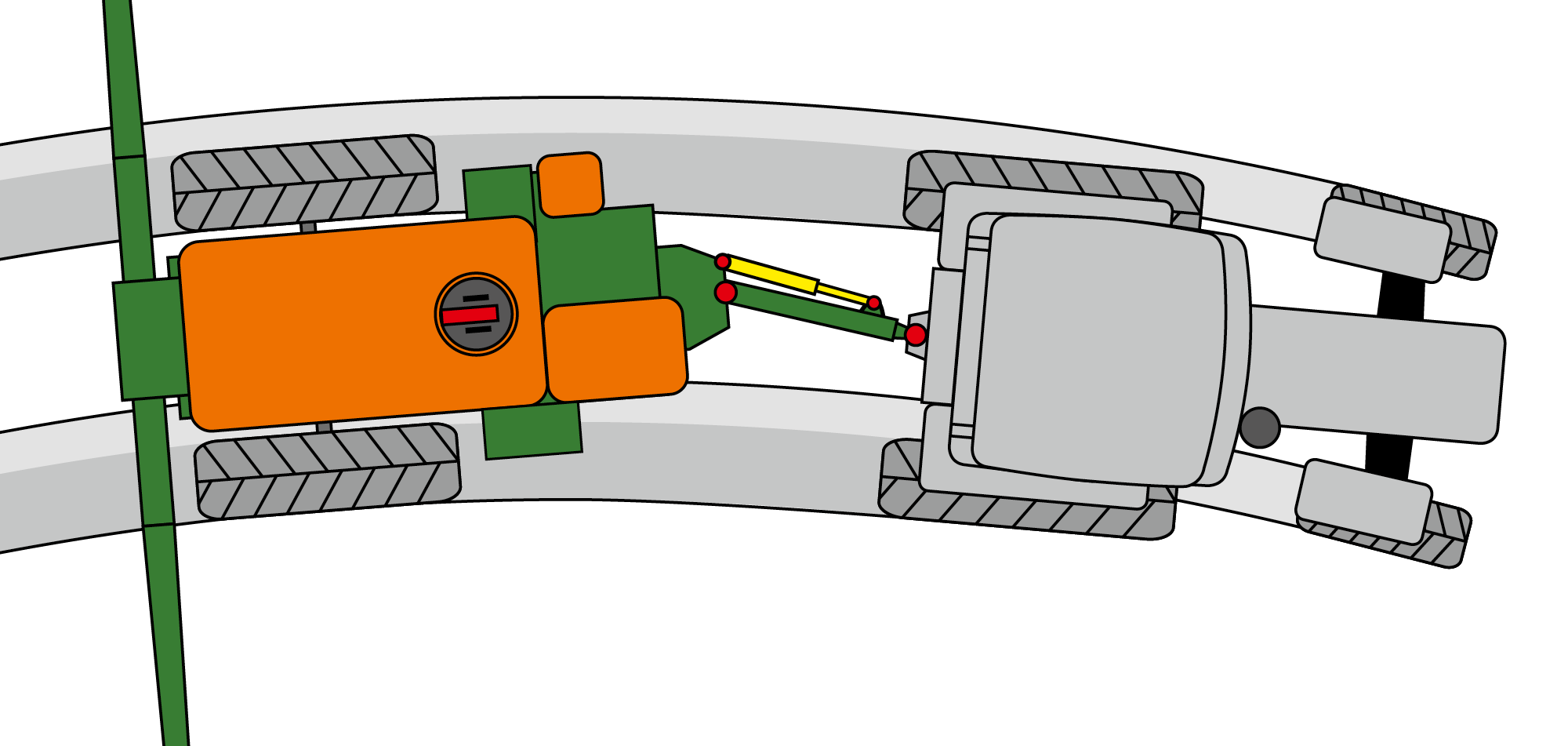

AutoTrail steering systems are software-controlled and can be calibrated precisely to give near-perfect track following. In work, the steering system can either be manually overridden or switched off via the AmaPilot multi-function joystick.
AutoTrail drawbar steering is available for both the straight drawbar and the hitch drawbar. A variety of towing eyes offer a solution to all tractor drawbar options.
As an alternative to the automatic slope correction adjustment with AutoTrail, there is, on this drawbar, also a manual hydraulic drawbar steering system for when working across undulating terrain.

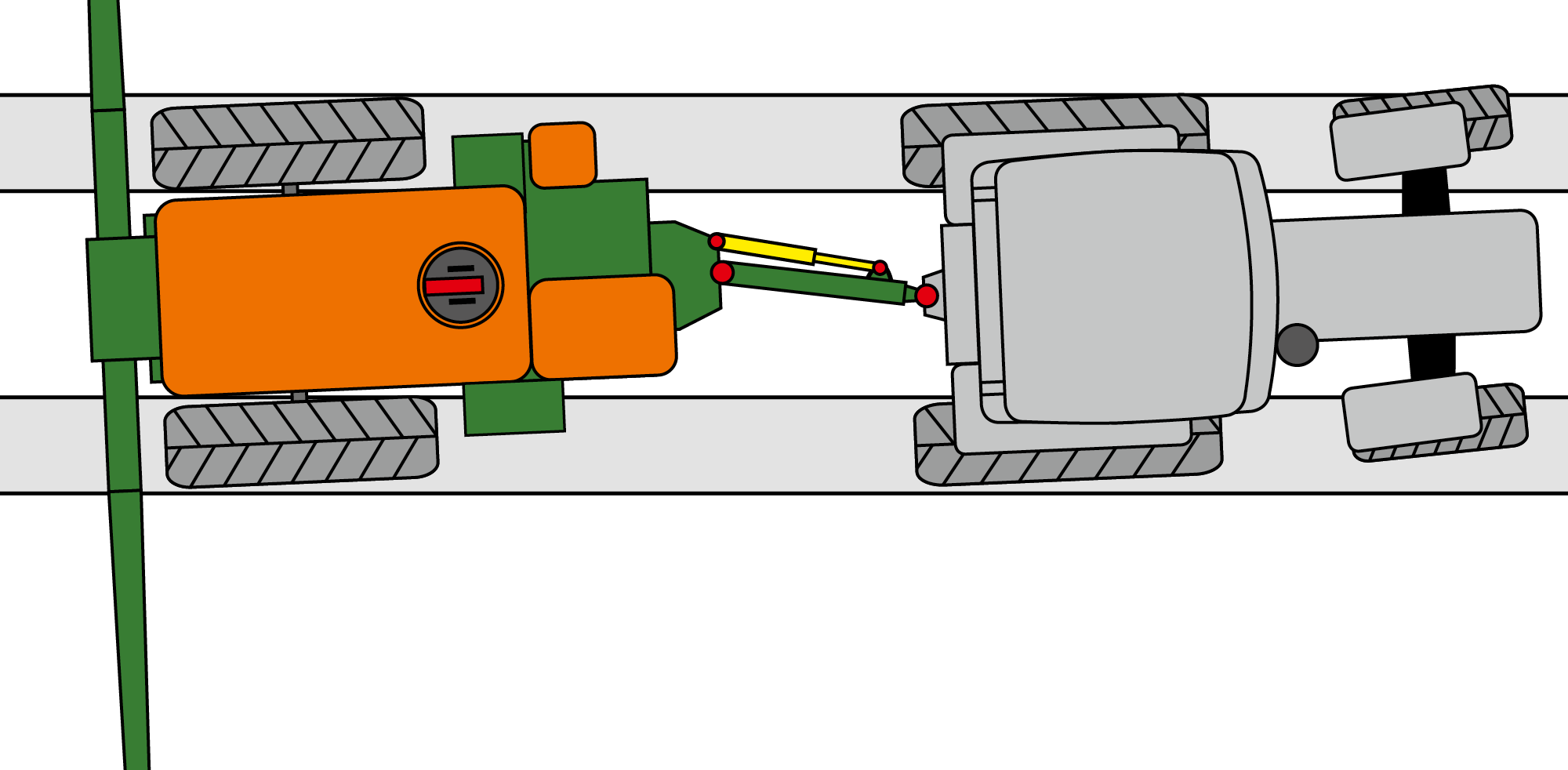

Automatic slope correction adjustment for AutoTrail
