UG trailed sprayer

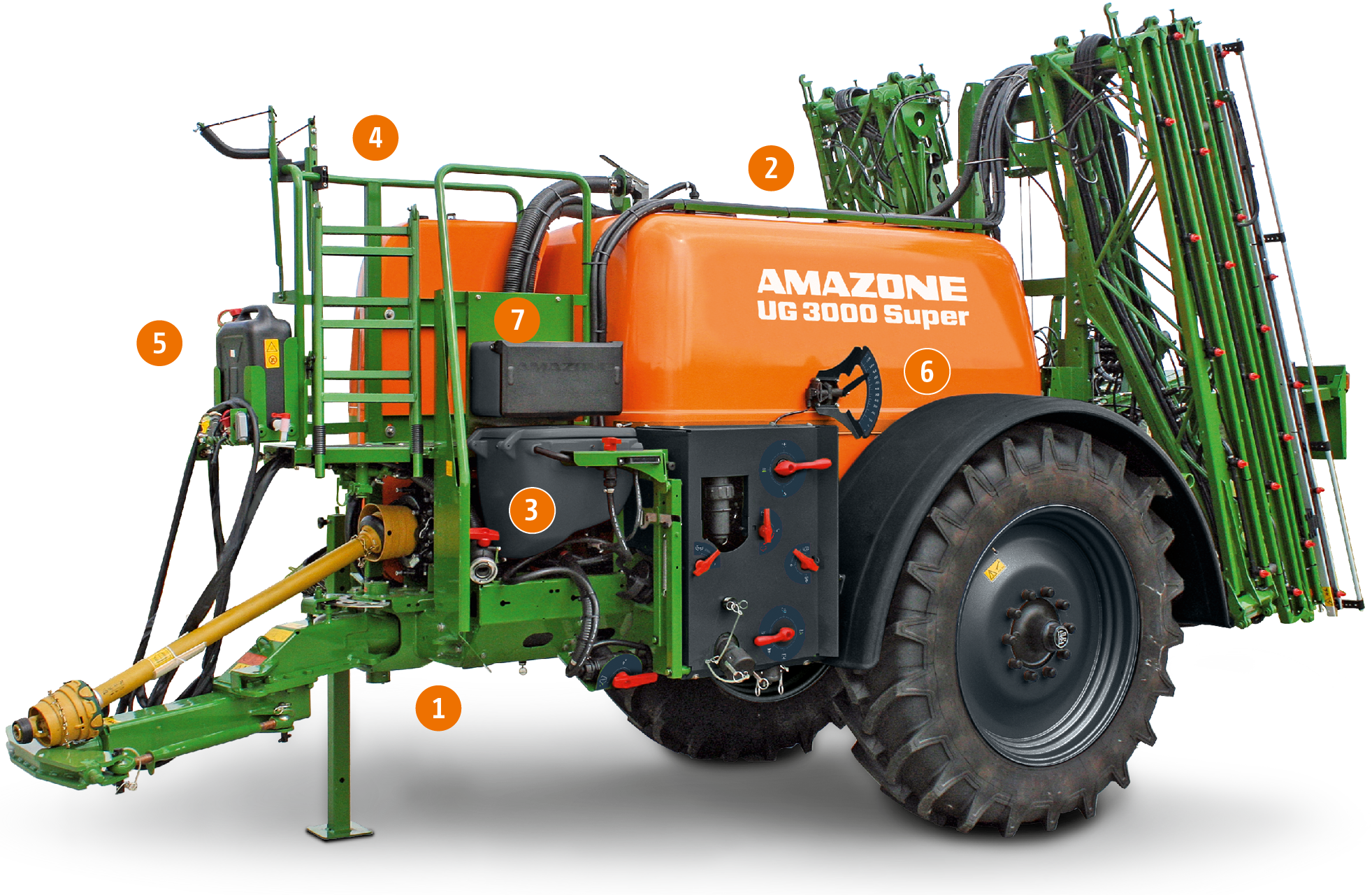

1. Robust wide profile steel frame in which all hoses are routed so that they are protected.
2. Compact tank with smooth internal and external walls.
3. Induction bowl with Power-Injector for the induction of large quantities of chemicals and for canister flushing.
4. Large fresh water tank for diluting any residues and for cleaning the sprayer, even when the tank is full.
5. Separate hand-wash tank with a capacity of 20 l.
6. Direct fill level indicator with float and also electronically in the in-cab terminal as standard.
7. Optional clothing locker for personal protection clothing.


Clearly laid out operator station

All control elements are logically and unmistakably arranged directly to the front left-hand side of the sprayer. All the working functions can be quickly intuitively understood thus preventing any operator errors.

The piston diaphragm pumps are particularly reliable, have run-dry protection and are safe for liquid fertiliser. The multiple-cylinder design of the pumps simultaneously ensures an even delivery with a high suction force and smooth operation. The pumps are available with delivery capacities of 250 l/min (Special) or 370 l/min (Super). The 370 l/min pump setup is a tandem pump, where the spraying pump works together with a separate agitation pump. The tandem pump is ideal for farms with high application rates.

The suction filter can be easily accessed via the simple AMAZONE bayonet coupling without the loss of spray liquid.

The sprayer can be filled with the help of a suction hose (3") with non-return valve or bowser fill connection with C-coupling. Utilising the additional injector that can be activated, means that filling rates of up to 400 l/minute can be achieved.

1. Filling via the suction hose
2. Bowser filling (C coupling or Camlok coupling)

The induction bowl is able to quickly and reliably dissolve powdered agents and large quantities of urea through the incorporated rinse ring and, at the same time, to quickly flush them in with the power injector.

A rotary nozzle ensures that the spraying agent canisters are easily and conveniently cleaned to make full use of the contents. The closed induction bowl can be flushed for self-cleaning. The fill level indicator is always in view.

Control of the spray liquid system

The AMAZONE Comfort-Pack controls the most important functions of the liquid system.

• Automatic fill stop
• Agitator regulation
• Automatic, in-cab remote cleaning

Depending on the fill level, the intensity of the hydraulic agitator is reduced until completely shut off to prevent foaming of the crop protection agent
or to minimise the residual spray volumes. On AMAZONE crop protection sprayers the unsprayed plant protection agent is delivered back via the return flow into the suction system. In this way, any unintended dilution of the spray liquid is prevented. An agitation capacity of 370 l/min is available to achieve perfect results, even with difficult mixtures and high concentrations. The 2 interior cleaning nozzles provide an optimum cleaning performance inside the tank. The Comfort-Pack automatically ensures that the agitation will be rinsed.

Minute final residual volumes of less than 6 litres and the large fresh water contents ensure a very effective cleaning procedure whilst still in the field.

1. Comfort-Pack
