AMAZONE SEED DRILLS – THE PERFECT CHOICE
The perfect choice – AMAZONE harrow-mounted seed drills for true professionals
Professionals farmers need reliable, high-performance machinery. The aim: precise, high-quality seeding at high speeds, combined with user-friendly operation. The soil tillage tools, rollers, coulters and harrows from AMAZONE that form the basis of the Centaya and Avant seed drills deliver exactly that – high-performance seed drill combinations and the perfect choice for professional farmers.
- High-performance soil tillage tools for a variety of applications: optimal seedbed preparation is done using the KG rotary cultivator, the KE rotary harrow or the CombiDisc mounted compact disc harrow.
- Reconsolidation: a choice of wedge ring or trapezium ring rollers ensure ideal reconsolidation in strips.
- QuickLink: the QuickLink quick-coupling system makes it easy to hitch and unhitch the soil tillage tool, roller and seed drill, thereby significantly reducing machine downtime.
- Choice of coulter: high-performance RoTeC single disc or TwinTeC double disc coulters place the seed and/or starter fertiliser precisely in the soil, ensuring uniform field emergence.
- Operation: operation is simple and intuitive, either directly on the implement via the SmartCenter or from the tractor cab using the AmaTron 4 ISOBUS terminal. The implements can be quickly and easily adjusted to suit changing conditions.
- Multi-chamber hoppers: various metered materials can be placed in the seed furrow, either simultaneously, or at different depths using the Multi-Shoot process.
Whatever the application, our innovative seed drill combinations provide you with the ideal tailor-made, professional solution. We will be pleased to advise you.
Outstanding work – Centaya and Avant high-performance seed drills

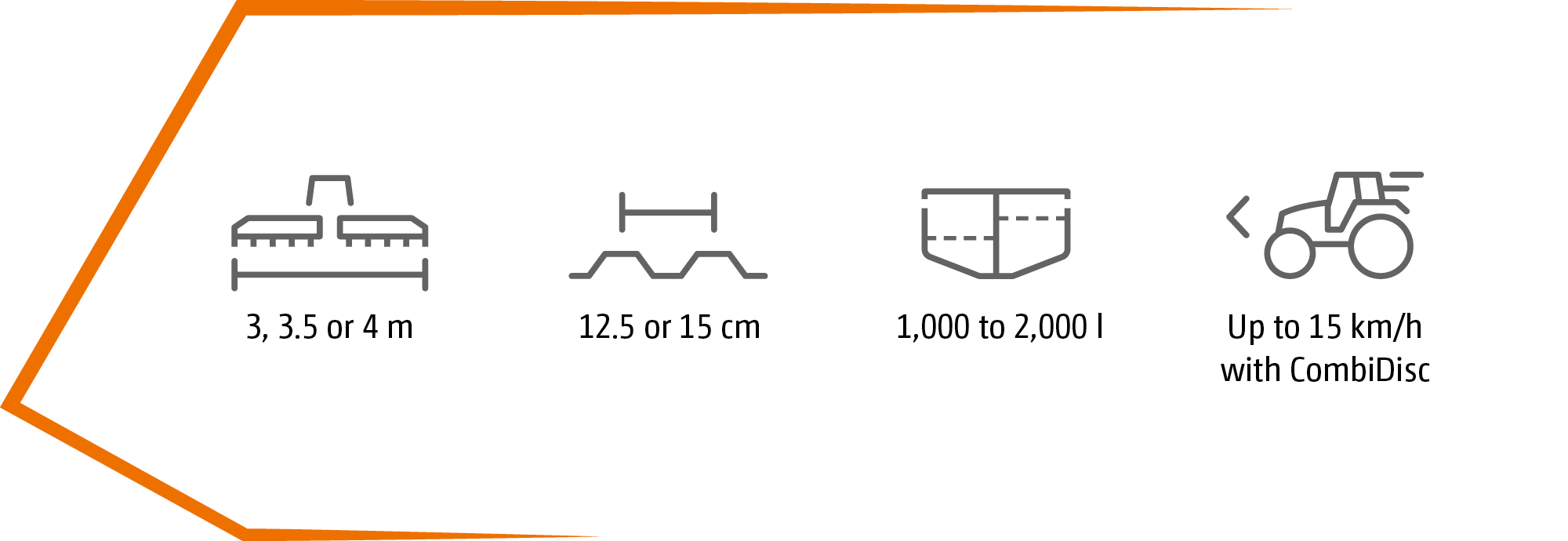

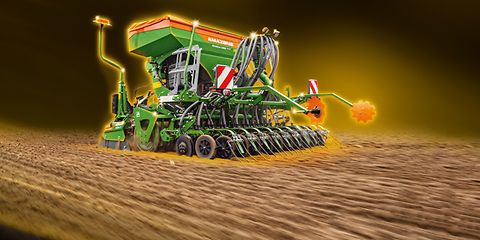

Centaya harrow-mounted pneumatic seed drill
- Agronomical benefit 1: maximum precision in the placement of multiple different metered materials using the multi-chamber hopper and TwinTeC double disc coulter using the Double-Shoot process – this ensures perfect placement when sowing seed mixes, companion plants or undersown crops.
- Agronomical benefit 2: maximum effectiveness on light soils with the CombiDisc mounted compact disc harrow and working speeds of up to 15 km/h.
- Agronomical benefit 3: flexible sowing tailored to any soil type can be easily achieved via the use of application maps.

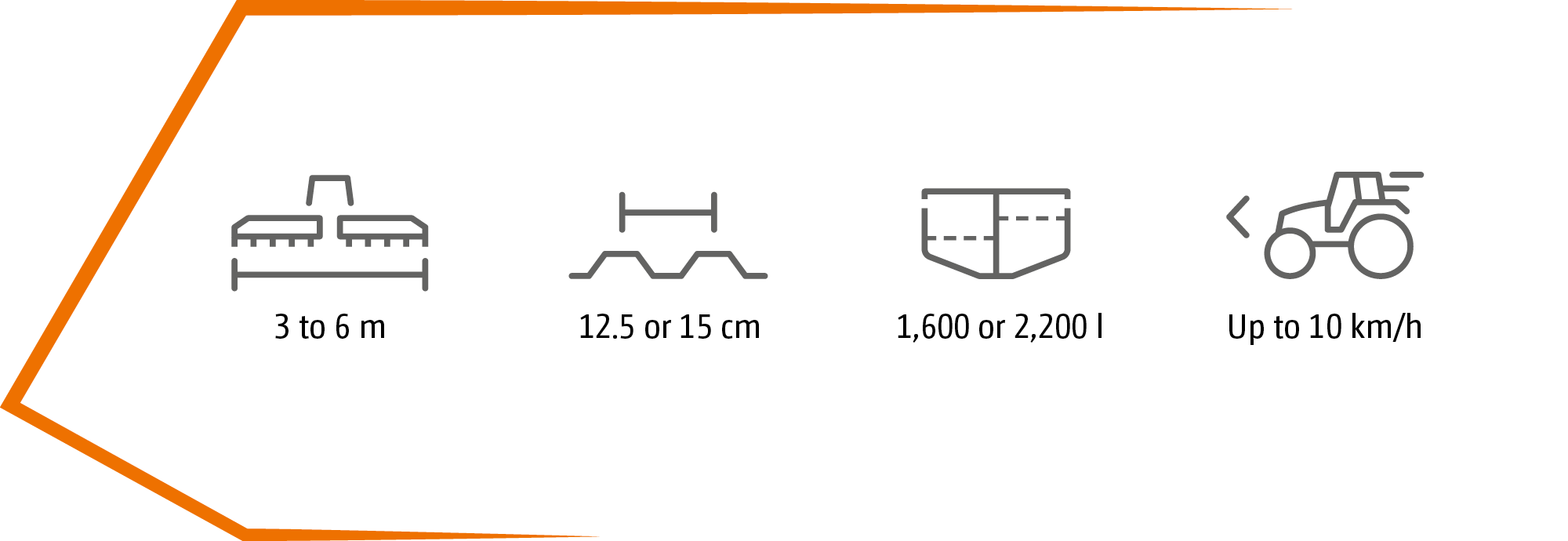

Avant pneumatic seed rail combination with FTender mounted front hopper
- Agronomical benefit 1: optimum weight distribution across both tractor axles ensures a good carrying capacity and easy manoeuvrability on the headland, even in wet conditions, as well as comfortable road travel.
- Agronomical benefit 2: the Avant seed rail can be easily exchanged for a Precea seed rail, allowing the FTender not only to be used universally for seeding or base fertiliser application but also in combination with other seed drills, soil tillage machines or a hoe.
FTender mounted front hopper – the all-rounder
- With a hopper capacity of 1,600 litres or 2,200 litres
- Single or twin tip, with the hopper split in a ratio of 50:50
- Versatile and suitable for use with other implements, such as the Venterra hoe, Centaya seed drill or Precea precision air seeder, Catros compact disc harrow, Ceus disc & tine combination cultivator, Cobra shallow cultivator or the Cenius mulch cultivator.
Professional soil tillage
Soil tillage options and rollers

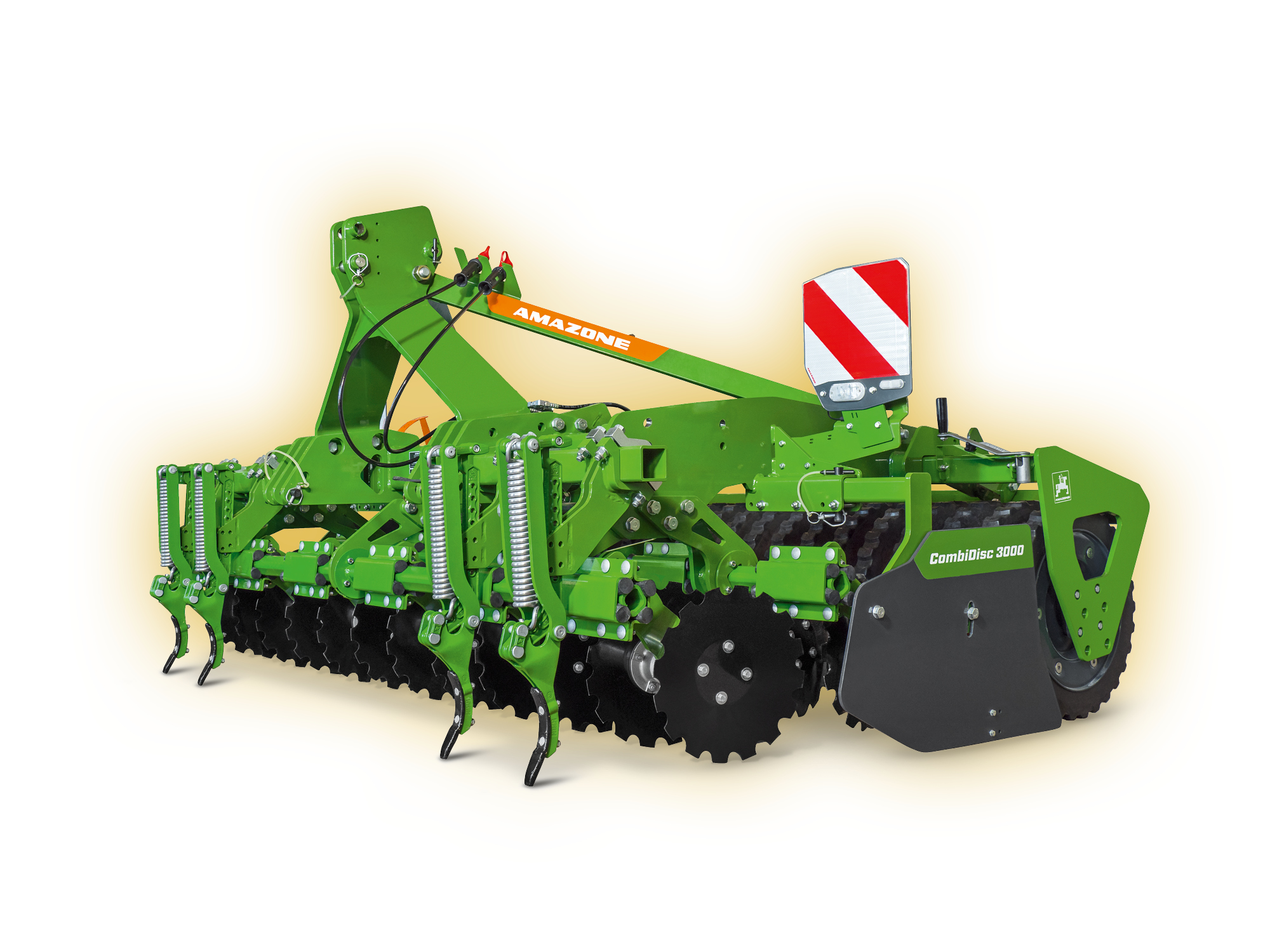

CombiDisc compact disc harrow
- Working widths from 3 m
- Easy to pull, for working speeds up to 15 km/h
- Serrated discs with a diameter of 410 mm
- For tractors from 80 hp to 280 hp
KX Cultimix and KG Cultimix rotary cultivators
- Working widths of 3 m to 6 m
- “On-grip” tines
- Long-Life-Drive system – for extreme loads and a long service life
- Quick + Safe system – the proven quick change tine system and integrated overload protection
- For tractors from 80 hp to 400 hp
Reconsolidation in strips

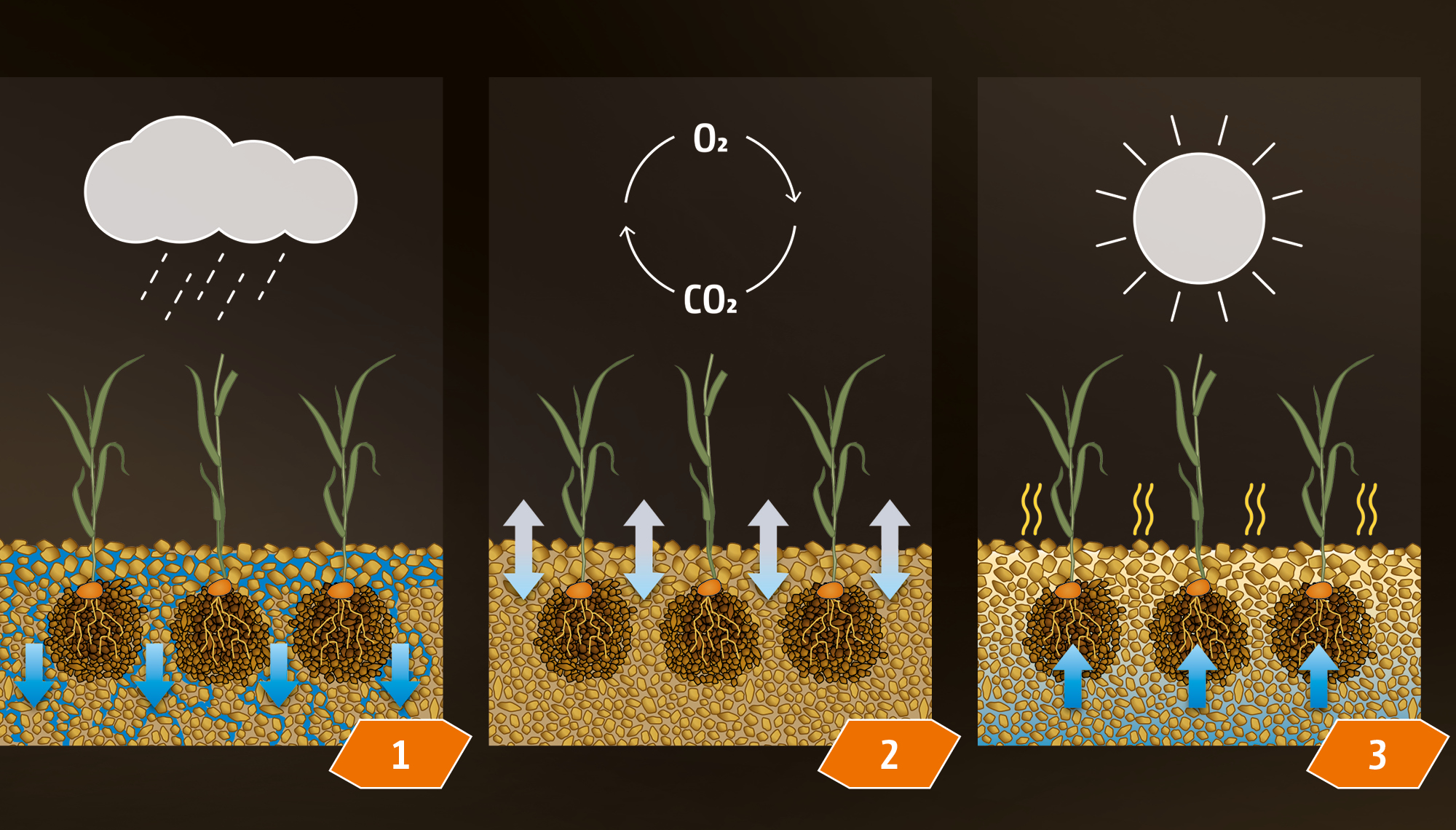

Reconsolidation in strips using a trapezium ring roller or wedge ring roller leaves unconsolidated strips in between the seed rows. In wet conditions, these allow water to infiltrate (1) and facilitate a gas exchange with deeper layers (2). The consolidated strips allow the seed to access water from deeper in the soil = without fully restoring the soil’s capillary action, thereby preventing water from evaporating unnecessarily through the soil surface (3). This is how you can ensure successful seeding and germination, even in adverse conditions!
Maximum cost-effectiveness with high operational reliability
HD pro wearing metal parts, such as the " on-grip” KG tines for the rotary cultivator, are protected with additional hard metal plates made of tungsten carbide to guarantee maximum service life.
TRW trapezium ring roller with Ø 500 mm or Ø 600 mm
- Good carrying ability
- Reconsolidation in strips
KW wedge ring roller with Ø 520 mm or Ø 580 mm
- Universal use in all soils and conditions
- Reconsolidation in strips
KWM wedge ring roller with Matrix tyre profile with Ø 600 mm
- Generates more fine soil in the seedbed
- For an improved self-driving effect
- Reconsolidation in strips
First sow cereals, then maize
QuickLink quick coupling system
Thanks to the QuickLink quick-coupling system, the soil tillage implement can be easily and quickly linked to the various AMAZONE seed drills without the need for tools.
Avant becomes Precea, and Precea becomes Avant
Turn your Avant seed drill combination into a Precea precision air seeder with FTender! The QuickLink quick-coupling system enables the Avant and Precea-AFCC seed rails to be easily exchanged. An FTender, soil tillage implement and choice of seed rails can be turned into 2 high-quality combinations for all high-volume and precision sown crops – for maximum flexibility and cost effectiveness.
Genuine output, in any conditions
A choice of coulter and harrow
RoTeC single disc coulter
- With Exact harrow and central coulter pressure adjustment up to 35 kg per coulter
- High-performance single disc coulter for wet and sticky conditions thanks to a high level of self-cleaning via the depth guidance roller
- For the Centaya Special seed drills and Avant seed drill combinations

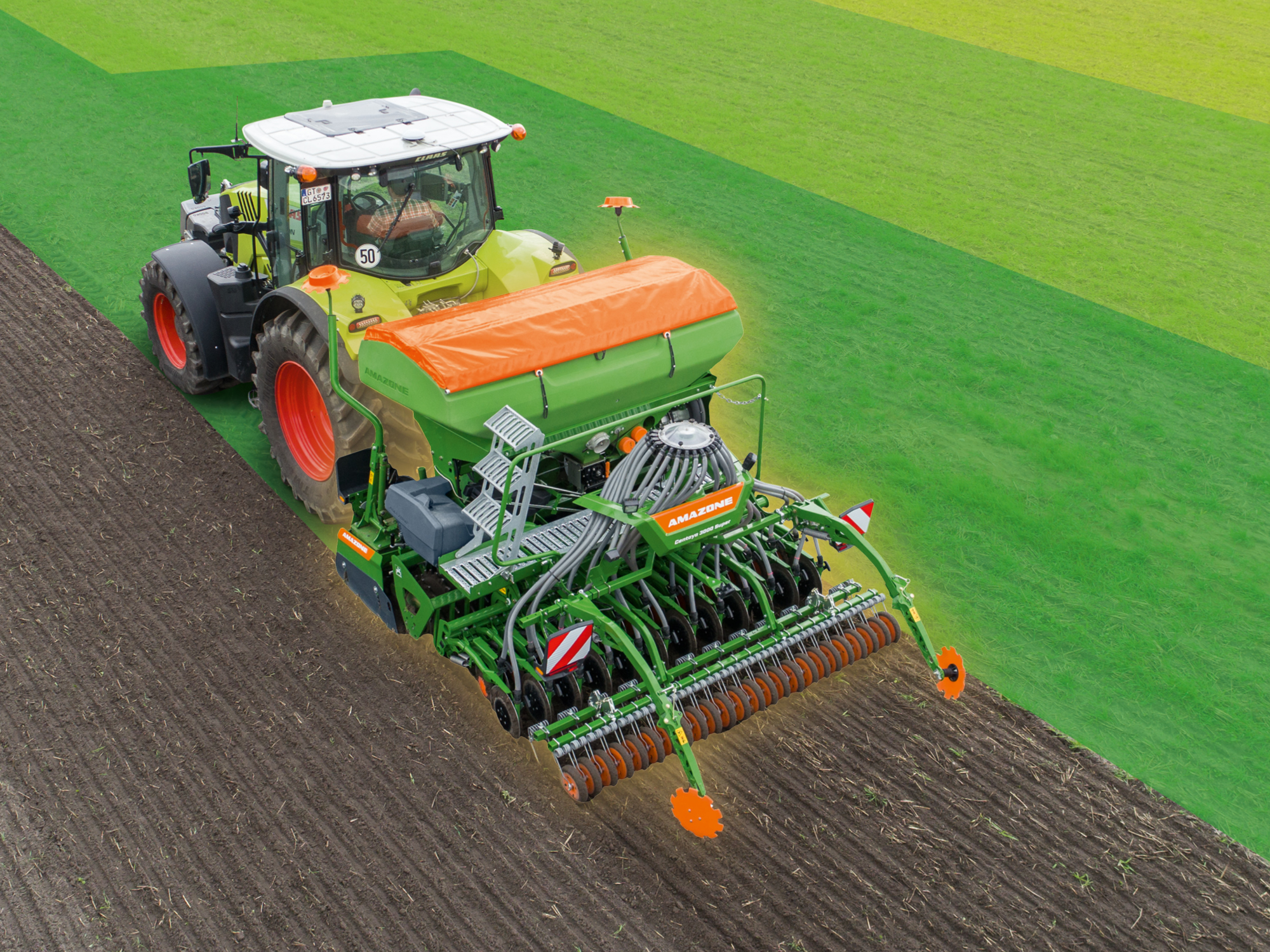

RoTeC pro single disc coulter
- With Roller harrow and hydraulic coulter pressure adjustment up to 55 kg per coulter
- Large sowing discs with a diameter of 400 mm and a working angle of 4° for smooth operation of the coulter
- For the Centaya Super seed drills
TwinTeC special double disc coulter
- With coulter harrow and central coulter pressure adjustment up to 45 kg per coulter
- Reduced lifting force as a result of the lightweight design
- For the Centaya Special seed drills
TwinTeC double disc coulter
- With coulter harrow, parallelogram suspension and central coulter pressure adjustment up to 60 kg per coulter
- Extremely precise seed placement thanks to the extremely smooth and clean running of the double disc coulter
- For the Centaya Super seed drills and Avant seed drill combinations
Operation and documentation
AmaTron 4 ISOBUS terminal
AmaTron Share App for digital data transfer
The AmaTron Share App, which is connected to the AmaTron 4 via a Wi-Fi hotspot, allows all data to be conveniently transferred online between the office and the implement. For example, application maps can be easily sent from the office to the AmaTron 4 for completion. Job data can also be easily sent to customers or back to the office as PDF documentation via the cloud, email or using a messenger service, such as WhatsApp, after the job has been completed. The GPS-Maps&Docs licence for the AmaTron 4 is required to use the features of the free AmaTron Share App.

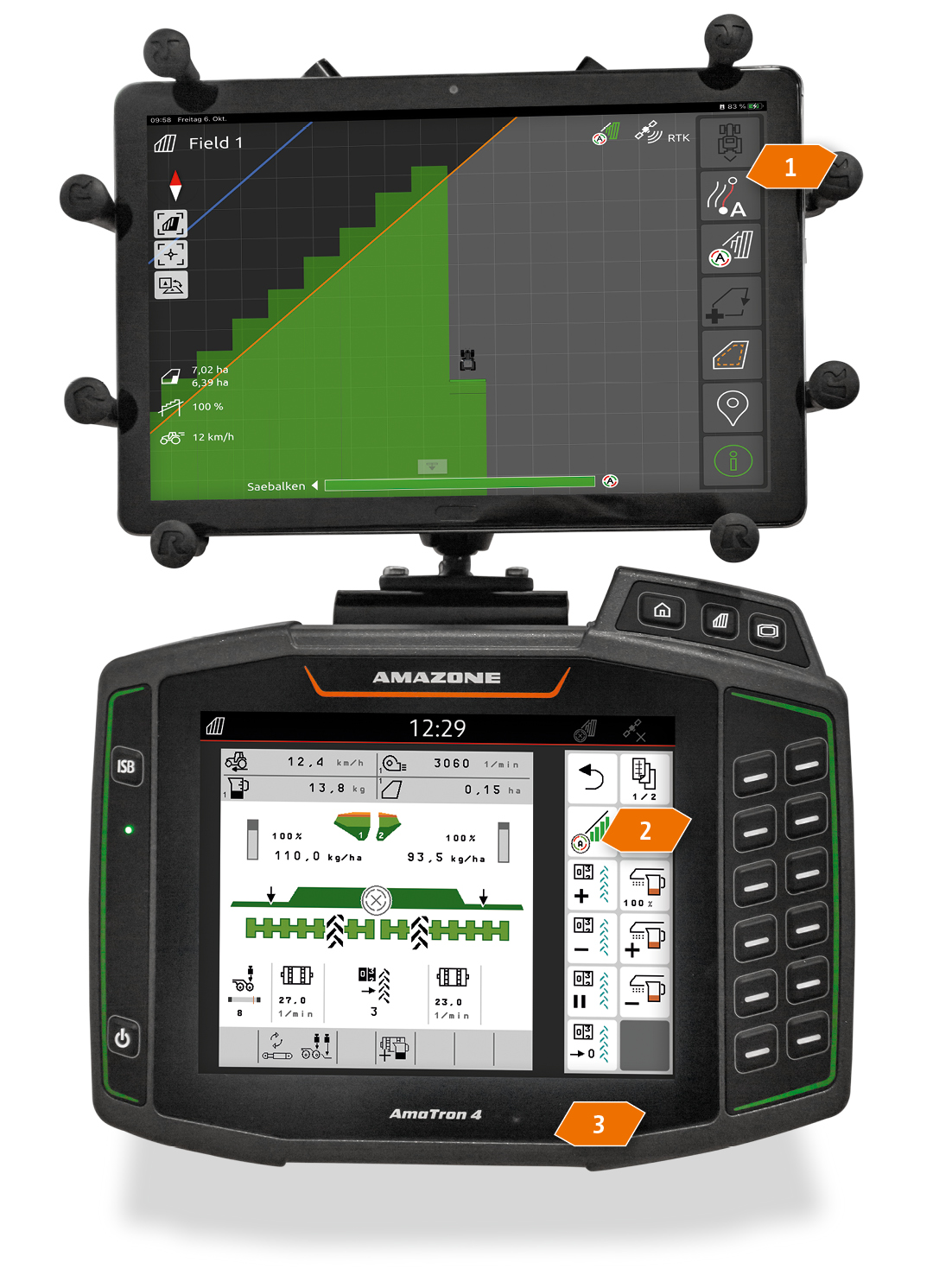

AmaTron 4
AmaTron Twin screen extension (1)
App for extended control of the GPS functions via a tablet in parallel with the machine operation on the AmaTron 4.
GPS-Switch automatic part-width section control (2)
Automatic switching of the part-width sections in relation to the GPS position.
The AmaTron 4 ISOBUS terminal is universally usable for all ISOBUS machines from AMAZONE and also machinery from other manufacturers.
Comfortable operation as intuitive as your tablet (3)
Easy to read and operate thanks to a large, low-reflection, multi-touch colour display with 12 physical buttons and touch buttons on the screen.
Multi-chamber seed drills being utilised at the Wambergen trials centre
Maximilian Wilp, head of the AMAZONE trials centre
"We test innovative establishment systems at our trials centre in Wambergen. For example, we are conducting trials with a focus on pin-point fertilisation, companion planting and seeders with FertiSpot in oil seed rape, a tramline system with EasyTram in oats or maize and looking ways of reducing herbicide use in wheat. We have also tested different seed row widths in wheat, intercropping of cereals and legumes, Controlled Row Farming and much more across the demonstration field trials as well as the replica trials.
We use the versatile Centaya 3000-C Super with GreenDrill on the trial site. Thanks to the high degree of flexibility offered by three distributor heads and three different placement depths, we are able to gear up our trials to offer much more flexibility.
The last few years have been very wet, so we have used RoTeC single disc coulters, along with a rotary cultivator and a wedge ring roller giving reconsolidation in strips. This works really well! Thanks to the self-cleaning capability of the RoTeC single disc coulter, we can get out into the fields "earlier" in the year – and sow "later" in the autumn.
The seed drill’s multi-chamber hopper system enables us to apply different materials at different placement depths, e.g. white clover as a companion crop for winter wheat in our Controlled Row Farming system."
Contact us to arrange a visit:
- Why not visit us with your colleagues at the Wambergen trials centre and discuss matters with our crop establishment innovation experts?
- We will put together an individual programme for you based on your preferred areas of interest
- Contact our Visitor Service: [email protected]
New: multiple metered materials using the Multi-Shoot process
MultiShoot – the simultaneous application of more than one seed type or fertiliser at either the same entry point or different entry points in the soil – can be a powerful tool for yield-guaranteeing, future-oriented arable farming.
Advantages of Multi-Shoot:
No de-mixing for ideal plant distribution of the various crops in just one pass. Under-root fertilisation offers high nutrient efficiency, as it is applied directly into the future root zone.
Single-Shoot:
2 or 3 metered materials placed at a single depth using, for instance, the Centaya-C Special or Avant
Double-Shoot:
2 or more metered materials placed at 2 depths using, for instance,the Centaya-C Super
Triple-Shoot:
3 or more metered materials placed at 3 depths using, for instance, the Centaya-C Super and GreenDrill
