Condor trailed seed drill

The high-capacity oil cooler prevents any overheating of the oil circuit. At the same time, the blower fan of the seed drill sucks air for the delivery route through the fins on the cooler. The heated air effectively prevents the sticking of seed and fertiliser, especially at high application rates and in wet weather.

The optional seed pipe monitoring system is another useful aid. This immediately detects blockages at the coulter without the seed having to accumulate at the sensor. Sensors in the seed hoses, directly behind the distributor head, continuously monitor the seed flow. If a blockage is detected at the coulter, it is reported immediately, so that a quick response can be made. The system also automatically detects when the drill is tramlining.

Tractor wheel mark eradicators for the Condor 01 or cutting discs for the Condor 02 are available as an option for use on loose or unconsolidated soils. The wheel marks are loosened and levelled. Hydraulic control enables automatic lowering and lifting on the headland or when folding for transport.

The seed drill fulfils all road traffic regulations concerning transport safety with a lighting kit for road transport.

The seed drill is also available with high-performance LED work lights.

The options:

• Self-contained 2-fold LED work lights with their own power supply and switch
• Integrated 4-fold LED work lights, controllable via the ISOBUS machine actuation

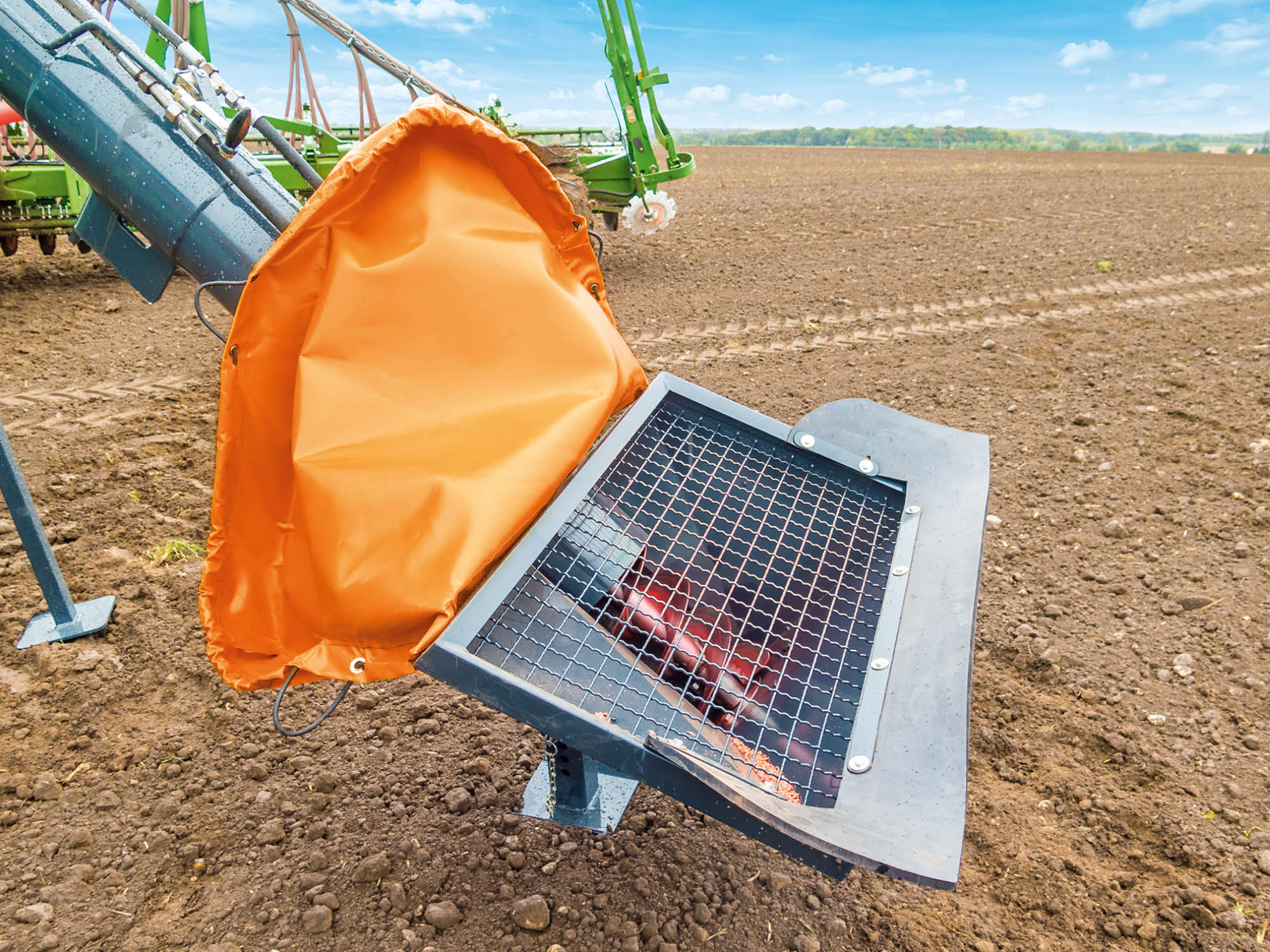

A filling auger is also available as an option for the Condor 01 trailed seed drill. The filling auger allows quick and easy filling directly from a transfer trailer.

For many decades on farms in the CIS states the “Yellow Giants” are the standard tractors for multiple operations on the farm and in the field. AMAZONE offers the possibility to operate ultra-modern sowing technology alongside these available powerful and robust tractors. Measurements prove an effective fuel consumption of 4 l/ha for a K700A combined with a Condor 12 m. This is just 1 l/ha more than is achieved with a modern imported tractor! This eliminates the financial pressure of having to buy a new tractor for the new seed drill.

As an option, AMAZONE offers a comfort hydraulic system with an oil tank on the seed drill and a separate hydraulic pump, in order to ensure that the oil pressure is sufficiently high and an appropriate amount of oil is available to the hydraulic blower fan when it is used behind tractors with a poor hydraulic capacity. AMAZONE offers a variety of clip-on pumps for a wide range of tractors, meaning that a solution is possible for virtually every tractor.
