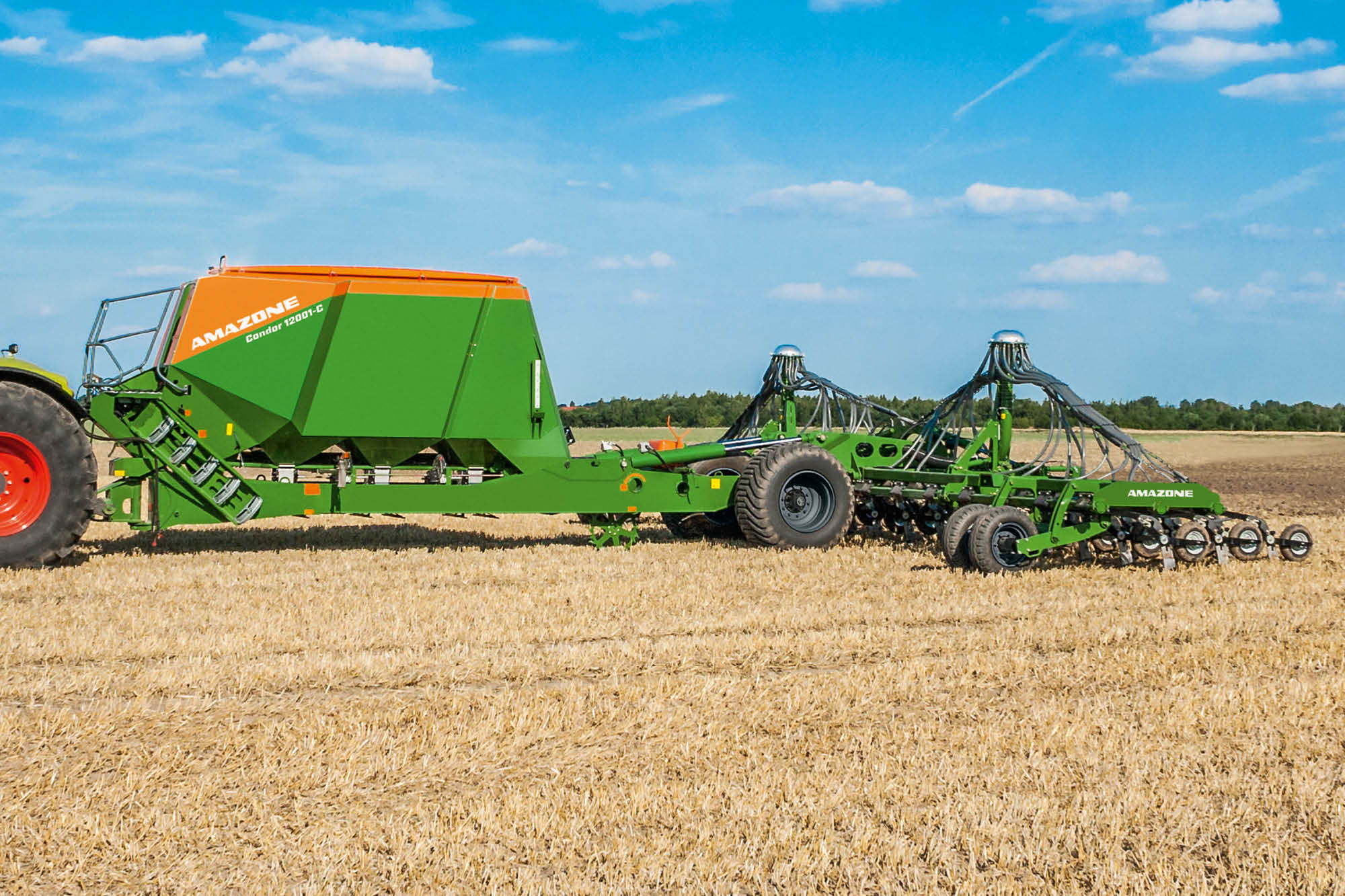

Condor trailed seed drill

The Condor 01 models are equipped with a three-chamber pressurised hopper with a total capacity of up to 7,800 litres. The hopper is divided into three separate sections in a ratio of 30%, 30% and 40%. They can be flexibly combined, such as when sowing different seed sizes, such as the individual components in a cover crop mix. Also a combination of seed and fertiliser as a starter dose using the Single-Shoot process is possible.

As an alternative, the hoppers can be completely filled with just one product. In this case, the three chambers can be emptied simultaneously or successively in any order.

The Condor 02 has a main hopper with a capacity of 3,200 litres, which is divided into two sections at a ratio of 40% to 60%. A third applied material can be carried in a separate hopper with a capacity of 900 litres.

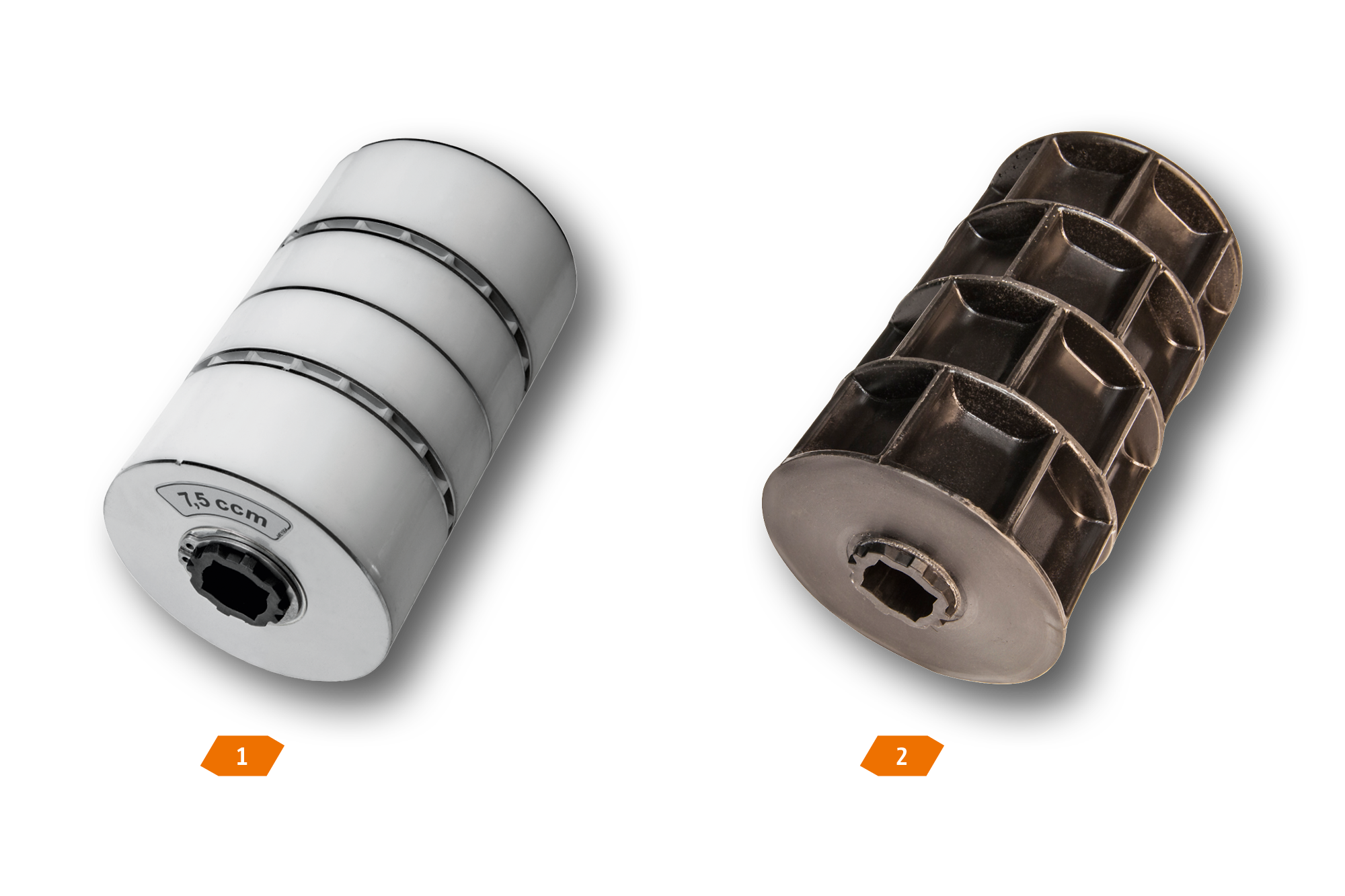

The electrically driven metering system ensures a precise and even seed flow in the range from 2 to 400 kg/ha. Most types of seed can be sown using the metering cassettes supplied as standard. Additional cassettes are available as an option for other crops, such as maize or specialist crops.

The benefits:

• Simple and tool-less exchange of the metering cassettes
• Excellent accessibility of the metering unit
• Optional calibration via the TwinTerminal
• Quick and easy emptying of residual amounts via a separate outlet – ideal for rapid seed changes

Supplied as standard:

1.    2 x 20 ccm
e.g. for oil seed rape, stubble turnips, lucerne
2.    120 ccm
for green manure, maize and sunflowers
3.    2 x 210 ccm
e.g. for barley, rye, wheat
4.    2 x 600 ccm
e.g. for spelt, oats, wheat
5.    2 x 880 ccm
e.g. for high seed rates

Other metering cassettes to choose from:

The mechanical land wheel drive is a reliable and simple cost-effective solution. The large diameter land wheel ensures an even, uninterrupted drive of the metering system.

The benefits:

• Ultra-easy operation of the mechanical metering drive with the AmaLog⁺ in-cab terminal
• Simple adjustment of the seed rates on the machine

The electrically-driven metering system enables convenient adjustment of the seed rate directly from the tractor cab. Functions such as pre-metering in field corners and calibration at the touch of a button make the job even easier. In combination with ISOBUS, the seed rate can even be automatically adjusted on a part-area, site-specific basis via an application map. The TwinTerminal allows calibration to be carried out directly down at the machine – without having to constantly get on and off the tractor.

The benefits:

• Comfortable adjustment of the seed rate from the tractor cab
• Automatic metering on a part-area, site-specific basis via an application map
• Simple calibration directly on the machine via the TwinTerminal

The multi-chamber hopper, positioned far forward on the drawbar, adds extra weight to the rear axle of the tractor, thereby improving its traction.
It can be easily filled via big bags, front end loaders or transfer trailers, thereby saving time.

The hopper can be safely and easily accessed via the sturdy aluminium ladder and the spacious platform for maximum comfort during day-to-day working.

A dust-proof and splash-proof transport box lightens the work with the implement in the field.
