Metering | Conveying system

Flexibly combined

3-section pressurised hopper for seed and fertiliser or a combination of seed types
The Condor offers the option of placing fertiliser or a second seed type as a companion plant/undersown crop in the seed furrow together with the seed. The hopper is divided into 3 sections and can be flexibly combined. If division of the hopper is not required, it can be completely filled with just one seed type.


Advantages of single-shoot:

  • Direct placement of fertiliser near the grain for good starter fertilisation or the easy availability of immobile nutrients
  • Undersown crops for plant and yield protection


The options:

Seed only
Single-shoot: sowing seed along with fertiliser at one placement depth





Single-shoot: sowing two seed types at one placement depth
Single-shoot: sowing two seed types with fertiliser at one placement depth







More information + Less information -

The right drive system

Metering drive – mechanical or electric

The mechanically- or electrically-driven metering system guarantees a precise and uniform seed flow at seed rates ranging from 2 to 400 kg/ha, depending on the working speed. The metering cassettes supplied as standard cover up to 95 % of all seeds. Additional cassettes are available, for instance, for maize or specialist crops.


The benefits:

  • Easy exchange of the metering cassettes
  • Calibration kit included as standard
  • Simple emptying of residual quantities via the separate outlet

Supplied as standard:

  • 2 x 20 ccm: e.g. for rape, stubble turnips, lucerne
  • 2 x 210 ccm: e.g. for barley, rye, wheat
  • 2 x 600 ccm: e.g. for spelt, oats, wheat
  • 2 x 880 ccm: e.g. for high seed rates

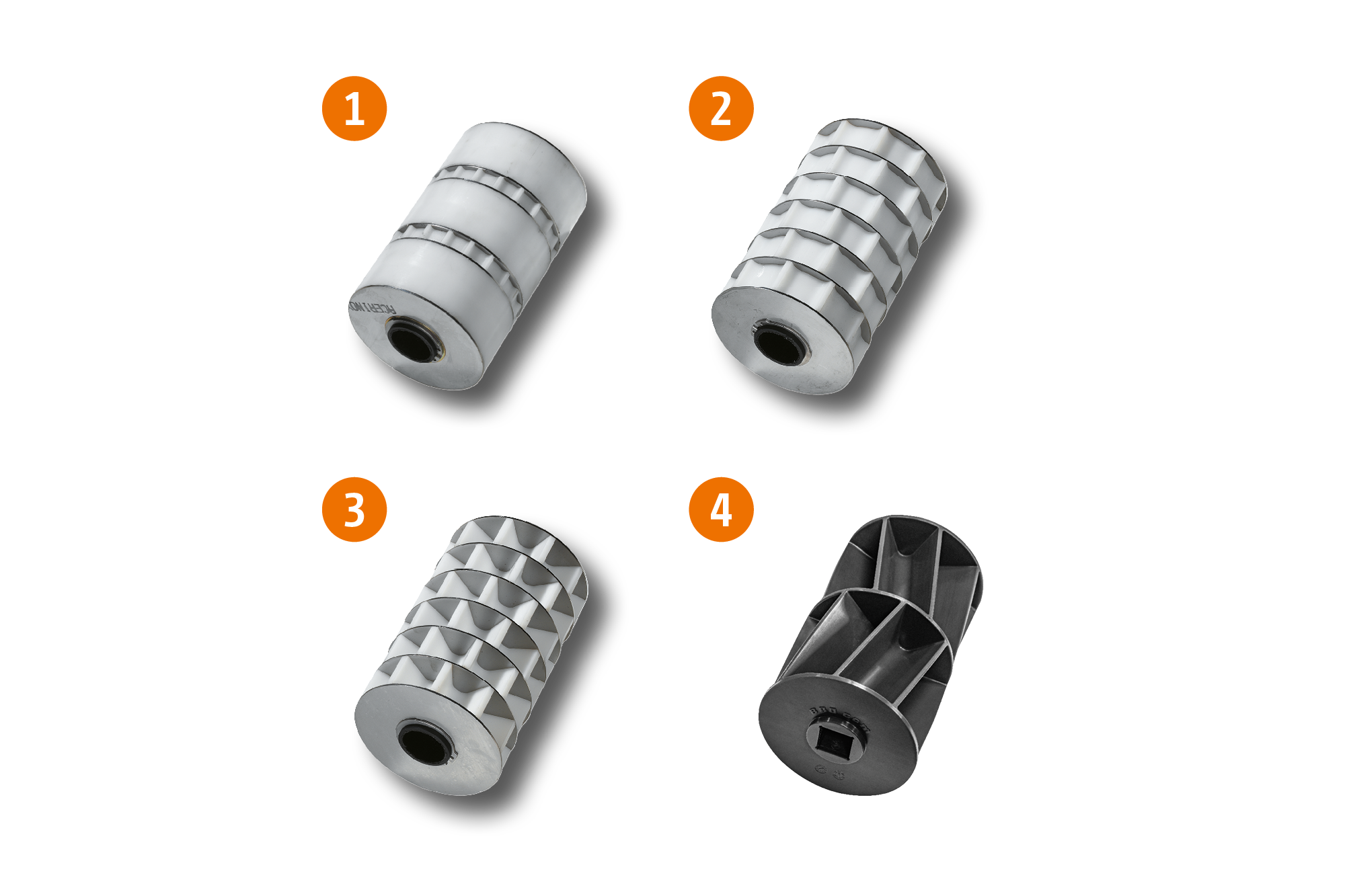

Other metering cassettes to choose from:

  1. 7.5 ccm: For rape, linseed and poppies
  2. 120 ccm: For catch crops, maize and sunflowers
  3. 350 ccm: For fertiliser
  4. 660 ccm: For peas and beans


Mechanical metering drive – reliable and tried-and-tested

The mechanical Vario gearbox provides seed rates from 2 to 400 kg

The mechanical land wheel drive is a reliable but simple and cost-effective solution. The large diameter land wheel ensures an even, uninterrupted drive of the metering system.


More information + Less information -

Electric metering drive – ready for precision farming!

The electrically driven metering enables easy adjustment of the seed rate from the tractor cab, pre-metering in field corners and calibration at the touch of a button.

The metering can even be provided automatically on a part-area, site-specific basis via application maps in the Citan with ISOBUS. The calibration can be easily carried out on the machine via the TwinTerminal.


The benefits:

  • Easy adjustment of the seed rate from the tractor cab. Also, an alternative, automatically seed rate control on a part-area, site-specific basis via application maps
  • Easy calibration possible via TwinTerminal directly on the machine
More information + Less information -

High operating comfort: Comfort-Pack 1 with TwinTerminal 3.0

AMAZONE offers Comfort-Pack 1 with its TwinTerminal 3.0 for the electric metering drive, in order to further simplify calibration and residue emptying. The small, additional TwinTerminal mounted directly on the machine offers a key advantage: The driver can now perform the calibration operation and input the data from that calibration directly into the machine and no longer has to repeatedly get on and off the tractor.

The TwinTerminal 3.0 consists of a water- and dust-proof housing with a 3.2" display and four large keys for actuation.


The benefits:

  • Easy calibration via TwinTerminal without having to repeatedly get on and off the tractor
More information + Less information -
