Cayena trailed tine seeder

The optional LED working lights light up the working area, providing a clear, safe view of the working environment to ensure safe operation, even in the evening and during the night. The area around the tine coulters is also very well illuminated. The work lights can be controlled via the operator terminal.

Another useful system to assist the driver is the optionally available seed pipe monitoring which detects immediately any blockages down at the coulter and in the seed tube. Mounted directly behind the distributor head, sensors monitor the seed flow in the seed pipes. Incorrect switch-over of the tramline rhythm is automatically detected by the system. Especially on long working days, the monitoring is an elegant solution to help keep an eye on the working performance.

For the regulation and drive of the metering unit, the forward speed can be picked up via a radar sensor or via a GPS speed sensor signal. As an alternative, the tractor speed can also serve as the speed source via a signal cable.

In order to ensure sufficient oil quantity for the hydraulic blower fan, particularly for operation behind older tractors, AMAZONE offers a separate hydraulic pump as an optional extra. It can be quickly and easily attached to the PTO shaft of the tractor.

The ridge levellers, made of highly wear-resistant rubber, create grooves which are filled by the trailing wedge ring tyre roller with matrix tread profile. This prevents the formation of ridges. In addition, the ridge levellers prevent stones from becoming jammed where they have been pushed in between the wedge ring tyres.

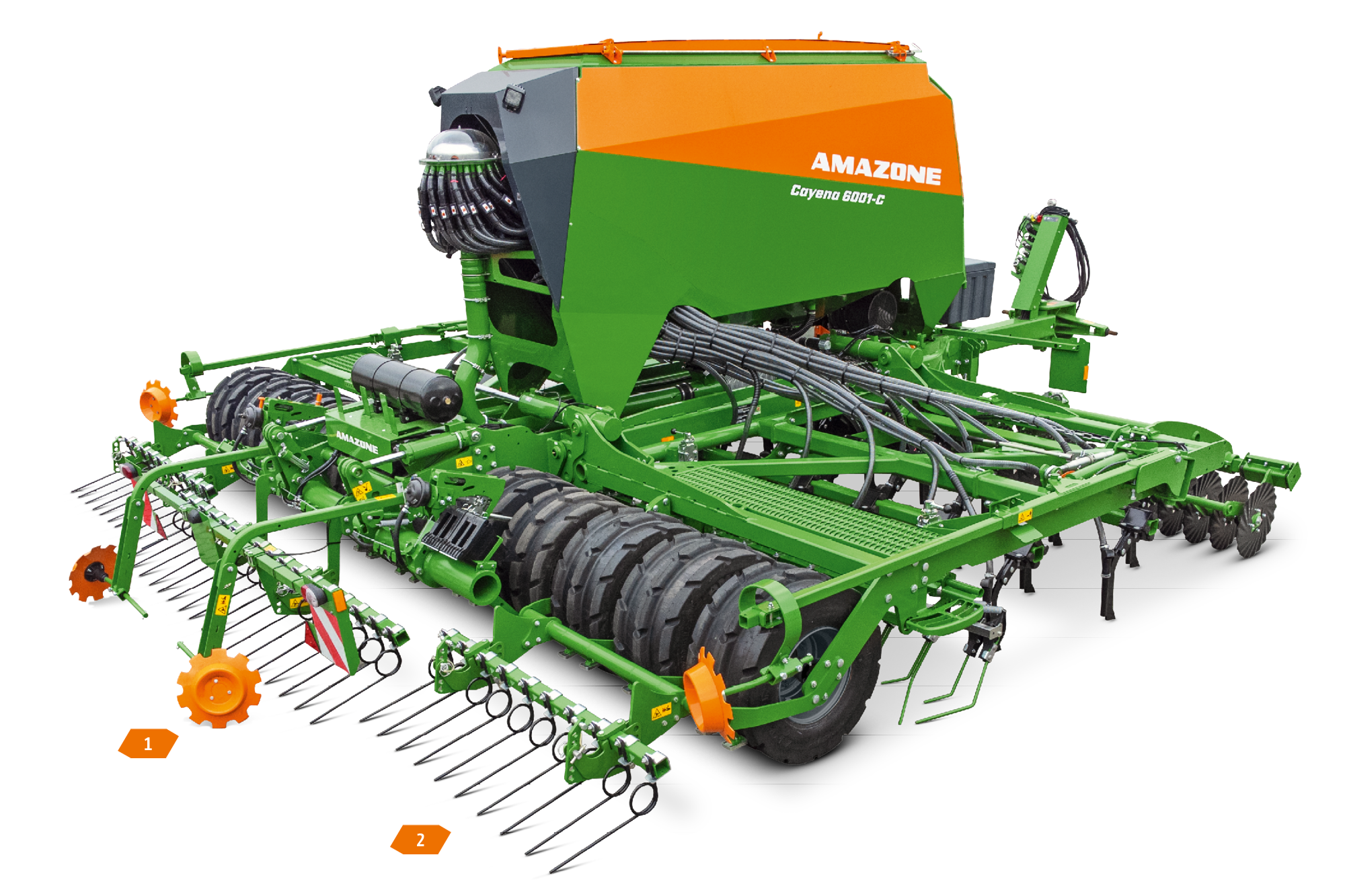

1. Pre-emergence markers
The pre-emergence markers clearly mark the wheelings with large discs, meaning that the tramlines are already visible before seed emergence. This improves the accuracy when creating tramlines and they are ideal for pre-emergence spraying.

2. Rear harrow
A rear harrow is available to scratch open the soil a little in difficult and wet conditions after the wedge ring rollers.

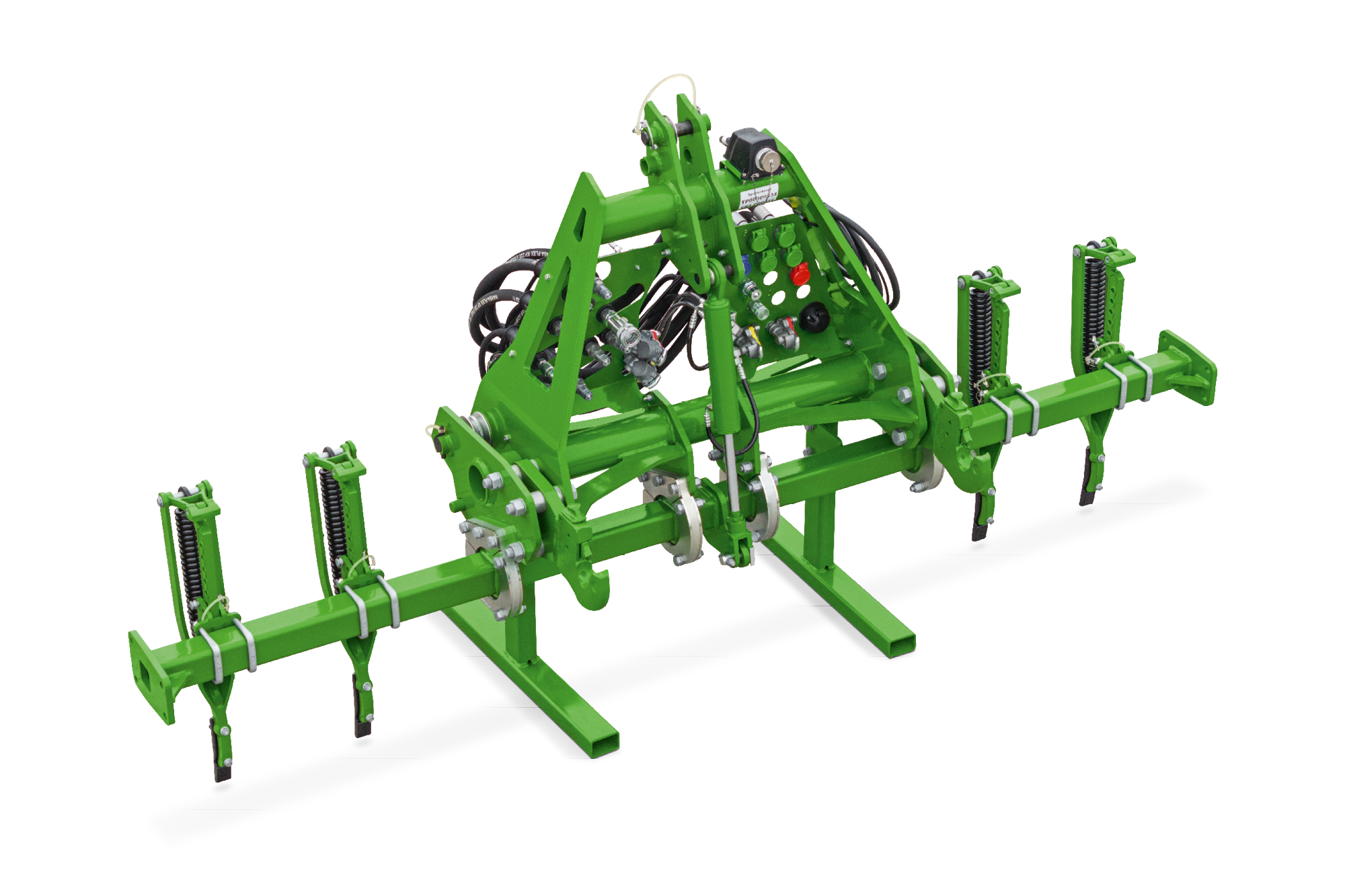

SL wheel mark eradicator frame

The wheel track eradicators eliminate the influence of the tractor on the seed furrows in the wheelings. Uniform plant emergence is guaranteed across the entire working width of the implement, and soil compaction is reliably prevented. The wheel track eradicator tines can be mounted on the frame of the Cayena, or as self-contained track loosening frame mounted in between drill and the tractor.

The benefits of the wheel track eradicators:

• Flexible – can be combined with all implements up to 4 t drawbar load and Cat. 3 cross shaft
• An extended pivot point improves manoeuvrability

Optimum loosening

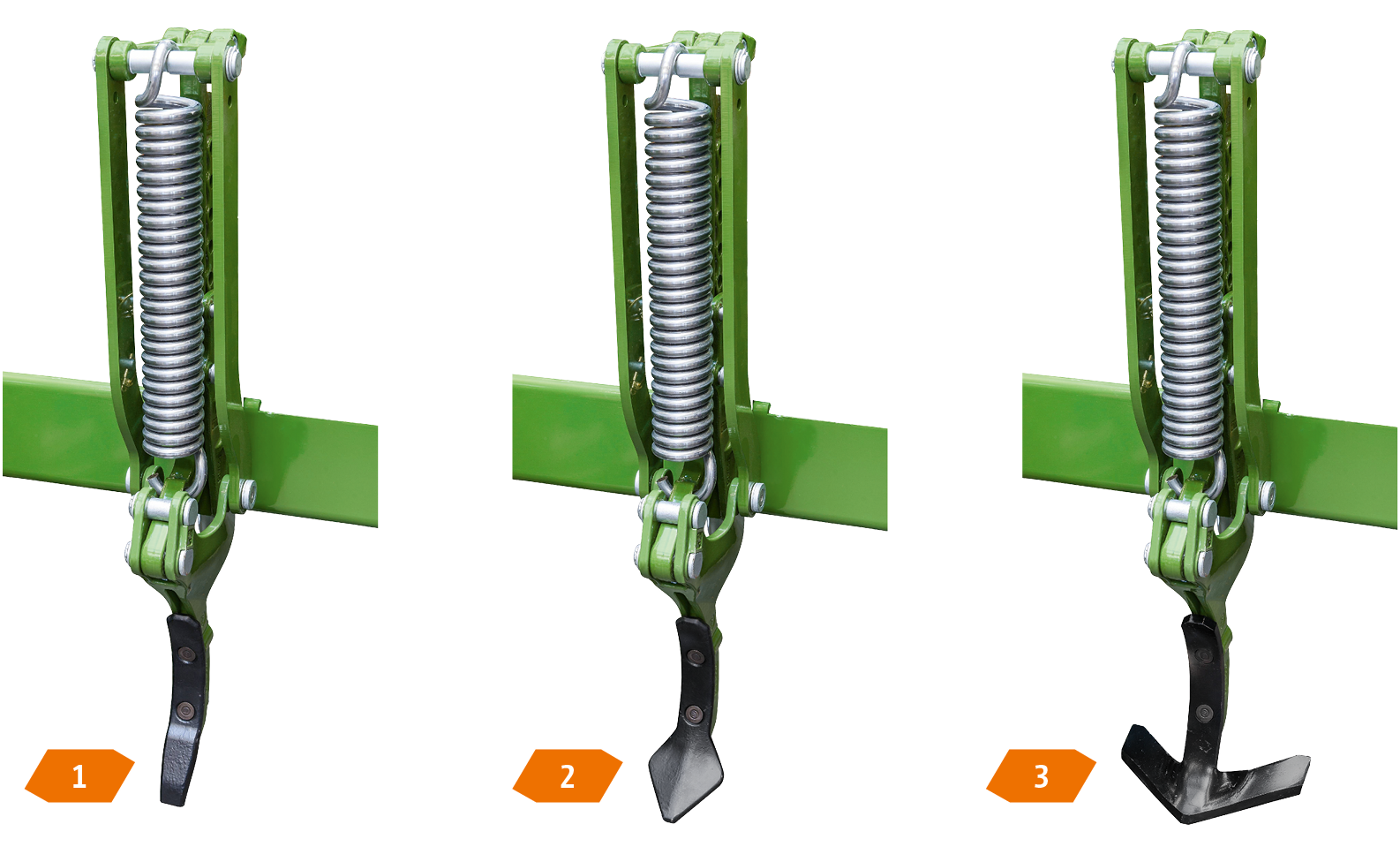

Self-contained wheel track eradicator frame with 3 variations of points ensures flexibility:

1. Narrow point – deep loosening
2. Diamond point – universal
3. Wide point – shallow loosening

Levelling and reconsolidation

The benefits of the wheel track eradicators:

• Loosening the tractor wheelings before seedbed preparation

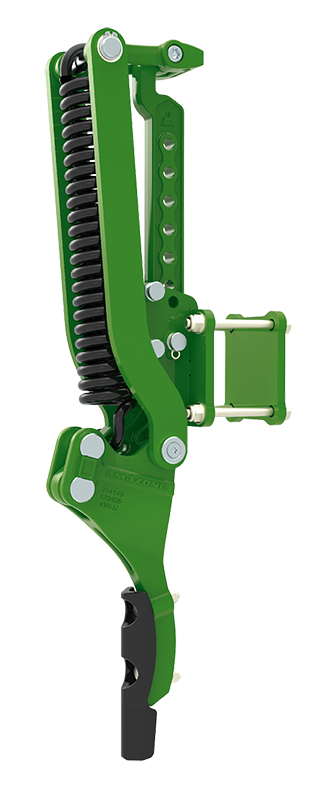

The special spring mounting dynamics enables:

• reliable maintenance of the working position
• good clearance in case of overload
• reliable swivelling out against high resistance

When turning, the tines on the wheel track eradicator can:

• be hydraulically swung out
• be lifted up by the three-point linkage on the tractor
