Metering and distributor head

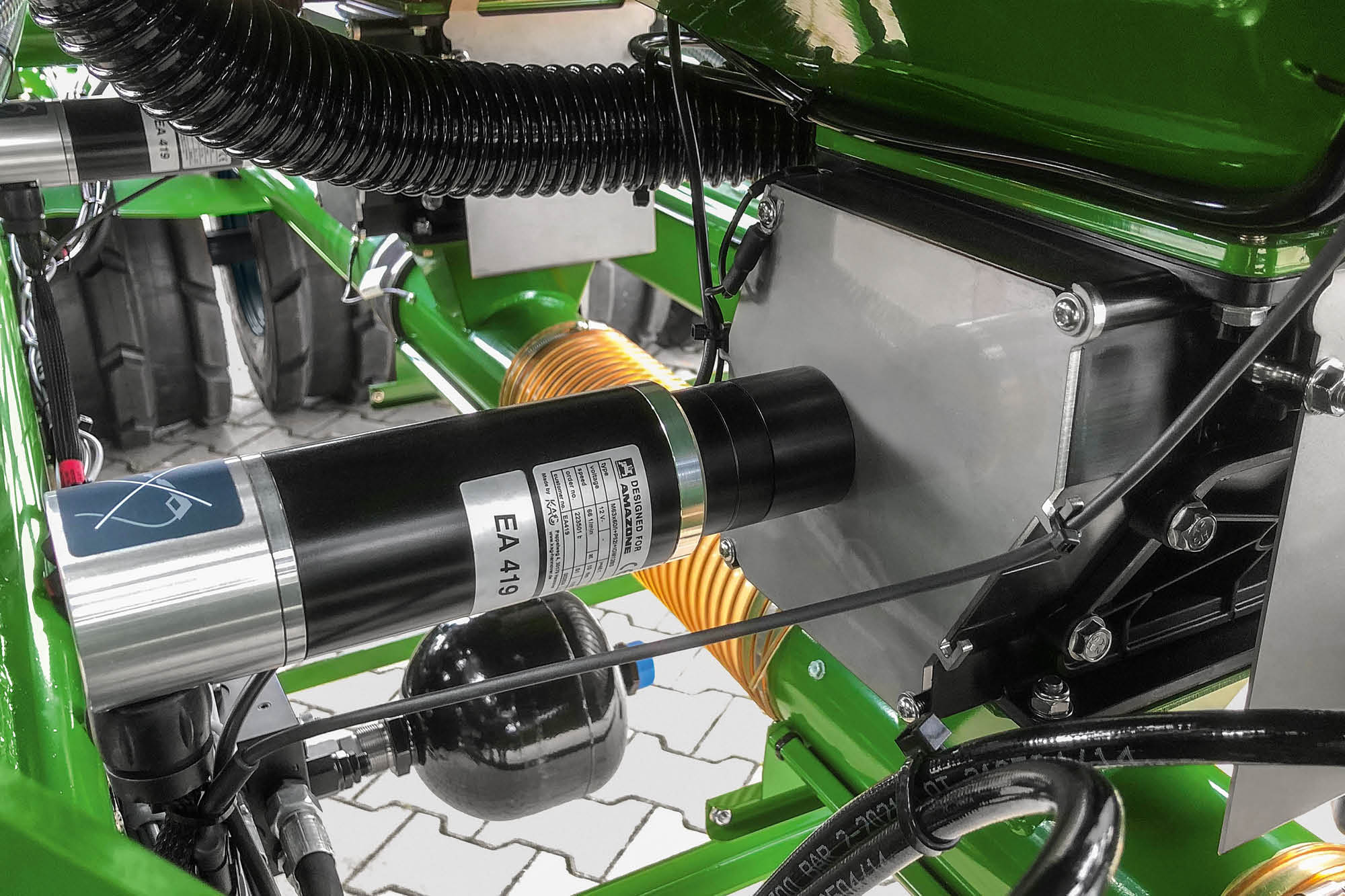

Accurate metering drive
Metering drive below the hopper for the products being transported
The metering system is suitable for all seeds and seed rates from 1 to 400 kg/ha. Conversion from fine seeds to normal seeds is carried out in seconds by exchanging the metering cassettes. They can even be changed when the seed hopper is full.
Distributor head
The distributor head reliably transports the applied materials to the individual tine coulters. An optional seed tube monitoring system can detect blockages on the tine coulter or in the seed tubes.

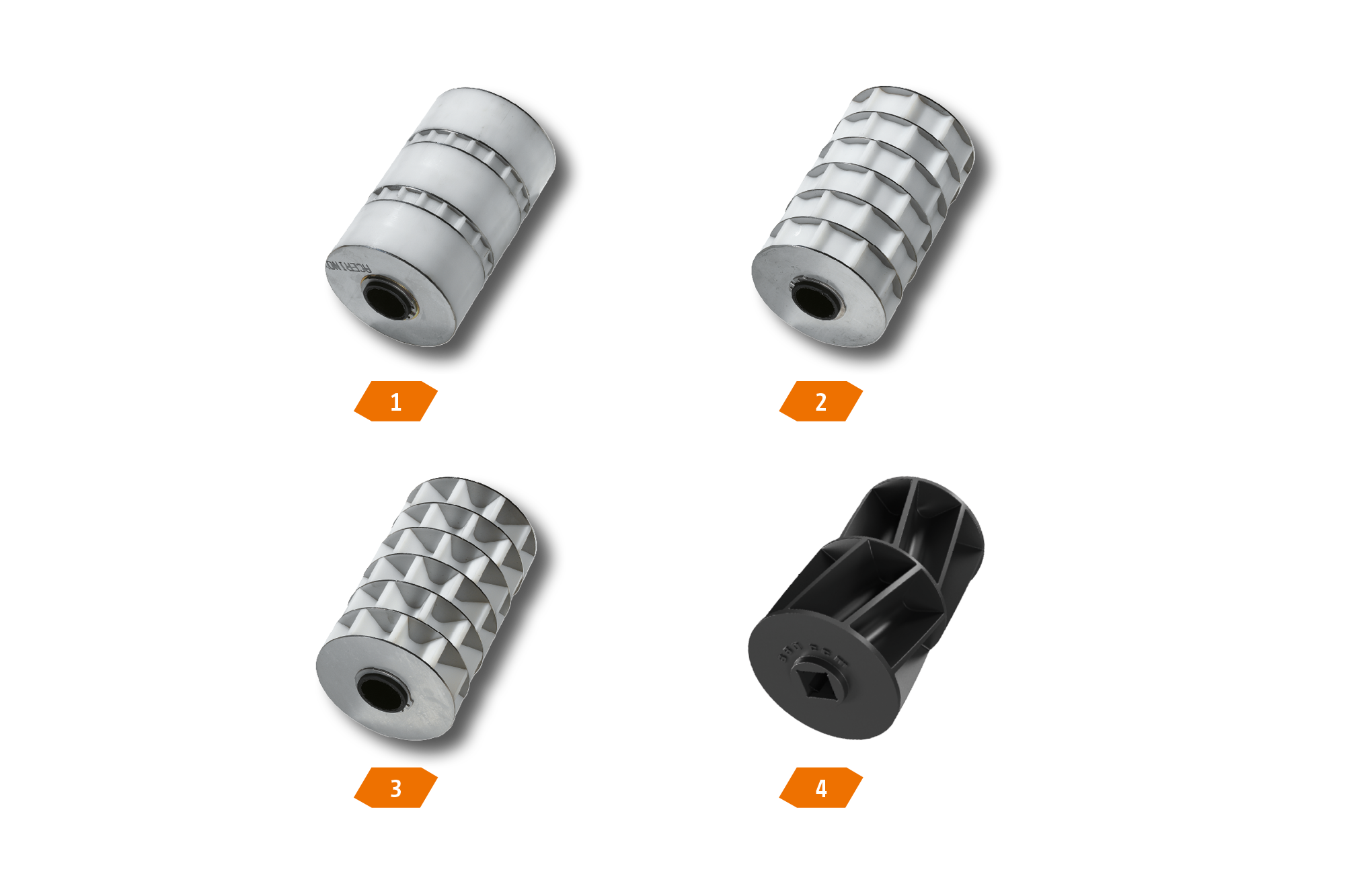

Standard metering cassettes for different seed types
1. e.g. for rape, stubble turnips and lucerne
2. e.g. for barley, rye and wheat
3. e.g. for spelt, oats and wheat
4. For peas and beans
Additional metering cassettes:
7.5 ccm for oil seed rape, linseed and poppies
120 ccm for base fertiliser, maize and sunflowers
350 ccm for fertiliser
880 ccm for large seed rates
