TopCut cutting roller combination

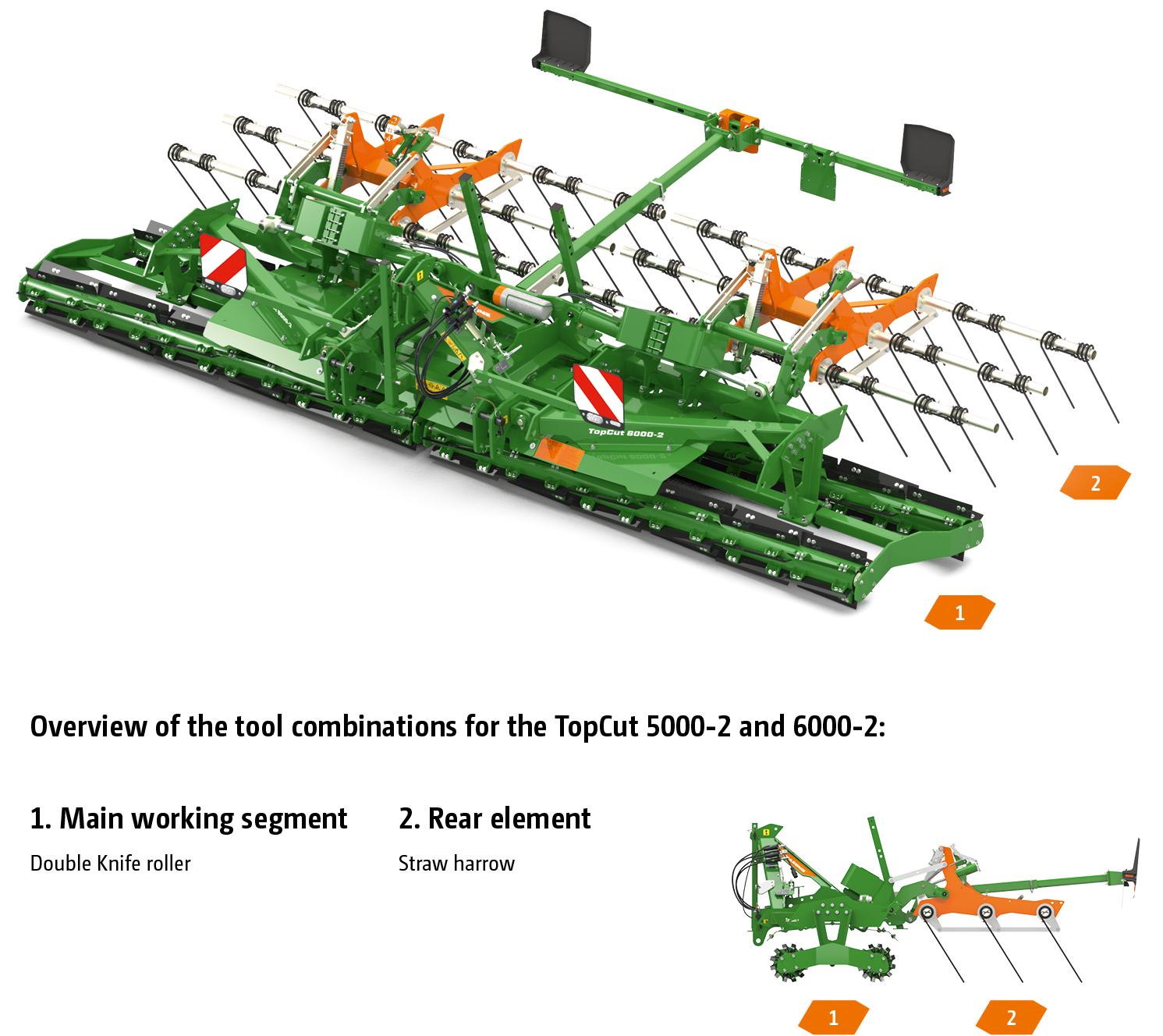

The benefits of the mounted TopCut

• Lightweight construction and high working speeds of 14 to 20 km/h for high impact with low fuel consumption.
• Maintains the working depth of the double Knife roller in the main tool segment between 0 and 3 cm for ultra-shallow, soil-conserving work – thanks to the ContourFrame which adjusts both tool segments to the ground contours.
• The three-row harrow in the rear is available in a standard tine, or as a reinforced HD version.
• The angle of the harrow can be adjusted very conveniently from the tractor cab using the fully hydraulic control.
• Attachment options of Cat. 3N, 3, 4N and Quick Hitch Cat. 3.
• The LED rear lighting enables safe driving on the road.
• The implement can optionally be used front mounted without the harrow. In particular, the combination with a compact disc harrow, such as the Catros from AMAZONE, on the rear has proven itself for immediate incorporation of the shredded catch crops into the soil.
• Additional weights can be used if desired.

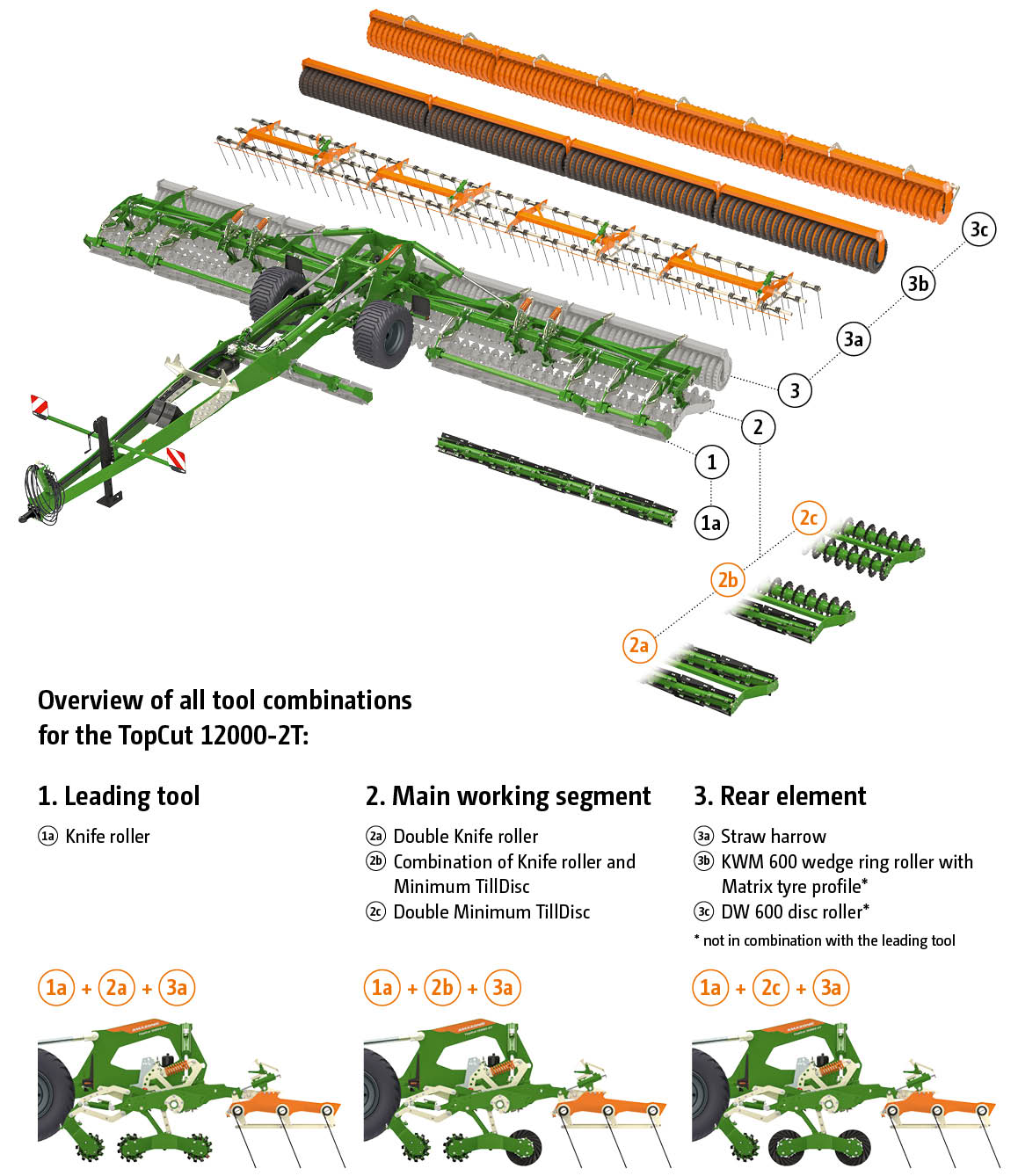

The benefits of the TopCut 12000-2

• Maximum flexibility with double Knife roller, double Minimum TillDisc or a combination of Knife roller and Minimum TillDisc in the main working segment.
• Optional Knife roller as a leading tool for intensive shredding.
• Ideal straw distribution with the three-row trailing harrow or perfect reconsolidation with the KWM wedge ring roller with Matrix tyre profile or disc roller. It can also be used without a rear element.
• The angle of the harrow can be adjusted very conveniently from the tractor cab using the fully hydraulic control.
• The ContourFrame system enables optimal contour following across both the folding segments.
• The 4 tool segments can be adjusted individually for height, thereby changing the weight distribution between the main working segment and the rear element.
• The machine can be attached using a K80 ball hitch or towing eyes D 46, D 51, D 58, D 71 and D 79.
