KX/KG Cultimix mounted rotary cultivator

The GreenDrill rear-mounted seeder box is the ideal solution for sowing catch crops and seeding in a single pass. The GreenDrill seed hopper has a capacity of 200 litres. The seed is distributed across the full width using baffle plates. The metering system below the seed hopper contains the seed shaft, which is equipped with normal or fine seed wheels depending on the seed type and application rates.

The benefits

• Sowing catch crops and fine seeds simultaneously with stubble cultivation or soil tillage
• Various different metering rolls are available
• Wide distribution via baffle plates
• Easily accessible via access steps
• Modern in-cab operating terminal computer in two levels of equipment

The universal setting tool is the ideal solution that avoids the transportation of and the troublesome searching for more than one spanner. Irrespective of whether it is the soil tillage implement or the seed drill that is being set up, the universal setting tool provides convenient operation.

Continuous operation, even under very hot climatic conditions, is no problem for KG Super rotary cultivators, thanks to the optional oil cooler.

The optional tractor wheel track eradicators are useful on compaction-sensitive soils and for reduced working depths. The position of the wheel mark eradicators can be adjusted horizontally and vertically. The overload safety protection ensures a constant trip force. The narrow, diamond and wing shares are available as soil-engaging points.

The levelling board levels the soil flow between the tines and the roller pressing any obstacles downwards. With the universal operating tool, the height of the levelling board can be adjusted with ease.

The benefits:

• Independent height control parallel to the roller
• Integrated overload safety protection allows for upward evasion
• Optionally, the levelling board can also be left out

The side plates are spring-loaded. Thanks to their suspension, the side plates can be adjusted via a slotted hole and, when worn, be simply exchanged. The universal setting tool supplied as standard is all that is necessary to make any adjustments.

The benefits:

• Convenient depth adjustment
• The spring-loaded guidance makes upward evasion possible

The rotary cultivators meet all the requirements for safe transport on the road with front and rear lighting.

When using the optional track markers, we recommend mounting them directly on the implement. The forward-mounting position not only optimises the centre of gravity of the implement, but also allows them to be used for solo operation.

The parallel guidance of the roller and the levelling board allows the very easy and independent setting of the working depth. The working depth can be comfortably tailored to the field and operational conditions simply by repositioning the eccentric pin.

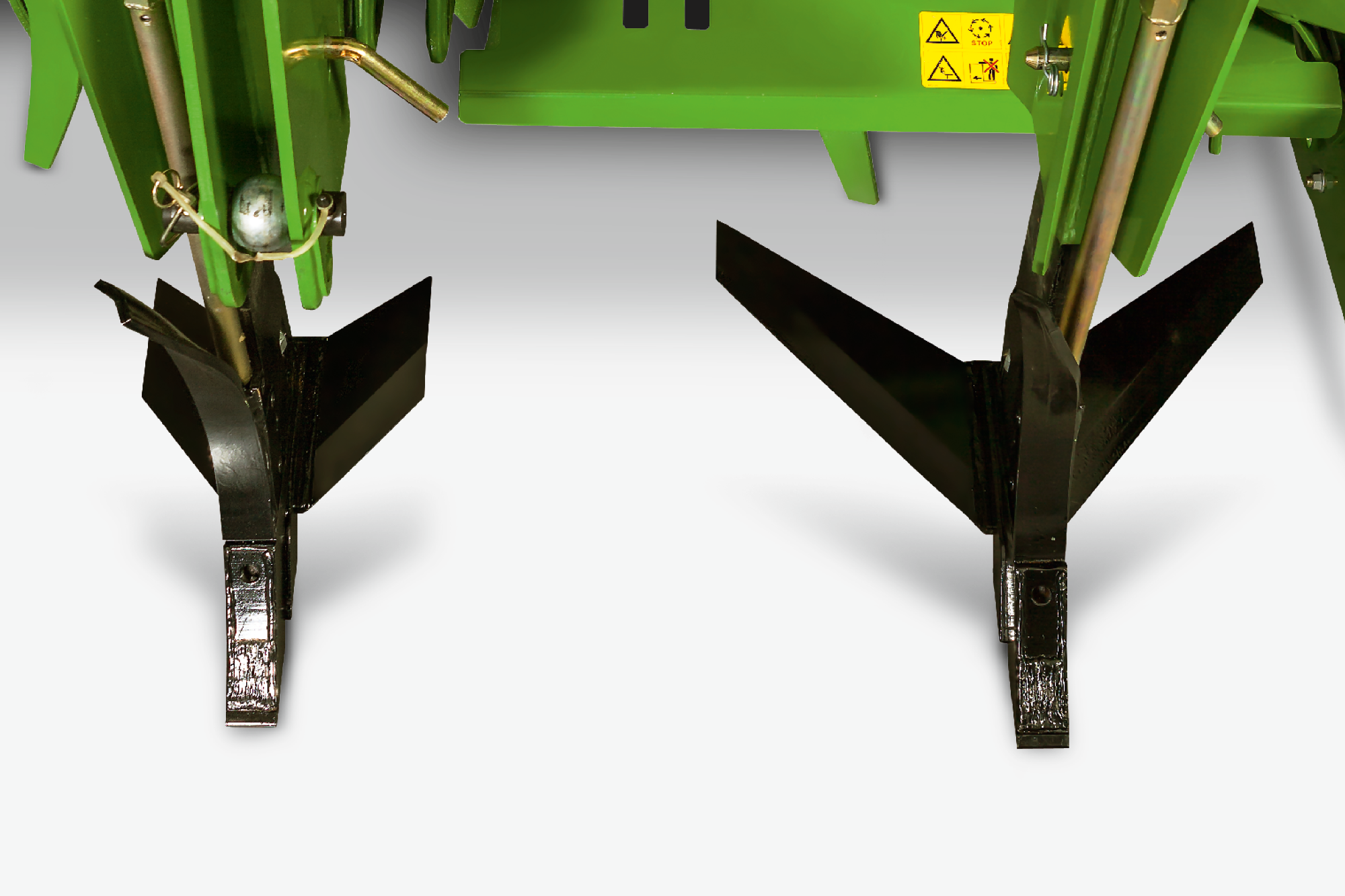

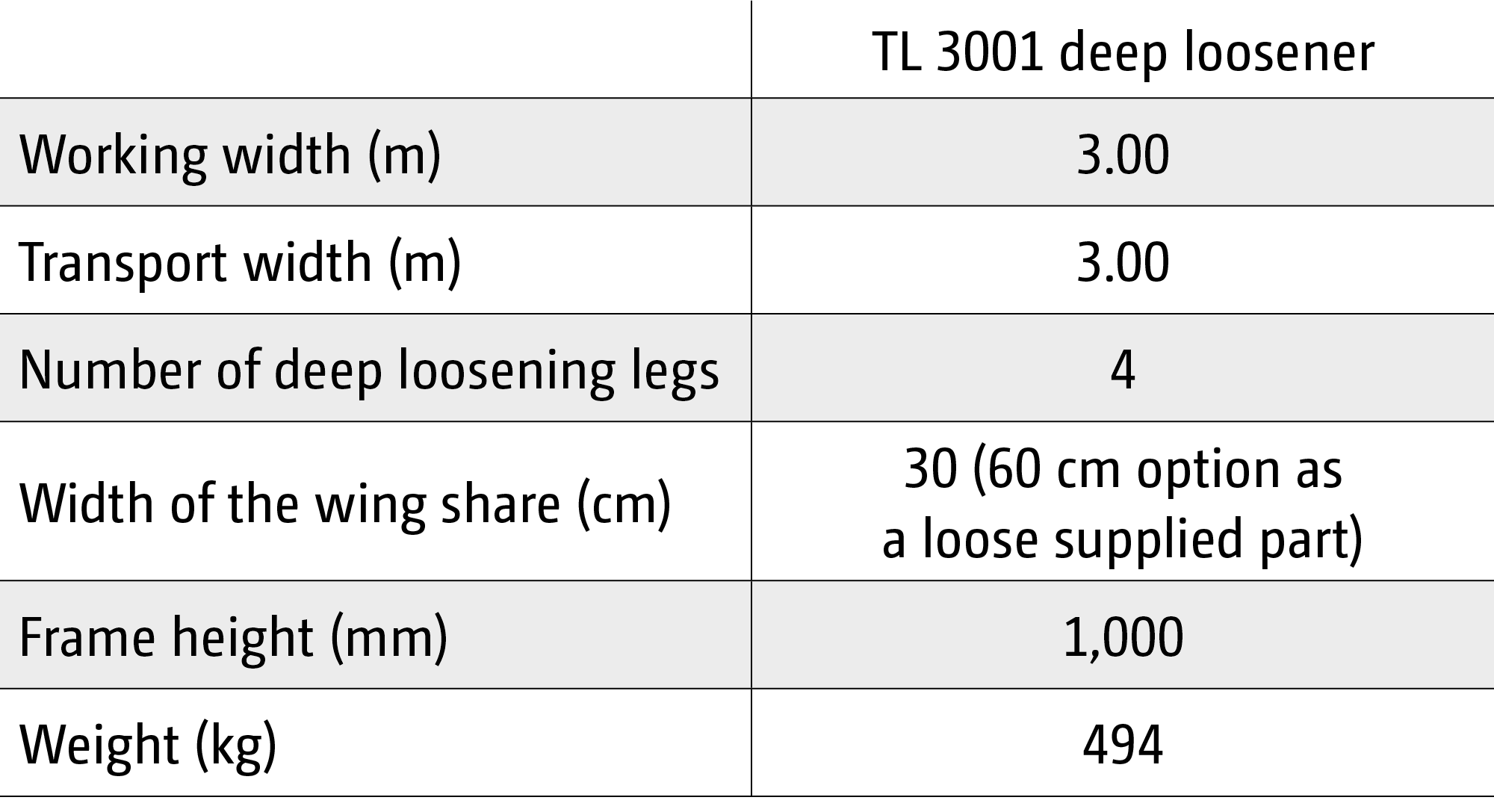

The compact TL deep loosener with its 4 tines makes it possible to loosen the soil down to a depth of 25 cm below the working horizon of the rotary cultivator. The TL loosens the soil down to a depth of 32 cm with a working depth of the rotary cultivator of 7 cm. With this system, AMAZONE offer the option of plough-less cultivation, even where a high level of straw prevails. One-pass cultivation without ploughing prevents soil compaction in the sowing horizon.
