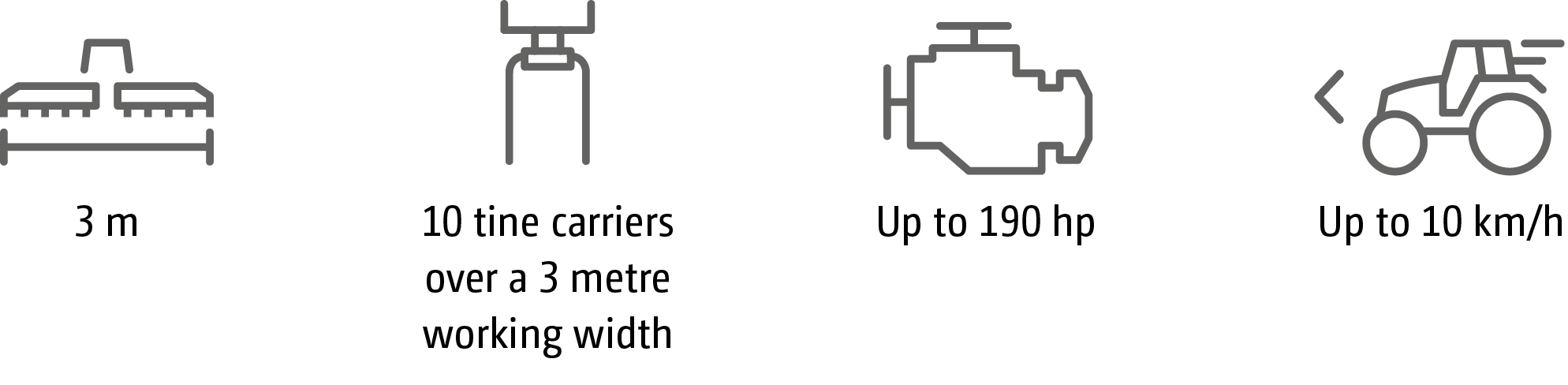

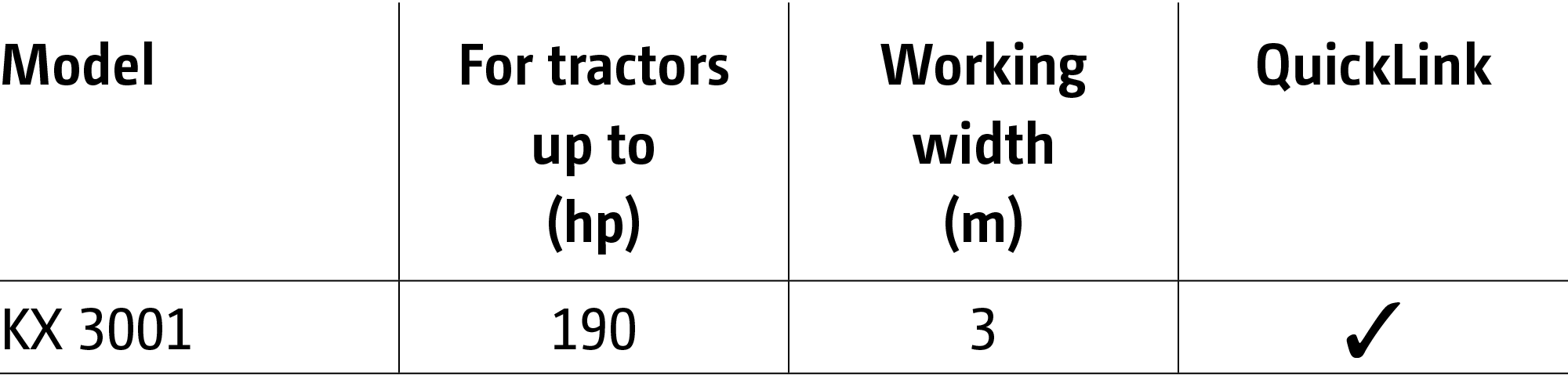

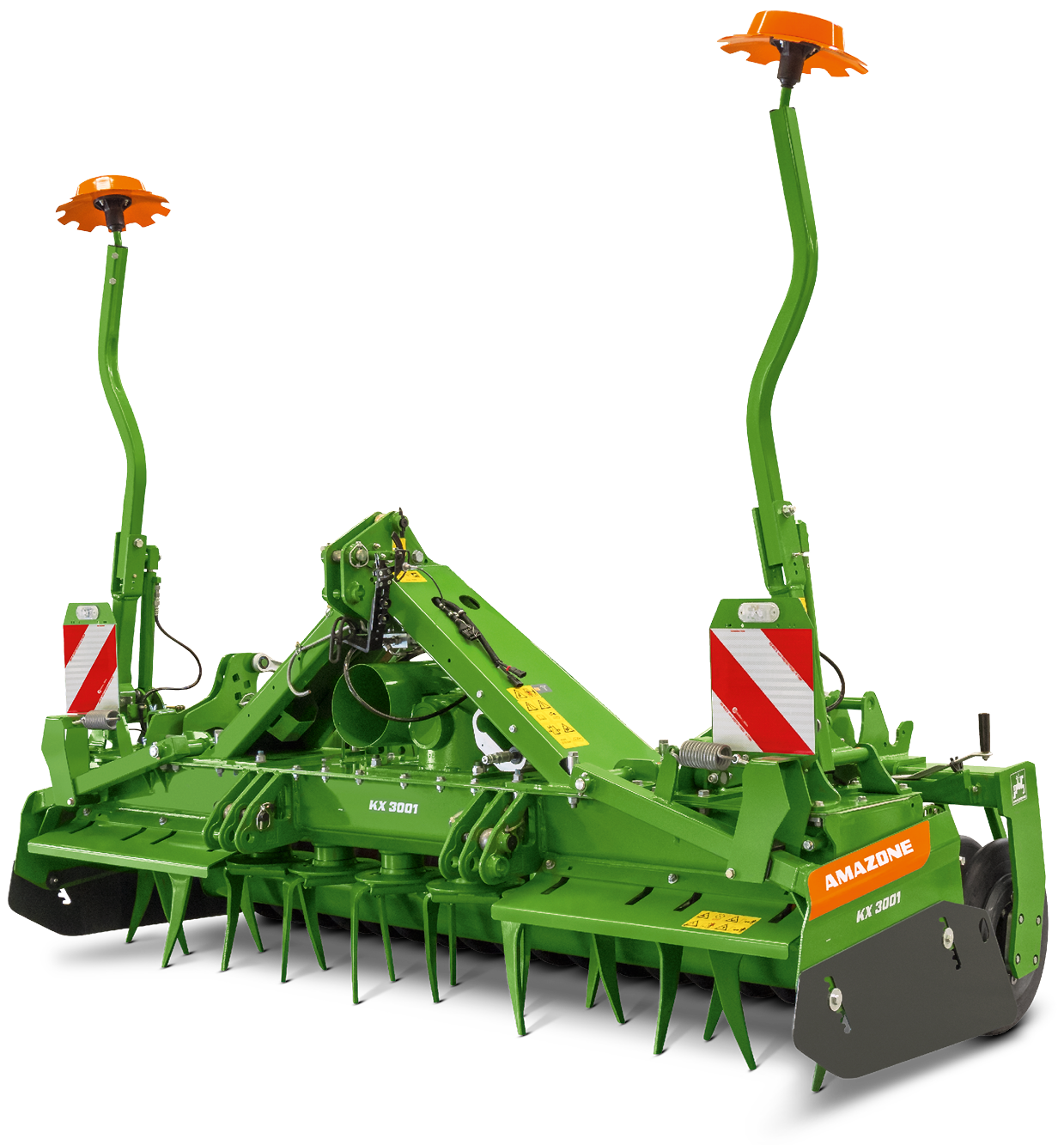

KX/KG Cultimix mounted rotary cultivator

In a working width of 3 m for medium and heavy ground

Quick-change tine system
The proven quick-change tine system enables the KX to be converted without tools - and in next to no time - into a specialist machine which is suited to those specific ground conditions. The tines on the rotary cultivator can be easily fitted into the tine carriers in the "on-grip" working position for heavy ground and mulch sowing. They are secured without bolts using pins and lynch pins.

1. Tines “on-grip”
2. Tines in “trailing” mode


Rigid execution with a working width from 3 m to 4 m

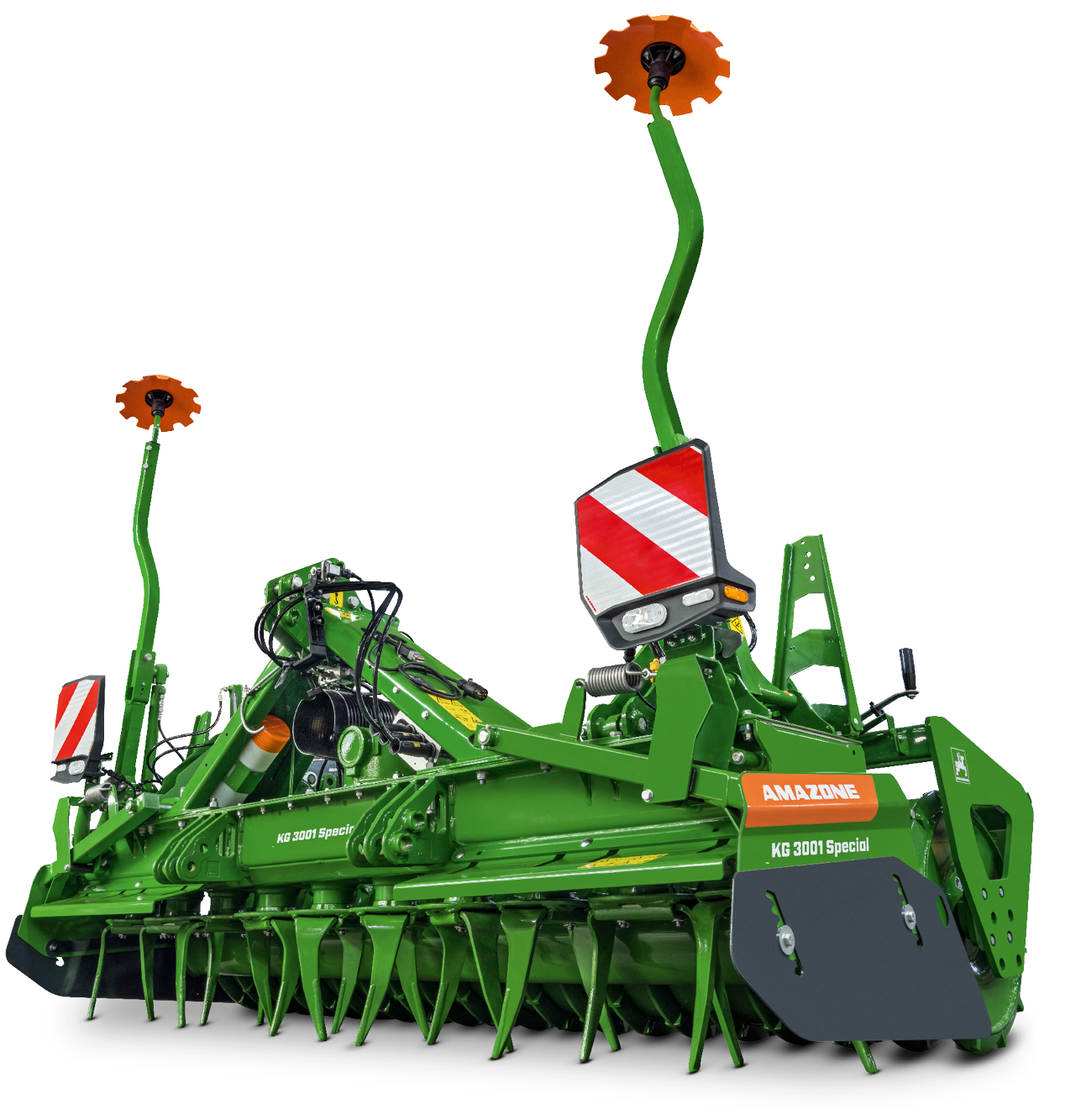

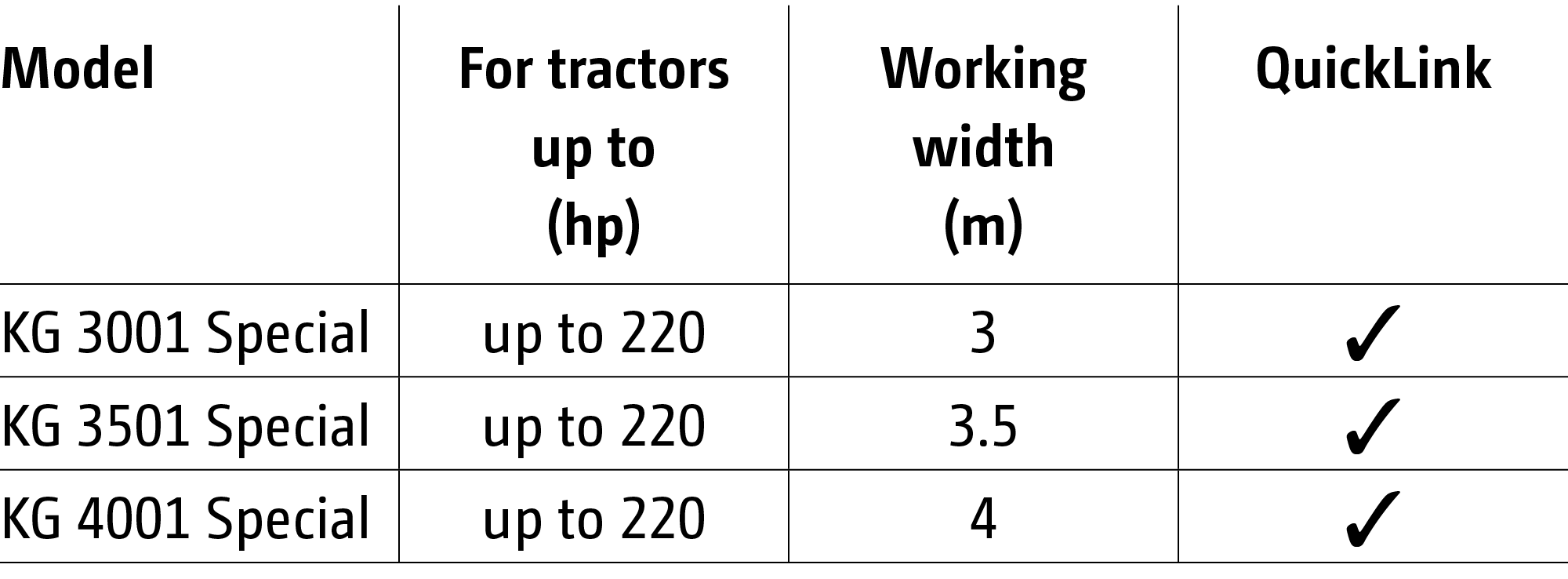

KG Special rotary cultivator

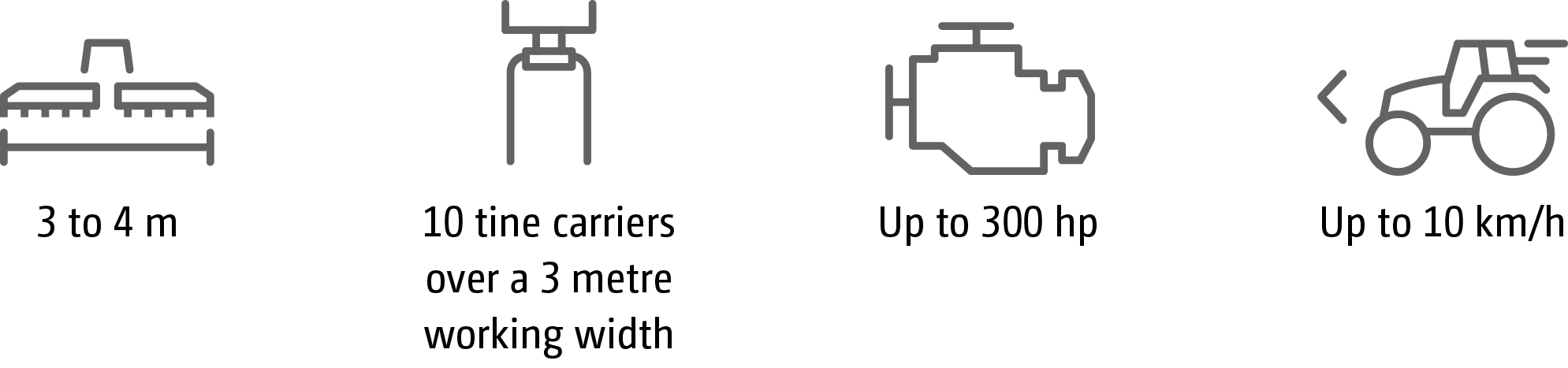

The KG Special rotary cultivators, in working widths of 3 m, 3.5 m and 4 m, are ideally suited for seedbed preparation on heavy soils and for mulch sowing.

KG Super rotary cultivator

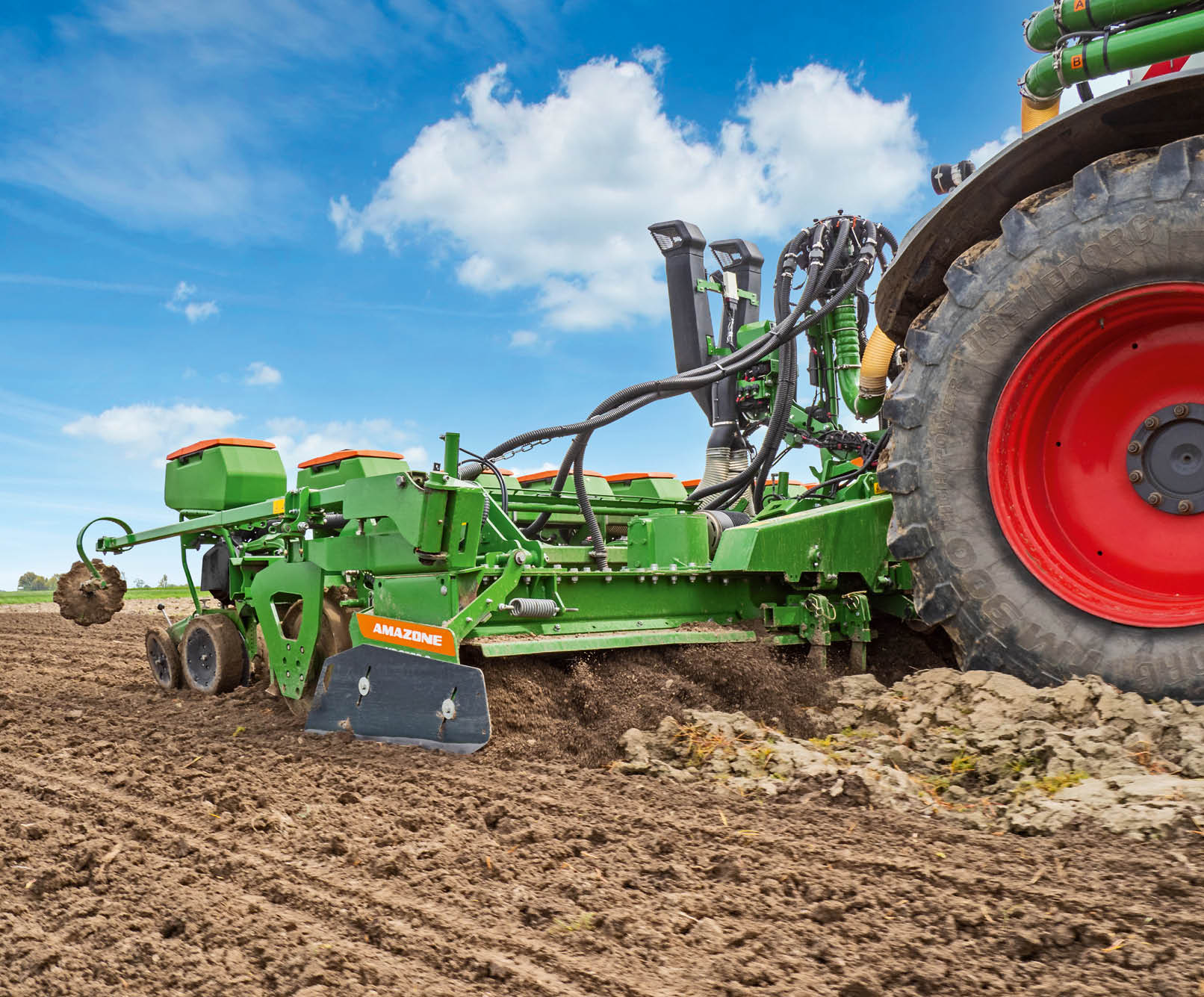

The KG Super, in 3 m, 3.5 m and 4 m working widths, is equipped with an over-dimensioned gearbox for tractors up to 300 hp. The KG Super has reinforced tines as standard and can be ordered with hydraulic depth adjustment and oil cooler as options.

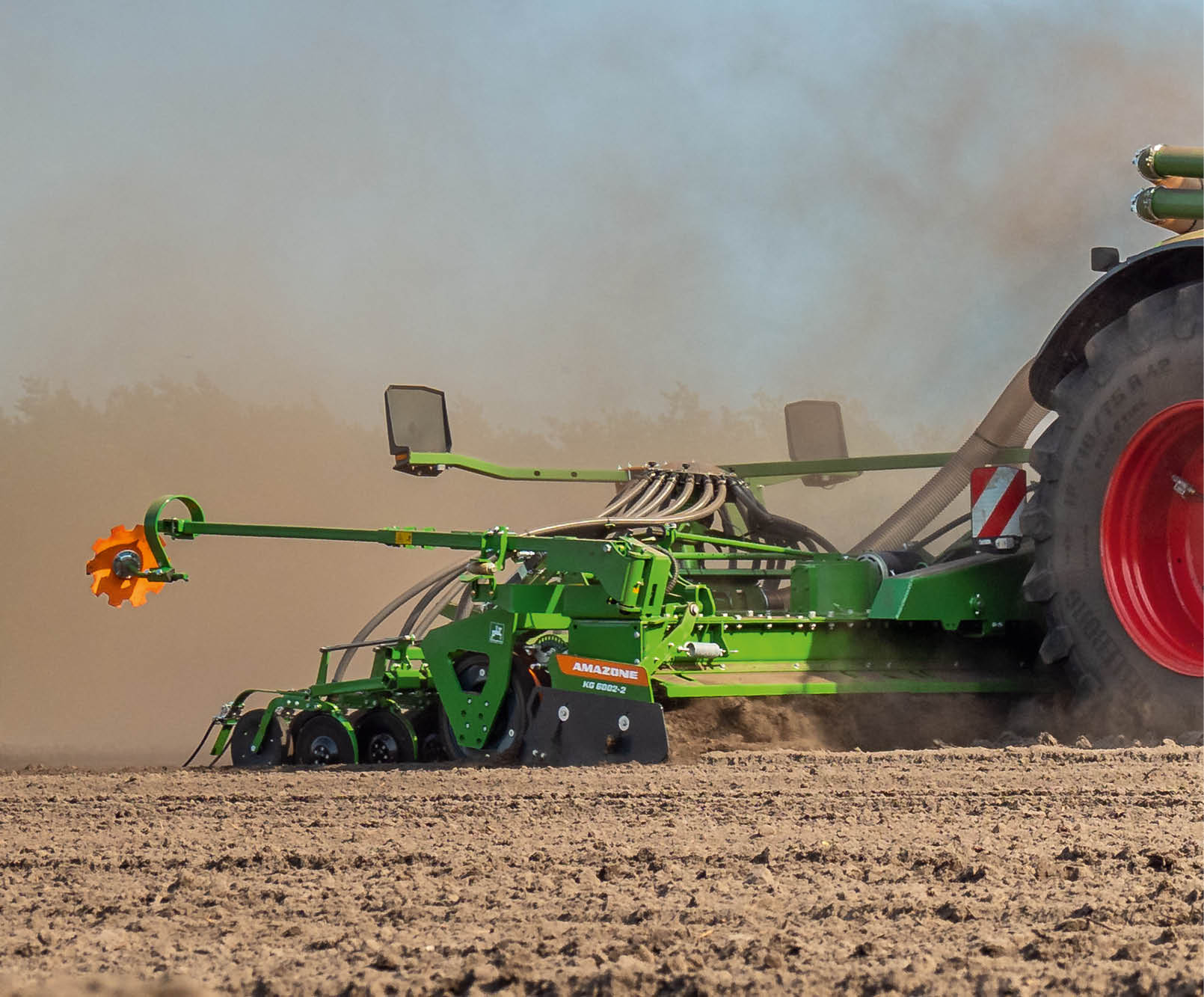

KG 02-2 rotary cultivator
The "Folding Flagship" for high outputs

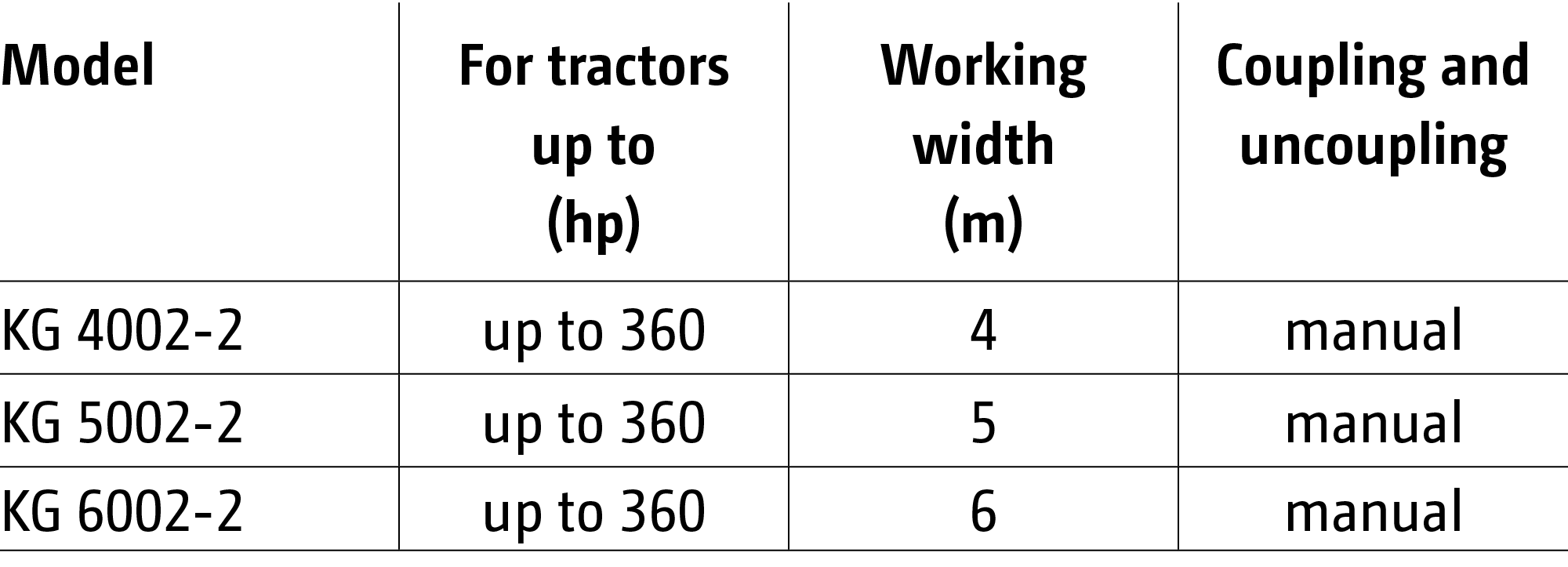

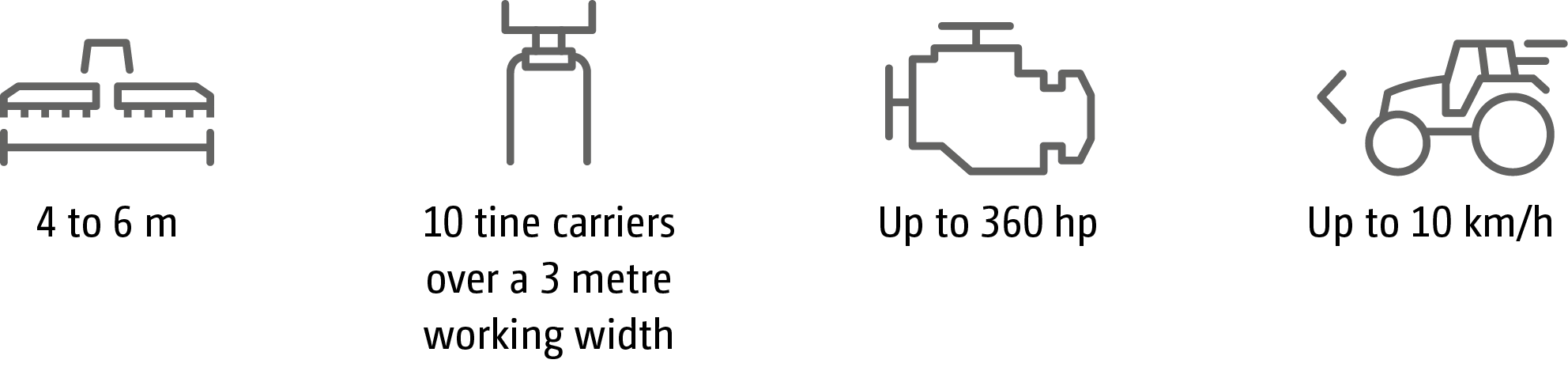

The folding KG 02-2 rotary cultivator in working widths of 4 m, 5 m or 6 m is particularly impressive with its high work rates. The Cultimix system provides the rotary cultivator with a high clearance and unbeatable robustness.


Exchangeable rear seeding unit
Maximum flexibility

The seed rail can be manually easily removed in around 30 minutes enabling the flexible use of the KG 4002-2, KG 5002-2 and 6002-2 folding rotary cultivators, for either solo operation, or in combination with the harrow-mounted Precea precision air seeder*.

* Only valid for Precea 6000-2AFCC with 8 singling units
