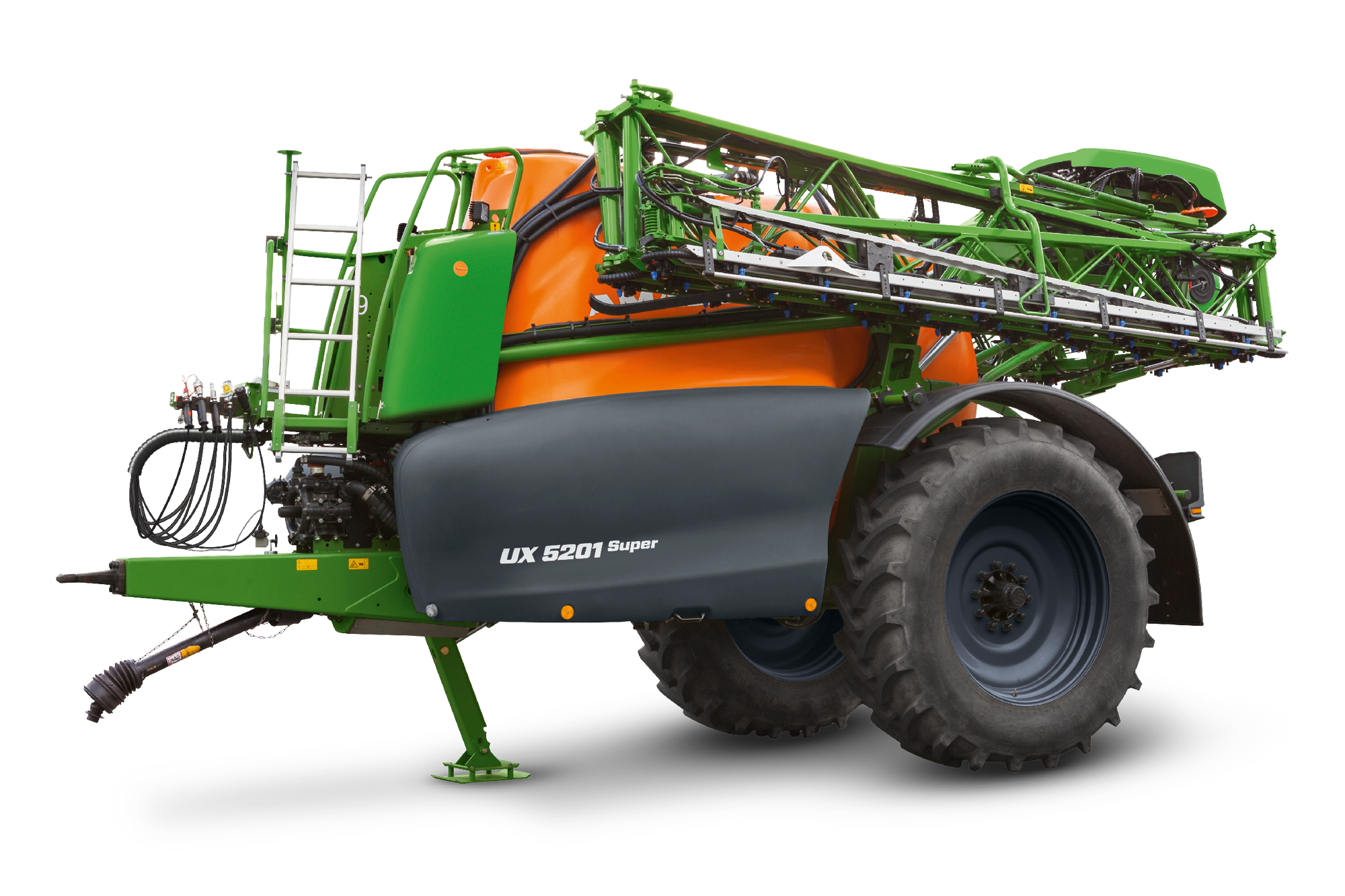

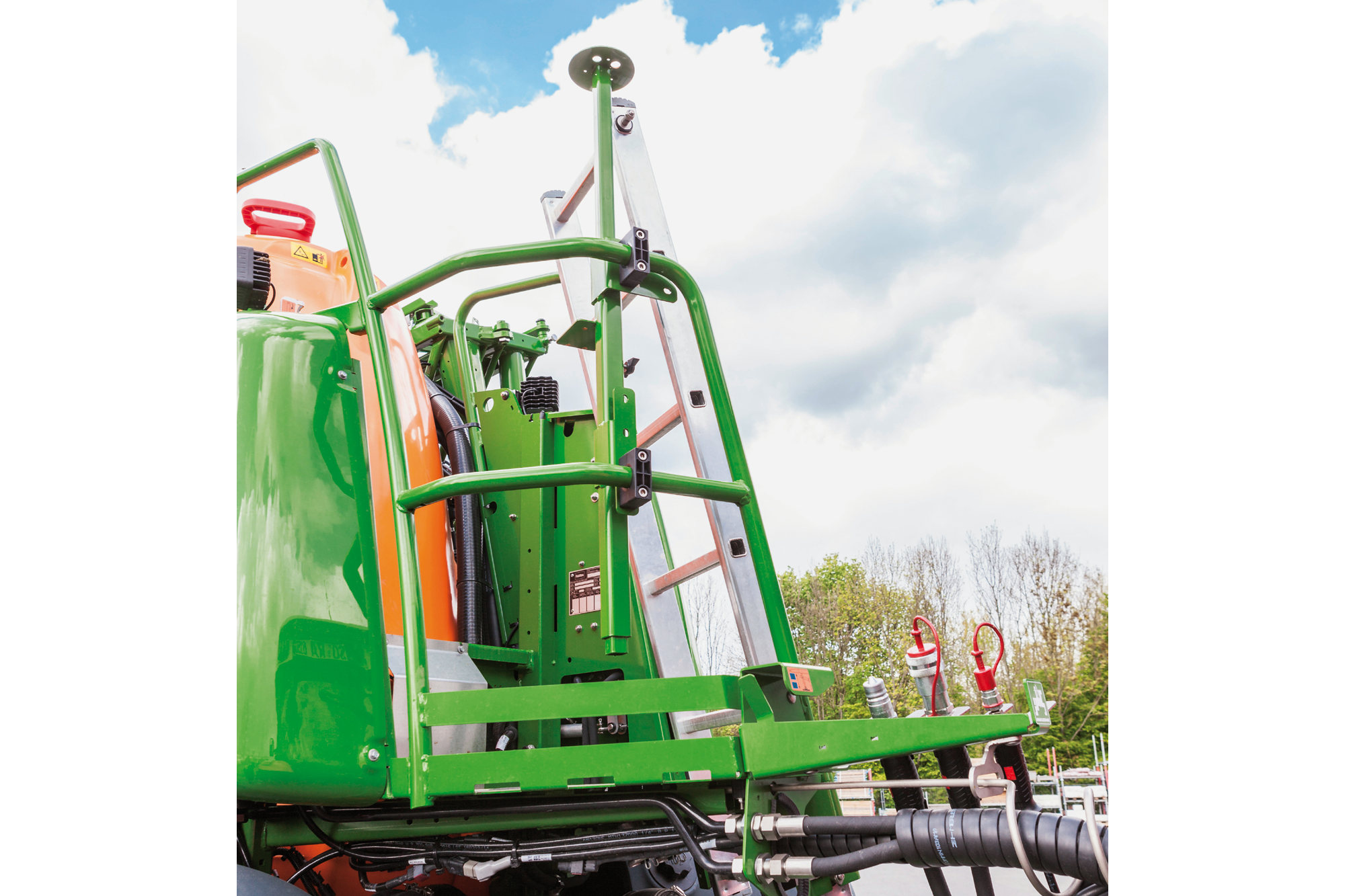

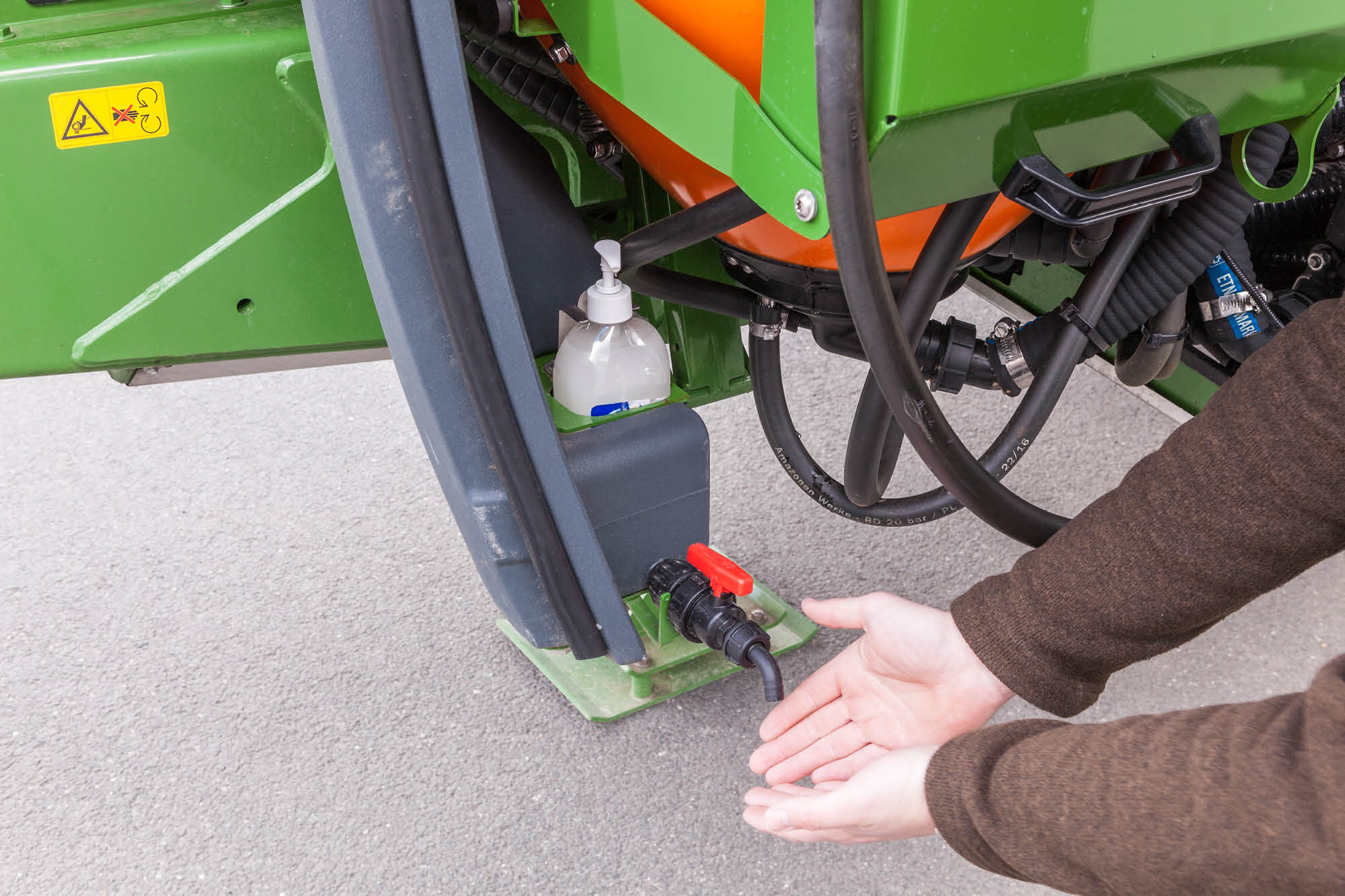

UX Super trailed sprayer

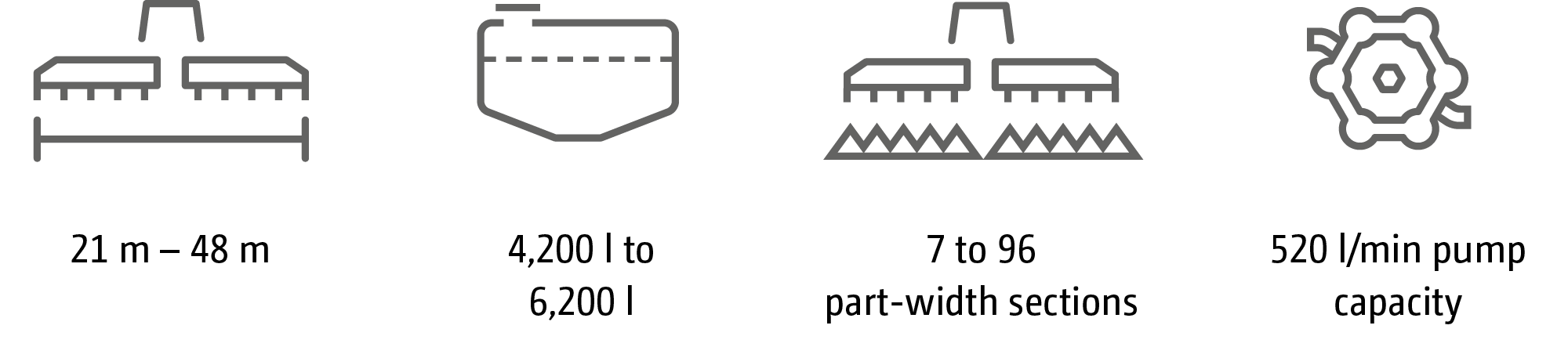

UX Super, single axle, up to a tank capacity of 6,200 litres

Advantages of the single axle UX Super with a tank capacity of up to 6,200 litres:

• Super-compact design for high manoeuvrability and clarity during use
• Top mounting with a straight drawbar or lower mounting with a hitch drawbar
• Low nett weight for soil protection

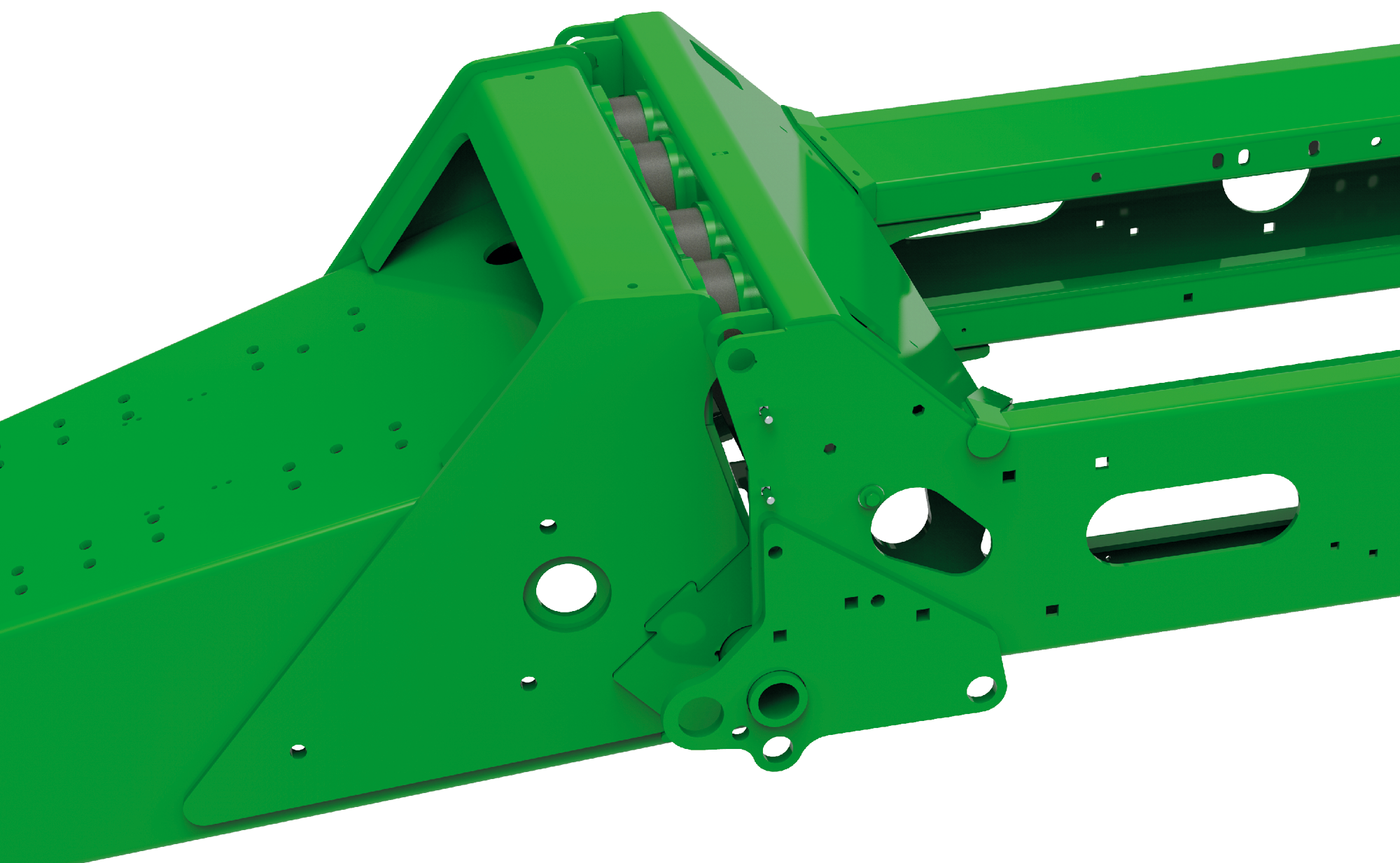

The wide profile steel frame, made from torsion resistant steel, compact tank design and the well-engineered boom technology provide the utmost in robustness.

The drawbars of the UX 4201 to UX 6201 and the UX 11201 are provided with an important design element, the drawbar shock absorbance system. Minimising the to and fro movements between frame and drawbar it also protects the booms and prevents any rocking movement of the tractor keeping the operator comfortable.

The UX trailed sprayer allows fitting of a drawbar at the rear. The max. towing capacity is 12 t.

No matter whether using a rigid hitch drawbar with ball coupling or the classic towing eye, AMAZONE always offers the right solution for your tractor. Choose between top hitch or lower mounting, towing eyes with a diameter of 40 mm or 50 mm or the K80 ball coupling.

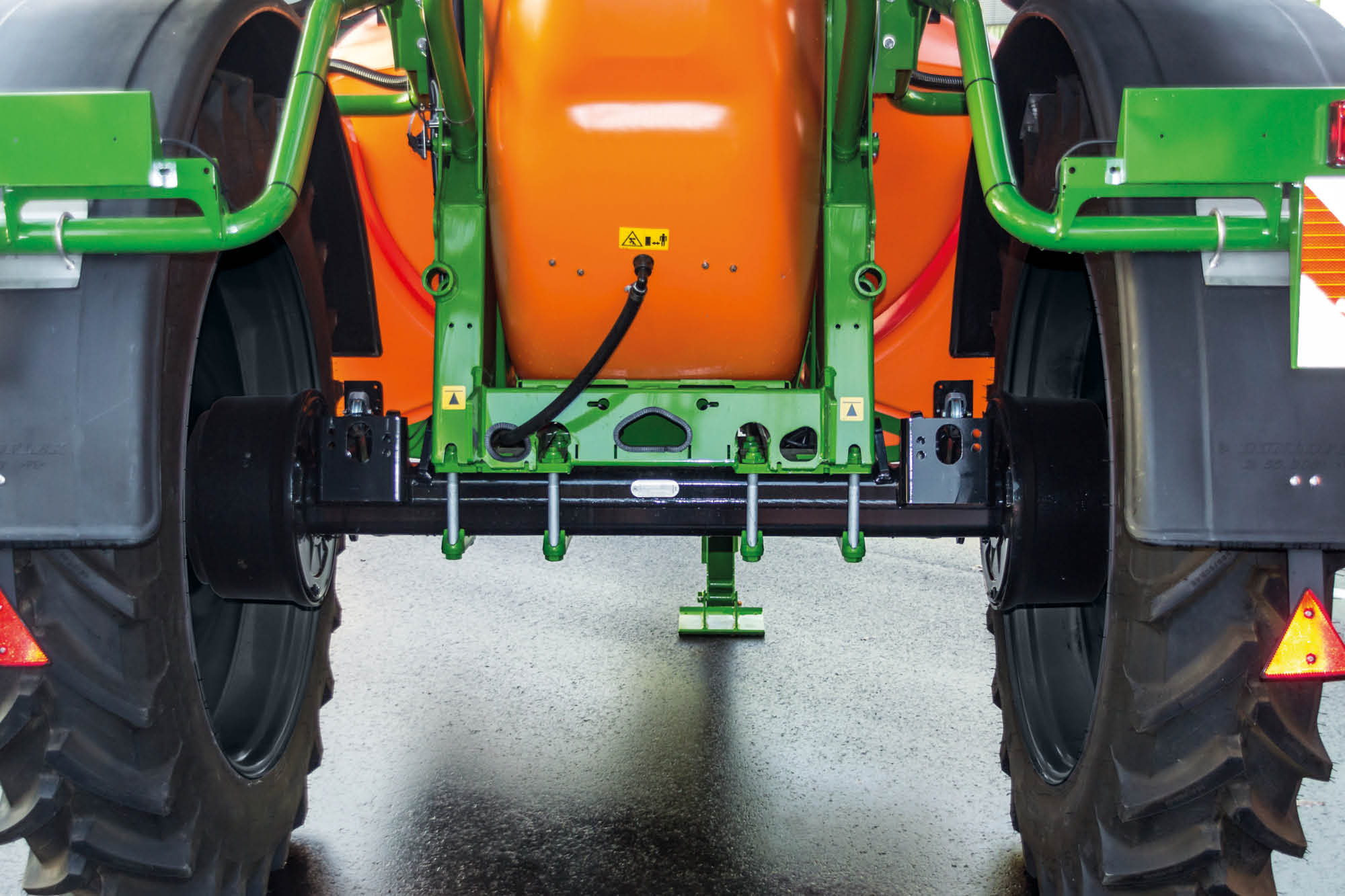

A height adjustable jack Is integrated in the frame and with its convenient optional hydraulic height adjustment makes coupling to the tractor quick and easy.

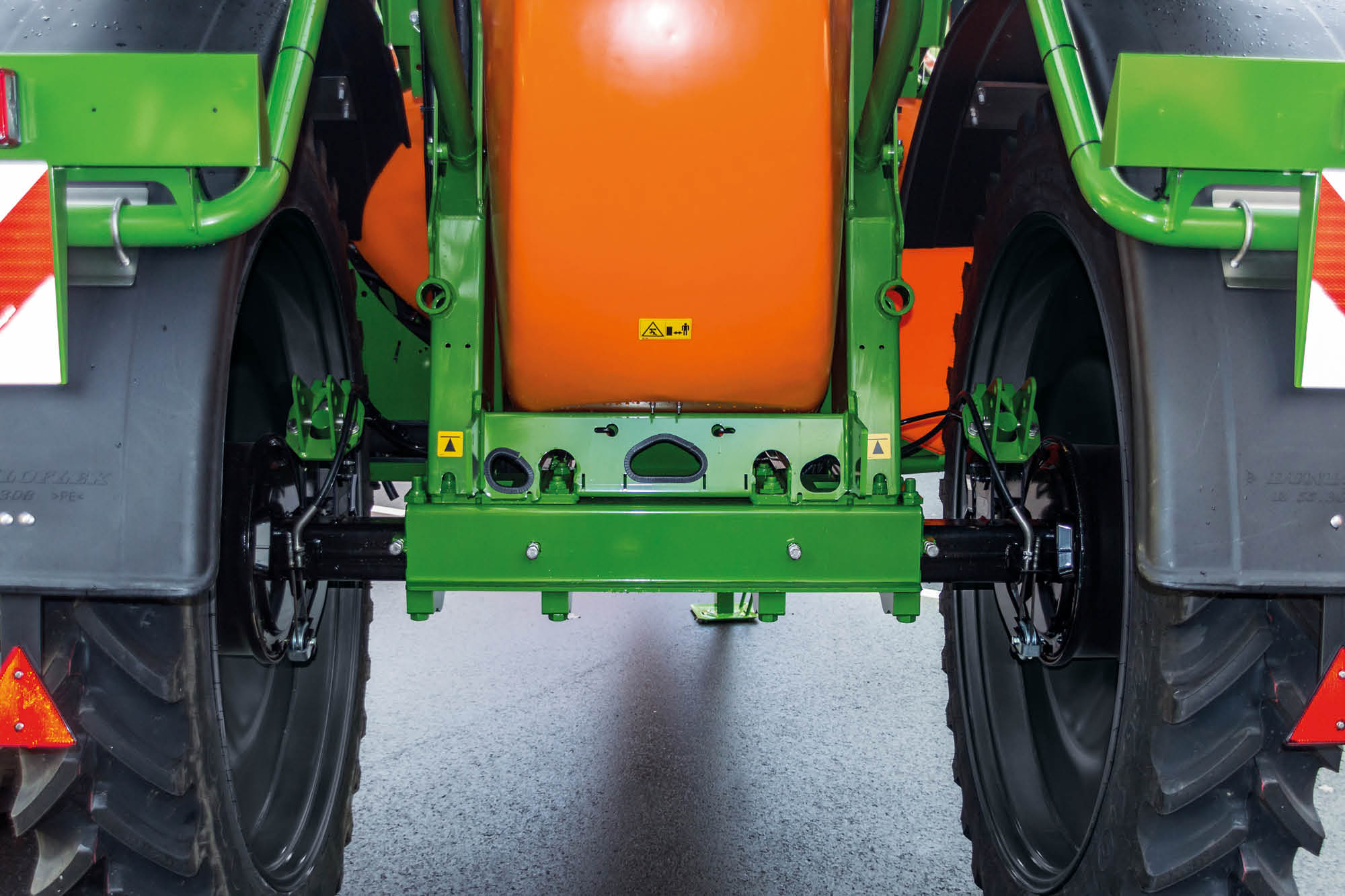

The wide variety of axles offer the right solution for every requirement.

The benefits:

• Tyre sizes up to 520/85 R46 (2.05 m diameter) are possible
• Ground clearance up to 82 cm
• Permissible speeds of up to 60 km/h with the ALB system (automatic load-dependent brake valve)

The options:

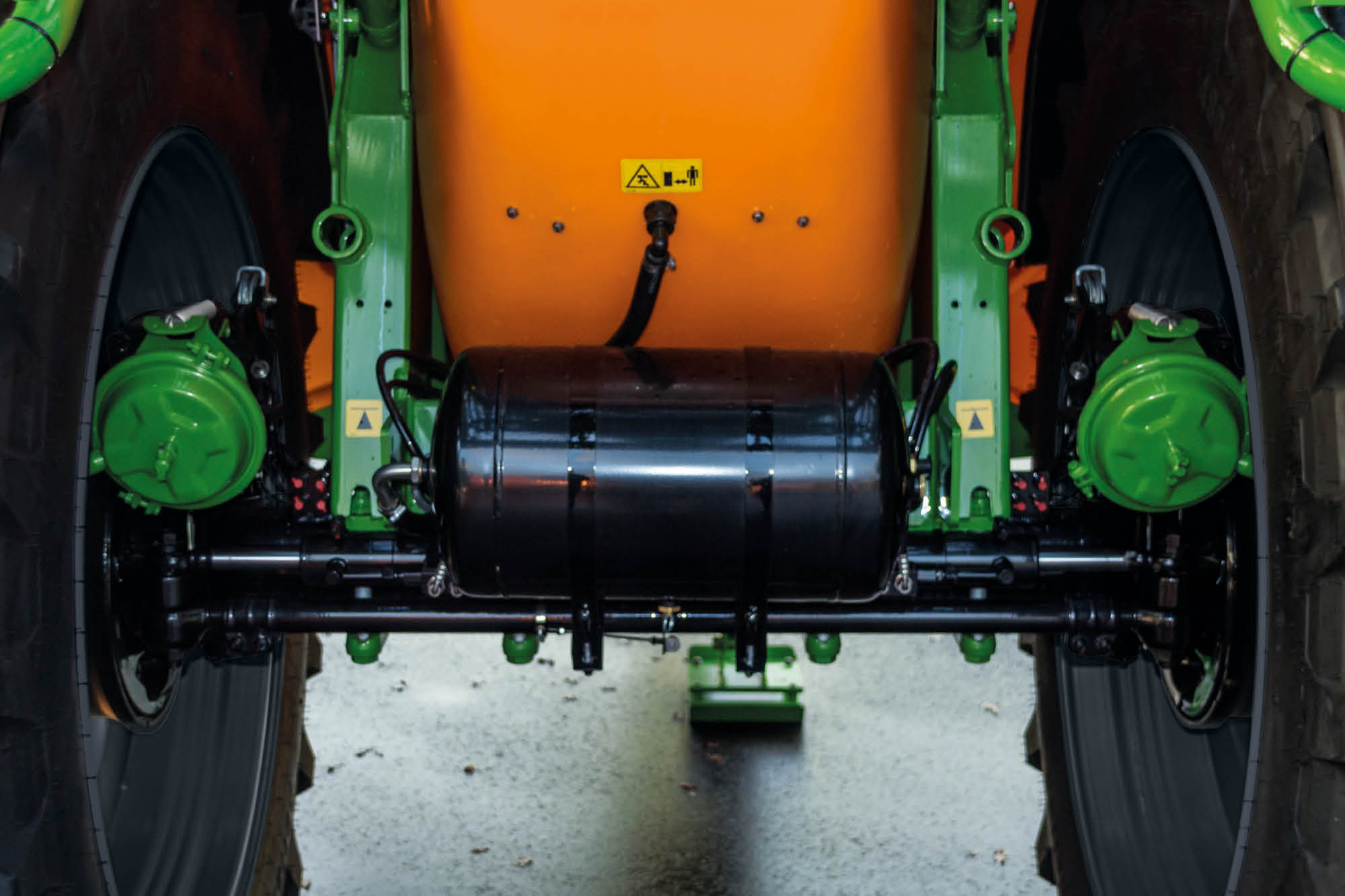

• Fixed axles with track widths from 1.50 to 2.25 m – two track widths are possible by turning the wheels round.
• Adjustable axle with stepless track width adjustment from 1.50 m to 2.25 m for the UX 4201 Super

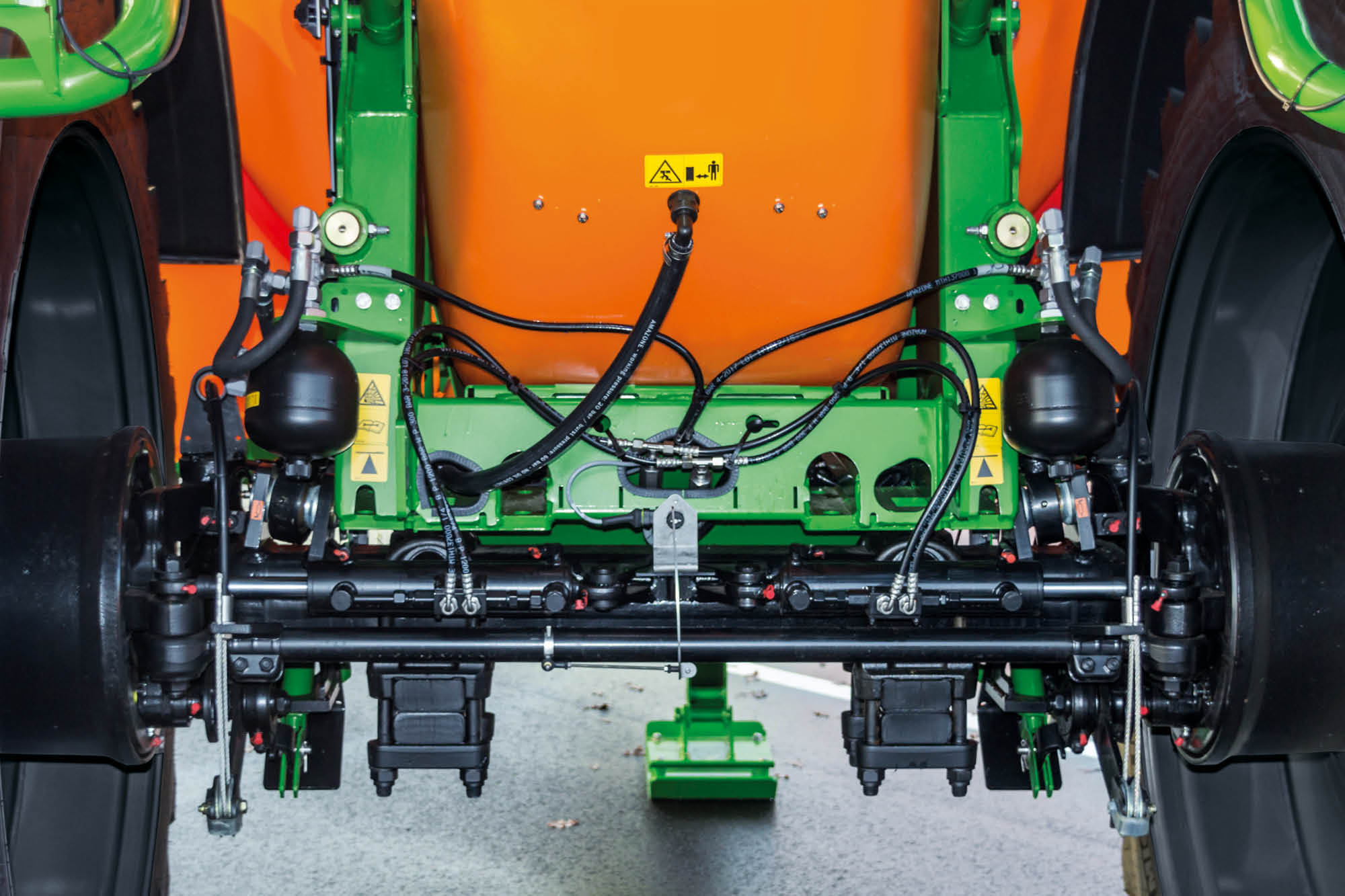

• Hydro-pneumatic axle suspension with patented roll stabilisation for the UX 4201 Super and the UX 5201 Super

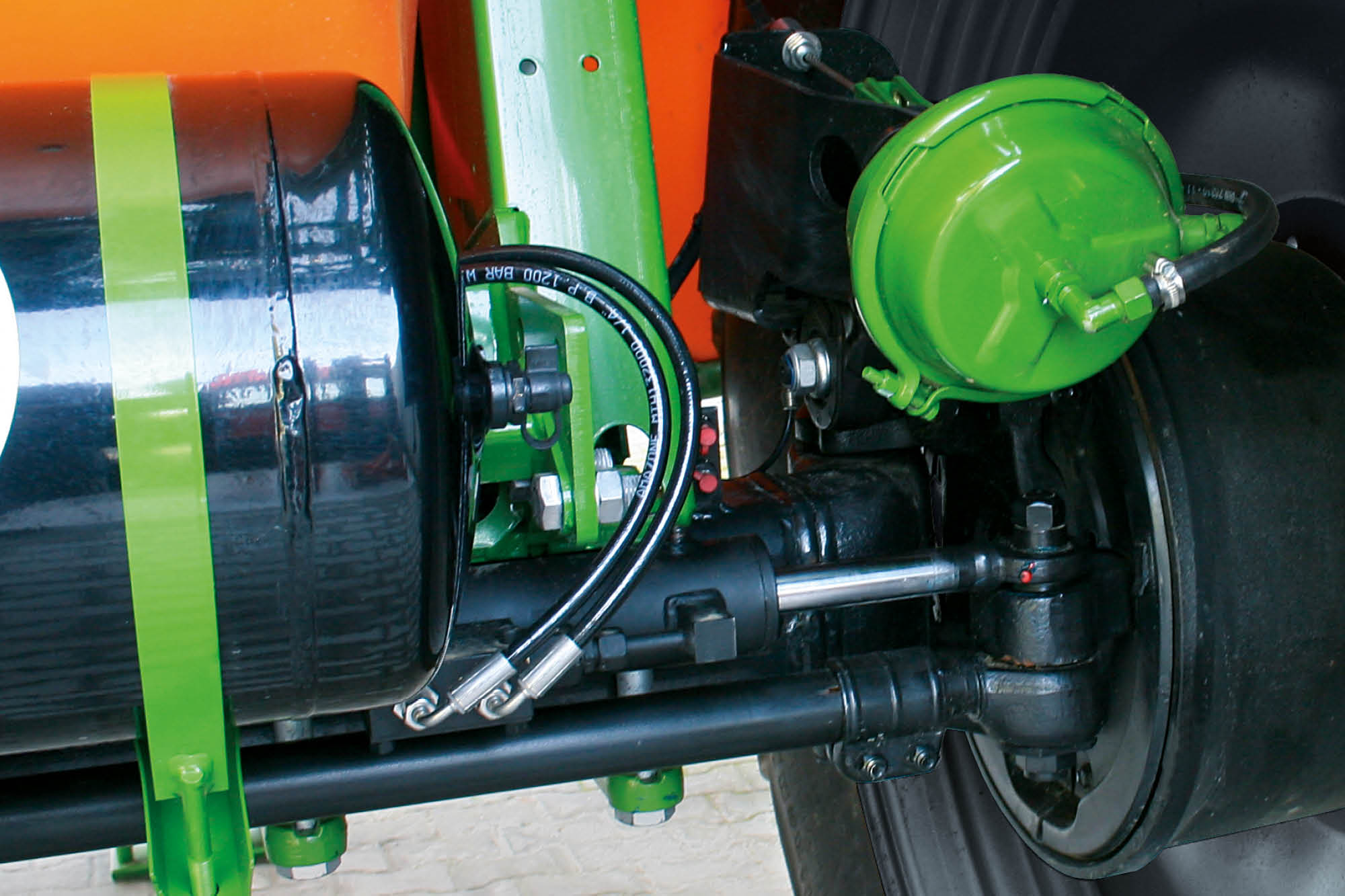

• AutoTrail axle pivot steering for precise automatic trailing tracking

Steering systems for the single axle UX Super models

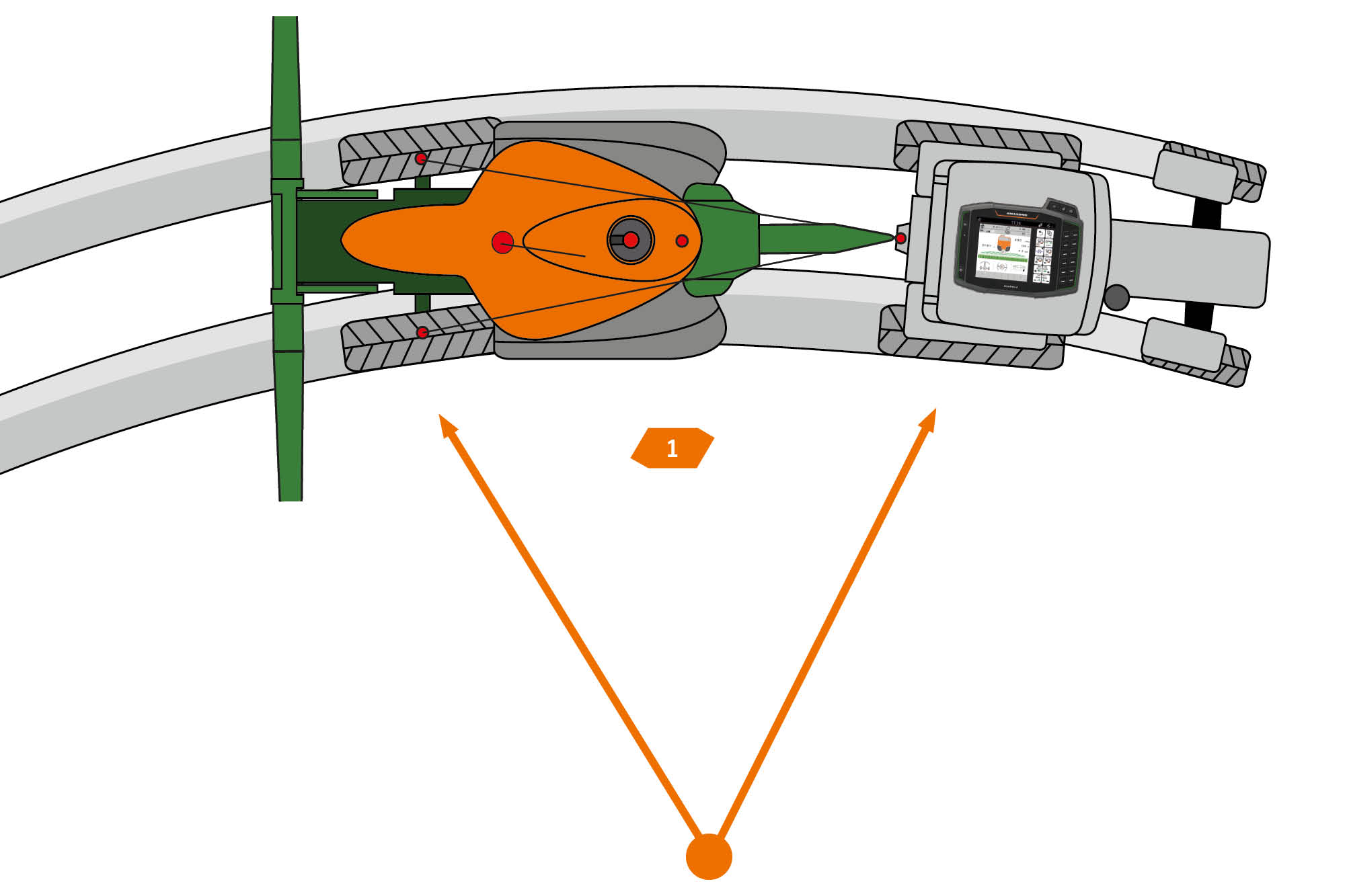

AutoTrail axle steering

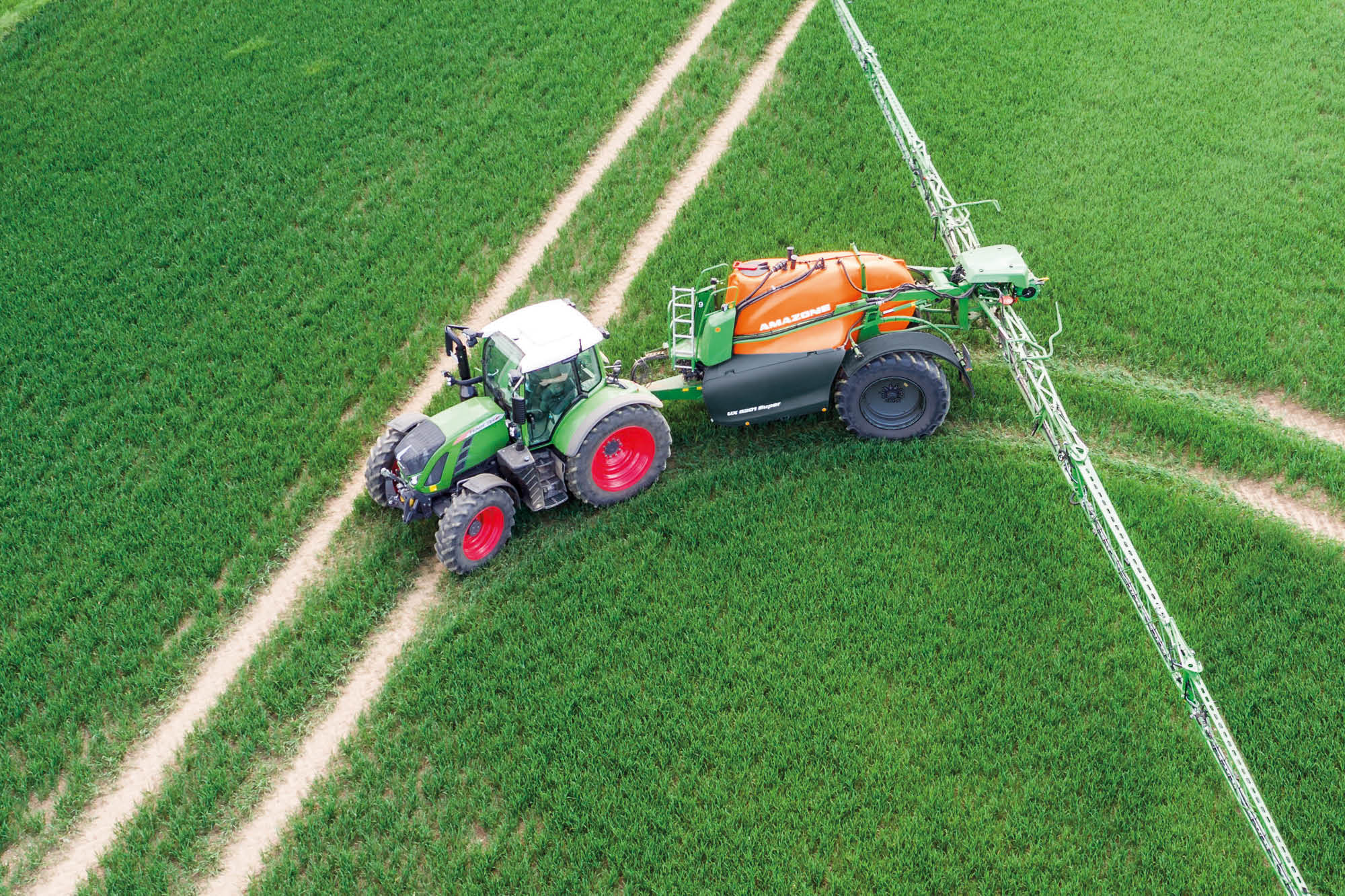

The optional AutoTrail axle steering provides the driver with the utmost comfort and ensures an especially smooth boom ride and high stability. The track-following capability, particularly when in the reversing position, is outstanding. This steering of the axle is also possible in the folded-in position.

“When the wheels are turned in the field, hardly any steering forces are transferred to the booms. Therefore the steering is continuously active in the field – even when on a straight run. Then if the tractor steers, the wheels of the sprayer are immediately also steered. How smoothly this happens we were able to see during operation. It didn’t matter whether we drove fast or slowly, nothing wobbled on the boom when turning.” (”dlz agrar magazine” – Test report “Safe in the track“· 06/2011)

Clever AutoTrail steering

AutoTrail steering ensures an intelligent, track-true steering behaviour and can be easily calibrated for any tractor type. The AutoTrail steering systems can be activated at any time and can be oversteered using manual readjustment on slopes. Especially helpful in narrow field entrances is, with the Auto-Trail steering, the ability to activate the steering even with the booms folded.

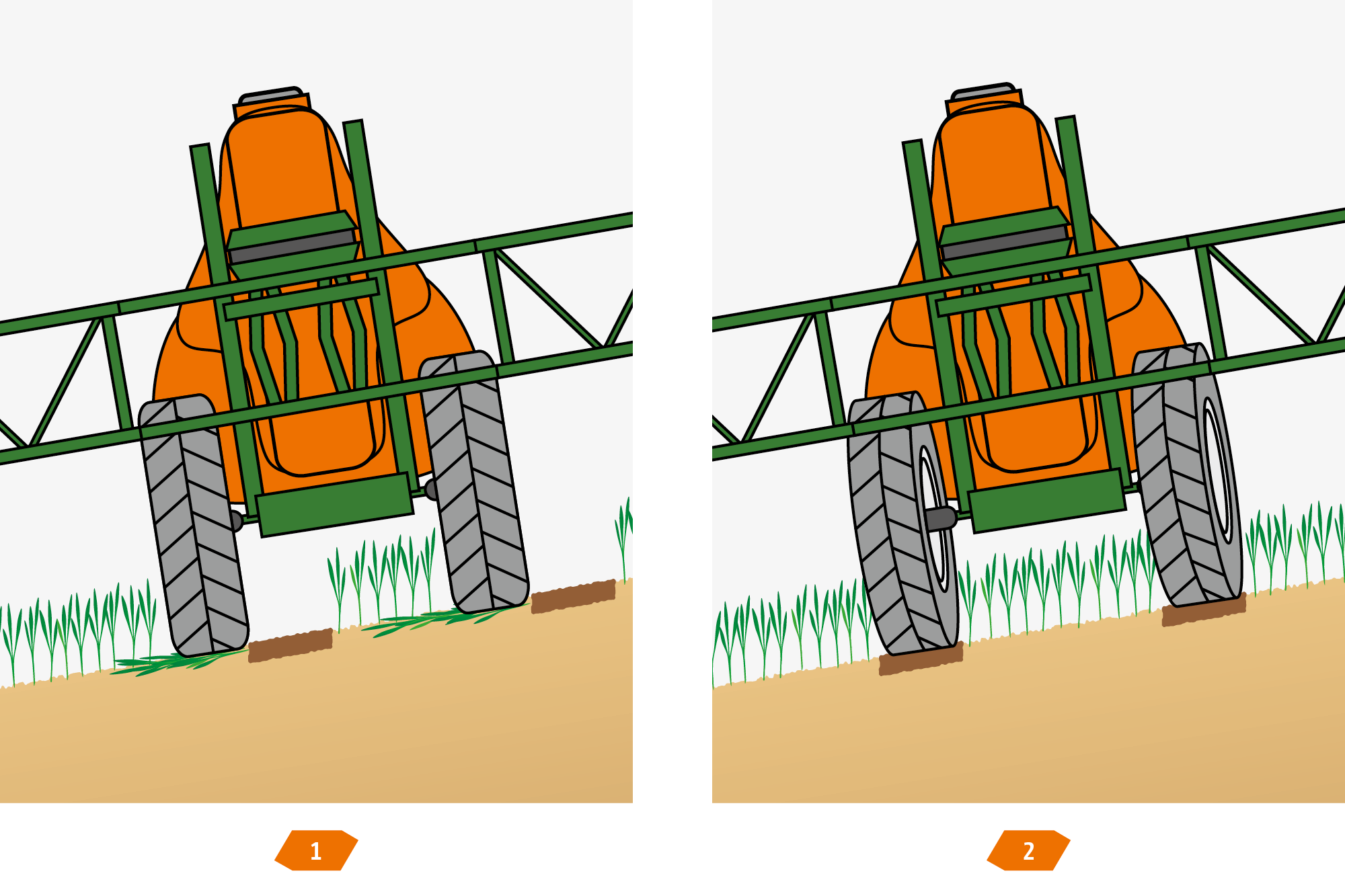

Slope compensation for AutoTrail steering

AutoTrail steering on the UX Super is fitted with fully automatic slope compensation as standard. As the steering angle, depending on severity of the terrain, has to be possibly adjusted, the intensity of the setting can be altered at any time via the joystick.
