UF 01 mounted sprayer

AmaSpray⁺ – simple and versatile

The AmaSpray⁺ enables simple yet fully automatic control of the UF 01. The buttons integrated in the operator terminal enable the switching of 5, 7 or 9 part-width sections. The AmaSpray⁺ has a digital pressure display and a digital tank level indicator. It records the quantity applied and area worked. The hydraulic functions are operated using the spool valves on the tractor. Boom tilt and pendulum lock are also displayed in the AmaSpray⁺. As an option, AmaSpray⁺ enables one-sided folding of the boom or control of the end nozzle spraying systems.

The AmaSpray⁺ operator terminal with serial interface can also be used for automatic documentation (ASD) and part area, site-specific application via a GPS terminal.

The benefits:

• Single, high-contrast, backlit screen
• Master on/off and part-width section control
• Up to 9 part-width sections
• Digital pressure indication
• Digital fill-level indicator
• Display of the boom position and lock status
• Hectare meter (total and daily counter)
• +/- 10% key
• Field record management system

Additional functions (with optional equipment):

• Pre-select fold for independent boom folding
• End nozzle switching or boundary nozzle switching for
• Super-S boom (alternative to pre-select fold)
• Fold or tilt via 1 double-acting spool valve
• (electro-hydraulic changeover valve)
• ASD inside: serial interface for documentation and GPS terminal versatility

The new ProfiClick control box provides simple and precise operation of the hydraulic functions of the boom on AMAZONE crop protection sprayers.

It is available in combination with the electro-hydraulic "Profi-fold I" pack. All the operational functions of the ProfiClick control box are ergonomically arranged and linked directly with that function. The potentiometer for the re-adjustment of boom tilt can be controlled on the move without looking thanks to the centre position via a detent function. So the driver can concentrate perfectly on driving.

• ProfiClick switchbox without steering
  – Actuation of the boom functions via the oil circuit

1. Ergonomic hand support
2. On/off
3. Boom pendulum lock
4. Boom fold
5. Boom up/down
6. Boom tilt

One language, many benefits!
Each ISOBUS-enabled machine from AMAZONE comes with the latest technology and almost unlimited possibilities. It makes no difference whether you use an operator terminal from AMAZONE or an ISOBUS terminal fitted directly in the tractor. ISOBUS is an internationally recognised standard for communication between the operator terminal, tractors and connected implements on the one hand and Farm Management Information Systems on the other.

Operation with a wide variety of ISOBUS terminals

Which means that ISOBUS enables you to take control of all your ISOBUS compatible equipment. You only have to connect the machine to the respective ISOBUS terminal and the usual operator interface appears on the monitor in your tractor cab.

Benefits of ISOBUS at a glance:

• International standardisation provides uniform interfaces and data formats, meaning that compatibility with other manufacturers is ensured
• Plug and Play between the machine, tractor and other ISOBUS equipment

AMAZONE machinery and operator terminals offer a range of functions which are very easy and safe to operate.

The benefits:

• Highest compatibility and safety function of your ISOBUS equipment
• No additional modules on the machine side. All ISOBUS machines from AMAZONE come ready-equipped with the necessary ISOBUS functions as standard
• Practice-oriented machine software and logical menu structure
• MiniView display with all AMAZONE terminals and additional ISOBUS terminals. See, for example, the machine data in the map view.
• Possibility of operating the machine via the tractor terminal or a twin terminal solution
• Flexible assignment of the map and machine view between the tractor terminal and the operator terminal
• Unique operation concept. Freely configurable displays and individual user interfaces for each driver
• Useful additional functions such as automatic boom lowering on AMAZONE crop protection sprayers
• Integrated Task Controller data logger function

Advantages of the AMAZONE machine software:

• User-oriented and intuitive
• Tailored to the machine
• Function scope above and beyond the ISOBUS standard

Full functionality

The AmaTron 4 ISOBUS operator terminal, developed in-house by AMAZONE, enables convenient tablet-style, touch-screen control of any ISOBUS-enabled agricultural machine. AmaTron 4 makes all ISOBUS functionality possible - with added convenience, user-friendliness and overviews. And yet: it performs even better in combination with AMAZONE agricultural machinery and guarantees full functionality when it comes to precision farming.

ROBUST!

• Low-reflection, 8" display with waterproof and dustproof aluminium housing
• Rear-mounted hand rest for a secure grip

WELL-DESIGNED!

• Practical and clear menu navigation for simple and intuitive use
• Actuation via touch screen or soft keys
• Simple documentation and job management: work first - then save the data
• Optional software licences for maximising every opportunity in precision agriculture

COMFORT!

• App carousel for quick and easy navigation at the swipe of a finger
• Freely configurable status bar - the most important parameters available at a glance, all of the time
• The practical quick-start menu allows quick and easy import and export of job data

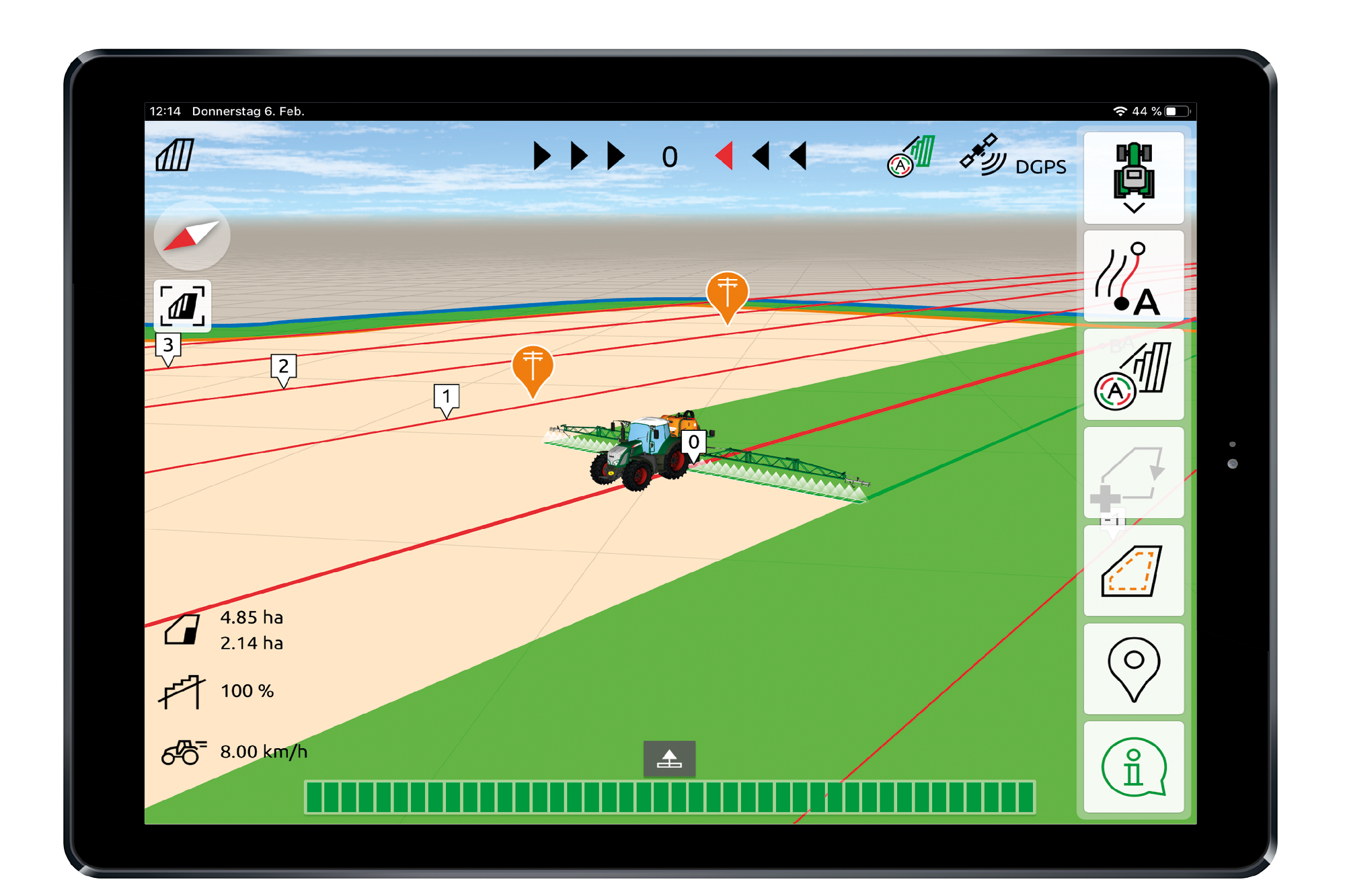

AmaTron Twin App – extended display for user-friendly operation

The AmaTron Twin App offers the driver even more comfort during work, as GPS functions in the map view can also be displayed on a tablet in parallel with the machine operation on the AmaTron 4.

Advantages of the AmaTron Twin display enhancement:

• Uses an existing mobile device
• Greater clarity – all applications in view
• Comfortable control of GPS functions in the map view in parallel via the mobile device
• Clear, authentic representation of the machine in work and its part-width sections

Thanks to the AUX-N feature, you can operate multiple functions on the machine via the AmaPilot⁺ or any other ISOBUS multi-function joystick.

The benefits of AmaPilot⁺:

• Almost all the functions directly to hand via the 3 levels
• Adjustable palm rest
• Freely available key assignment

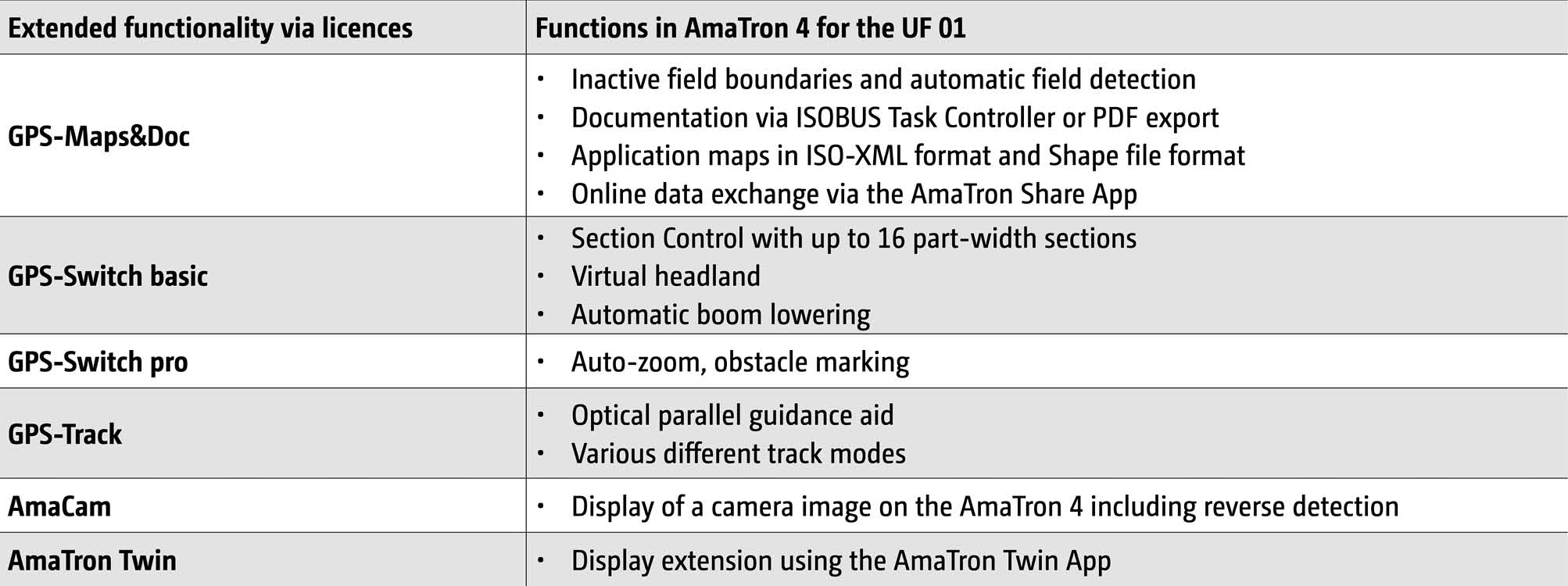

With the GPS-Maps&Doc licence, the AmaTron 4 can gather and document both machine data and georeferenced data via Task Controller (TC). Part-area, site-specific operation via application maps in either Shape file or ISO-XML format is also possible.

 Advantages of GPS-Maps&Doc with the AmaTron Share App:

• Intuitive system for processing application maps
• Automatic part-area, site-specific regulation of the application rate
• Indication of inactive field boundaries and automatic field detection when approaching the area
• Optimum crop management through needs-based application
• Comfortable import of jobs in ISO-XML or Shape file format and export of completed jobs in ISO-XML format or as a job summary in PDF format via the AmaTron Share App
• Start a new task straight away and decide later whether the data is saved or not

AmaTron Share App for digital data transfer. Try it now!


The AmaTron Share App, which is connected to the AmaTron 4 via Wi-Fi, allows all data to be conveniently transferred online. For example, the App enables application maps to be easily sent from the office to the AmaTron 4 for completion. Job data can also be sent to customers or back to the office as PDF documentation via the cloud, email or messenger services such as WhatsApp after the job has been completed. This is user-friendly data management!

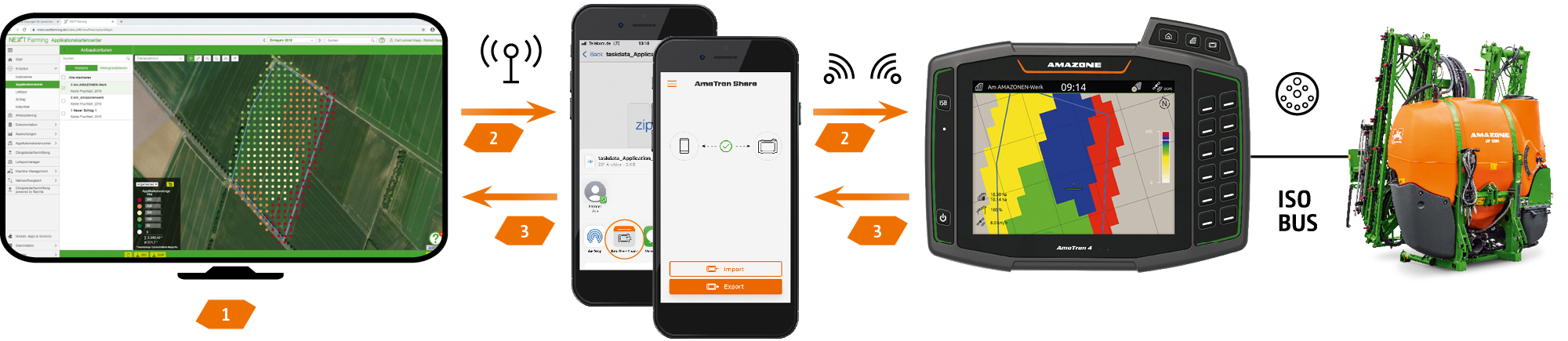

1. Generation of an application map in a farm management information system for automatic part-area, site-specific control of the application rate via the AmaTron 4
2. ISO-XML and shape files
3. ISO-XML and PDF

The GPS-Track parallel guidance greatly helps with orientation in the field, especially on grassland or in areas without tramlines.

• With a virtual light bar in the status bar
• Automatic tramline control via GPS for seed drills
• Various track modes such as A-B lines or contour following
• Optional with AmaTron 4

Software licence for displaying a camera image on AmaTron 4.

• Automatic display of the camera image on AmaTron 4 when reversing

If the operating terminal features Section Control, such as, for example, GPS-Switch part-width section control from AMAZONE, the switching of the part-width sections can be carried out completely automatically and in relation to the GPS position. Once a field has been created, and then in automatic mode, the driver can concentrate fully on the operation of the towing vehicle, since the part-width sections are switched automatically in wedge shaped fields and on headlands.

Advantages of the automatic part-width section control:

• Stress relief on the driver
• Increase in precision especially at night or at higher speeds
• Fewer overlaps and gaps
• Saving on input costs
• Less crop damage and less environmental pollution

“With Section Control, the ISOBUS computer relieves the driver from a lot of work.”
(“dlz agrar magazine” – “Test report ZA-TS fertiliser spreader”· 02/2017)

Up to 85 %* less overlap in comparison to conventional Section Control part-width section switching, e. g. on the headland

* Savings are dependent on field structure, boom width and the number of part-width sections

The decisive benefit of individual nozzle control is the possibility to operate with small part-width sections giving an even greater degree of accuracy in wedge shaped fields, short work and on the headland. If AmaSwitch plus or AmaSelect is combined with the automatic section control, GPS-Switch, automatic switching of individual nozzles in 50 cm part-width sections is made possible. With this system, areas of overlap are significantly reduced and are, in comparison with a conventional Section Control part-width section shut-off system, up to 85% less. So, the combination of GPS-Switch and individual nozzle control results in, depending on field shape and size, the working width and number of part-width sections, significant savings in spray agent compared with a normal spraying system used thus far.

With GPS-Switch, AMAZONE offers GPS-based, fully automatic, part-width section control for all AMAZONE operator terminals and ISOBUS-compatible fertiliser spreaders, crop protection sprayers or seed drills.

GPS-Switch basic

• Automatic part-width section control of up to 16 part-width sections
• Creation of a virtual headland
• Automated boom lowering on AMAZONE crop protection sprayers
• Optional with AmaTron 4

GPS-Switch pro (as an addition to GPS-Switch basic)

• Auto-zoom when approaching the headland and obstacle marking

Overlaps on the headland or in wedge shaped fields are prevented via precise switching with GPS-Switch.

Specialist crops and bed spraying often require the switching on/off of the individual part-width sections in the middle of the boom. The AmaClick is an ergonomic control unit that can be used both in conjunction with the AmaPilot+ multi-function joystick and also as a standalone system alongside an ISOBUS terminal.
