The AMAZONE DUS pressure recirculation system ensures a reliable circulation throughout the entire system. When starting the spraying operation, all the hoses including the spray lines are filled under pressure in the reverse direction with the mixed spray agent. This means the spray lines are always full and immediately ready to use across the entire working width. There is no waiting on the headland.

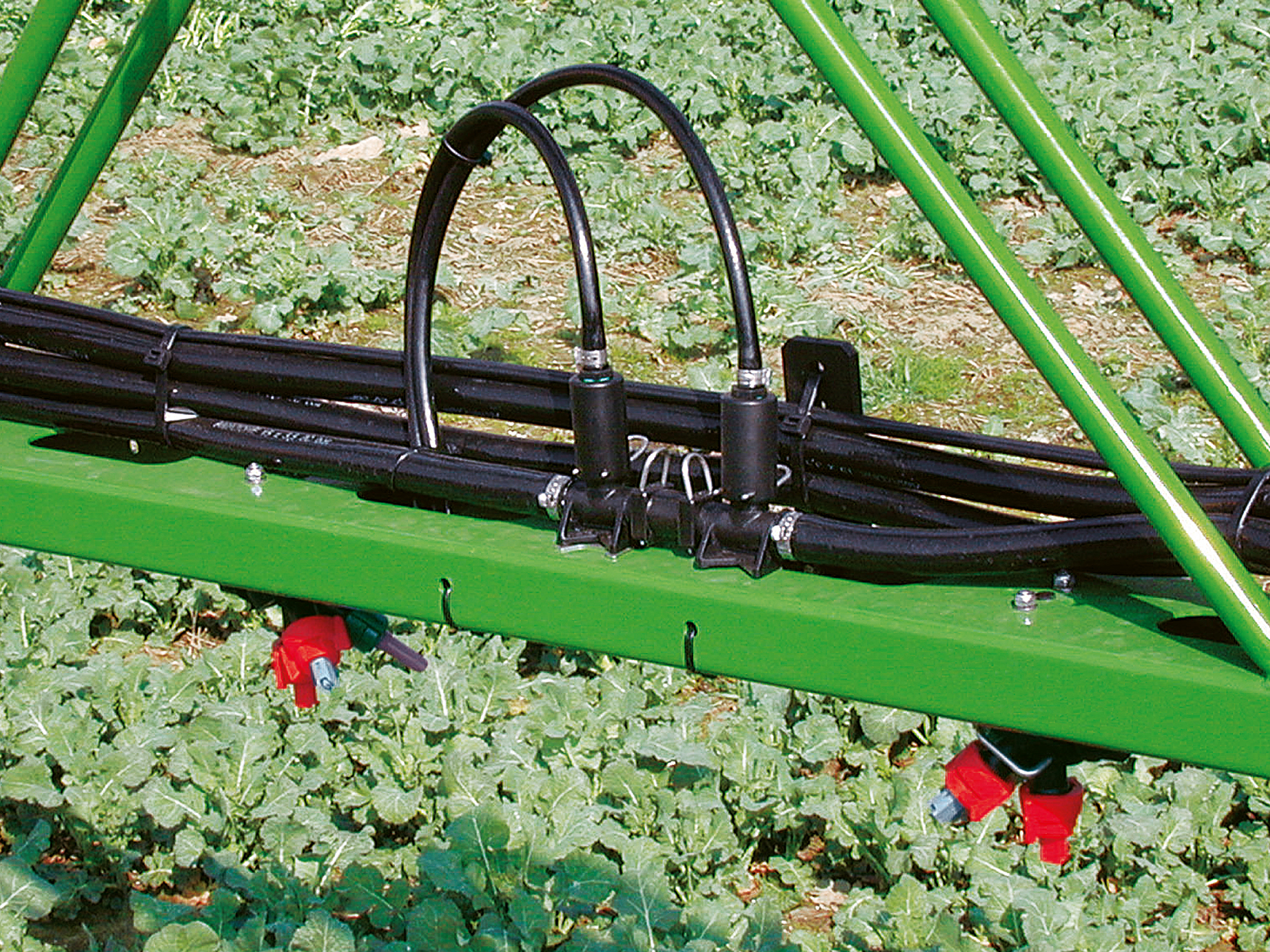

DUS pressure recirculation system
Every time individual part-width sections are shut off when turning and during transport, the spray agent continues to circulate thanks to the pressure recirculation system. This reliably prevents deposits, blockages or segregation in the spray lines.
During the cleaning operation, fresh water flushes the spray lines out right up to the nozzles without any spraying being necessary. During this cleaning procedure, the concentrated spray agent is returned back to tank via the pressure recirculation system leaving the spray lines clean.

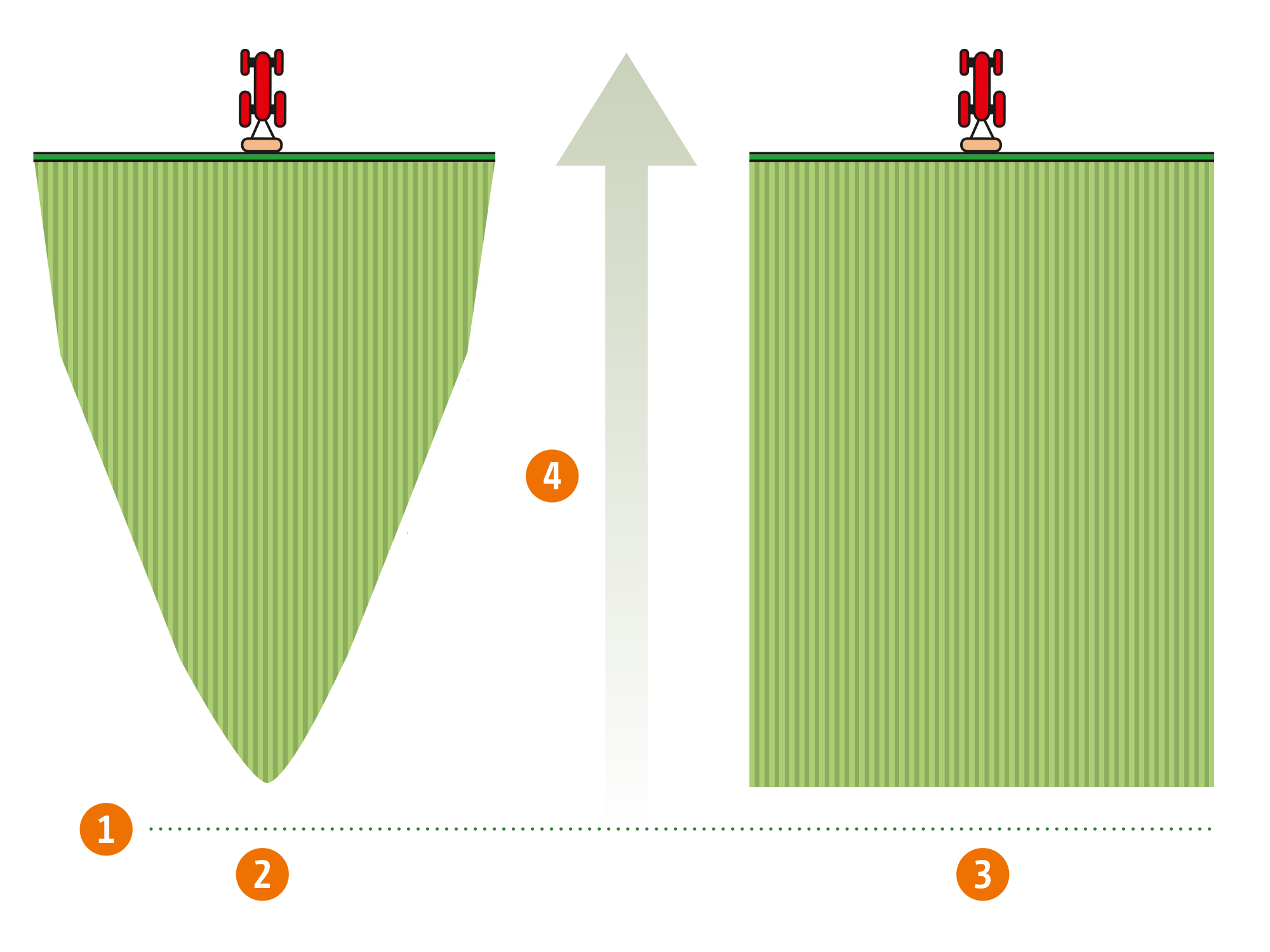

- Start
- without DUS
- with DUS Immediate coverage over the full working width
- ca. 40 metres

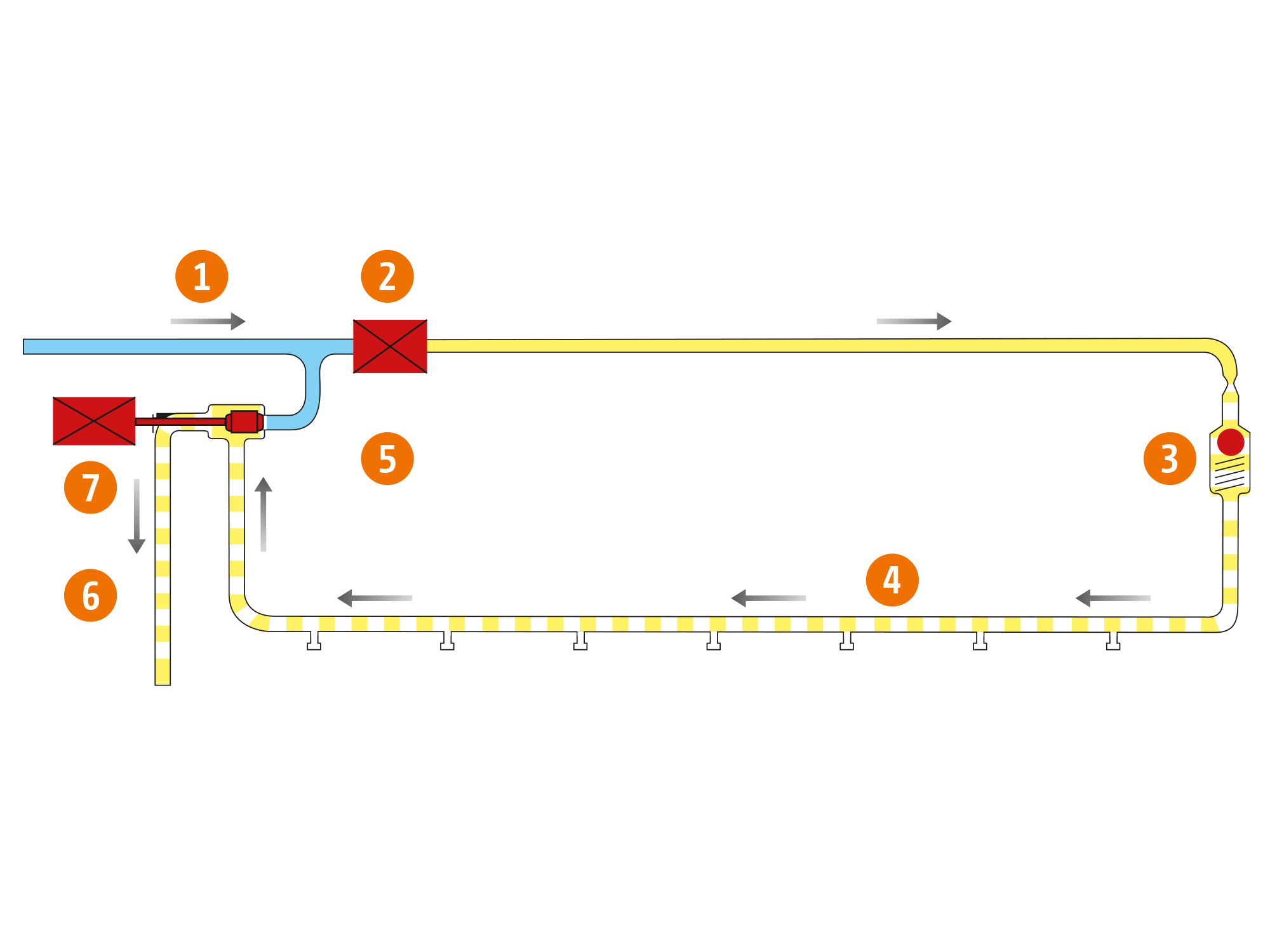

- from the pump
- Pressure relief valve
- Non-return valve
- Spray line
- The pressure regulator delivers a stream of spray liquid to the pressure reduction valve which flows under low pressure to the throttle valve. The spray agent is now allowed to travel in the reverse direction back to the tank
- to the tank
- Part-width section shut-off valve
