IceTiger winter salt spreader

Safely through ice and snow with the IceTiger S or the IceTiger

The IceTiger winter salt spreader is available in two sizes. The IceTiger S is equipped with a hopper which can be modularly increased up to a maximum capacity of 920 l by the use of hopper extensions. The IceTiger is its “big brother”. This has a 1,000-litre hopper which can also be increased up to a maximum capacity of 1,900 l by means of hopper extensions. The working width can be set very precisely from 1 m to 8 m, both symmetrically and asymmetrically, via the EasySet 2 in-cab control box, the AmaTron 4 ISOBUS terminal or any other ISOBUS-compatible terminal. Ideal for narrow footpaths, wide roads or major junctions.

• Hopper capacity of 380 l (can be extended to 920 l max. with hopper extensions of 180 l and 360 l)
• W 1 and W 2 precision spreading discs with working widths from 1 m to 8 m
• Hydraulically-driven floor belt
• Manual delivery point adjustment
• Comfortable and precise operation with the modern EasySet 2 in-cab terminal

• Hopper capacity of 1,000 l (can be extended to 1,900 max. with hopper extensions of 300 l and 600 l)
• W2 precision spreading discs for working widths from 2 m to 8 m
• Hydraulically-driven floor belt
• Manual or electric delivery point adjustment
• Comfortable and precise operation with the modern EasySet 2 in-cab terminal or the AmaTron 4 user-friendly ISOBUS terminal

1. Hopper with a favourable centre of gravity
   Maximum efficiency thanks to the large hopper and 3-point linkage mounting with a favourable centre of gravity. The optimised hopper profile prevents material residues from sticking to the steep hopper walls.
2. Useful camera system
   Option of connecting a reversing camera with a view of the spread fan as well as an internal hopper camera for monitoring the fill level.
3. Easy maintenance and cleaning
   Option of connecting a reversing camera with a view of the spread fan as well as an internal hopper camera for monitoring the fill level.
4. Essential dust protection
   Prevents any build-up of corrosive salt dust on the rear of the tractor.
5. Convenient swivel hopper cover
   Protects the material to be spread from dirt and water and provides a direct view into the hopper interior through an integrated inspection window.
6. Perfect lighting
   Road traffic lighting, flashing beacon, internal hopper lighting and work lights with LED bulbs which are less sensitive to salt water compared to conventional lights.
   Switchable LED work lights: red helps to distinguish falling snow from flying salt. white provides a wide view of the spread fan in slippery conditions.
7. Practical access step
   For the simple checking of all the functions as well as monitoring the hopper contents.
8. High-quality materials
   The conveyor unit, spreading plate and chute are made of corrosion-free plastic or stainless steel.
9. Convenient parking device
   Four wheels make it easy to manoeuvre the IceTiger as well as facilitating its coupling and uncoupling.

IceTiger S

• Hopper capacity 380 l – 920 l
• Working width 1 m to 8 m

IceTiger

• Hopper capacity 1,000 l – 1,900 l
• Working width 2 m to 8 m

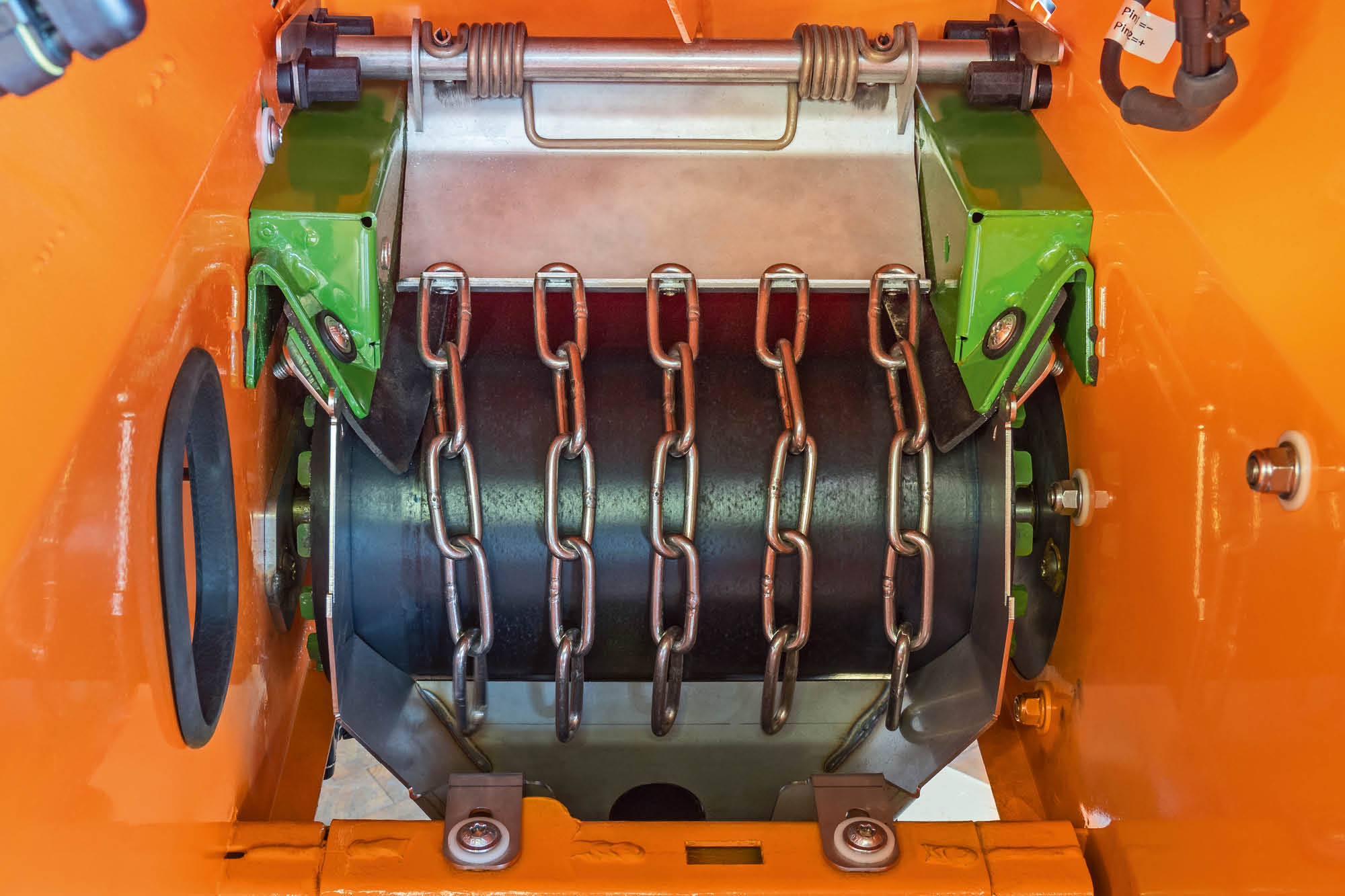

Bridging is safely avoided thanks to the hydraulically-driven floor belt with its large surface contact area for the salt.

• A hydraulic motor allows the speed of the floor belt to be precisely adjusted to run fast or slow, so that even extremely small quantities of down to 5 g/m² can be applied.
• A spring-loaded shutter with a chain curtain lets smaller foreign objects pass through.

Both free-flowing refined salts with a low moisture content and heavy rock salt with a high moisture content can be applied without blockages. Salt and FS30 pre-wetted salt can be applied from 5 g/m² to 80 g/m² and grit up to a maximum of 300 g/m².

• W 1 precision spreading disc: Working width 1 m to 6 m
• W 2 precision spreading disc: Working width 2 m to 8 m

The best from all angles:

1. 14-step paint preparation (e.g. degreasing)
2. Zinc phosphating prevents rust infiltration
3. Thick-layered cathodic dip priming for full-surface corrosion protection even in those cavities and hard-to-reach areas
4. Powder coating for a high-quality appearance and high paint strength for reliable protection from everyday wear and tear

An option for IceTigers with hopper capacities from 1,300: the pre-wetted salt system for FS30 dampened salt with a brine content of 30% includes a hydraulic brine pump which provides a precisely adjustable supply of brine from the two plastic tanks, each with a capacity of 250 l.

• The tanks are integrated in the overall concept, so that the spreader remains close to the tractor with a favourable centre of gravity.
• Solid salt and brine are mixed together in free fall between the hopper and spreading plate.
• The mixing results in a reduction in the overall salt content by approx. 23% compared to dry salt.

Another area of application of the IceTiger spreader is the distribution of stone chippings outside the winter months. The IceTiger is therefore versatile in use.
