KE rotary harrow

When using the optional track markers, we recommend mounting them directly on the implement. The forward-mounting position not only optimises the centre of gravity of the implement, but also allows it to be used solo operation.

Clever and simple
Thanks to the QuickLink quick coupling systems from AMAZONE, seed drills can be very easily connected to the various soil tillage implements without the need for tools. In this way, sowing combinations can be optimally matched for different soils and requirements.

Mounted or demounted – clever, simple and flexible

The D9 is also ideal for use on its own. But it also can become a drill combination in just a few simple steps: by utilising the “Liftpack” system with the D9 mounted seed drill, the seed drill can be easily and quickly linked to the various AMAZONE soil tillage machines without the need for tools. In this way, the most appropriate and versatile sowing combination can be put together to cope with the most diverse of soils and applications.

The benefits:

• Easily manoeuvrable drill combination with active soil tillage in one pass
• Compact unit for reducing the required lifting force

KE Rotamix rotary harrow or KX Cultimix rotary cultivator or KG Cultimix rotary cultivator

with rollers

• SW cage roller
• PW tooth packer roller
• TRW trapezium roller
• KW wedge ring roller or
• KWM wedge ring roller with Matrix tyre profile

with D9 mounted seed drill

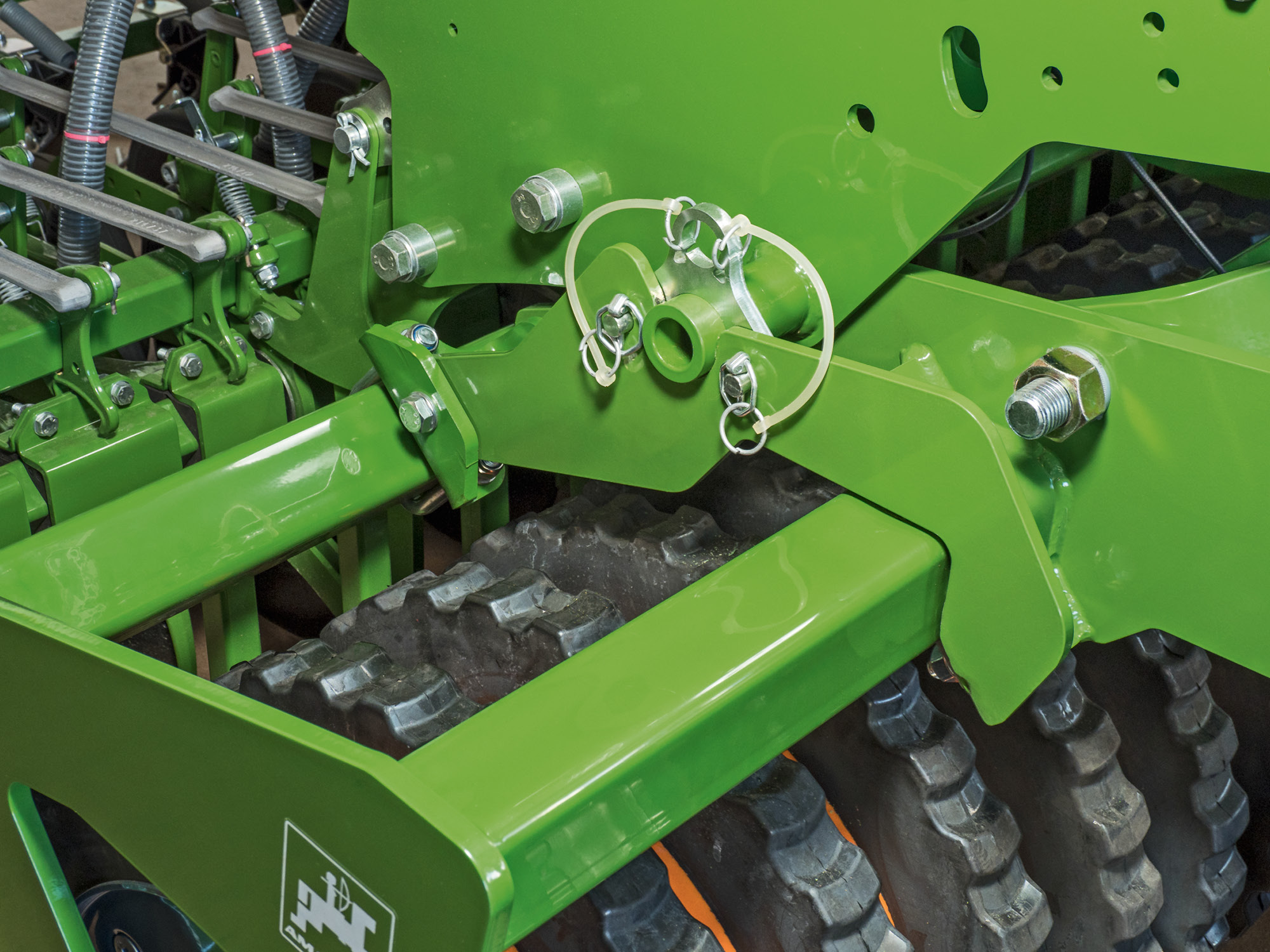

As an option, rigid coupling parts for the rotary harrow and rotary cultivator are available allowing the simple attachment to a soil tillage implement.

Thanks to the intelligent QuickLink quick-coupling system for all harrow-mounted drills and seeders, the sowing combination can be separated with ease in just a few minutes. The three easily accessible coupling points of the QuickLink system ensure a safe, tool-free and fast coupling and uncoupling process. So, the soil tillage implement can also be utilised perfectly for solo operation.

To enable the utilisation of the soil tillage implement as a solo machine, AMAZONE offers the optional parking stands for the simple and quick uncoupling of the harrow-mounted seed drill. In this way the machine is very quickly dismounted and mounted.
