Drawbar, mounting and running gear
Running gear
Thanks to its oversized wheels (550/45-22.5), the integrated TX centre running gear ensures minimal surface pressure in the field. The compact design and the central positioning of the running gear mean that tight turning on the headland is not a problem. The optimum weight distribution also provides comfortable road transport at speeds of up to 40 km/h.
Linkage systems for every tractor
Drawbar with a rigid top tie bar
Extensive mounting and drawbar options for every tractor are available for the Cobra. The flange plate allows the easy and quick mounting of any of the linkage options. Furthermore, the linkage category can be quickly changed on the lower link cross shaft.

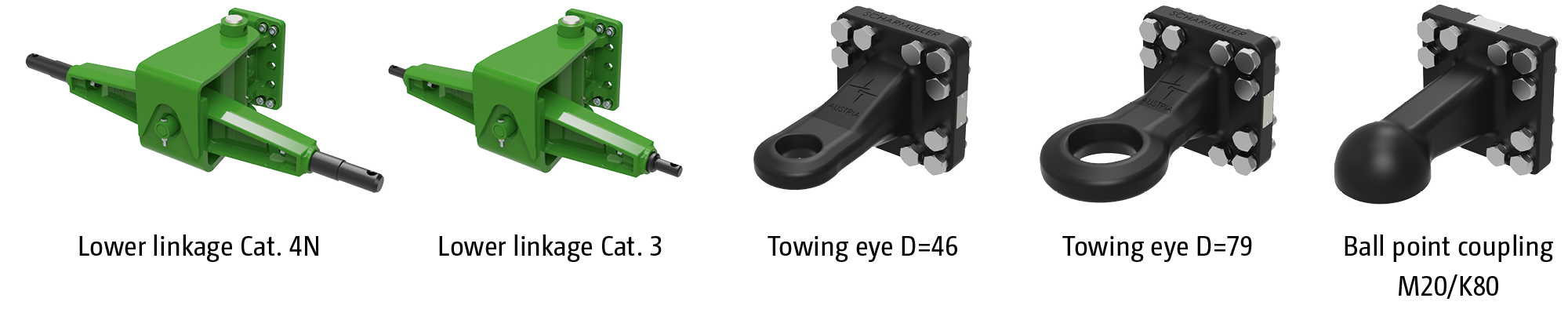

Only the linkage pins are interchanged for this purpose. As a result, the appropriate linkage can be selected for any tractor, no matter whether Cat. 3, 4N or K700 lower link cross shafts, various towing eyes or the K80 ball coupling are used.
Drawbar for small turning circles
Drawbar with a hydraulic top tie bar
The slim drawbar of the Cobra offers a very tight turning radius both in the field and on the road. A rigid and a hydraulic drawbar are available from choice.
The drawbar with a rigid top tie bar is only available in combination with the lower link hitch. The hydraulic version can be combined with the lower link hitch, towing eyes or the K80 ball point coupling. The hydraulic top tie bar enables the machine to be easily lifted and lowered. A traction control system can also be specified as an option.
