The Cobra concept

Get on top of shallow soil tillage with the Cobra from AMAZONE

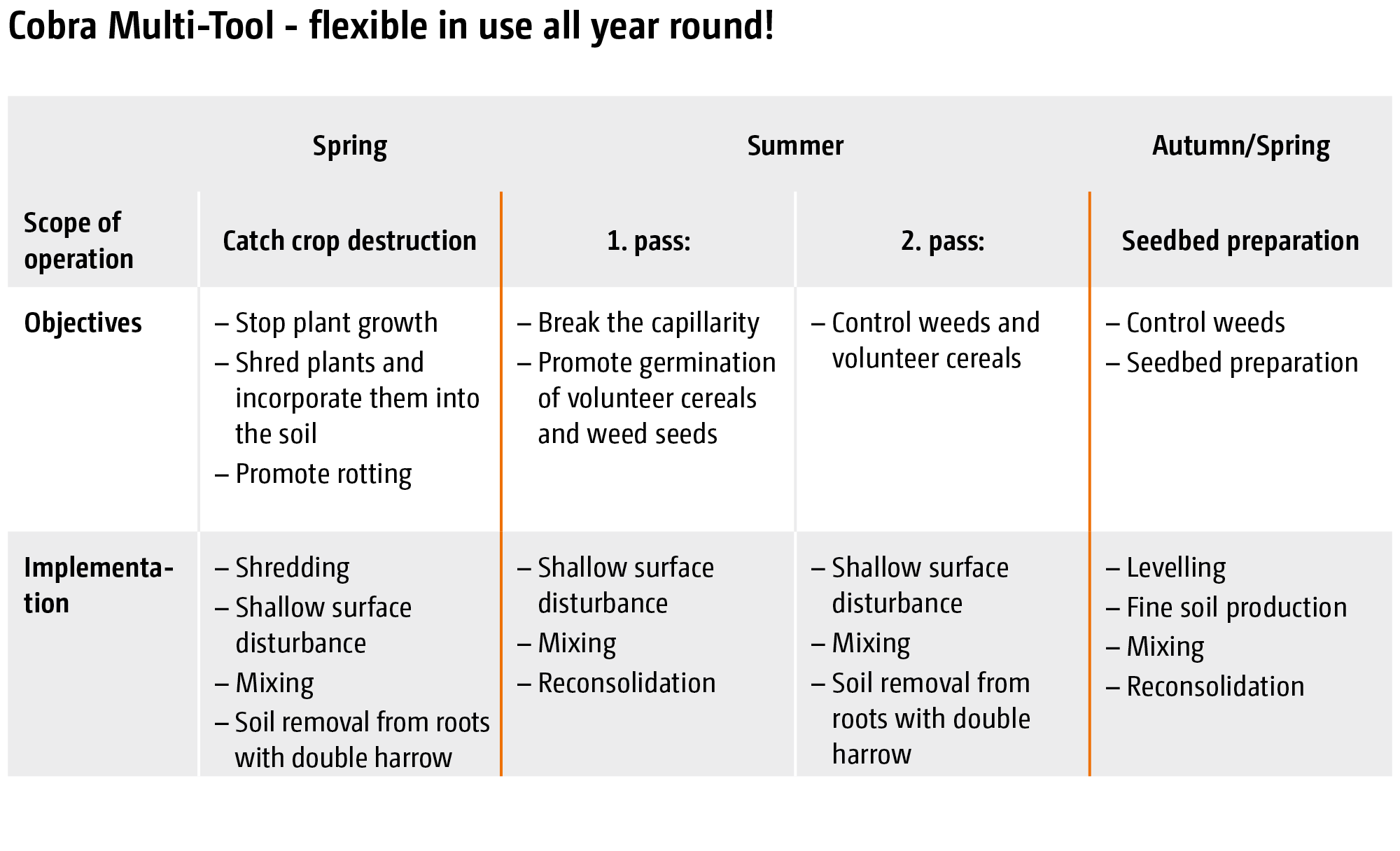

Its universal application makes the Cobra trailed shallow cultivator a true all-rounder that can be used throughout the year.

Catch crops can be destroyed with the Cobra in spring, the organic matter being shredded by the knife roller to improve decomposition and prevent blockages.

There is a plenty of work for the Cobra in summer: with the first pass, capillarity is broken which conserves water and encourages volunteer cereals to germinate. In the second pass, for mechanical weed control, the roots of weeds are undercut across the full working width and brought to the surface. The roots are dragged out from the soil by the harrow and left to dry out in the sun.

Not just in autumn, but also in the spring, the Cobra can be used to prepare the perfect seedbed by producing fine soil through its intensive crumbling, before levelling and then reconsolidation via the rollers.

The Cobra from AMAZONE – the multifunctional cultivator for shallow soil tillage!

More information + Less information -

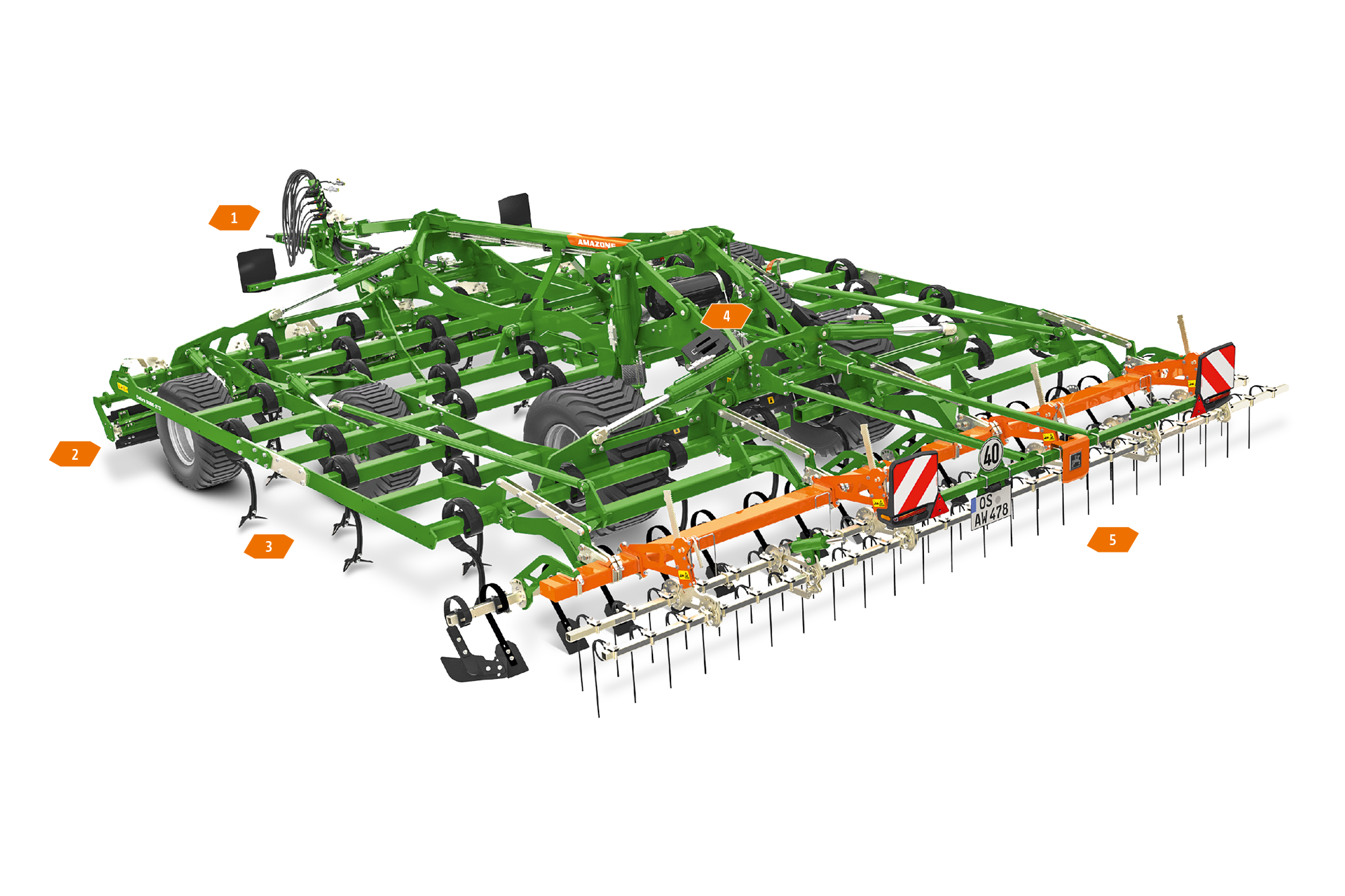

The Cobra concept

The all-rounder for shallow soil tillage

1. Drawbar and mounting
– Rigid or hydraulic drawbar
– A wide range of mounting options from lower link and ball point coupling to various towing eyes

2. Optional leading tools
– Crushboard
– Knife roller

3. Tine element
– ECO leaf-spring tines
– 6-stagger tine layout
– Tine spacing 13.3 cm
– Frame height 60 cm
– Duckfoot share or narrow share

4. Depth control
– Depth control via the support wheels and roller mounted in the parallelogram
Levelling unit mounted on the frame for the roller or double harrow and is therefore automatically adjusted when setting the working depth

5. Rear roller
– Selection of 9 different following rollers
– Double harrow for working without a roller


More information + Less information -
