Cenius-2TX trailed cultivator

Combine the trailed soil tillage range with an optimum seeding system ...

Advantages of conveying systems with a segmented distributor head

• Optimum lateral distribution across the entire working width
• Combination of different sowing systems
• High application rates possible
• Variable with 12 to 48 outlets
• Part-area, site-specific sowing

... it makes no difference whether it’s the GreenDrill or FTender

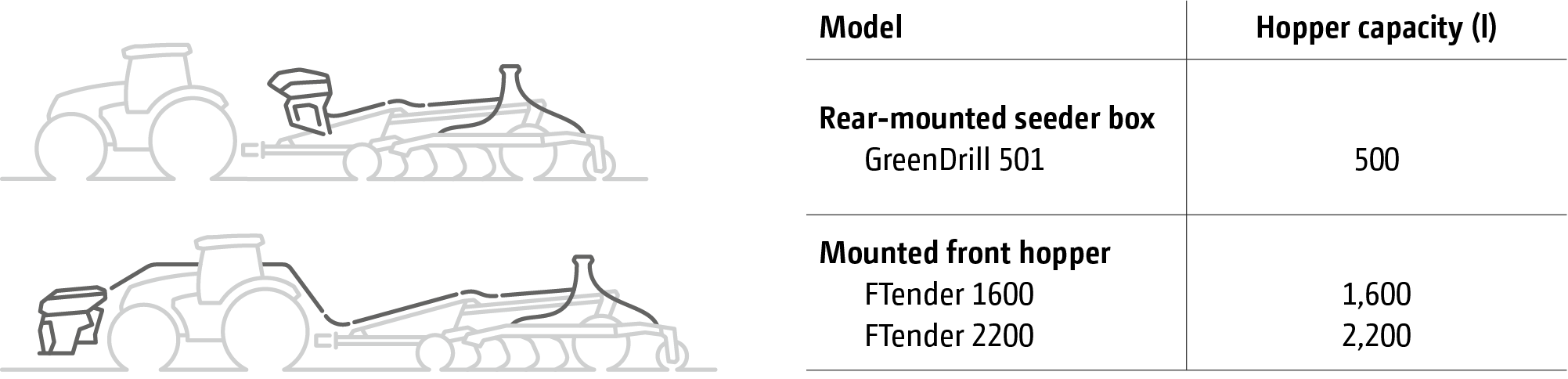

The universal conveying system enables the Cenius to be combined with various different sowing systems. The GreenDrill 501, with its 500 l hopper capacity, can be used in exactly the same way as the front or rear tanks with their respective capacities of 1,600 and 2,200 l. In addition to sowing catch crops, other seeds or even mineral fertilisers and micro-granules can be applied.

Fertiliser application tines with 40 mm wide C-Mix coulter for applying seed or fertiliser directly into the loosened soil, with outlet position setting 1) 100% on top of the soil with outlet A, with outlet setting 2) 50% on top of the soil with outlet A and 50% in the soil at the working depth with outlet B, 3) 100% in the soil at working depth with outlet B.

Advantages of the fertiliser application tine

• By targeted placing of the fertiliser in the root area of the plants, the nutrients are available exactly where they are needed.
• High nutrient efficiency for better early plant development through faster and better availability.
• Reduction in fertiliser rates possible thanks to lower surface losses due to reduced breakdown or leaching.
• Reduction of passes by combining fertilisation and soil loosening for efficient, economical working.

Catch crop sowing and soil tillage in one pass

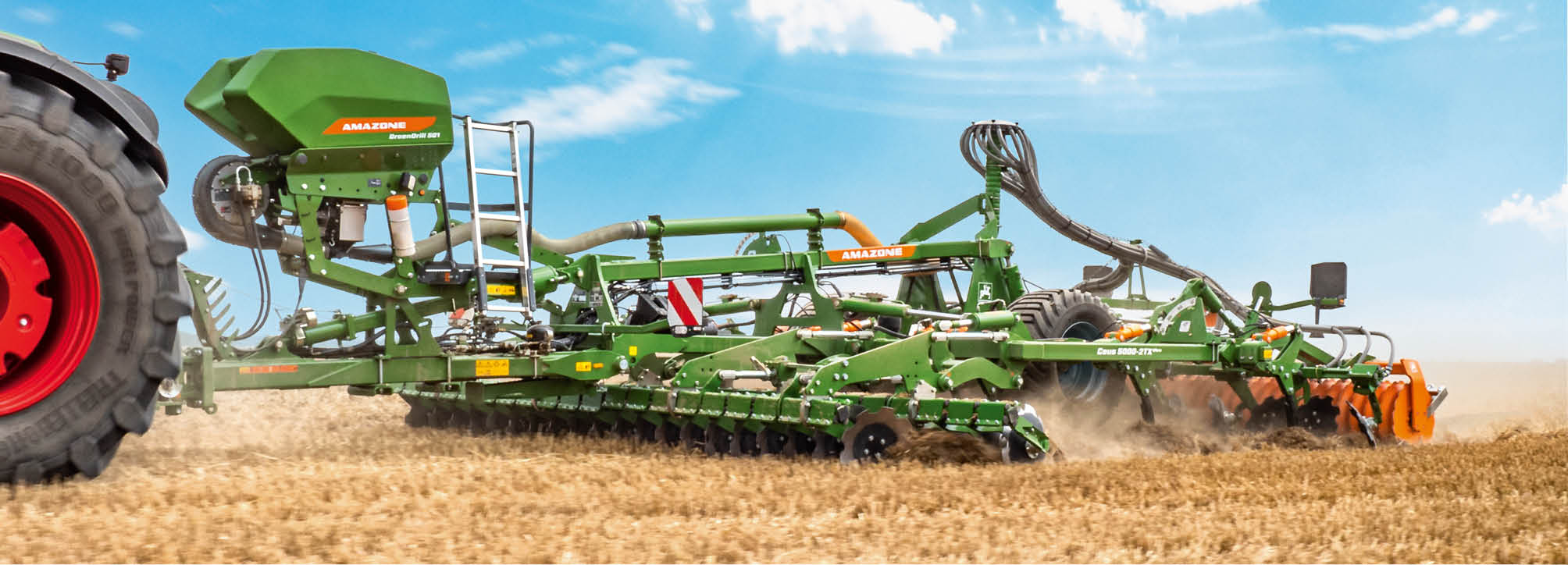

AMAZONE offers the GreenDrill 501 rear-mounted hopper, which has a hopper capacity of 500 l and can be safely accessed via steps, so that catch crops can be sown directly or during soil tillage.

The benefits

• Applying catch crops and fine seeds directly in combination with soil tillage

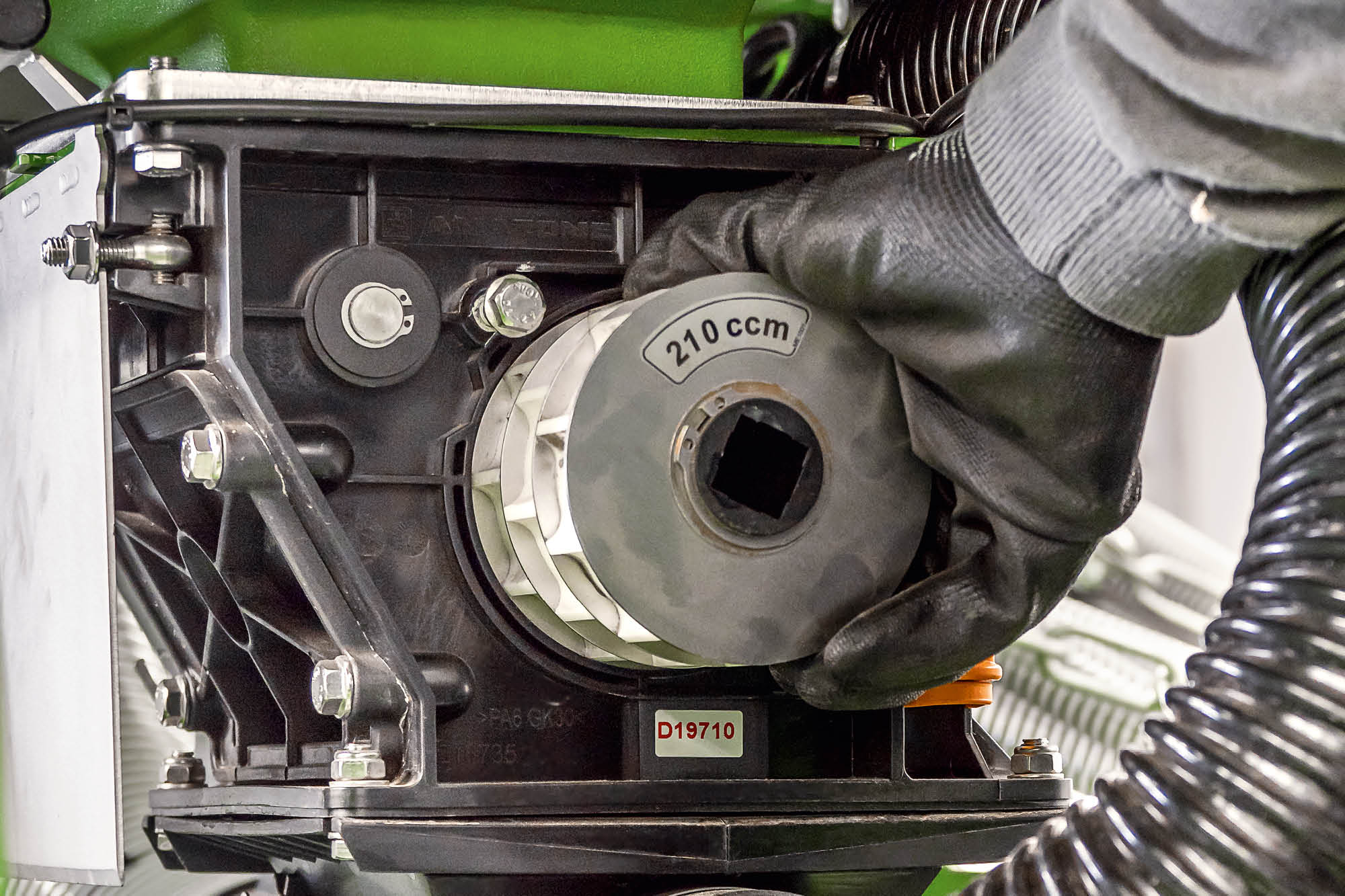

• High application rates are also possible as a result of different metering rollers
• Wide distribution via baffle plates
• Safe and convenient access via steps
• Precise metering with excellent lateral distribution
• Comfortable machine control via ISOBUS possible, thereby enabling part-area, site-specific processing of application maps

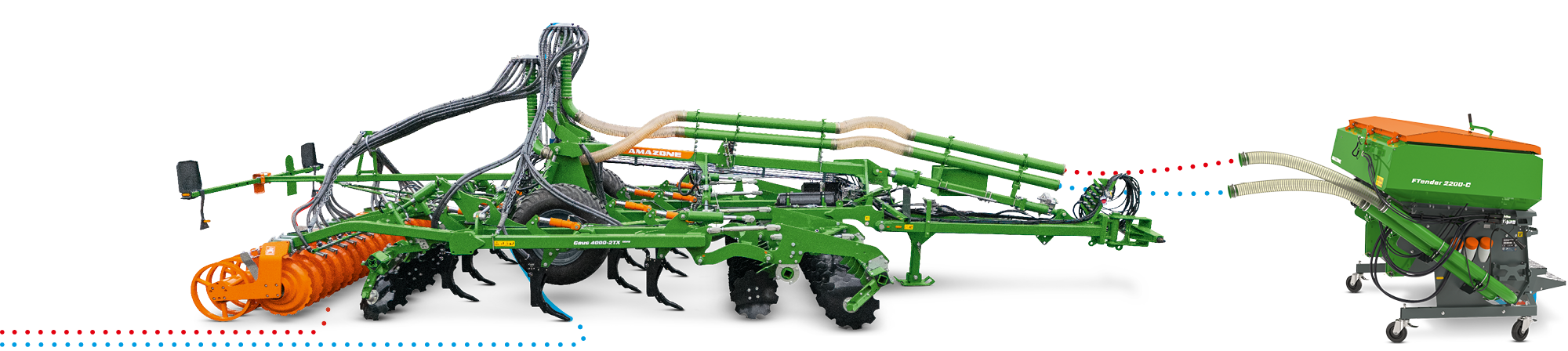

AMAZONE offers a universal front-mounted hopper for versatile use in combination with seed drills and soil tillage equipment in the shape of the FTender with a capacity of 1,600 or 2,200 l.

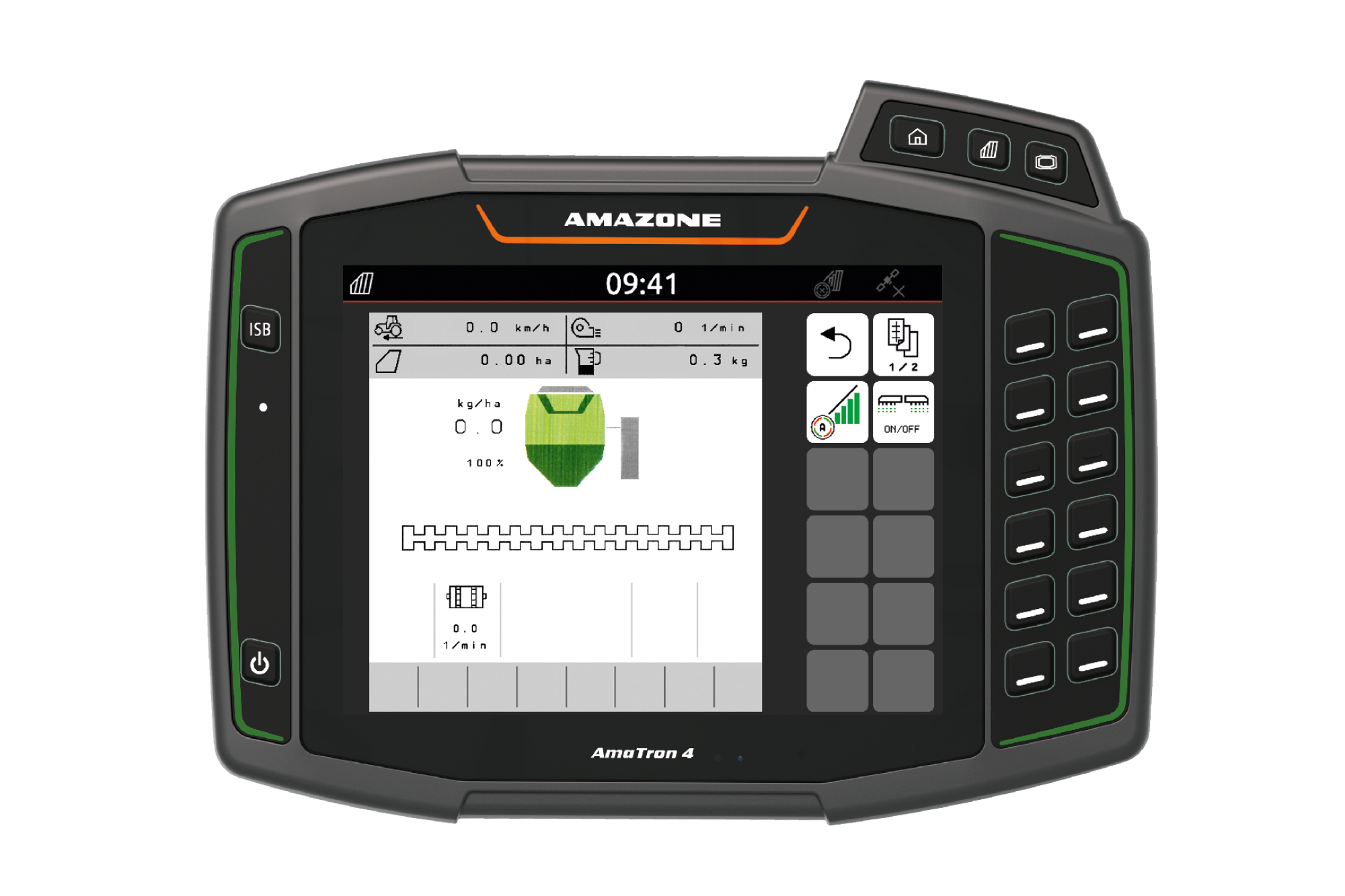

Thanks to their complete ISOBUS integration, the hoppers can be operated via the ISOBUS operator terminal. The application rate can even be provided via an application map on a part-area, site-specific basis as well as being used in combination with GPS-Switch (SectionControl).
