Cenio mounted cultivator

C-Mix share system with very high mixing intensity

The C-Mix 3 tine system offers a wide range of shares to choose from. The 320 mm wide goose foot share and the 360 mm wide C-Mix wing share are available for shallow stubble cultivation. The 100 mm or 80 mm wide C-Mix share can be used for base soil cultivation and the 40 mm wide C-Mix share for deep loosening. This lineup allows the cultivator to be used flexibly across a wide range of applications. The optional HD pro variants can increase the service life of the various shares by up to eight times.

The separation of guide plate from the share point above all serves to reduce wearing metal costs. Depending on soil type, location and soil moisture, 3 to 5 share points can be worn prior to exchanging the guide plate. The new guide plates on the C-Mix share system are manufactured with a spiral design that ensures, in combination with the optimum radius of the share, the perfect deflection of the soil flow and thus a very high mixing intensity but yet with a lower power requirement.

Works from shallow to deep and either across the entire surface or in strips

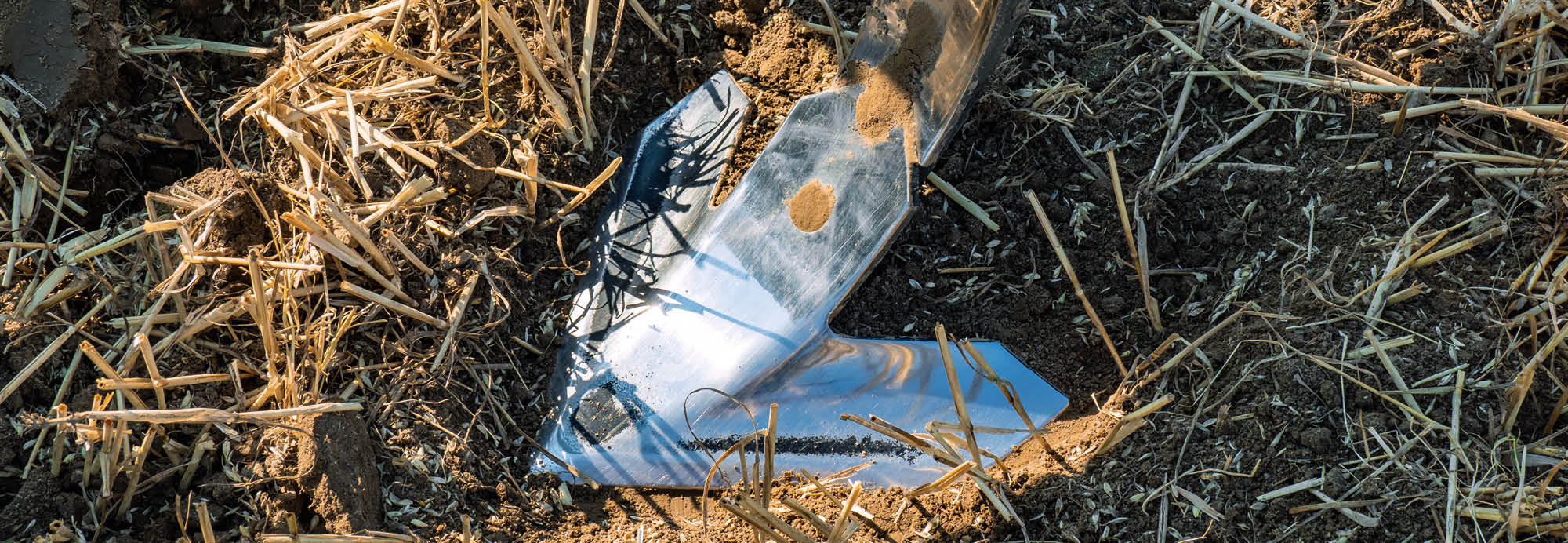

The share points are also available in an HD pro variant. These are equipped with additional tungsten carbide hard metal plates and offer outstanding wear protection even under extremely abrasive ground conditions. With a service life up to 8 times longer, wear and replacement costs are significantly reduced – a clear economic advantage for professional users.

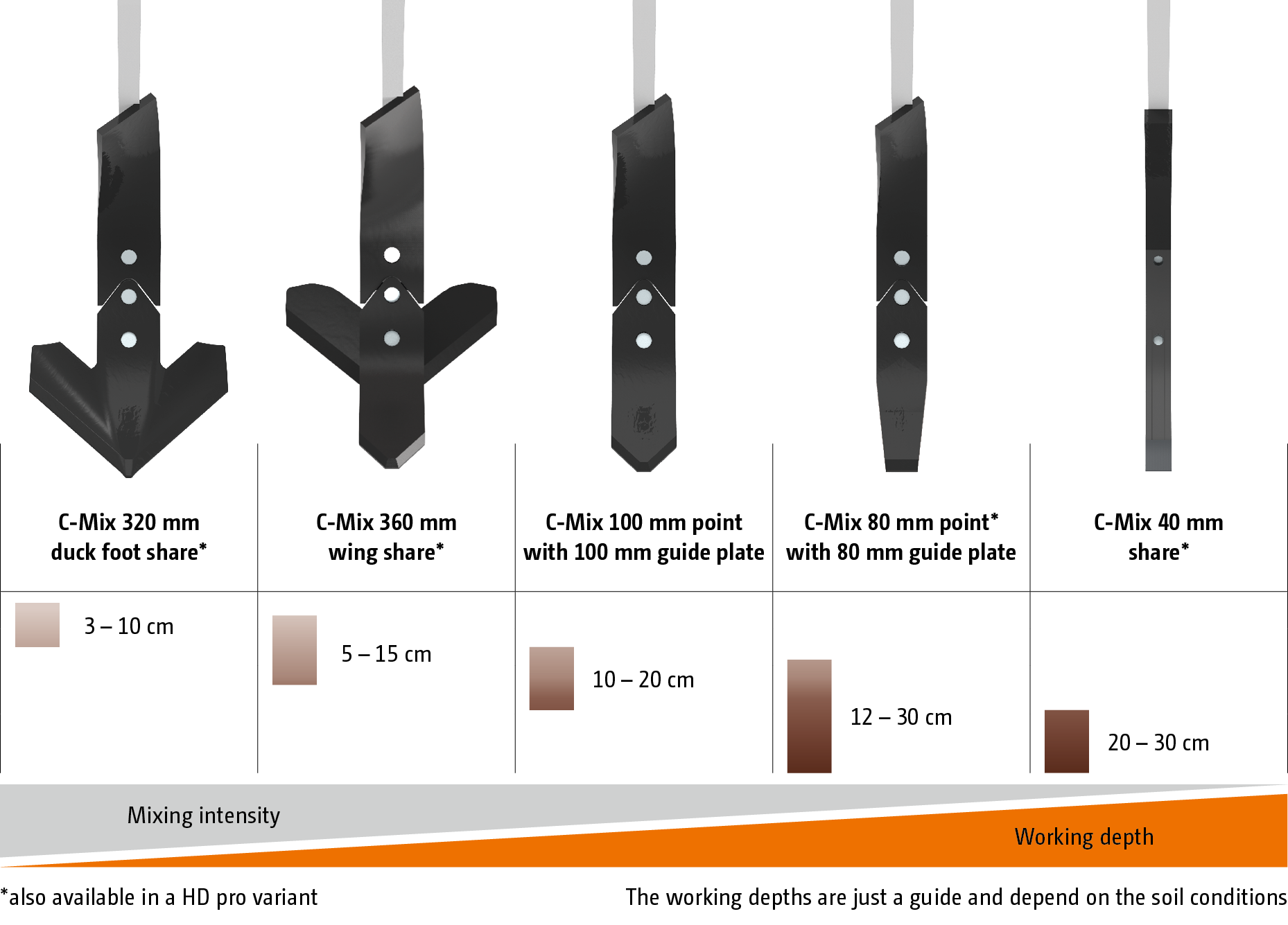

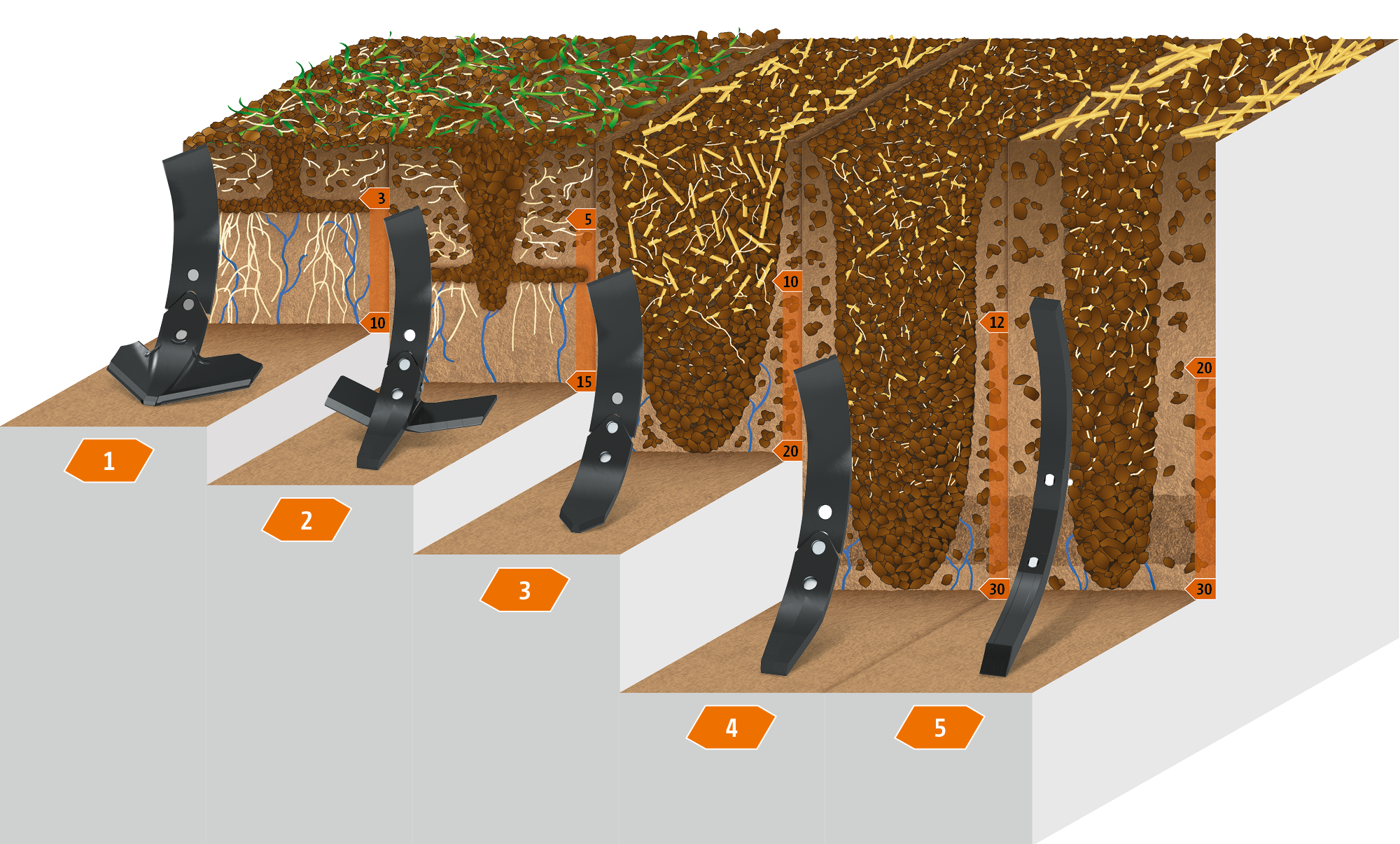

1.    C-Mix duck foot share point 320 mm* Working depth 3 – 10 cm
2.    C-Mix wing share 350 mm* / 360 mm* Working depth 5 – 15 cm
3.    C-Mix point 100 mm with guide plate 100 mm Working depth 10 – 20 cm
4.    C-Mix point 80 mm* with guide plate 80 mm Working depth 12 – 30 cm
5.    C-Mix share 40 mm* Working depth 20 – 30 cm

*also available in a HD pro variant

The working depths are just a guide and depend on the soil conditions

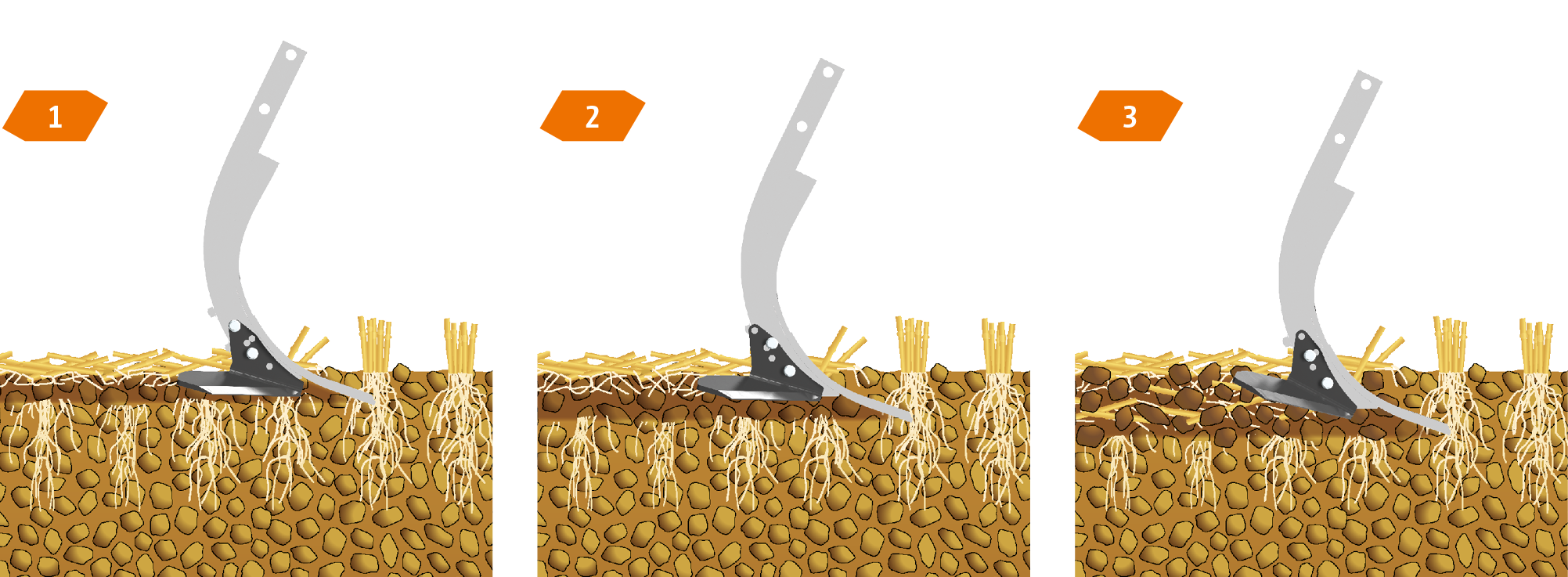

The 360 mm wing share is suitable for very shallow working. On the mounted models, the wing share can be mounted in 3 different positions to produce different results.

1. for very shallow work with moderate mixing.
2. for good machine penetration with moderate mixing.
3. for optimum implement penetration under extreme conditions and highly intensive mixing.
