Cenio mounted cultivator

Product overview

Levelling I LevelControl

Perfectly levelled – Levelling unit

Levelling

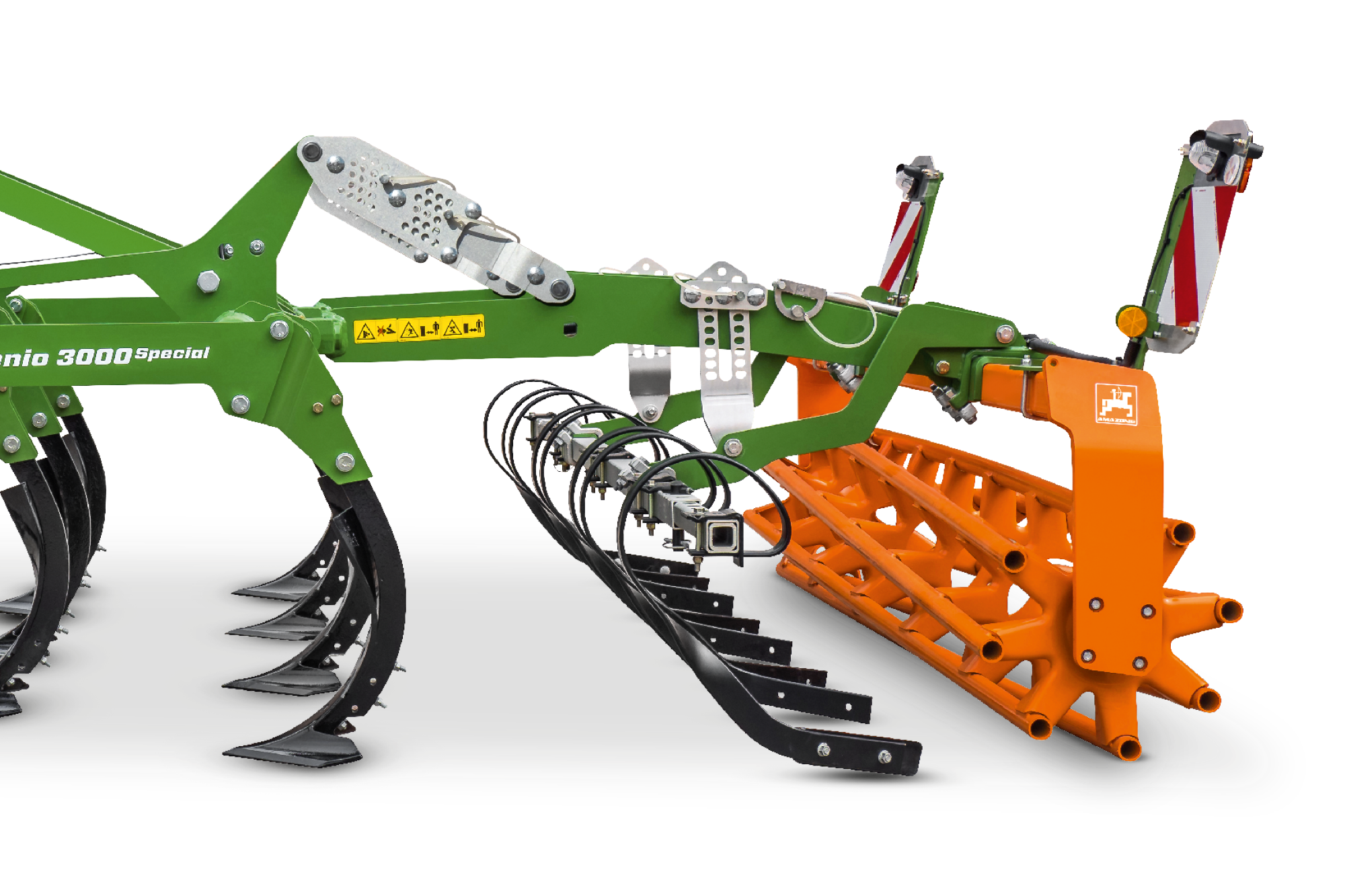

(© AMAZONE: Cenio3000special-Gaensefuss_d0_kw_P7118453_d1_190930_CMS.png)

1. Spring steel closers
– Inexpensive and lightweight solution with simple adjustment
– Well suited for locations with light soils and low organic content
– Only available for the Cenio 3000

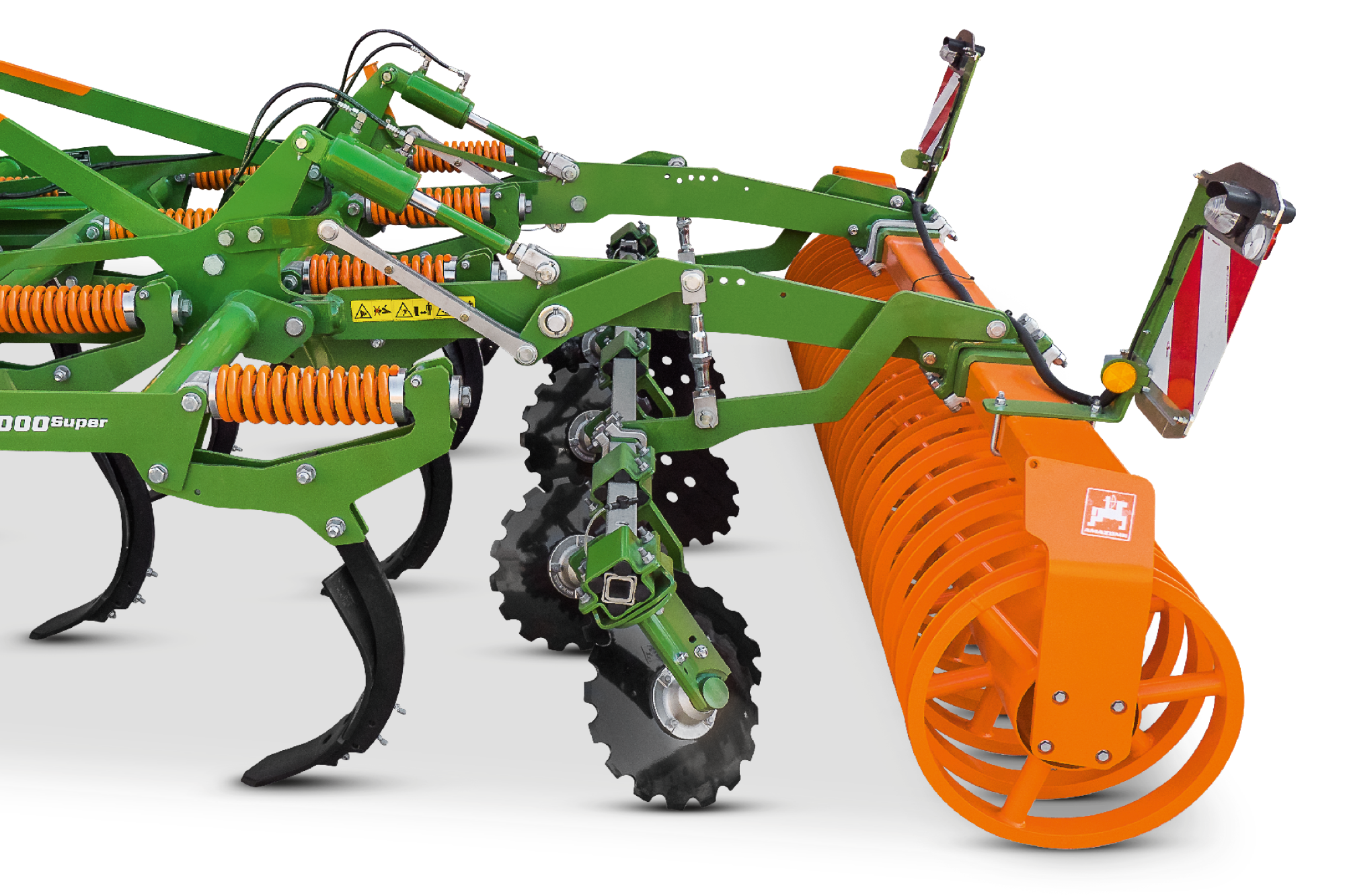

(© AMAZONE: Cenio3000super_d0_kw_P7180991_d1_191001_CMS.png)

2. Levelling discs
– Can be used universally on light or heavy ground
– Ideal for larger quantities of organic material such as maize residues
– Excellent self-driving effect thanks to the serrations on the discs

More information + Less information -

Levelling – Mechanical or automatic

Adjustment of the levelling unit – optionally manual or automatic with LevelControl

On rigid models, the levelling unit can be adjusted either manually using a series of holes or automatically using LevelControl. The automatic adjustment of the levelling unit with LevelControl offers maximum convenience and is standard on folding versions.

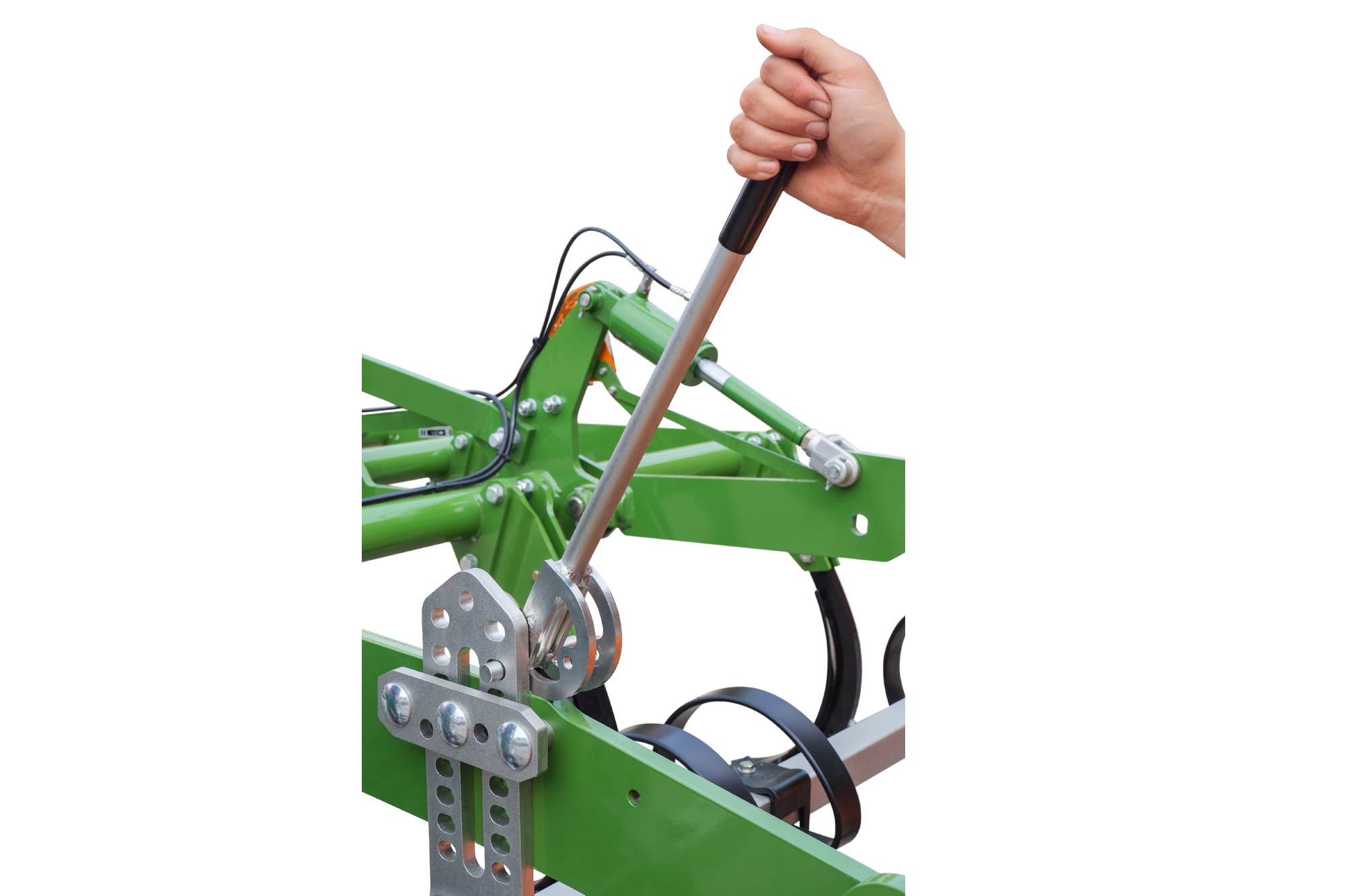

(© AMAZONE: Cenio3000special-Gaensefuss_d0_kw_P7118521_d1_190802_CMS.png)

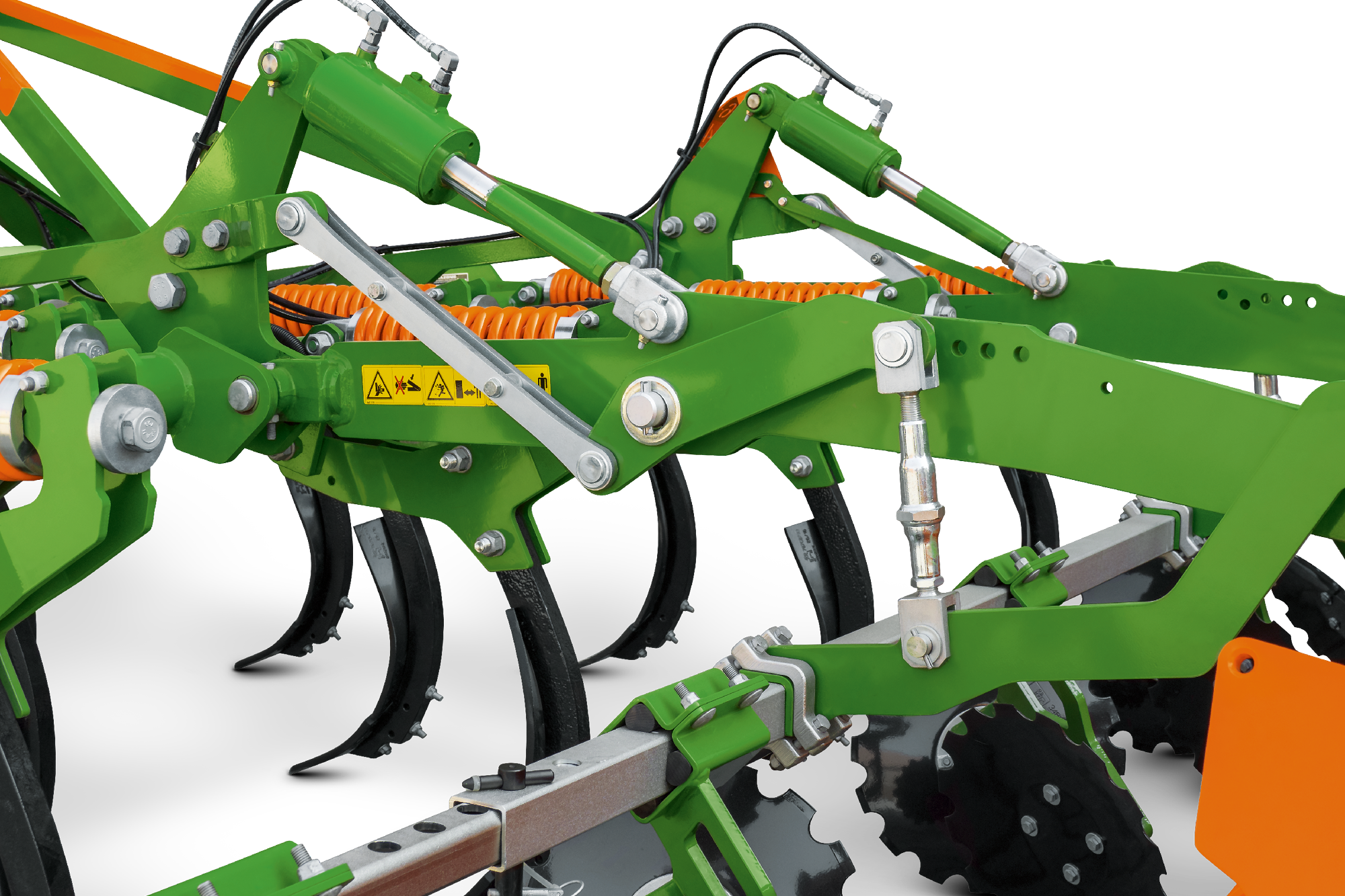

(© AMAZONE: Cenio3000super_d0_kw_P7181086_d1_190806_CMS.png)

More information + Less information -

The end discs – individually adjustable in height and angle

More information + Less information -

LevelControl – Top-class and comfortable

LevelControl for automatic adjustment when setting the working depth

The innovative LevelControl system automatically adjusts the working depth of the levelling unit when the working depth of the tines is changed. Thanks to the constant levelling quality, an even finish is achieved, even with major changes in working depth, and the driver's workload is thus reduced.

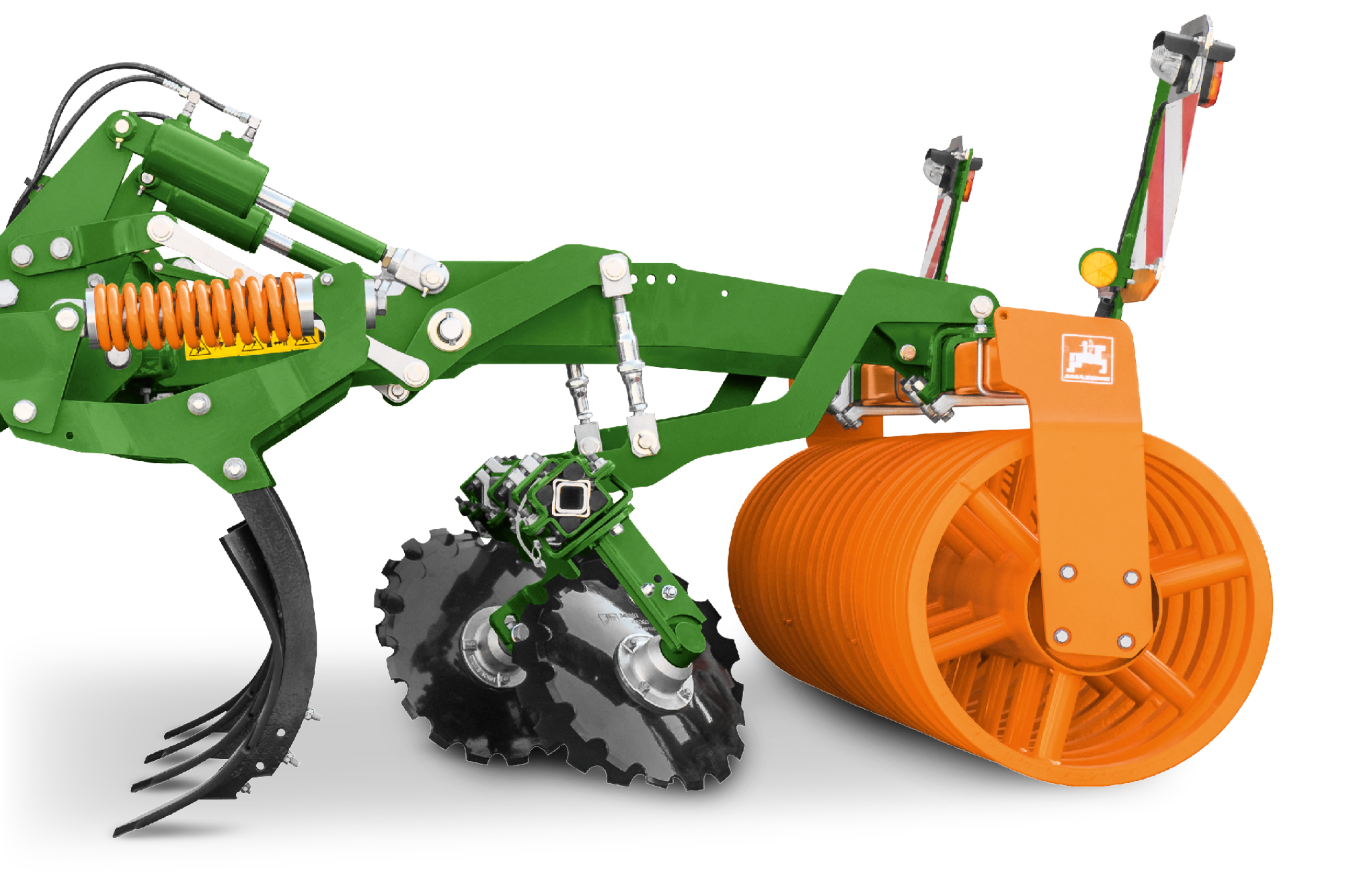

(© AMAZONE: Cenio3000super_d0_kw_P7180982_d1_250729_CMS.png)

Thanks to LevelControl, the levelling unit and the following roller always run at the same height

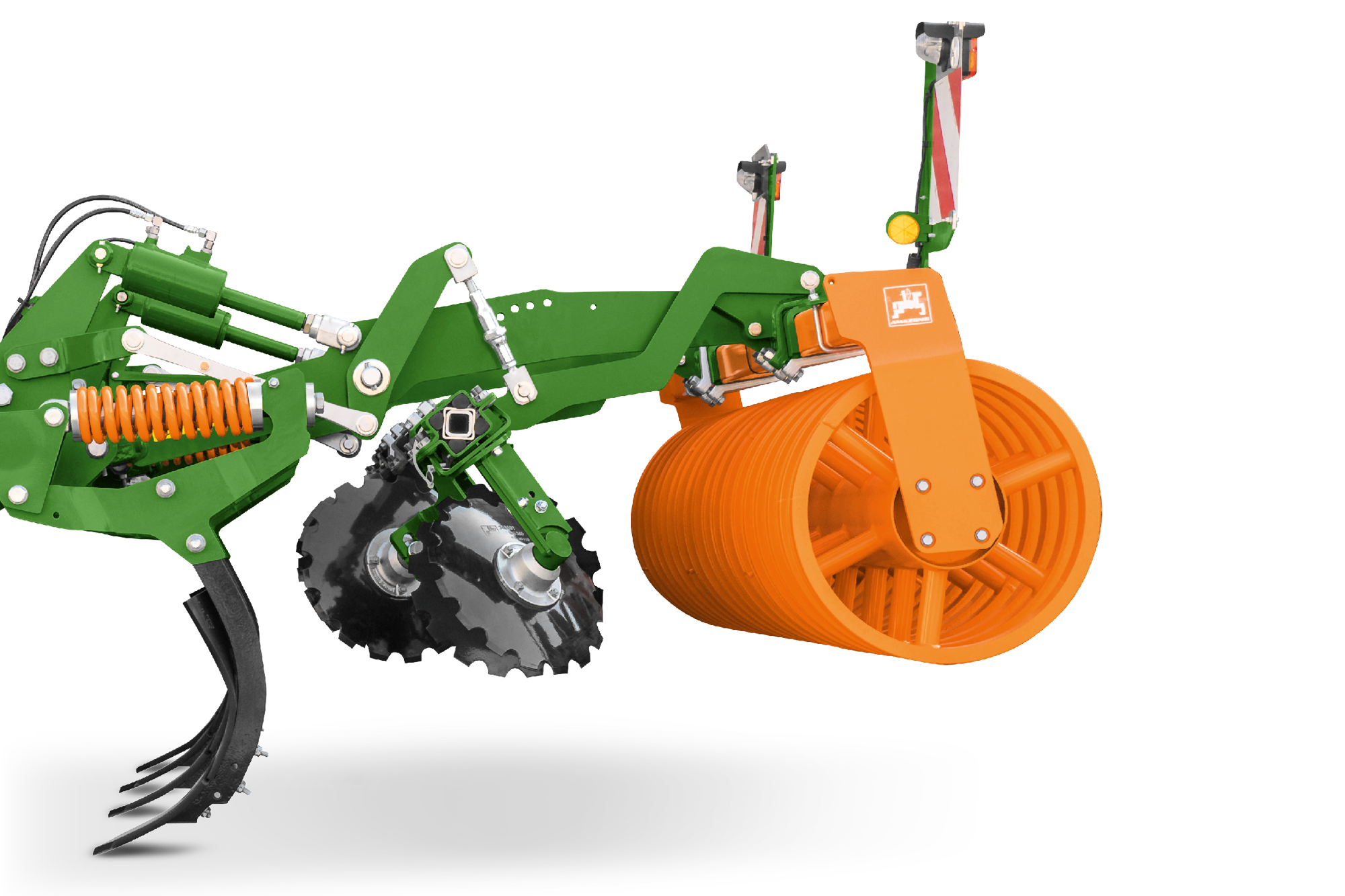

(© AMAZONE: Cenio3000super_d0_kw_P7180981_d1_250729_CMS.png)

The levelling unit adjusts automatically, when the working depth of the tines is changed

More information + Less information -

Always at the same height

When adjusting the working depth of the tine element, the mechanical parallel guidance enables the levelling unit to maintain exact alignment with the rollers' height. Fine adjustment is possible via a spindle. This leads to a noticeable reduction in the driver's workload, especially when ground conditions change and working depths vary accordingly. Continuous mechanical adjustment is therefore no longer necessary. Resulting in significantly increased productivity throughout the day.
