UX Super trailed sprayer

The TG part-width valve chest with up to 13 part-width sections is available with ISOBUS control and AmaSpray⁺. The part-width boom sections are switched, on and off, quickly and drip-free via electric motor valves with pressure relief. The amount applied is accurately and directly controlled by the operator terminal for all situations. A unit with equal pressure compensation is not required with this system.

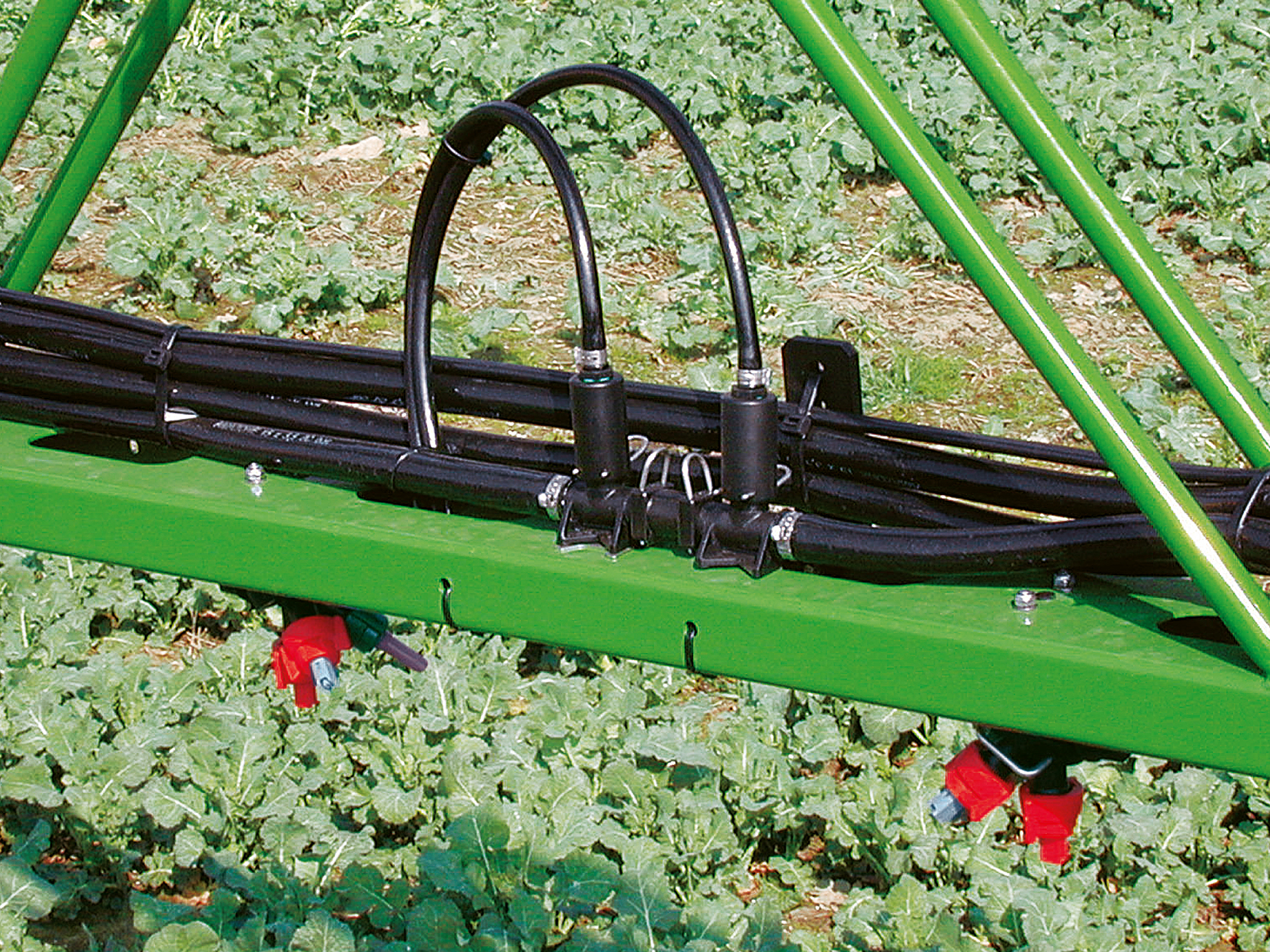

The AMAZONE DUS pressure recirculation system ensures a reliable circulation throughout the entire system. When starting the spraying operation, all the hoses including the spray lines are filled under pressure in the reverse direction with the mixed spray agent. This means the spray lines are always full and immediately ready to use over the entire working width. There is no waiting on the headland.

Every time individual part-width sections are shut off, during the turning operation and during transport, the spray liquid circulates continually thanks to the pressure recirculation system. This reliably prevents deposits, blockages or segregation in the spray lines.

During the cleaning operation, fresh water flushes the spray lines out right up to the nozzles without any spraying being necessary. During this cleaning procedure, the concentrated spray liquid is returned back to tank via the pressure recirculation system leaving the spray lines clean.

The simple solution for automatic 50 cm part-width section switching

With AmaSwitch, AMAZONE offers the precise solution for automatic part-width section control on 50 cm sections. AmaSwitch is the ideal alternative for users who want to maximise the benefits of very precise switching in wedge shaped fields and areas of overlap, thanks to the 50 cm part-width section control.

Standard equipment with AmaSwitch includes the DUS pro high pressure recirculation system and, in addition, can be equipped with LED individual nozzle lighting.

With DUS pro, the spraying pressure is constant right up to each individual nozzle and at the set spraying pressure. Thanks to the conical spray lines, minimal residual spray volumes are achieved.

Conical spray line:
The dimensions of the spray line vary along the boom

• Minimum residual volumes
• Even flow rate

1. 15 mm
2. 24 mm
3. 24 mm
4. 20 mm
5. 16 mm

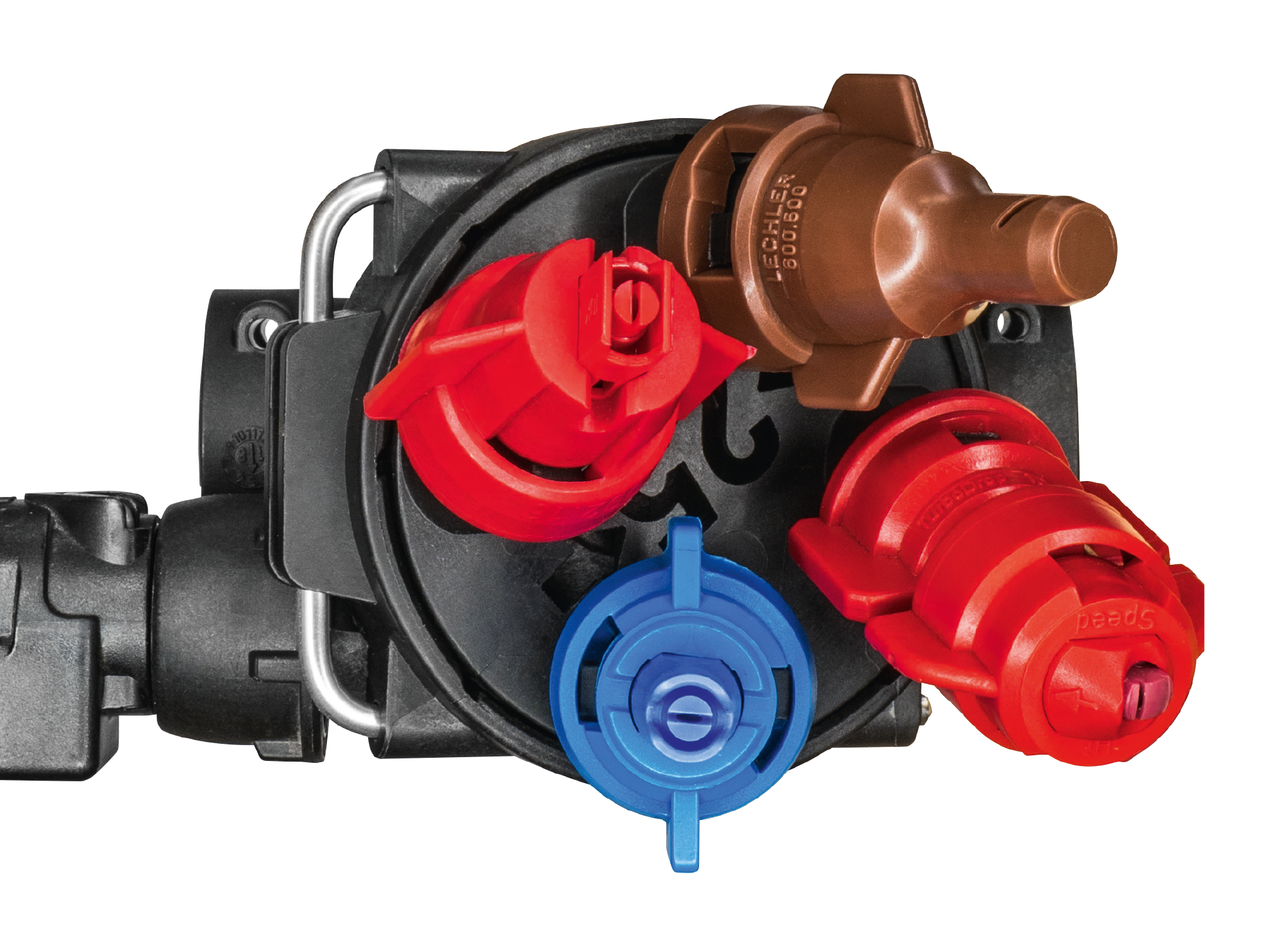

The technology behind AmaSwitch is based on a conventional, manually-rotated, 3-fold nozzle body with electric individual on/off. The opening and closing is achieved via an electric valve which is fixed directly onto the nozzle body. In conjunction with GPS-Switch, it is thus possible to very precisely control 50 cm part-width sections in short work and on the headland. In addition to the automatic switching using 50 cm part-width sections, it is possible to configure the amount of part-width sections from choice.

In addition to the 3-fold nozzle body, AmaSwitch electric single nozzle control can also be equipped with a 4-fold nozzle body.

With true 25 cm nozzle spacing
The 4-fold nozzle body enables a perfect 25 cm nozzle spacing to be achieved with the aid of the optional extension kit. This offers the benefit, in combination with specific 80° nozzles, to reduce the boom to target surface distance down to less than 50 cm.

Electric individual nozzle switching with 50 cm part-width sections

4-fold nozzle body with automatic electric nozzle switching
The electric AmaSelect individual nozzle control consists of a 4-fold nozzle body with electric on/off control plus the additional switching over of either a nozzle or a combination of nozzles. In addition to the 50 cm part-width sections, which can be switched automatically via GPS-Switch, the system offers electrical switching between the four mounted nozzles via the operator terminal or even completely automatically if the forward speed or application rate is changed. This offers the possibility, for instance when leaving the optimum pressure range of a nozzle, to switch on a second nozzle or to changeover to a larger nozzle.

1. Motor housing
2. Anti-drip diaphragm
3. Power supply
4. Nozzle body
5. Spray line

AmaSelect enables any number of part-width sections with any number of nozzles to be freely configured. Just for farmers or agricultural contractors with different tramline systems, a simple matching of the nozzle switching with the relevant working width is possible.

The automatic control of individual nozzles in 50 cm part-width sections is made possible by combining the AmaSelect single nozzle control with GPS-Switch (with Section Control). This enables the amount of overlap to be considerably reduced, meaning that there is a significant saving of spray agent.

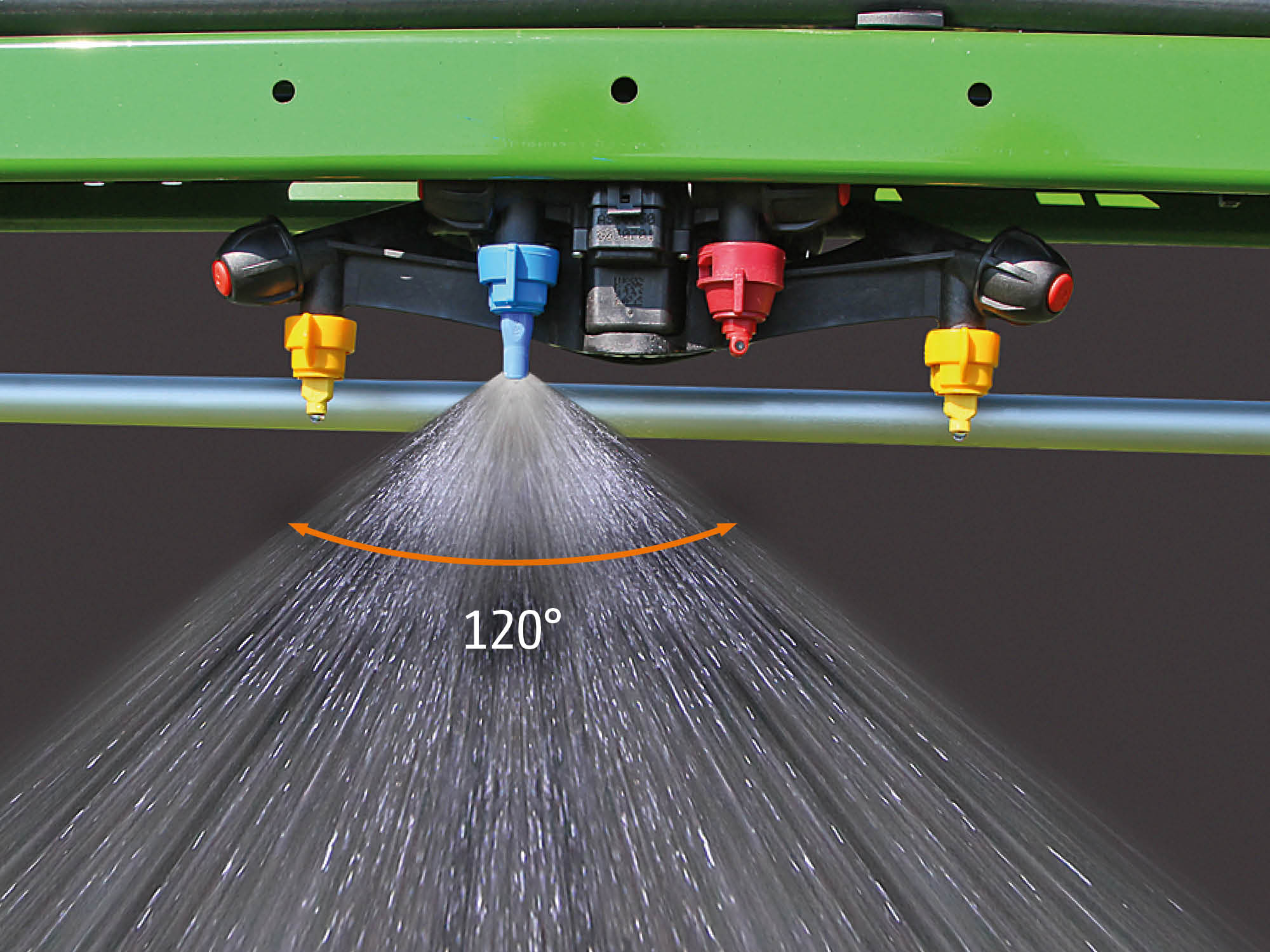

As an option, the AmaSelect nozzle body can also be equipped with an off-set kit giving 25 cm nozzle spacing. This offers the benefit in combination with specific 80° or 90° nozzles of reducing the boom to target surface distance to less than 50 cm.

With the aid of HeightSelect (only in conjunction with AmaSelect and ContourControl) now also the distance between boom and the targeted crop is continuously matched automatically in relation to the nozzle spacing and nozzle type. When the nozzle is switched on, the automatic boom guidance regulates the target surface distance. This automation improves the efficiency of the plant protection agents and makes it considerably easier for the driver.

As standard, AmaSelect is equipped with DUS pro high pressure recirculation and LED individual nozzle lighting.

The AmaSelect individual nozzle control offers the potential for absolute precision by utilising the additional optional AmaSelect CurveControl, AmaSelect Row and AmaSelect Spot functions.

Optimised application when driving round bends

Constant application rate
AmaSelect CurveControl offers a precise solution for keeping the application rate as constant as possible across the whole of the working width when driving round bends. The CurveControl function is equipped as standard in conjunction with AmaSelect and the ContourControl active boom guidance.

In the past, application of plant protection products when driving round bends has led to an over-application on the inside of the bend and an under-application on the outside of the bend. The problem increases with increasing boom widths. Over-applying on the inside of the boom must be viewed more critically, as potential overdose levels of more than 300 % are possible.

1. Desired application rate

The operation of the system is supplemented by a useful function specifically for bends in the form of CurveControl for the AmaSelect electric single nozzle control. In addition to the nozzle pressure, CurveControl uses sensors to determine the curve radius and automatically calculates the pressure adjustment for the changed flow rate. The system then balances the application rate in the boom independently of the part-width section by means of automatic nozzle changing in the boom.

Benefits of AmaSelect CurveControl:

• Virtually uniform application rates when negotiating bends over the entire working width
• Optimum crop management
• Prevention of resistance caused by under-dosing

1. Desired application rate

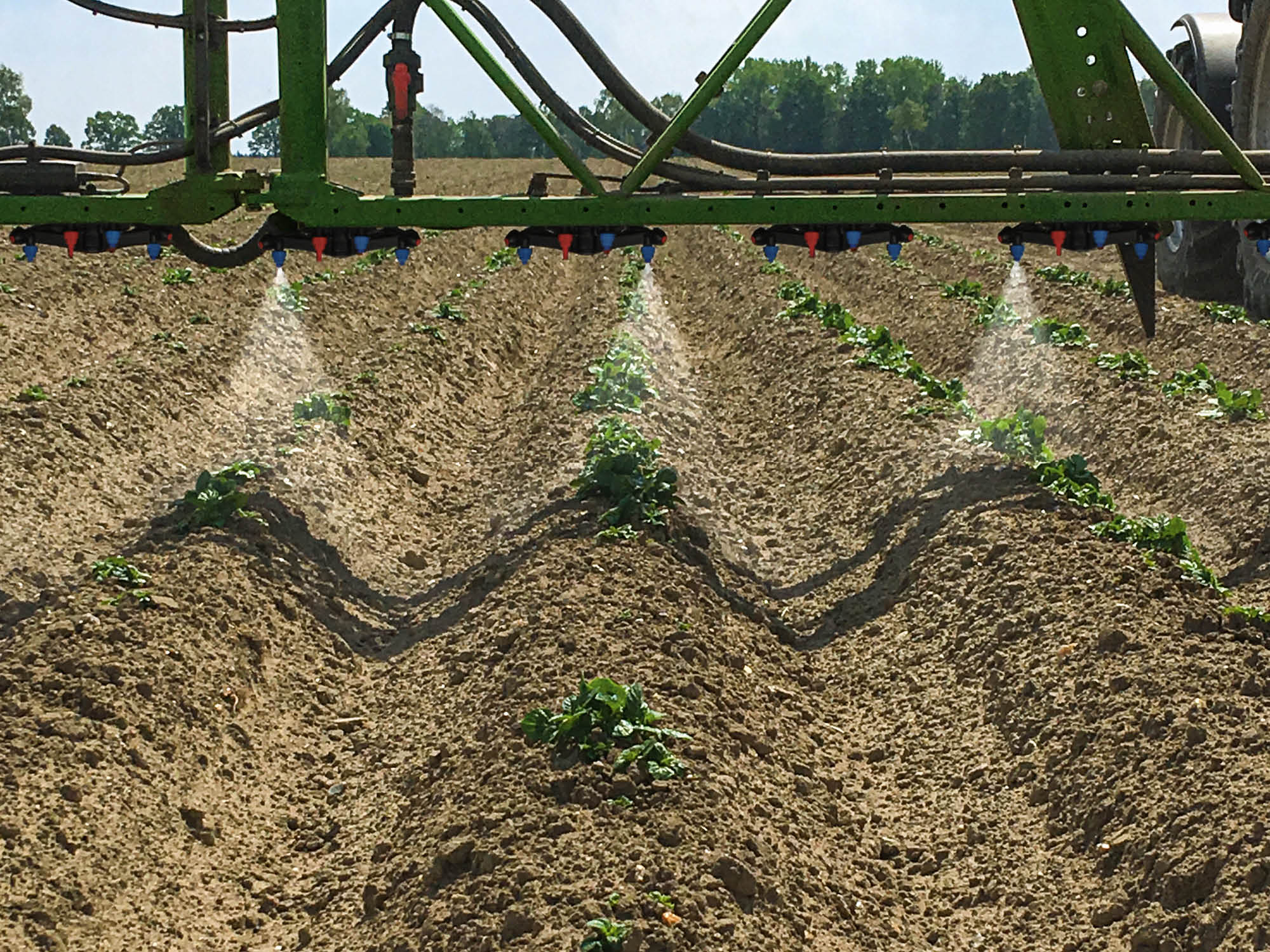

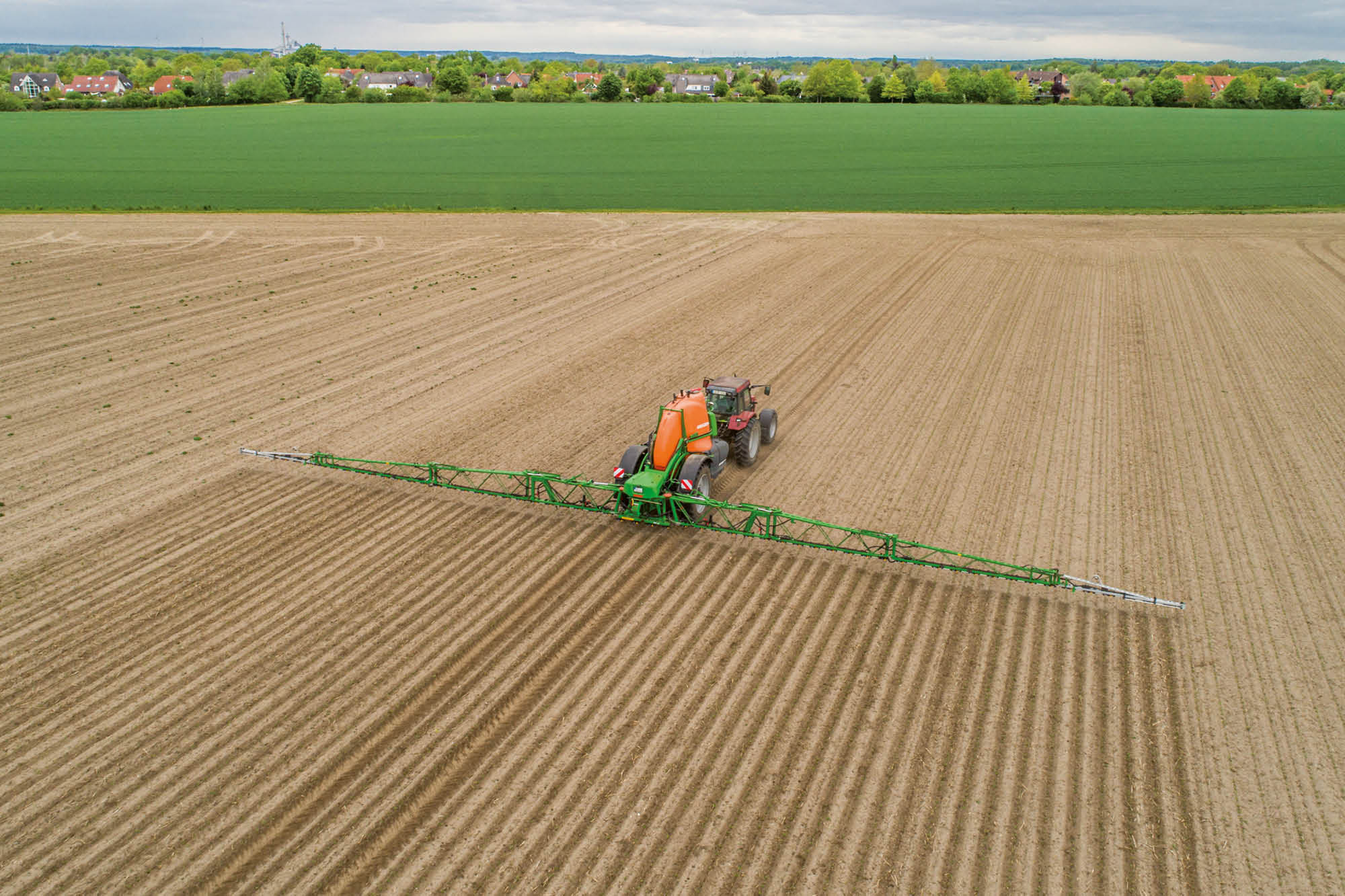

Accurate band spraying at the press of a button to reduce usage of plant protection agents

Row-specific band spraying
AMAZONE offers the AmaSelect Row function for remote switching between row-specific band spraying and full-width application for the AmaSelect electric individual nozzle control. Row-specific band spraying with special 40° nozzles makes it possible to reduce the consumption of plant protection agents by up to 65 %.

Row specific applications in crops with a 50 cm row spacing can very easily be implemented without any further retooling. However, the optional extension kit for the AmaSelect nozzle body with a 25 cm nozzle spacing also enables band applications to be implemented in crops with a 75 cm row width. Only the nozzles at the desired spacing are switched on for that purpose. Alternative row widths, e.g. 45 cm for sugar beet, can also be realised with an additional nozzle arrangement and a connecting hose.

1. Traditional full-width application
2. Strip application in sugar beet 50 cm
3. Band application in potatoes 75 cm

Via a fill menu, the area to be treated by band and full-width spraying as well as the desired application rates of the two types of spraying is stored, and the required filling quantity is automatically calculated to minimise residual amounts. The row spacing, spraying angle and application height of the nozzles are easily adjusted via a separate menu in the ISOBUS machine controller. The selection of the right nozzle and the associated nozzle positions to the band needing to be treated is carried out automatically. It is then possible to switch between band and full-width spraying in a matter of seconds at the push of a button on the ISOBUS terminal.

Advantages of AmaSelect Row:

• Highly efficient band spraying in row crops – and all at the touch of a button
• Different row spacings possible thanks to the optional extension kit with 25 cm
• High operating comfort with an integrated filling menu with fill quantity calculation
• Reduction in the plant protection agent usage by up to 65 %

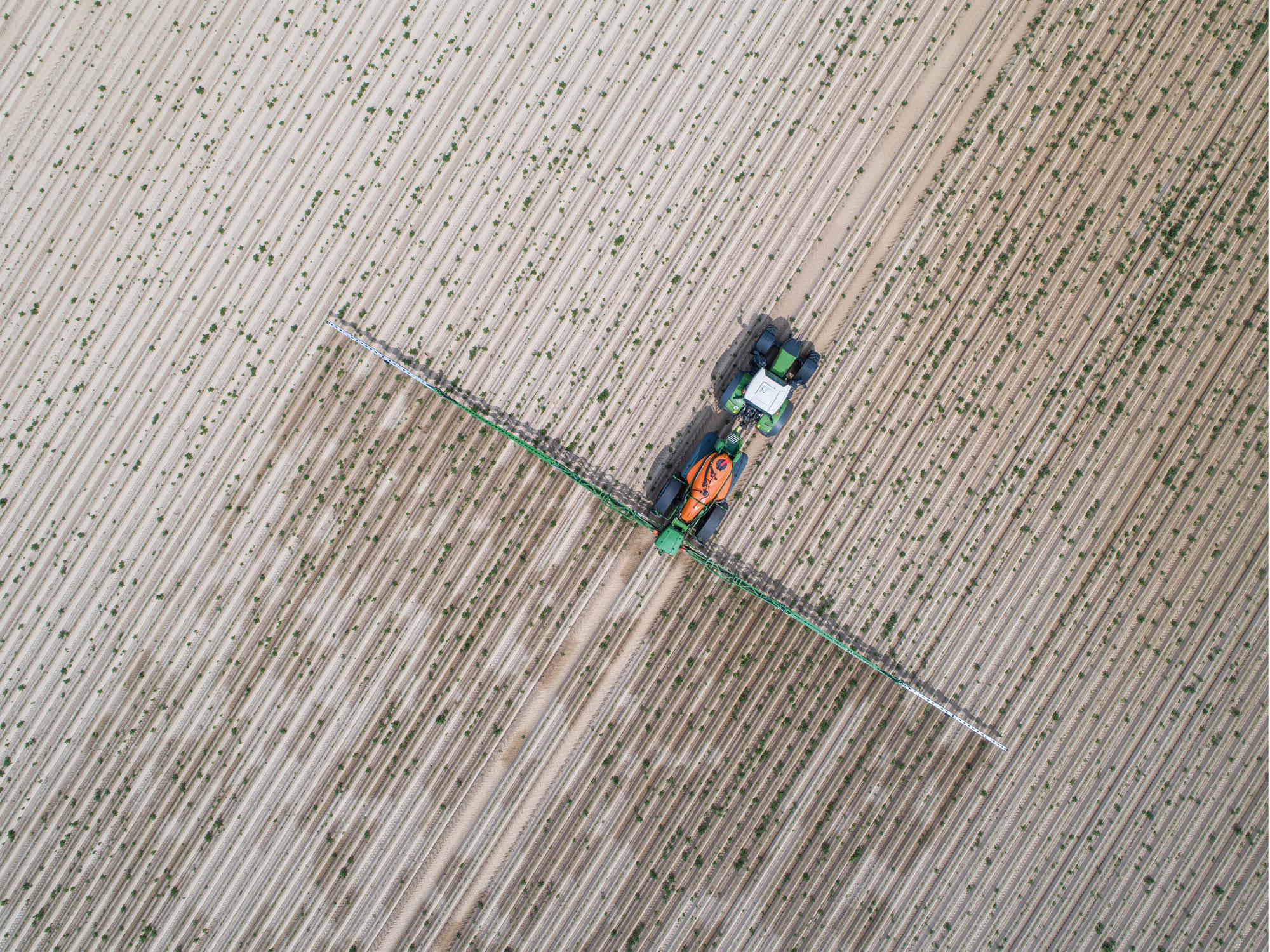

Part-area, site-specific plant protection treatment on the basis of spot application maps

Part-area, site-specific weed treatment
To reduce the use of crop protection agents, AMAZONE offers AmaSelect Spot, a individual nozzle control system which allows part-area, site-specific weed treatment based on highly accurate spot application maps. External service providers produce the spot maps.

In the first step, the field to be treated is scanned and a spot application map created. Depending on the service provider, various processes are used for scanning the area in this first step, such as overflying with a drone, by satellite or via special sensor booms.

In the second step, weeds are spot-treated across the surface area. All that is required for this is to load the spot application map in the AmaPad 2 ISOBUS operator terminal. Unlike blanket treatment approaches, AmaSelect individual nozzle switching lets you treat only those areas where there are actually weeds.

Benefits of AmaSelect Spot:

• Precise spot treatment of weeds with a standard Amazone crop protection sprayer
• Reduction in plant protection agent usage by up to 80 %
• Protection of the environment
• Minimal residual quantities thanks to exact planning of the application rate on the basis of the spot application maps
• Prevention of resistance build-up thanks to small spot applications with 100% plant protection agent concentration

If the operating terminal features Section Control, such as, for example, GPS-Switch part-width section control from AMAZONE, the switching of the part-width sections can be carried out completely automatically and in relation to the GPS position. Once a field has been created, and then in automatic mode, the driver can concentrate fully on the operation of the towing vehicle, since the part-width sections are switched automatically in wedge shaped fields and on headlands.

Benefits of automatic part-width section control:

• Stress relief on the driver
• Increase in precision especially at night or at higher speeds
• Fewer overlaps and gaps
• Saving on input costs
• Less crop damage and less environmental pollution

“With Section Control, the ISOBUS computer relieves the driver from a lot of work.”
(“dlz agrar magazine” – “Test report ZA-TS fertiliser spreader”· 02/2017)

Up to 85 %* less overlap in comparison to conventional Section Control part-width section switching, e. g. on the headland

* Savings are dependent on field structure, boom width and the number of part-width sections

Annual average overlaps of conventional part-width sections vs 50 cm part-width sections in combination with Section Control

Important knowledge for field analysis

• Average overlap with 50 cm part-width sections only 1.92 %
• Average overlap with 9 part-width sections 7 %
• Short payback period for large farms due to annual saving potential
• Due to smaller field sizes, smaller farms save proportionally more
• When growing crops with a high crop protection demand (e.g. potatoes, beet), the 50 cm part-width section is particularly cost-effective

If the operating terminal features Section Control, such as, for example, GPS-Switch part-width section control from AMAZONE, the switching of the part-width sections can be carried out completely automatically and in relation to the GPS position. Once a field has been created, and then in automatic mode, the driver can concentrate fully on the operation of the towing vehicle, since the part-width sections are switched automatically in wedge shaped fields and on headlands.

Benefits of automatic part-width section control:

• Stress relief on the driver
• Increase in precision especially at night or at higher speeds
• Fewer overlaps and gaps
• Saving on input costs
• Less crop damage and less environmental pollution

“With Section Control, the ISOBUS computer relieves the driver from a lot of work.”
(“dlz agrar magazine” – “Test report ZA-TS fertiliser spreader”· 02/2017)

Up to 85 %* less overlap in comparison to conventional Section Control part-width section switching, e. g. on the headland

* Savings are dependent on field structure, boom width and the number of part-width sections

If the operating terminal features Section Control, such as, for example, GPS-Switch part-width section control from AMAZONE, the switching of the part-width sections can be carried out completely automatically and in relation to the GPS position. Once a field has been created, and then in automatic mode, the driver can concentrate fully on the operation of the towing vehicle, since the part-width sections are switched automatically in wedge shaped fields and on headlands.

Benefits of automatic part-width section control:

• Stress relief on the driver
• Increase in precision especially at night or at higher speeds
• Fewer overlaps and gaps
• Saving on input costs
• Less crop damage and less environmental pollution

“With Section Control, the ISOBUS computer relieves the driver from a lot of work.”
(“dlz agrar magazine” – “Test report ZA-TS fertiliser spreader”· 02/2017)

Up to 85 %* less overlap in comparison to conventional Section Control part-width section switching, e. g. on the headland

* Savings are dependent on field structure, boom width and the number of part-width sections

In the second step, weeds are spot-treated across the surface area. All that is required for this is to load the spot application map in the ISOBUS operator terminal. Unlike blanket treatment approaches, AmaSelect individual nozzle switching lets you treat only those areas where there are actually weeds.

Benefits of AmaSelect Spot:

• Precise spot treatment of weeds with a standard Amazone crop protection sprayer
• Reduction in plant protection agent usage by up to 80 %
• Better protection of the environment
• Minimal residual spray volumes, thanks to exact planning of the application rate using the spot application maps
• Prevention of resistance build-up thanks to small spot applications with 100% plant protection agent concentration

With DUS pro, the spraying pressure is constant right up to each individual nozzle and at the set spraying pressure. Thanks to the conical spray lines, minimal residual spray volumes are achieved.

Conical spray line:
The dimensions of the spray line vary along the boom

• Minimum residual volumes
• Even flow speed

1. 15 millimeters
2. 24 millimeters
3. 24 millimeters
4. 20 millimeters
5. 16 millimeters

In the first step, the field to be treated is scanned and a spot application map created. Depending on the service provider, various processes are used for scanning the area in this first step, such as overflying with a drone, by satellite or via special sensor booms.

The AmaSelect individual nozzle control offers the potential for absolute precision by utilising the additional optional AmaSelect CurveControl, AmaSelect Row and AmaSelect Spot functions.

AmaSelect is equipped with the DUS pro high-pressure recirculation system and LED individual nozzle lighting as standard.

Annual average overlaps of conventional part-width sections vs 50 cm part-width sections in combination with Section Control

Important knowledge for field analysis

• Average overlap with 50 cm part-width sections only 1.92 %
• Average overlap with 9 part-width sections 7 %
• Short payback period for large farms due to annual saving potential
• Due to smaller field sizes, smaller farms save proportionally more
• When growing crops with a high crop protection demand, e.g. potatoes, sugar beet, 50 cm part-width sections are particularly cost-effective

Part-area, site-specific plant protection treatment on the basis of spot application maps

Part-area, site-specific weed treatment
To reduce the use of crop protection agents, AMAZONE offers AmaSelect Spot, a individual nozzle control system which allows part-area, site-specific weed treatment based on highly accurate spot application maps. External service providers produce the spot maps.

The automatic control of individual nozzles in 50 cm part-width sections is made possible by combining the AmaSelect individual nozzle control with GPS-Switch (with Section Control). This enables the amount of overlap to be considerably reduced, meaning that there is a significant saving in spray agent.

Via the fill menu, the area to be treated by band and full-width spraying as well as the desired application rates of the two types of spraying is stored, and the required filling quantity is automatically calculated so as to minimise residual spray volumes. The row spacing, spraying angle and application height of the nozzles are easily adjusted via a separate menu in the ISOBUS machine controller. The selection of the right nozzle and the associated nozzle positions to the band needing to be treated is carried out automatically. It is then possible to switch between band and full-width spraying in a matter of seconds at the push of a button on the ISOBUS terminal.

Advantages of AmaSelect Row:

• Highly efficient band spraying in row crops – and all at the touch of a button
• Different row spacings possible thanks to the optional off-set kit at 25 cm
• High operating comfort with an integrated filling menu with fill quantity calculation
• Reduction in plant protection agent usage by up to 65 %

Accurate band spraying at the press of a button to reduce usage of plant protection agents

Row-specific band spraying
AMAZONE offers the AmaSelect Row function for remote switching between row-specific band spraying and full-width application for the AmaSelect electric individual nozzle control. Row-specific band spraying with special 40° nozzles makes it possible to reduce the consumption of plant protection agents by up to 65 %.

As an option, the AmaSelect nozzle body can also be equipped with an off-set kit giving 25 cm nozzle spacing. This offers the benefit in combination with specific 80° or 90° nozzles of reducing the boom to target surface distance to less than 50 cm.

If the operating terminal features Section Control, such as, for example, GPS-Switch part-width section control from AMAZONE, the switching of the part-width sections can be carried out completely automatically and in relation to the GPS position. Once a field has been created, and then in automatic mode, the driver can concentrate fully on the operation of the towing vehicle, since the part-width sections are switched automatically in wedge shaped fields and on headlands.

Benefits of automatic part-width section control:

• Stress relief on the driver
• Increase in precision especially at night or at higher speeds
• Fewer overlaps and gaps
• Saving on input costs
• Less crop damage and less environmental pollution

“With Section Control, the ISOBUS computer relieves the driver from a lot of work.”
(“dlz agrar magazine” – “Test report ZA-TS fertiliser spreader”· 02/2017)

Up to 85 %* less overlap in comparison to conventional Section Control part-width section switching, e. g. on the headland

* Savings are dependent on field structure, boom width and the number of part-width sections
