The Precision Team

Aiming for the future

More precise – More site-specific – More environmentally friendly

The arable farming system, crop rotation, use of plant protection and fertiliser, soil tillage strategy and sowing process are all put to the test. Modern fertiliser and crop protection technology are the basis for perfect plant care and maximum yields. Our goal is to keep your crops healthy in a cost-effective and efficient manner so that you can optimise your yields.

A wide range of innovative machines for fertilisation, plant protection and hoeing with cutting-edge precision technology is now available. This "extra” precision means that you use "less” fertiliser and plant protection agent. The rates and distribution can be tailored to the requirements on a part-area, site-specific basis by means of sensor systems and application maps. In addition to the economic benefits, you protect the environment and make it considerably easier for the driver.

This brochure will provide you with information about the new potentials which our fertiliser spreaders, crop protection sprayers and hoes already offer you today in precision agriculture.

GO for Innovation
Your AMAZONE and Schmotzer Precision Team

More precision – ZA-V

Mounted spreader • 1,400 l – 4,200 l • 10 m – 36 m

Profis weighing technology:
Precise monitoring and control of the application rate using the 200 Hz weighing technology and the tilt sensor. No calibration. Just enter the spread rate and drive away with perfect monitoring of the tank level at all times.

Intelligent agitator:
The agitator stars are positioned over the low-lying outlet opening and ensure a continuous fertiliser flow. When the shutter slides are closed on both sides, the agitator speed is reduced to protect the fertiliser.

GPS-Switch:
The automatic part-width section control with to 16 part-width sections guarantees precise switching on wedge shaped fields and at the headland. Outer part-width sections can also be controlled – this increases precision and makes it easier for the driver.

Limiter V⁺:
The sensitive electrical adjustment of the Limiter V⁺ border spreading device to the respective field boundary enables comfortable switching between field-side, border and water course spreading from the tractor cab during fertiliser application.

EasyCheck - Precise spreading made easy!

Easy optimisation of the lateral distribution with the digital mobile test kit. Lay out the test mats, spread the fertiliser, photograph with a smartphone, analysis of the lateral distribution in the App and recommendation for a corrected spreader adjustment. EasyCheck

mySpreader App
The first all-in-one package containing the FertiliserService App, EasyCheck App and EasyMix App for blended fertiliser for perfect spreader adjustment.

More precision – ZA-TS

Mounted spreader • 1,400 l – 4,200 l • 15 m – 54 m

Unique WindControl system:
In accordance with Prof. Dr. Karl Wild of the University of Applied Sciences, Dresden, WindControl enables the influence of the wind on the spread pattern to be constantly monitored and compensated for by a wind sensor. This means that an optimum spread pattern can be created, even in challenging wind conditions.

Profis weighing system:
Profis weighing system for controlling the application rate via a 200 Hz online weighing system – no more calibration!
NEW: ProfisPro weighing system with FlowControl combines the advantages of the weighing system with the torque monitoring of each spreading disc – a precise application rate from the very first second!

HeadlandControl:
Optimum and even lateral distribution on the headland.

GPS-Switch or DynamicSpread:
GPS-Switch automatic part-width section control or DynamicSpread with up to 128 part-width sections.

ArgusTwin:
Permanent monitoring and optimisation of the lateral distribution for each spreading disc via a total of 14 radar sensors. The effect of fluctuating fertiliser properties is automatically compensated for and a spread pattern with exact lateral distribution is created.

TS spreading system with delivery system adjustment and disc-integrated AutoTS border spreading system

Perfection in every component, just like clockwork

• Wide throwing distance, double overlap even at 36 m
• High application rates (up to 10.8 kg/s or 650 kg/min)
• Electric agitator system with two slow-speed, fertiliser-protecting agitators rotating at 60 rpm




More precision – ZG-TS

Trailed spreader • 7,500 l – 10,000 l • 15 m – 54 m

ArgusTwin:
Radar system for optimised lateral distribution.

Unique WindControl system:
System in accordance with Prof. Dr. Karl Wild of the University of Applied Sciences, Dresden, for optimisation of the spread pattern.

TS spreading system:
With delivery system adjustment and the AutoTS disc-integrated border spreading system.

Axle pivot steering:
Track-true following of the spreader via axle pivot steering with a steering angle of up to 28°.

ProfisPro weighing system:
Perfect combination of the Profis weighing system and the FlowControl torque measuring system.

DynamicSpread dynamic part-width section control

DynamicSpread

The automatic part-width section control, with up to 128 part-width sections in the form of a kidney-shaped pattern, guarantees precise switching on wedge shaped fields and at the headland. Outer part-width sections can also be controlled.

1. Overlap zones
2. 8 part-width sections
3. 16 part-width sections
4. 32 part-width sections
5. with 64 part-width sections
6. with 128 part-width sections

HeadlandControl
Optimum and even lateral distribution on the headland.

• Extended headland
• Early switching off from outside to inside
• Switching on from outside to inside

More precision – Hoeing technology

Mechanical weed control • Working widths up to 9 m

Shift frame:
Parallel or linear shifting for precise guidance of the hoe through the rows. The parallel shift frame reduces lateral forces to a minimum. With a movement range of 640 mm, precise working across slopes without offsetting the tractor is no longer a problem.

No losses in yield due to heavy soil compaction:
An extremely light design means that an 8-row hoe with a 75 cm row spacing weighs less than 1,400 kg in spite of the shift frame.

Camera-based row guidance:
With SCHMOTZER HORUS or OKIO for detecting the crop row.

Section Control:
Automatic part-width section control for loss-free hoeing in tapering fields.

Row guidance system:
The optional exchange system offers a wide variety of applications for the row guidance system combined with minimal set-up times in the season – Perfect results as a result of the optimum hoeing time.

5 steps ahead with SCHMOTZER ...

• Share plate change in minutes: The tedious exchange of worn shares is a thing of the past with the SCHMOTZER Rapido quick change system with a screw connection.
• The best work results, even on uneven ground: The following tools are mounted on a separately guided parallelogram. This enables direct contour following in any situation.
• Maintenance-free bearings as standard: Linkages and bearings on SCHMOTZER hoes are maintenance-free as standard.
• Finger hoes: The use of finger hoes guarantees precise weed control in the crop row. The working depth can be precisely tailored to the crop at any time by individual angular adjustment of the finger hoes.
• Hoe rollers: Self-driven hoe rollers protect the crops from dust and clods of earth in the early growth stage.

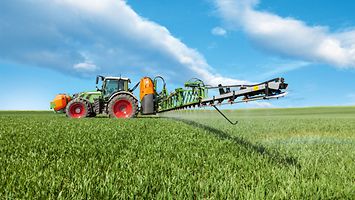

More precision – UF

UF 01 mounted sprayer • 900 l – 1,200 l • 12 m – 30 m
UF 02 mounted sprayer • 1,600 l – 2.000 l • 15 m – 30 m
Extension 1,000 l or 1,500 l with FT front tank

Perfect boom ride in all crop protection sprayers:
The booms in an aircraft wing design are both super-light and super-stable. The free-hanging boom suspension with multiple damping and spring-mount provides an extremely smooth boom ride.

DUS pressure circulation system:
For continuous circulation of the spray agent and full active agent concentration from the initial opening of the nozzles.

Automatic boom guidance:
Perfect adherence to the desired distance between the nozzle and the target surface thanks to the DistanceControl plus automatic boom guidance system with 4 sensors.

Automatic 50 cm part-width section:
Precise switching at the headland and on wedge shaped fields by combining the GPS-Switch automatic part-width section control and the AmaSwitch single nozzle control. Reduction in plant protection agent usage by up to 10 % (Savings are dependent on the field structure, working width, number of part-width sections, row width and weed density.)

SmartCenter operator station for the UF 02 mounted sprayer

The complete operation of the machine is simple, central and logically structured.

• The optional Comfort-Pack with TwinTerminal enables remotely controlled and automated activation of the spray agent circuit. This includes the automatic filling stop, automatic agitator switch-off, reliable emptying of residual amounts without foaming and automatic cleaning at the end – very simple and effective.
• The high-performance 60 l induction bowl with an extraction capacity of 150 l/min guarantees the induction of plant protection agents and micro-nutrients.

More precision – UX

UX Special trailed sprayer • 3,200 l – 5,200 l • 15 m – 36 m
UX Super trailed sprayer • 4,200 l – 6,200 l • 21 m – 40 m
UX 11201 trailed sprayer • 11,200 l • 24 – 40 m

Perfect boom ride and automatic boom guidance:
The precise guidance of the boom with the DistanceControl automatic boom guidance system can be further increased for very wide booms and hilly terrain by means of the active ContourControl boom guidance system in conjunction with SwingStop active vibration damping.

DUS pressure circulation system:
For continuous circulation of the spray agent and full active agent concentration from the initial opening of the nozzles.

Axle pivot steering with AutoTrail:
For precise tracking of the tractor – even in hilly terrain.

Automatic 50 cm part-width section:
Precise switching at the headland and on wedge shaped fields by combining the GPS-Switch automatic part-width section control and the AmaSwitch or AmaSelect individual nozzle switching. Reduction in plant protection agent usage by up to 10 % (Savings are dependent on the field structure, working width, number of part-width sections, row width and weed density. Please ask your AMAZONE sales partner or factory representative about the technical requirements of the new AmaSelect functions).

SmartCenter operator station with Comfort-Pack plus

Operation with maximum comfort

• Operation can be made even easier via the 7” touch display in the Comfort-Pack plus. In this case, only the function needs to be selected to actuate the respective valves automatically.
• High-performance 60 l induction bowl High-performance 60 l induction bowl
• Fully automatic cleaning programs

More precision – Pantera

Self-propelled sprayer • 4,500 l • 21 m – 40 m

Automatic 50 cm part-width section:
Precise switching at the headland and on wedge shaped fields by combining the GPS-Switch automatic part-width section control and the AmaSwitch or AmaSelect individual nozzle switching.  Reduction in plant protection agent usage by up to 10 % (Savings are dependent on the field structure, working width, number of part-width sections, row width and weed density. Please ask your AMAZONE sales partner or factory representative about the technical requirements of the new AmaSelect functions).

SmartCenter operator station:
With a Comfort Pack for automatic control of the most important functions such as filling, agitator intensity and cleaning.

Precision chassis:
In combination with the hydro-pneumatic suspension, the tandem chassis ensures excellent contour following and a high degree of stability, even when working on sloping terrain. The infinitely variable track width adjustment provides flexibility, meaning that the Pantera can be used for a variety of crops and requirements.

Intelligent engine management:
Work can be carried out in the fuel-efficient optimum range thanks to intelligent engine management with ECO mode and Power Mode. Infinitely variable driving speeds from 0 to 50 km/h.

Perfect boom ride and automatic boom guidance with ContourControl

The precision of the guidance can be further increased for very wide booms and hilly terrain using the active ContourControl boom guidance in conjunction with the SwingStop active vibration damping.


1. The goal: Prevention of negative vertical boom movements
2. The goal: Prevention of negative horizontal boom movements
3. Ultrasound sensor for ContourControl
4. Acceleration sensor for SwingStop
5. SwingStop ram

AmaSelect – Perfection for plant protection

AmaSelect and GPS-Switch:
Electric individual nozzle switching combined with automatic part-width section control. Reduction in plant protection agent usage by up to 10 %*

AmaSelect Row:
Highly efficient band spraying in row crops at the touch of a button to reduce the usage of plant protection agents. Reduction in plant protection agent usage by up to 65 %*

AmaSelect Spot:
Part-area, site-specific weed treatment on the basis of spot application maps. Reduction in plant protection agent usage by up to 80 %*.

AmaSelect – Electric individual nozzle switching with 50 cm part-width section

• Up to 80 part-width sections with 50 cm spacing
• Perfect 25 cm nozzle spacing using the extension set – optional
• Automatic nozzle changeover and switching
• Nozzle selection from the cab
• Nozzle pairs can also be run in combination
• Freely programmable part-width sections
• High pressure recirculation (DUS pro)
• With LED individual nozzle lighting
• Optimised application rate whilst driving around bends with AmaSelect CurveControl*

*Savings are dependent on the field structure, working width, number of part-width sections, row width and weed density. Please ask your AMAZONE sales partner or factory representative about the technical requirements of the new AmaSelect functions.
