GH and HH

Advantages of the GH

• Precise working thanks to cutting widths from 1.35 m to 2.1 m, matching the track width of the tractor
• Hopper capacities from 1,350 l to 3,500 l for high-performance working, even on large areas
• No wheel marks on the finished area
• Simple ground level discharge with GH or high-lift discharge with GH-LT, GH-S and GH-S Drive for a wide range of applications

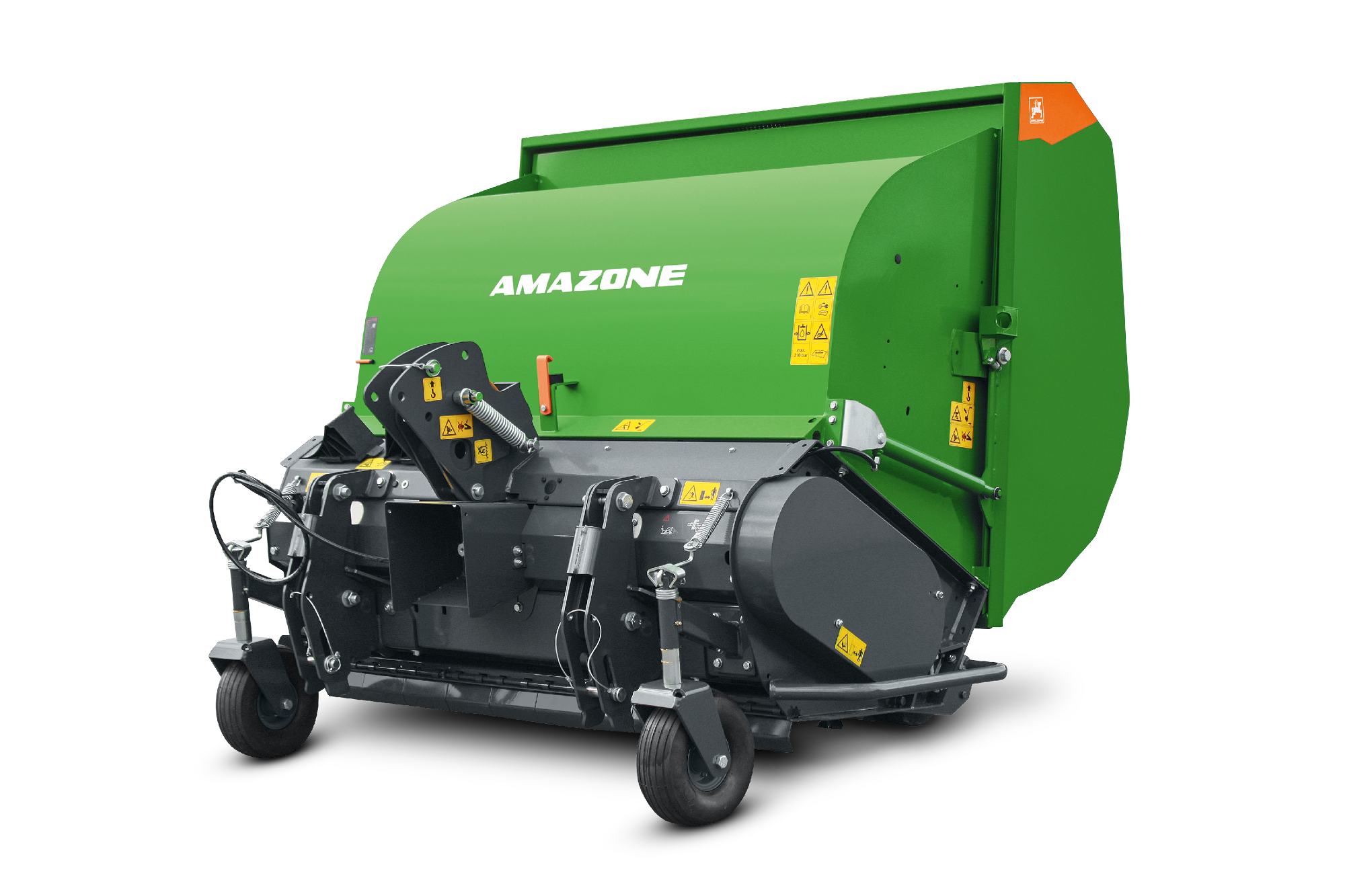

GH

• 3-point linkage mounted
• Working width: 1.35 m – 2.10 m
• Mower blade + H77 sharpened wing blade (standard execution)
• Infinitely variable height adjustment
• Mulching
• Collecting
• Collection hopper: 1,350 l – 2,100 l
• Integrated airflow deflector
• Hopper protection hood
• Ground level discharge

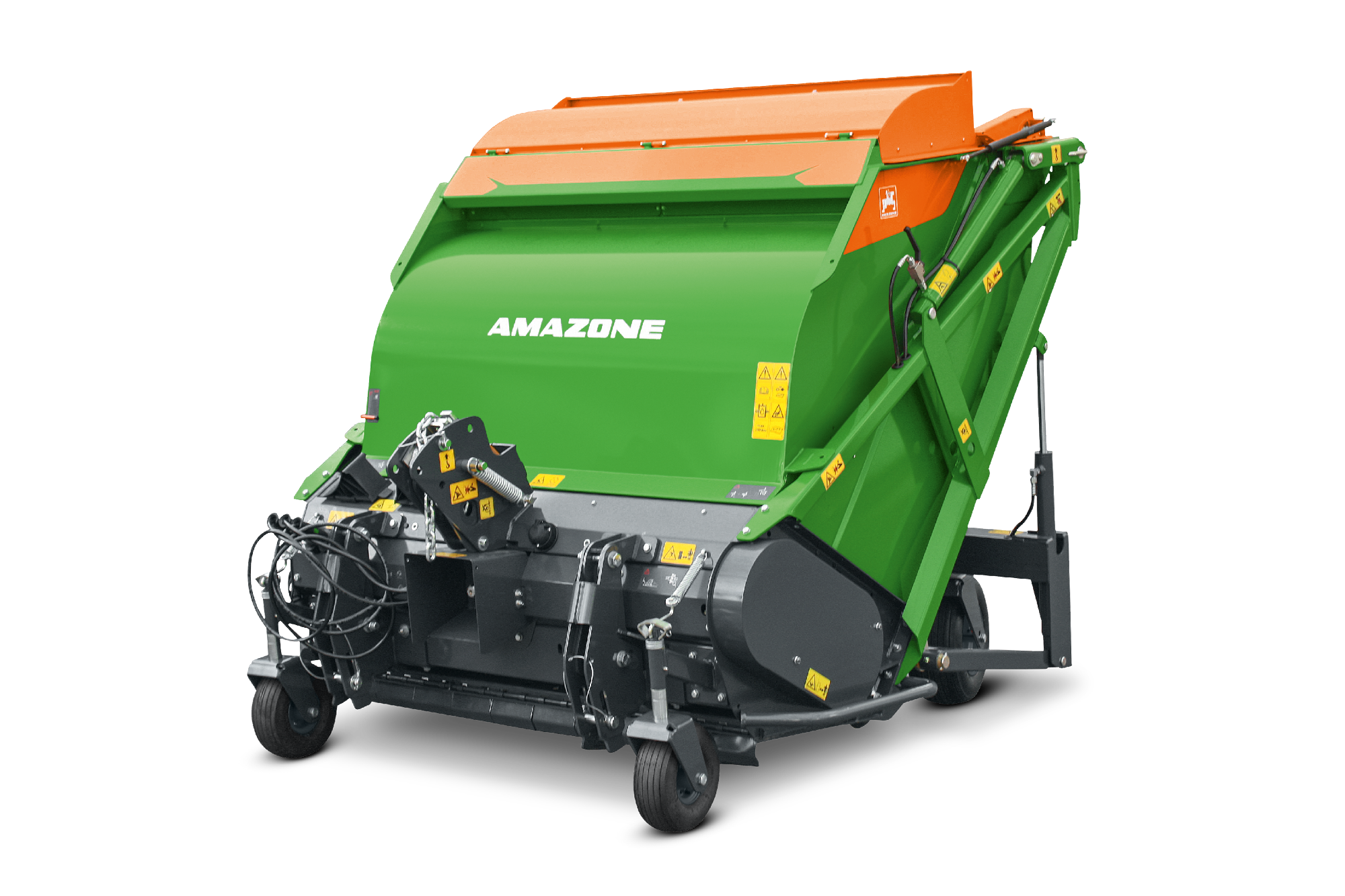

GH-LT

• 3-point linkage mounted
• Working width: 1.35 m – 1.50 m
• Mower blade + H77 sharpened wing blade (standard execution)
• Infinitely variable height adjustment
• Mulching
• Collecting
• Collection hopper: 1,400 l – 1,550 l
• Airflow deflector (optional equipment)
• Hopper protection hood
• High-lift discharge: 1.80 m
• Road speed 25 km/h
• Rear caster wheels

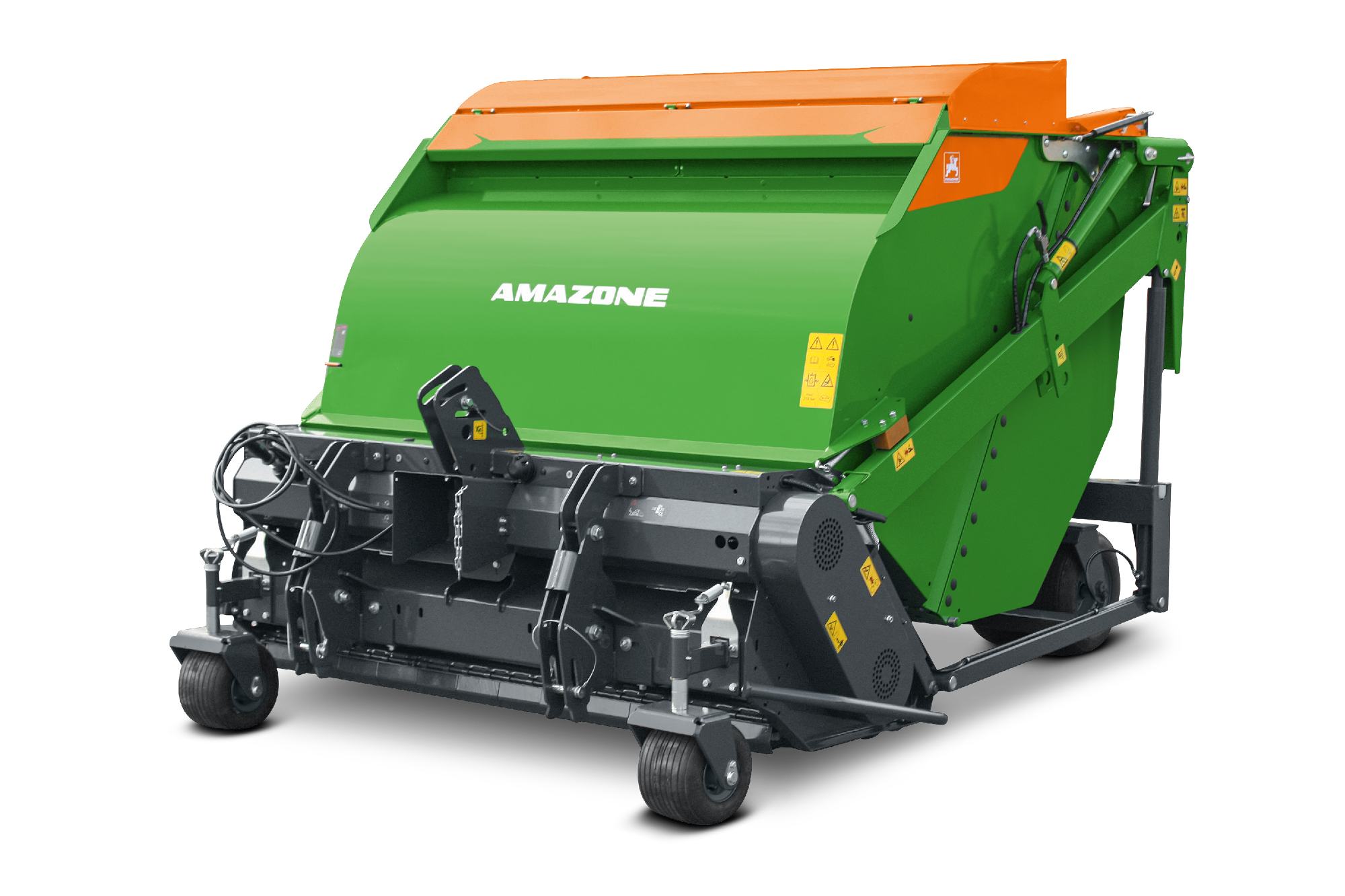

GH-S

• 3-point linkage mounted
• Working width: 1.50 m – 2.10 m
• Mower blade + H77 sharpened wing blade (standard execution)
• Infinitely variable central height adjustment
• Mulching
• Collecting
• Collection hopper: 2,500 l – 3,500 l
• Airflow deflector (optional equipment)
• Hopper protection hood
• High-lift discharge: 2.10 m
• Road speed 25 km/h
• Electro-hydraulic control (optional equipment)
• Rear caster wheels

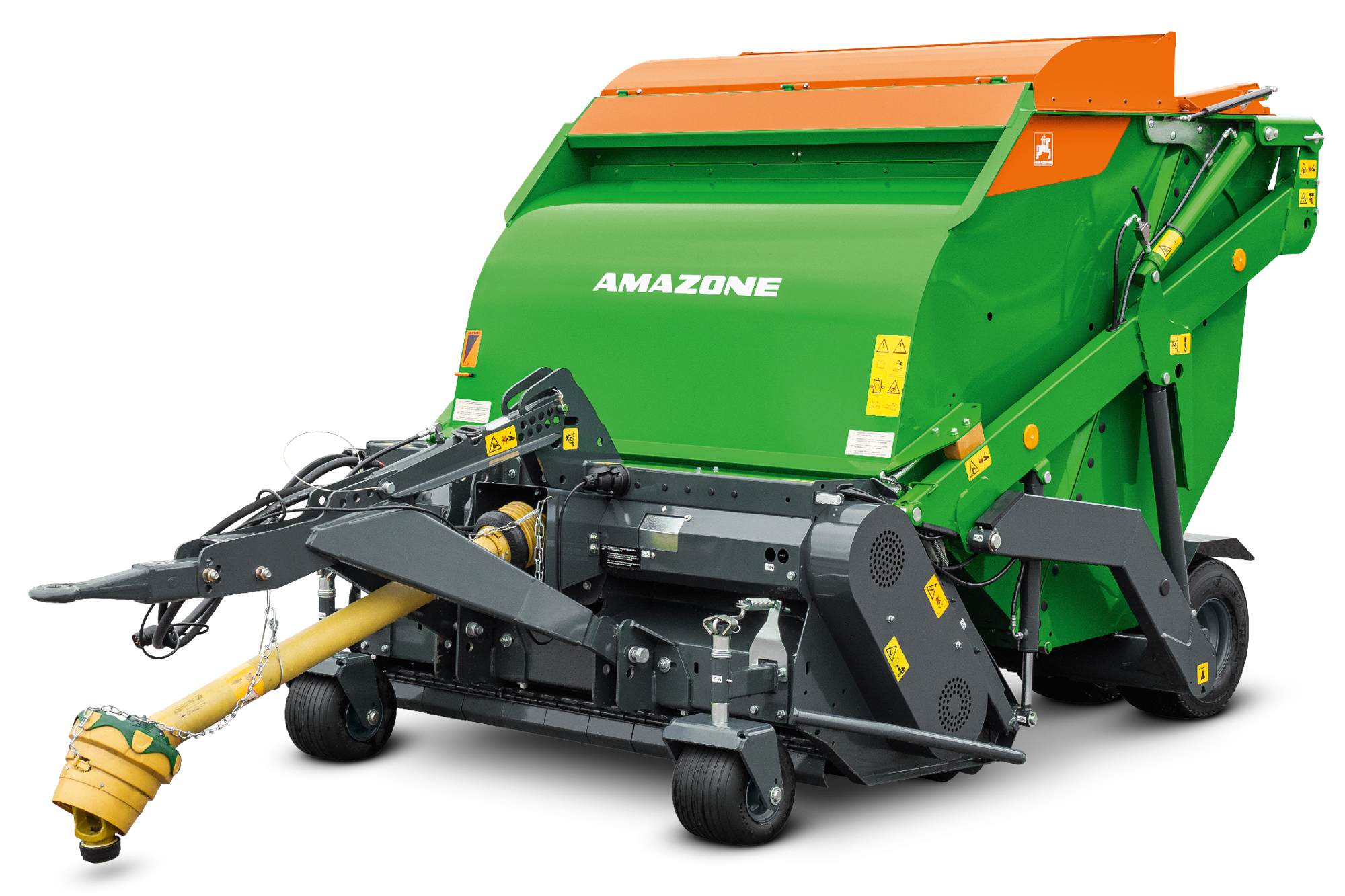

GH-S Drive

• Drawbar above or below the PTO shaft
• Working width: 1.50 m – 2.10 m
• Mower blade + H77 sharpened wing blade (standard execution)
• Infinitely variable central height adjustment
• Mulching
• Collecting
• Collection hopper: 2,500 l – 3,500 l
• Airflow deflector (optional equipment)
• Hopper protection hood
• High-lift discharge: 2.30 m
• Up to 40 km/h on the road*
• Electro-hydraulic control (optional equipment)
• Dual wheels at the rear

*New: EU type approval included!

All models can be equipped with any optional extras depending on the individual requirements!
