Tyrok semi-mounted reversible ploughs

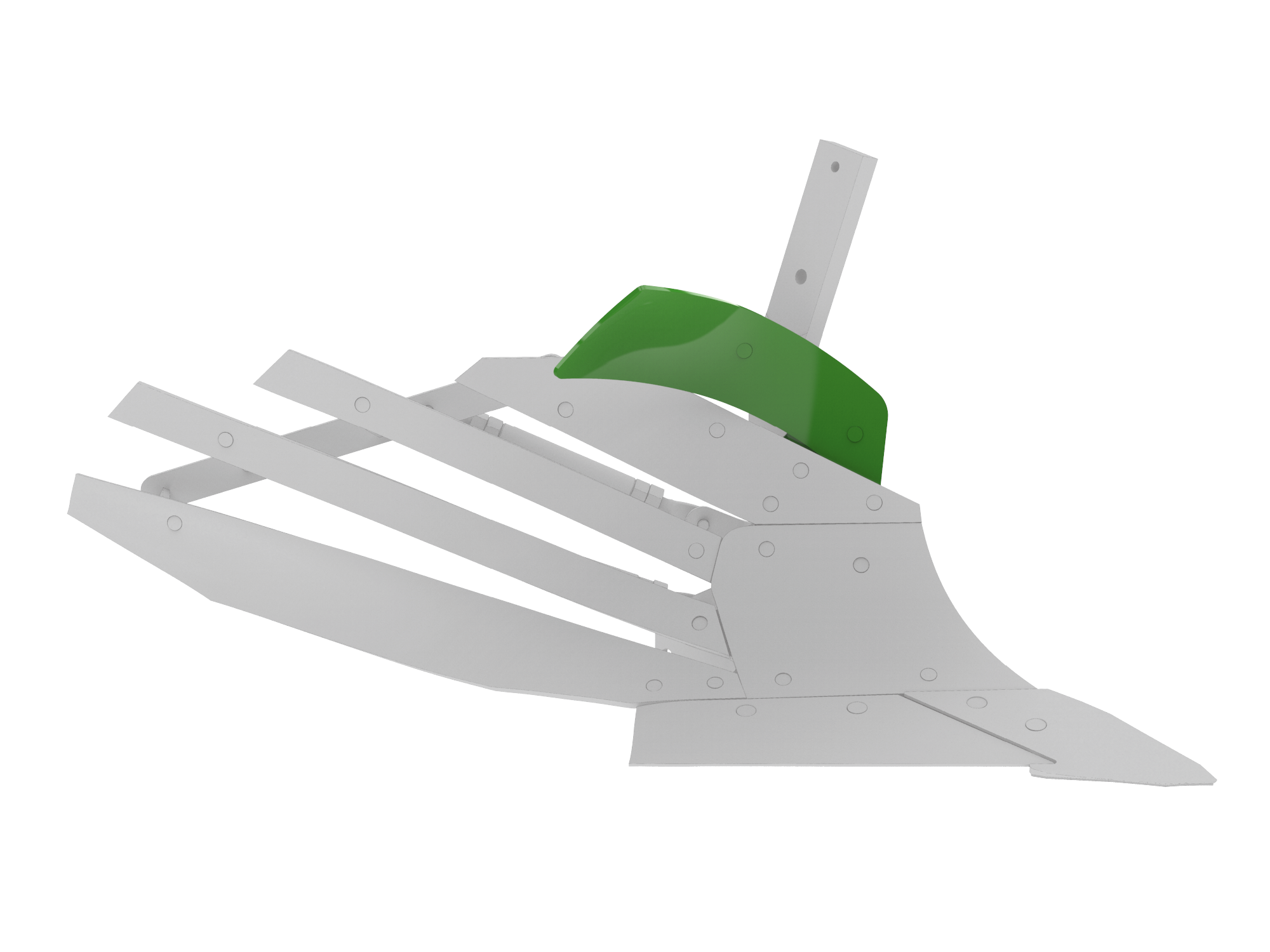

Trash boards
A cost-effective alternative to skimmers when incorporating surface crop residues. With additional support on the leg as standard.

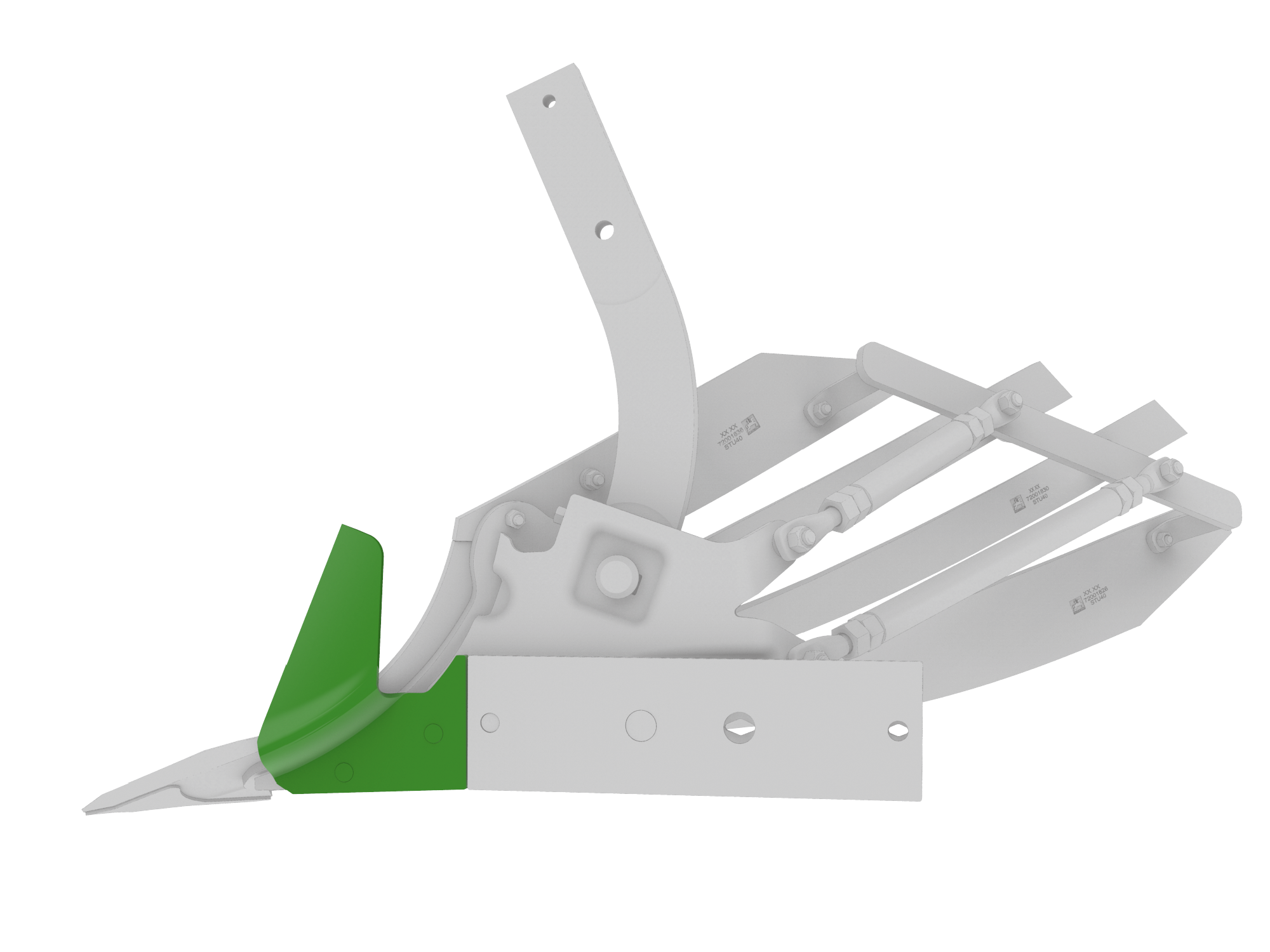

Sword landside
The sword landside is an alternative to the disc coulter, which, especially on heavy, stony ground ensures a clean furrow wall and also reduces the wear and tear on the plough body.

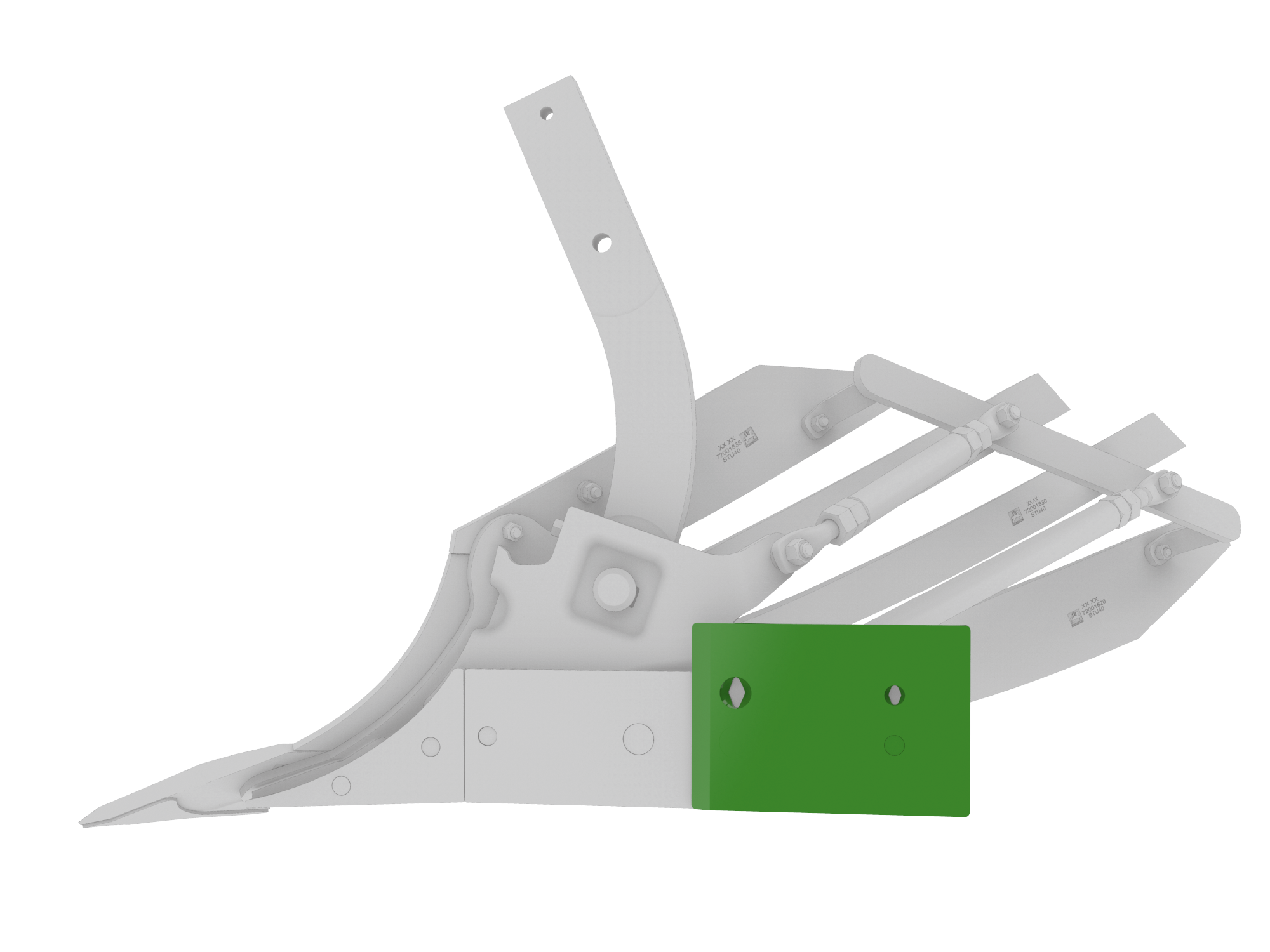

Landside protection
The landside protection increases the area of support of the plough on the furrow wall. This improves plough guidance significantly, especially on slopes. In order to enable the use of wider tyres in the furrow, a furrow-widening plate can be installed as an option on the last plough body.

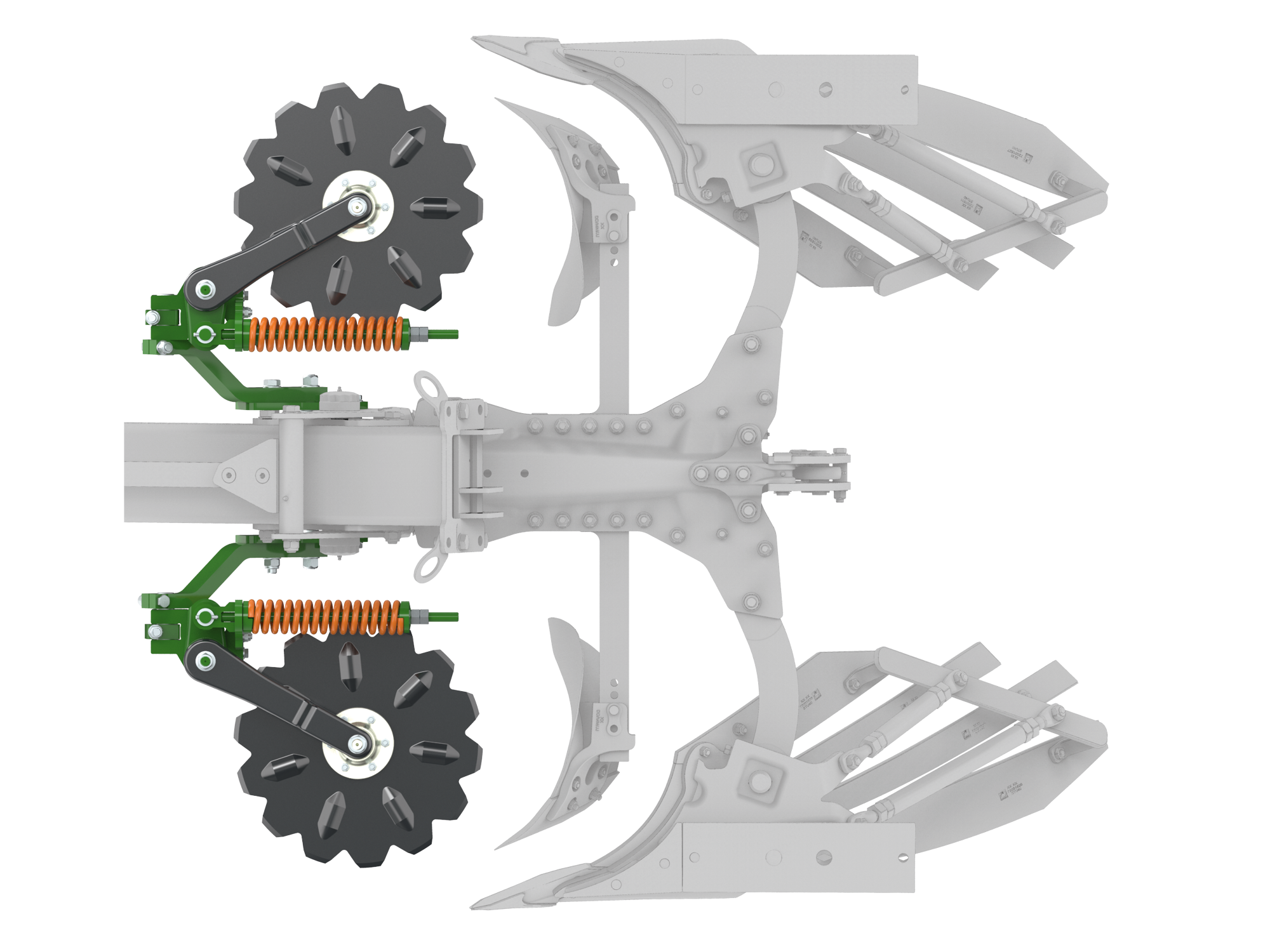

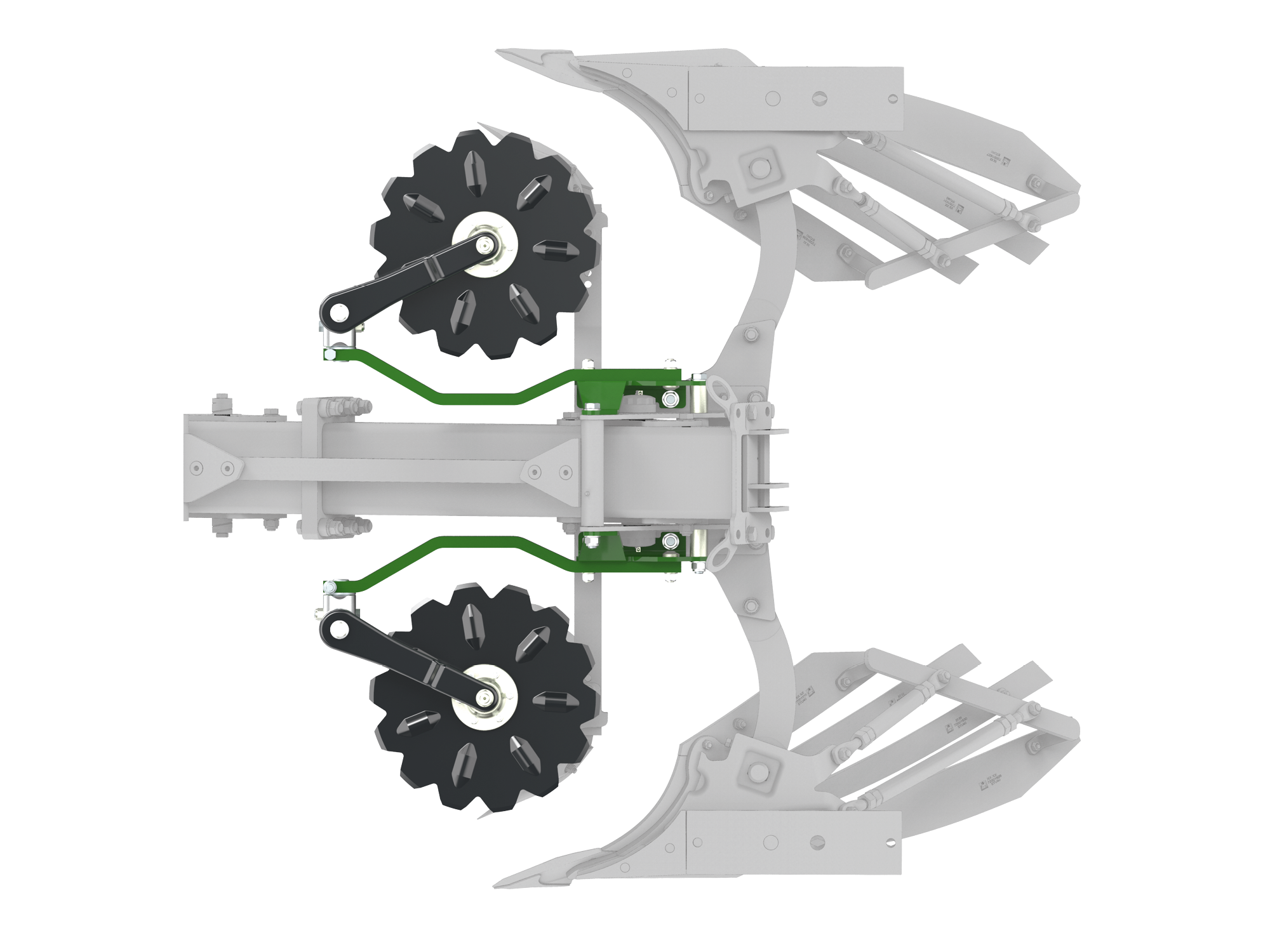

The disc coulter is important for leaving a clean finish to the ploughing. Disc coulters also make a considerable contribution to efficient ploughing. The disc coulters’ precise cutting action helps achieve full inversion and complete incorporation of any crop residues as well as leaving an effective furrow clearance.

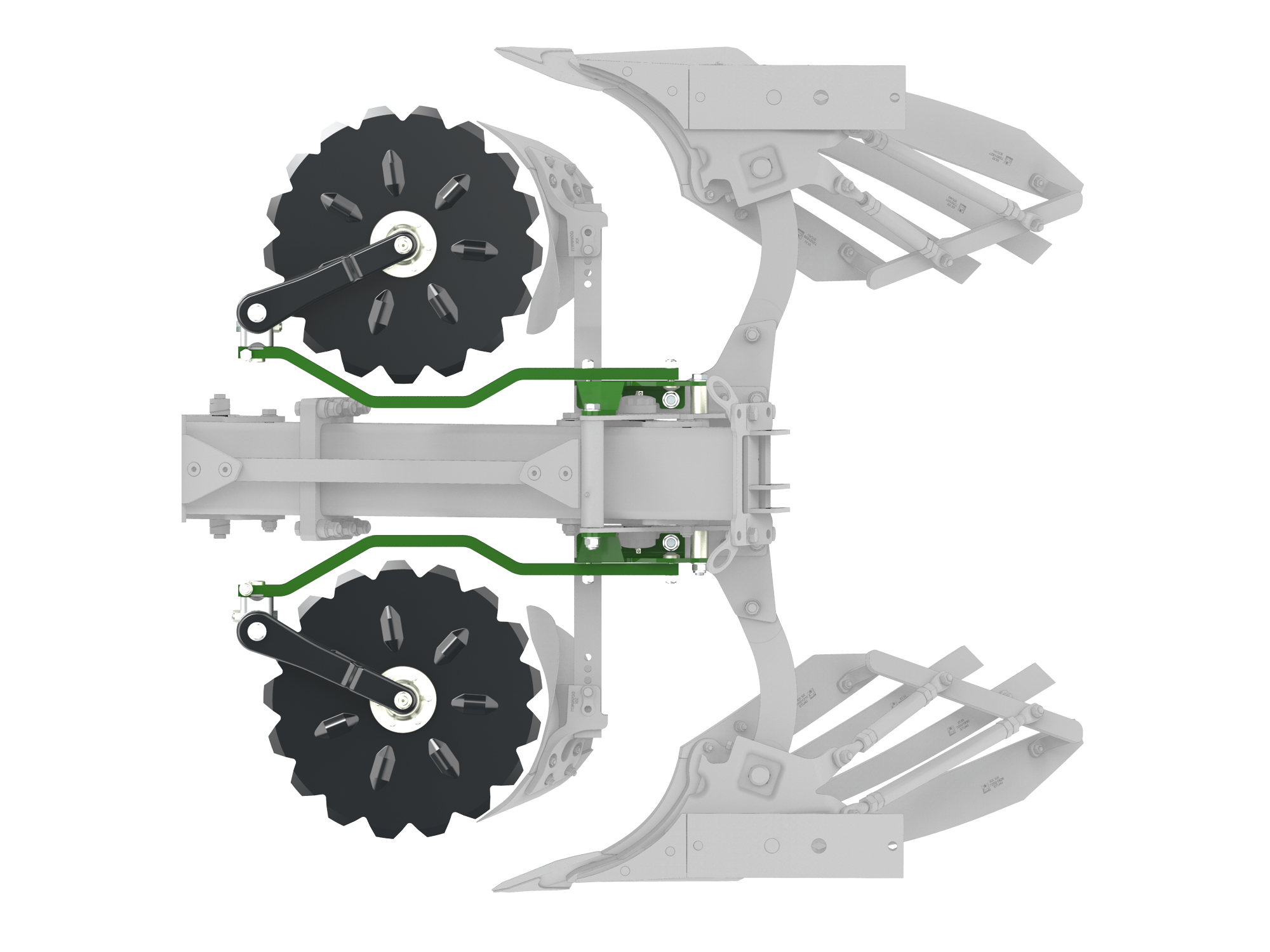

The disc coulter is available in a smooth or serrated profile with a diameter of 500 mm and in a serrated profile of 600 mm.

An adjustable disc coulter carrier for ploughs with shear bolt overload protection is available as an option.


M2 skimmer
The M2 skimmer is universally suited for use in grassland ploughing as well as where there are large amounts of crop residues, especially maize straw.

L2 Skimmer
The L2 Skimmer has an even stronger turned shape than that of the M2 Skimmer. It is therefore suitable for the incorporation of extreme volumes of organic harvest residues.

G2 skimmer
The use of the G2 skimmer ensures blockage-free ploughing, especially on heavy and sticky ground or when ploughing grassland for the first time. The easy adjustability of the skimmers means that the finish is left even more precise.

Under certain conditions, it may be necessary to loosen the surface below the working depth of the plough body. The loosening legs are height-adjustable and can be easily replaced.
