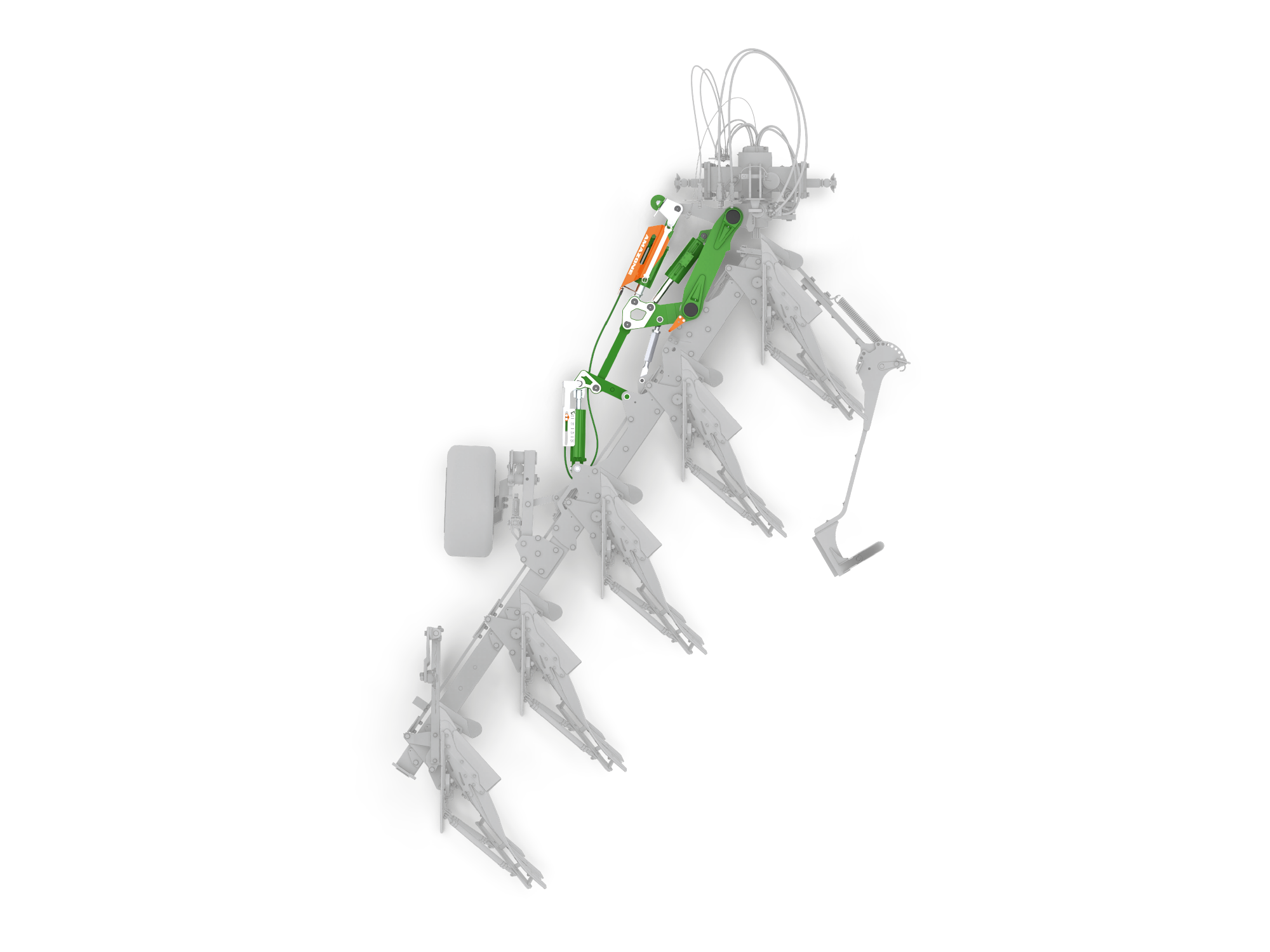

Teres 300 mounted reversible plough

The sturdy, tubular 120 x 120 x 10 mm beam on the Teres 200 and 150 x 150 x 8.8 mm on the Teres 300 gives the plough a high level of rigidity whilst maintaining low weight. The simple yet strong design of the Teres enables the use of an extendable beam system.

After lifting the plough, the beam is swivelled in without causing any stress before the turnover process starts. The furrow width is not changed by swivelling in the beam. This prevents wear, especially on the plough body bearings, and also enables a higher ground clearance during turnover. Once the plough has been turned, the frame swivel cylinder automatically returns the beam to the working position. The swivel cylinder extends in accordance with the furrow width. In this respect, a push/pull cable relays the position of the furrow width to a valve, thereby restricting the cylinder travel.
