Cayros mounted reversible ploughs

Logical plough adjustment

The basis for perfect plough adjustment is an adjustment system that is logical and easy to understand. The correct plough adjustment quite simply means that operating costs will be reduced, as perfect adjustment has a very positive effect on wear and tear as well as fuel consumption. The tried and tested linkage design of the Cayros ploughs is particularly well-suited for this purpose.

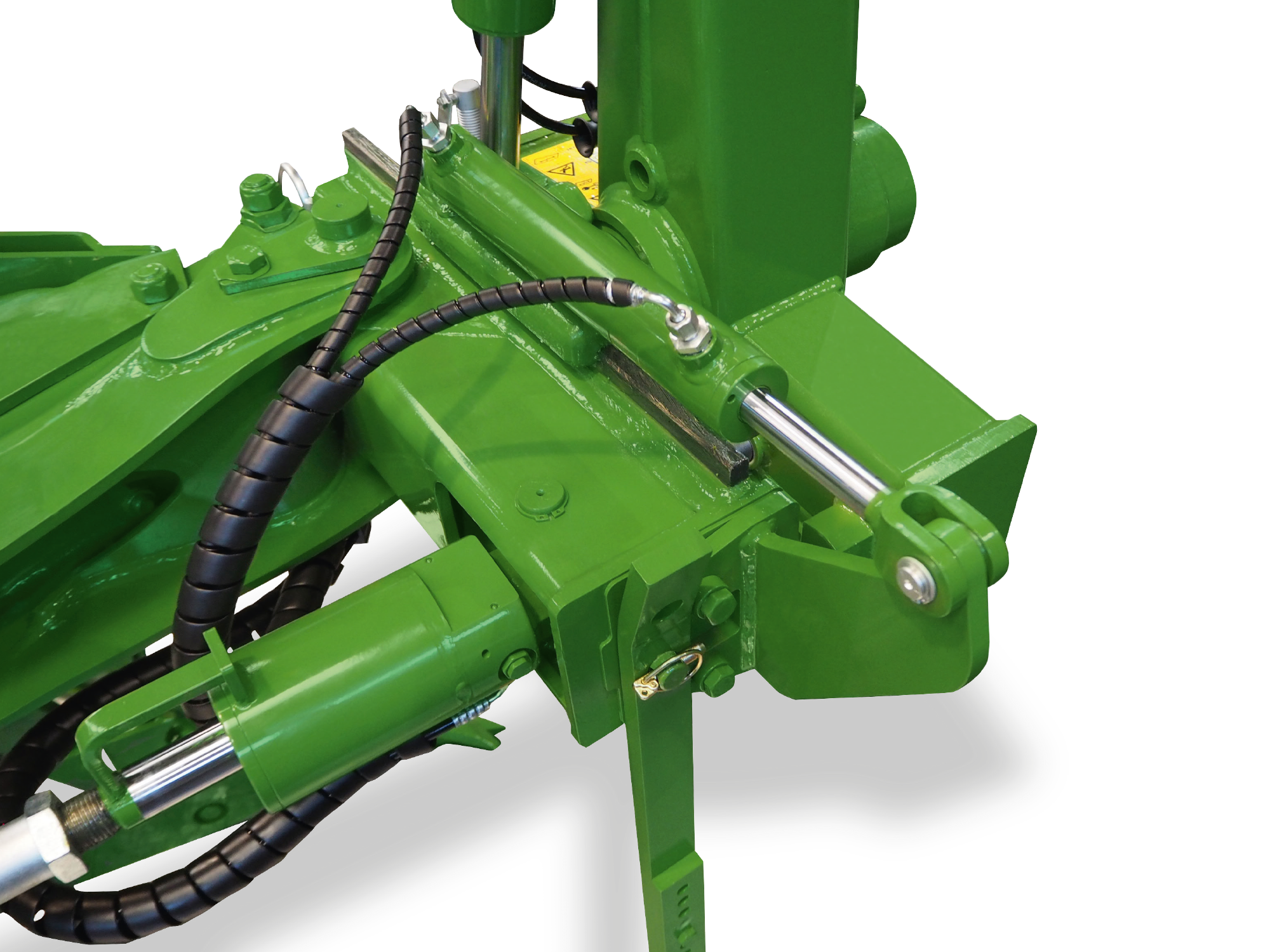

Hydraulic front furrow width adjustment

The furrow width of the first body can be adjusted as an option from inside the tractor cab using a double-acting hydraulic cylinder. This provides a high level of comfort, especially in hilly terrain, for strongly varying soils or where frequent tractor changes are required.

Quick and easy!

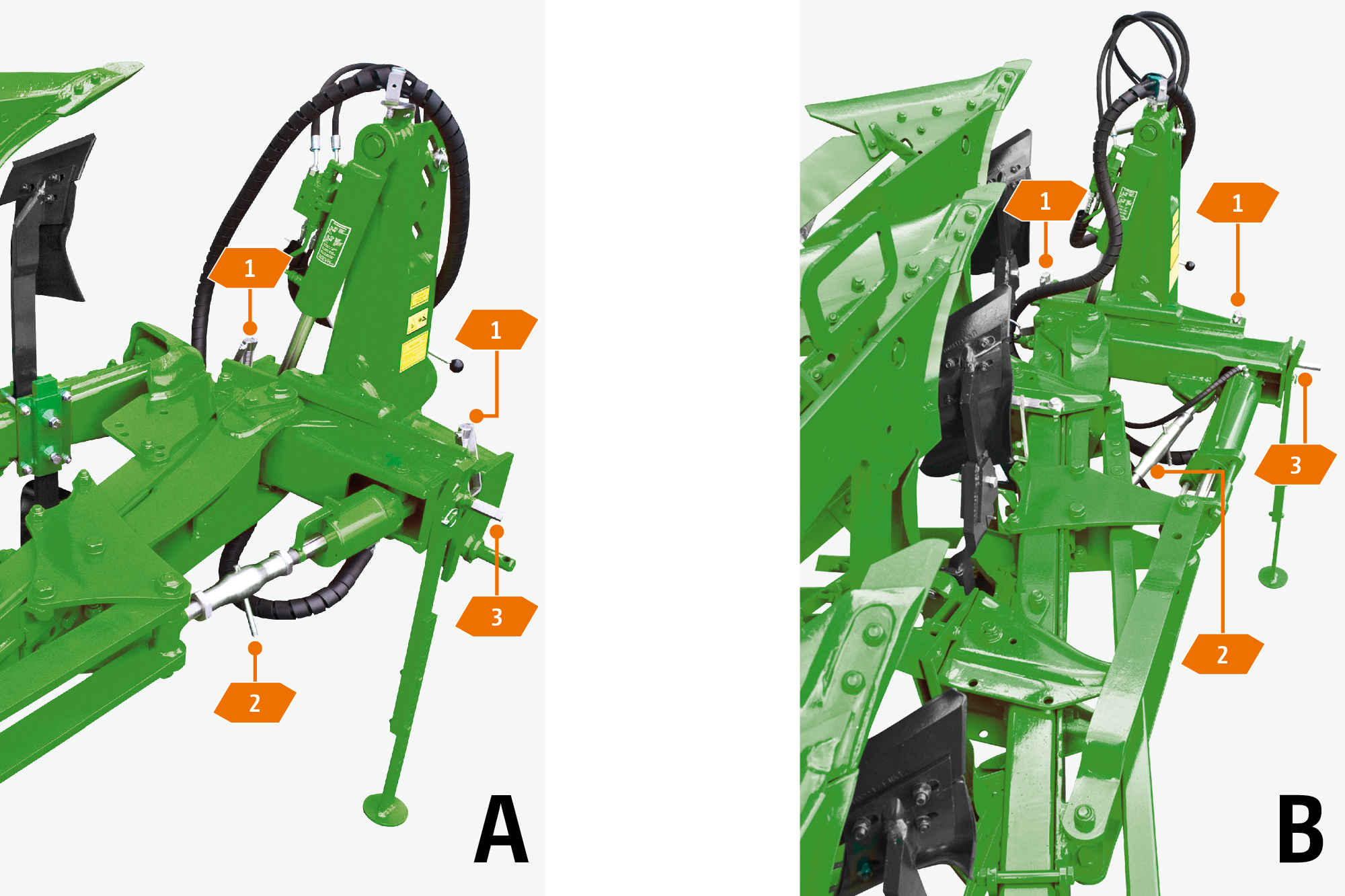

Fine-tuning of the plough can be divided into the following steps:

Adjusting the working depth of the plough via the support wheel and the lower links of the tractor.

1. Adjust the tilt using the adjustment spindles on the headstock.
2. Setting the draft point. The top link is aligned with the driving direction.
3. Set the furrow width of the first body, using the sliding headstock.

Convenient and reliable furrow width adjustment

Cayros – mechanical precision

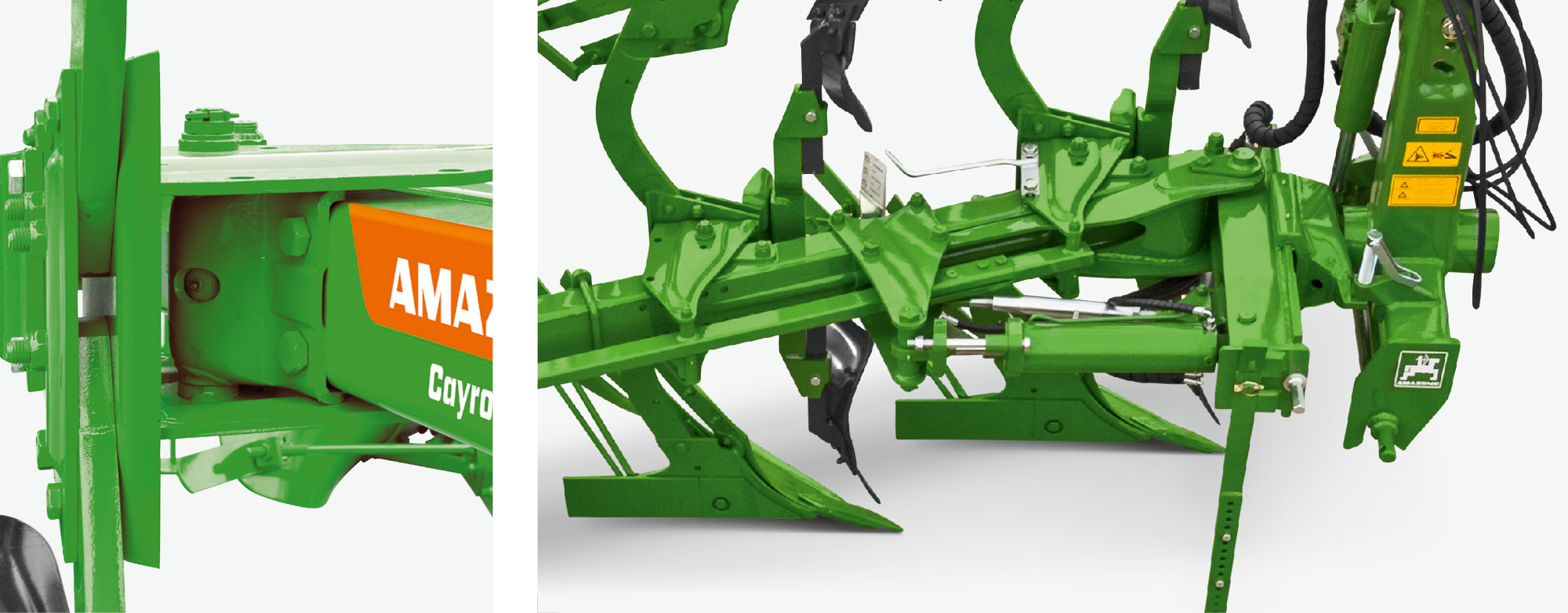

The standard furrow width adjustment can be altered in 4 steps by manually pivoting the leg fixing consoles. In this way, the plough can be easily adapted to different applications (soil conditions, tractor, etc.). When the furrow width is adjusted, all the soil-engaging metal and the support wheel are also automatically adjusted. No additional correction is necessary.

Cayros V – comfortable hydraulic operation

The furrow width can be smoothly and hydraulically adjusted from the tractor in all Cayros V ploughs. A clearly visible display, consisting of a scale and pointer, keeps the driver informed of the furrow width setting. The integrated kinematics of the Cayros V also automatically set the draft point, the front furrow width, all the soil engaging tools and the support wheel.

The advantages of the Cayros V

• Easy adjustment with automatic adaptation of the front furrow, the draft point and accessories when adjusting the furrow width – no manual correction required
• The optimised lever design of the pivot points ensures a low adjustment force and bearing load, thus reducing wear and tear and resulting in a longer service life
• The pivot points of the leg holder are outside the beam, so that any weakening of the box section due to additional drill holes is avoided
• Minimal pivot points result in minimum wear and tear and reduced maintenance requirements

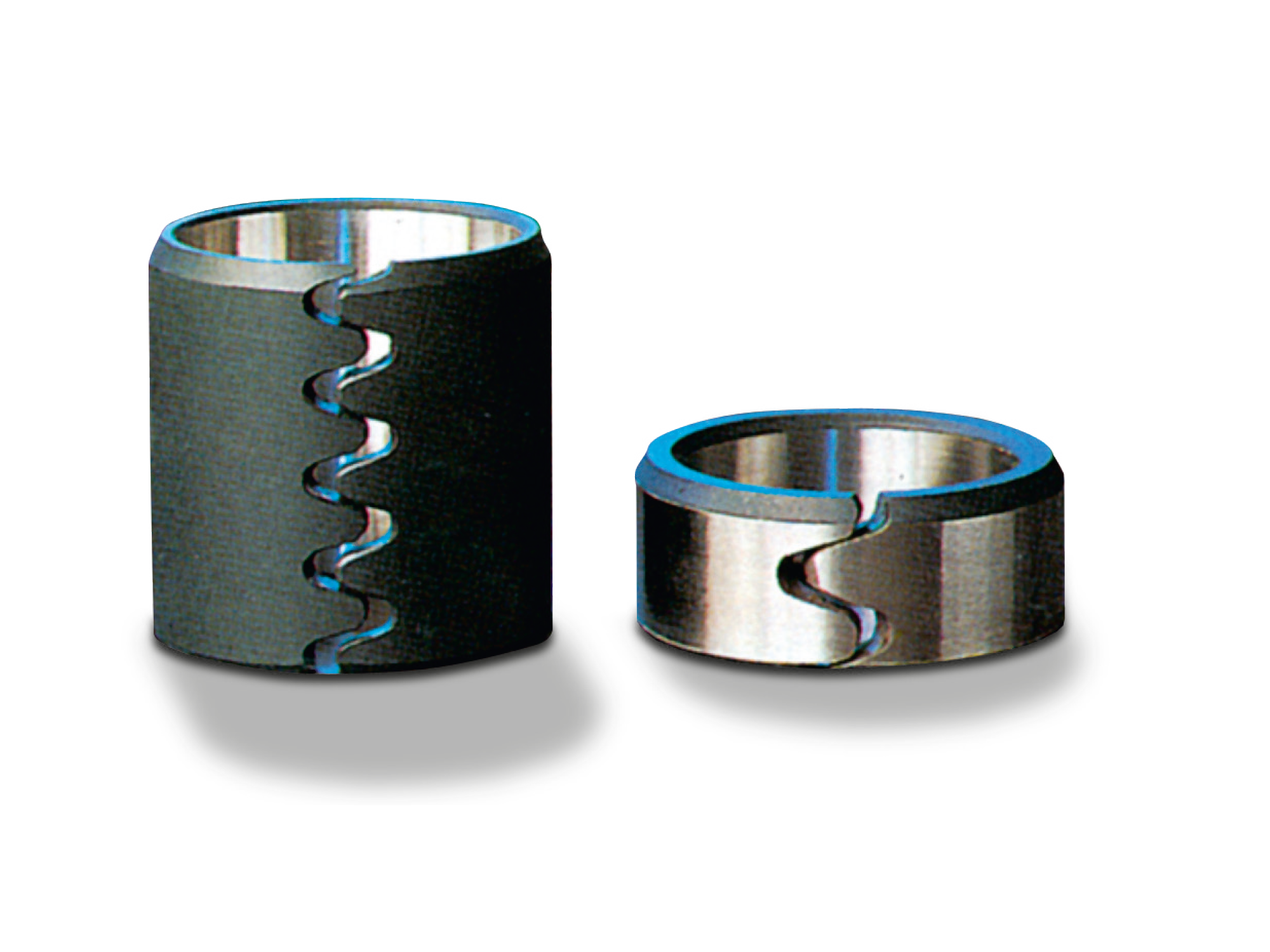

• The use of CONNEX bushings ensures a longer service life
