Basic machine | Frame

Introducing a strong line-up

All the models at a glance

When it comes to the question of choosing an implement, many farms are looking for a tool that will not only help to reduce establishment costs but also be as versatile as possible. The solution is offered by the Cenius mulch cultivators, in either a mounted version in 3 m to 4 m, or the trailed Cenius-2TX cultivators in 4 m to 8 m. These can operate from shallow stubble work down to top soil deep loosening.

With its different levels of equipment, the implement can be matched to virtually any field conditions. In conjunction with either an active or passive AMAZONE sowing combination, a superb start for modern sowing systems is provided.


More with less – Cenius

  • More strength
  • More possibilities of use
  • More comfort and convenience
  • Fewer blockages
  • Less fuel
  • Lower wearing costs


Models:

  • Cenius 3003 Special/Super, 3.0 m working width
  • Cenius 3503 Super, 3.5 m working width
  • Cenius 4003 Super, 4.0 m working width
  • Cenius 4003-2 Special/Super, 4.0 m working width
  • Cenius 4003-2TX Super/Ultra, 4.0 m working width
  • Cenius 5003-2TX Super/Ultra, 5.0 m working width
  • Cenius 6003-2TX Super/Ultra, 6.0 m working width
  • Cenius 7003-2TX Super/Ultra, 7.0 m working width


More information + Less information -

Cenius 3003, 3503 and 4003 – 3-stagger mounted cultivator in working widths of 3 m, 3.5 m and 4 m

Implement adjustment made easy!

A convenient and, above all, quick implement adjustment was the focus during the development of the new Cenius cultivator range.

As standard, the working depth is adjusted steplessly via a setting spindle, mechanically, tool-less and centrally at just one point on the machine. An easily visible and robust scale serves as an indicator to the amount of adjustment. In addition, the Cenius is also available with hydraulic depth control.

In this way, a response to differing soil and application conditions is possible on the move. An easily visible scale aids the quick adjustment from the tractor cab.

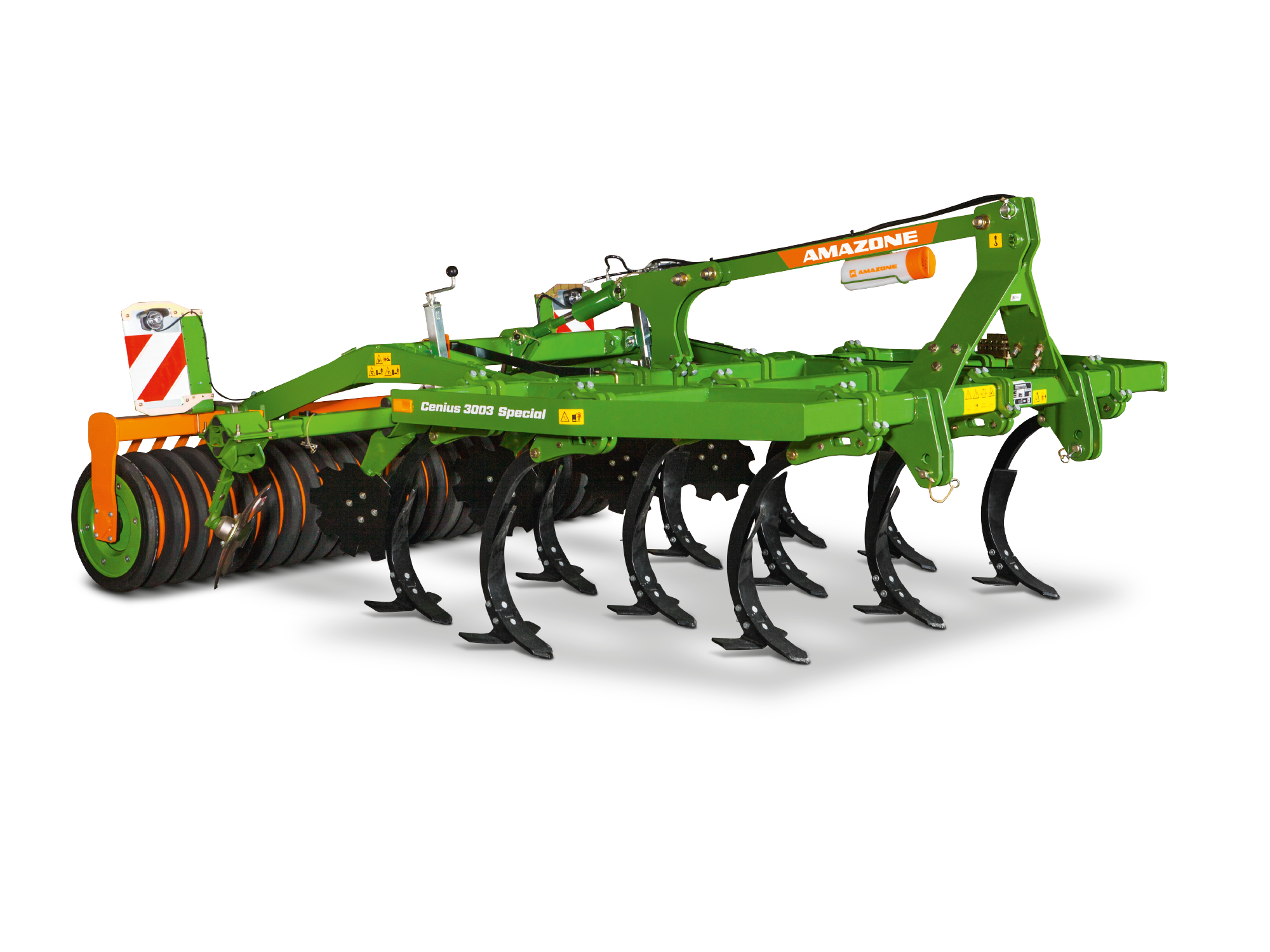

  • Cenius 3003 Special/Super, 3.0 m working width
  • Cenius 3503 Super, 3.5 m working width
  • Cenius 4003 Super, 4.0 m working width


  1. Adjustment of the levelling unit
  2. Adjusting the overall working depth via the hydraulic depth setting


More information + Less information -

Cenius 4003-2, folding and 3-point linkage mounted

With the Cenius 4003-2, the 3-stagger cultivators are supplemented by a folding mounted cultivator. Due to the hydraulic folding, the Cenius 4003-2 can be safely transported on the road irrespective of its 4 m working width.

  • Cenius 4003-2 Special/Super, 4.0 m working width
More information + Less information -

Loosening and mixing

The 3-stagger and 4-stagger layout of the tines in the main frame ensure an intensive and optimum incorporation of straw residues in the top soil. Thanks to the narrow row spacings of less than 30 cm, dry, hard topsoil is worked across the full area. At the same time, the spacious tine to tine spacings and the huge frame height of 80 cm provide a high material passage and ensure the highest operational reliability.

More information + Less information -

Large through-passage

The high underframe clearance also provides an undisturbed material flow, even where copious quantities of straw prevail. The following levelling tools evenly level the loosened soil.

More information + Less information -
