Combine the trailed soil tillage range with an optimum seeding system ...

Advantages of conveying systems with a segmented distributor head

• Optimum lateral distribution across the entire working width
• Combination of different sowing systems
• High application rates possible
• Variable with 12 to 48 outlets
• Part-area, site-specific sowing

... it makes no difference whether it’s the GreenDrill or FTender

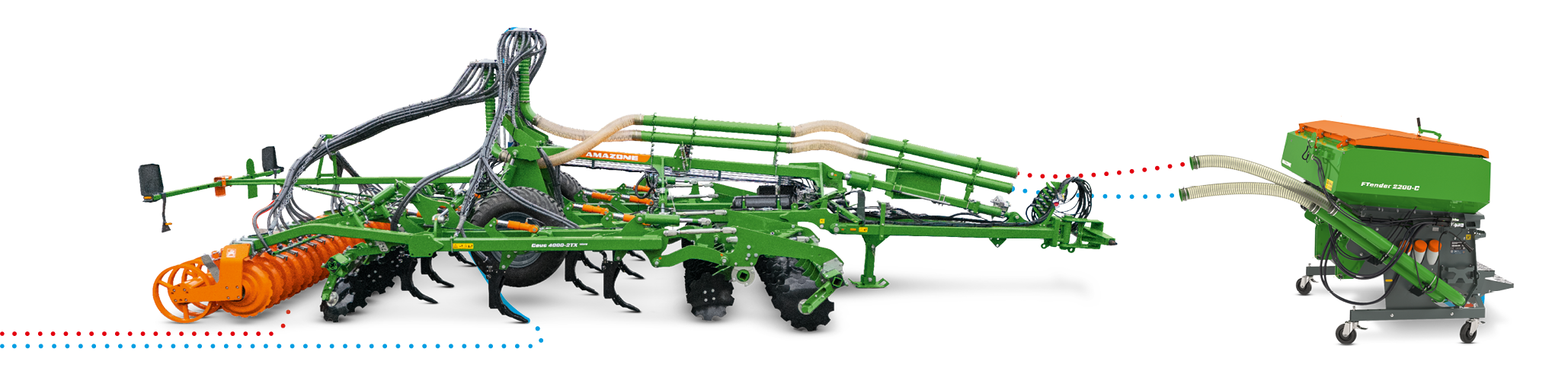

The universal conveying system enables you to combine the Ceus with various different sowing systems. The GreenDrill 501, with its 500 l hopper capacity, can be used in exactly the same way as the front or rear tanks with their respective capacities of 1,600 to 2,200 l. In addition to sowing catch crops, other seeds or even mineral fertilisers and micro-granules can be applied.

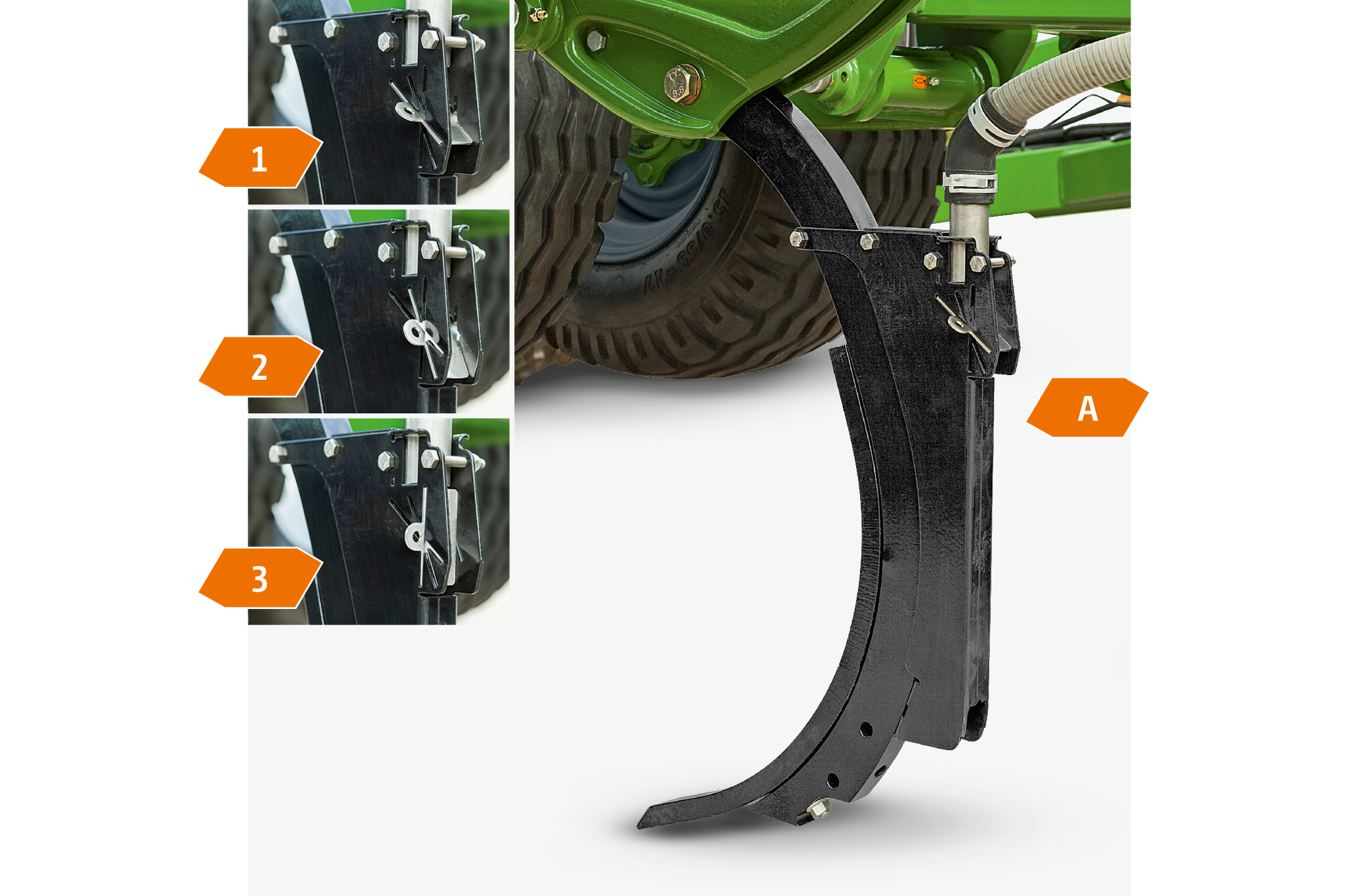

Fertiliser application tines with adjustable outlet for shallow or deep application


Fertiliser application tines with 40 mm wide C-Mix coulter for applying seed or fertiliser directly into the loosened soil, with outlet position setting 1) 100% on top with outlet A, with outlet setting 2) 50% on top with outlet A and 50% underneath at outlet B, and with outlet setting 3) 100% underneath with outlet B.

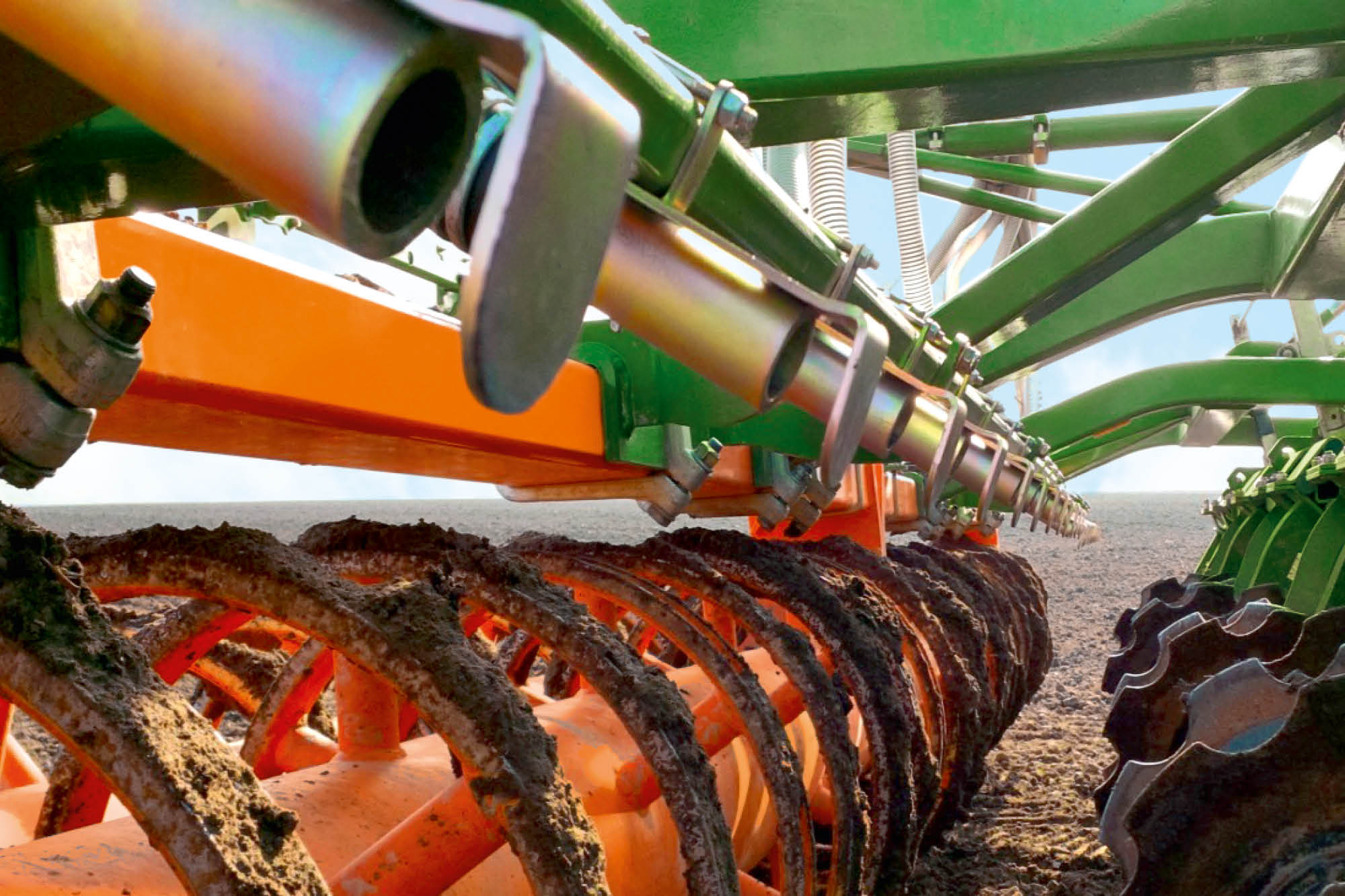

Seed baffle plates for broadcasting on the surface in front of the roller


Advantages of the fertiliser application tine

• By targeted placing of the fertiliser in the root area of the plants, the nutrients are available exactly where they are needed.
• Root attraction into deeper soil layers can improve the water supply to the main crop, especially in dry years.
• High nutrient efficiency for better early plant development through faster and better availability.
• Reduction in fertiliser rates possible thanks to lower surface losses due to reduced breakdown or leaching.
• Reduction in the number of passes required for fertiliser application and incorporation, since everything is done in a single step.

The universal conveying system enables you to combine your Ceus with different sowing systems. For example, the GreenDrill 501, with its 500 l hopper capacity, can be used in exactly the same way as the front or rear hoppers with their respective capacities of 1,600 to 4,200 l. In addition to catch crops, other seeds or even mineral fertilisers such as micro-granules can be applied.

Catch crop sowing and soil tillage in one pass

AMAZONE offers the GreenDrill 501 rear-mounted hopper, which has a hopper capacity of 500 l and can be safely accessed via steps, so that catch crops can be sown directly or during soil tillage.

The benefits

• Applying catch crops and fine seeds directly in combination with soil tillage

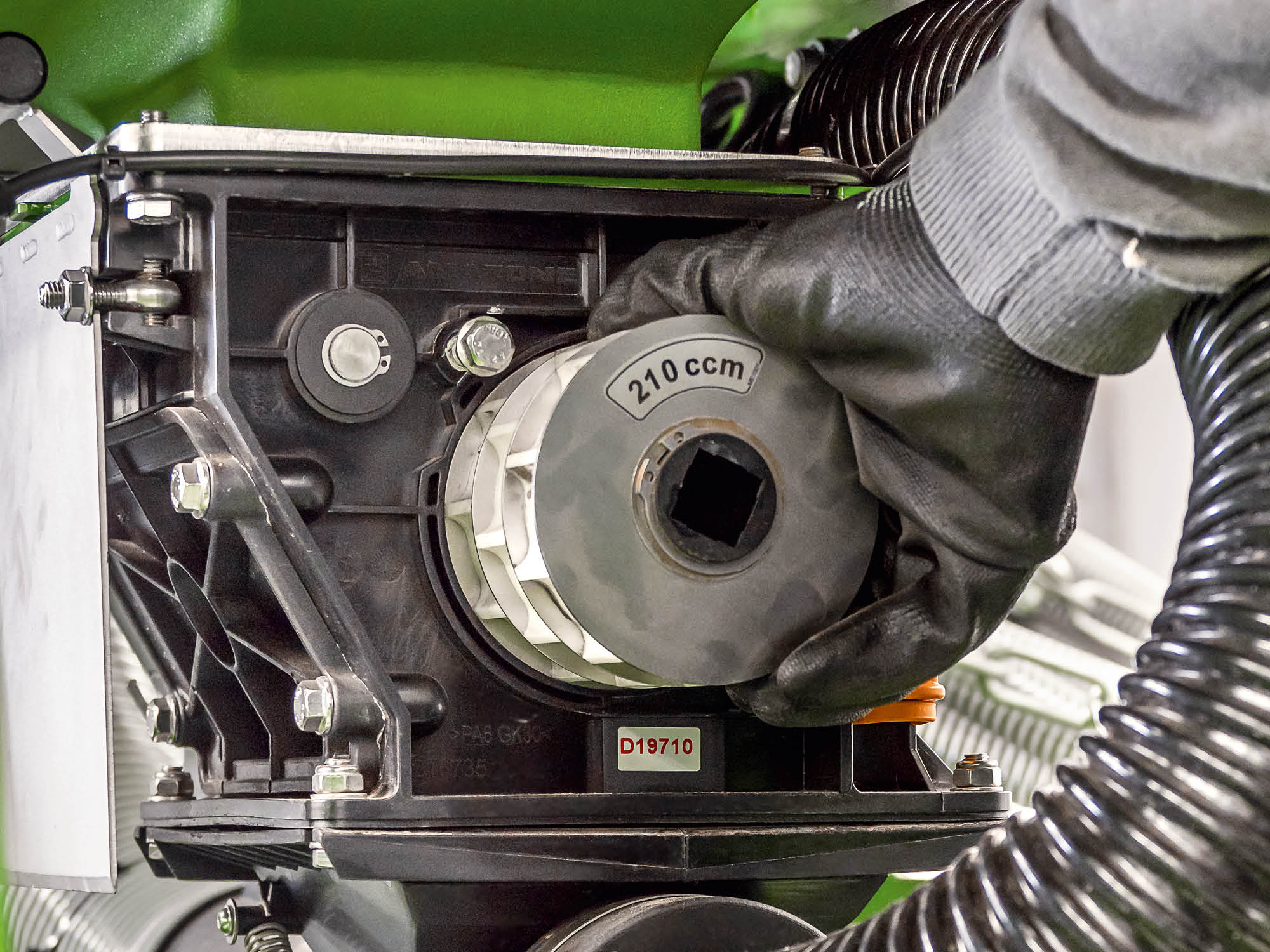

• High application rates are also possible as a result of different metering rollers
• Wide distribution via baffle plates
• Safe and convenient access via steps
• Precise metering with excellent lateral distribution
• Comfortable machine control via ISOBUS (GD 501) possible, thereby enabling part-area, site-specific processing of application maps

AMAZONE offers a universal front-mounted hopper for versatile use in combination with seed drills and soil tillage equipment in the shape of the FTender with a capacity of 1,600 or 2,200 l.

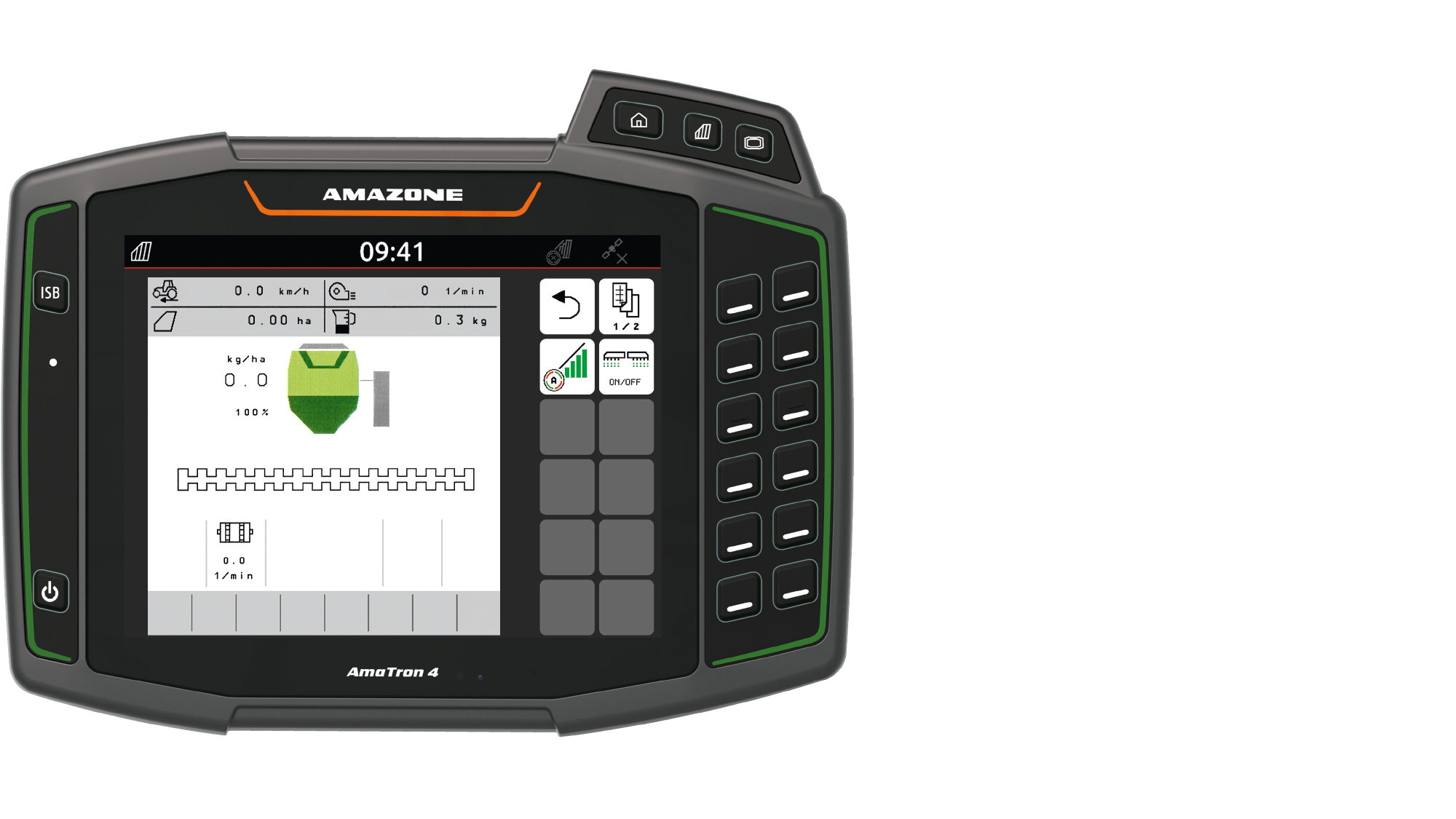

Thanks to their complete ISOBUS integration, the hoppers can be operated via the ISOBUS operator terminal. The application rate can even be provided via an application map on a part-area, site-specific basis as well as being used in combination with GPS-Switch (SectionControl).


AMAZONE also offers two rear hoppers with a capacity of 4,200 l in the shape of the XTender (mounted). The rear hopper also features a twin outlet pressurised hopper with a 50/50 split, so that two different materials, such as fertiliser and seed, can be applied simultaneously.

Advantages of conveying systems with a segmented distributor head

• Highly efficient as a result of the large hopper capacity
• Lower machine costs owing to more flexibility and more applications
• Precise working due to completely integrated ISOBUS control
