Catros⁺-2TX trailed compact disc harrow

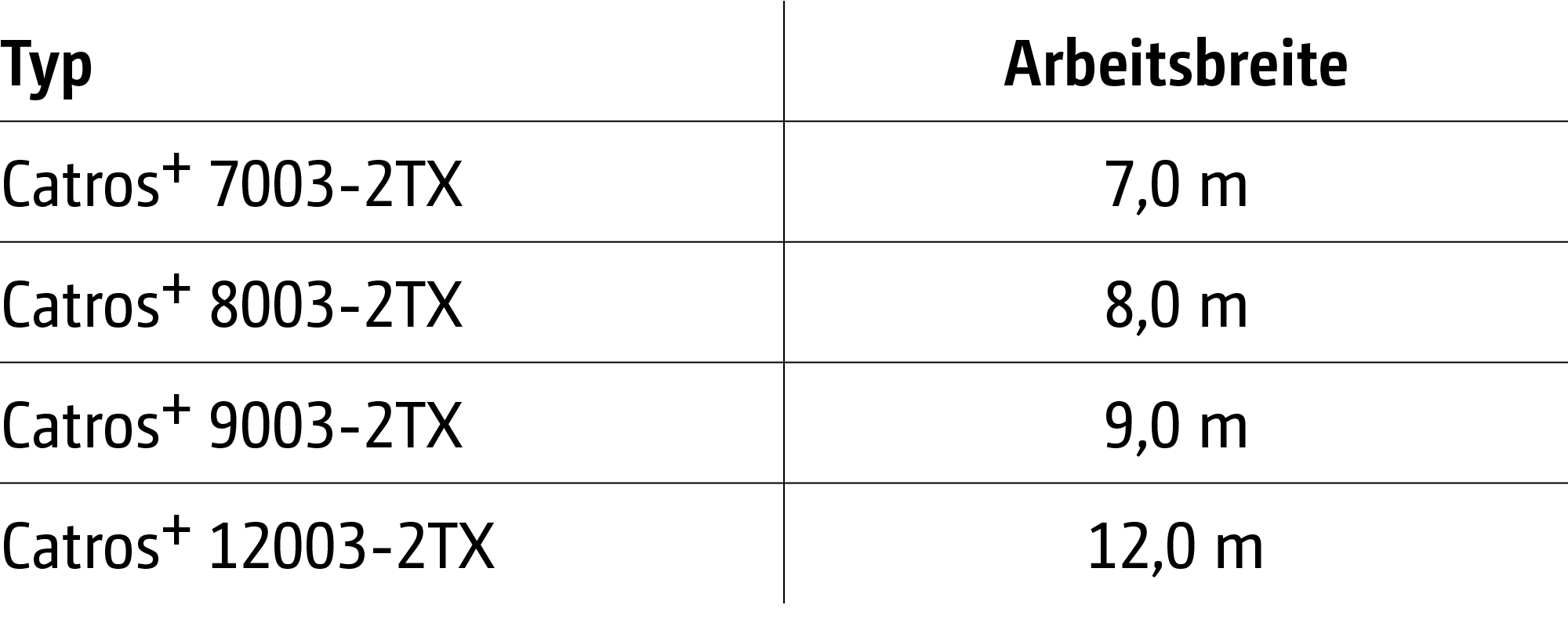

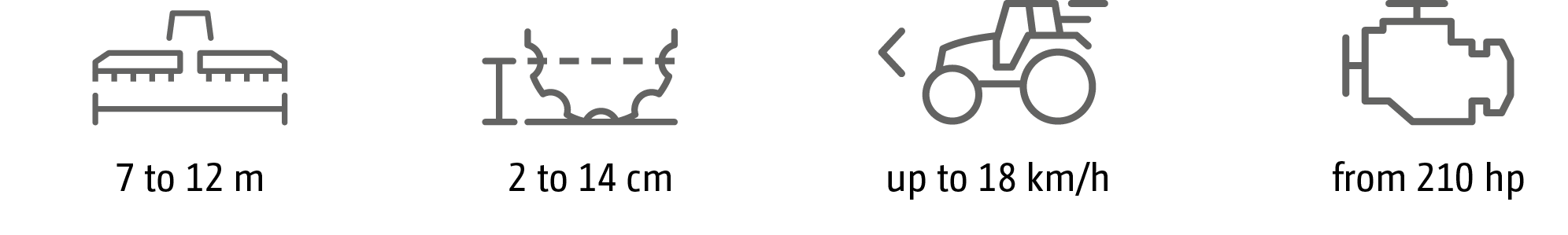

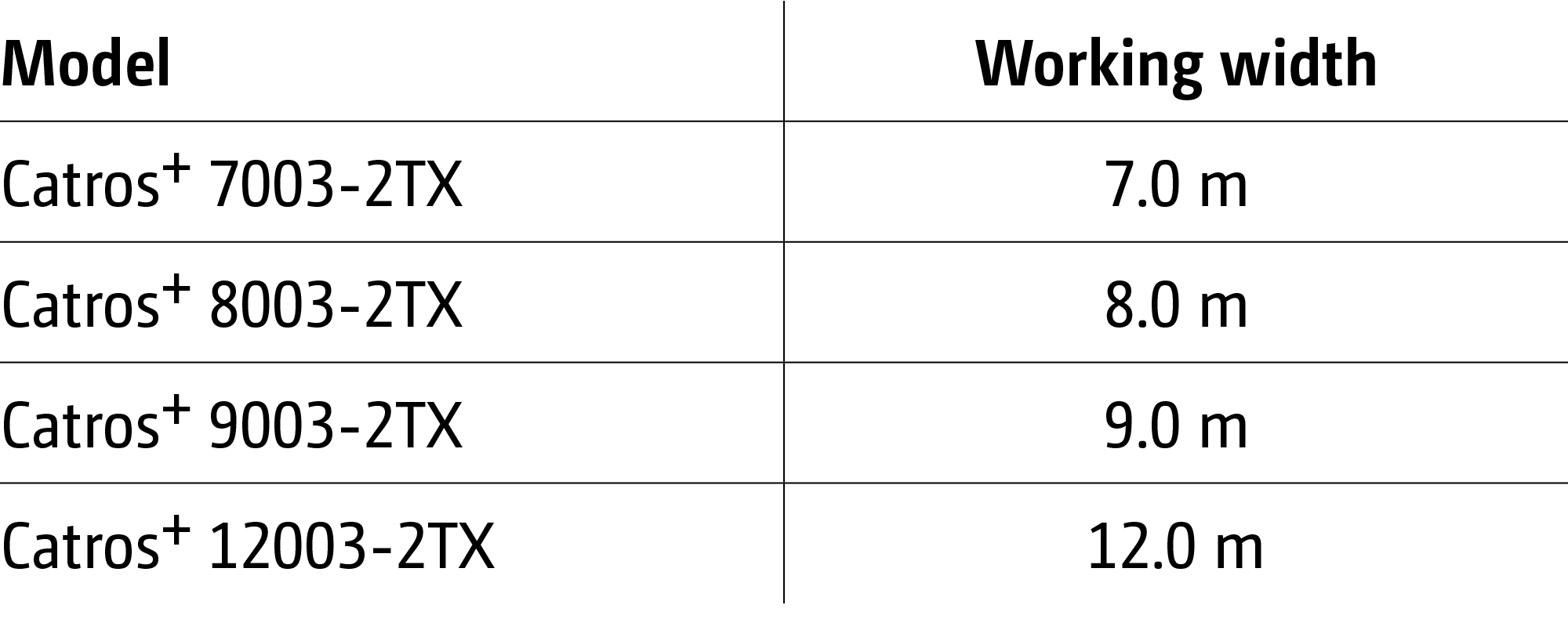

The Catros⁺-2TX trailed compact disc harrows are ideal for shallow, intensively mixed soil tillage. The central running gear provides the machine with excellent manoeuvrability, thereby allowing safe and fast road travel, despite working widths of 7 to 9 m. The extremely smooth running and low pulling power requirement ensure maximum driving comfort with maximum performance and working depths of 2 to 14 cm.

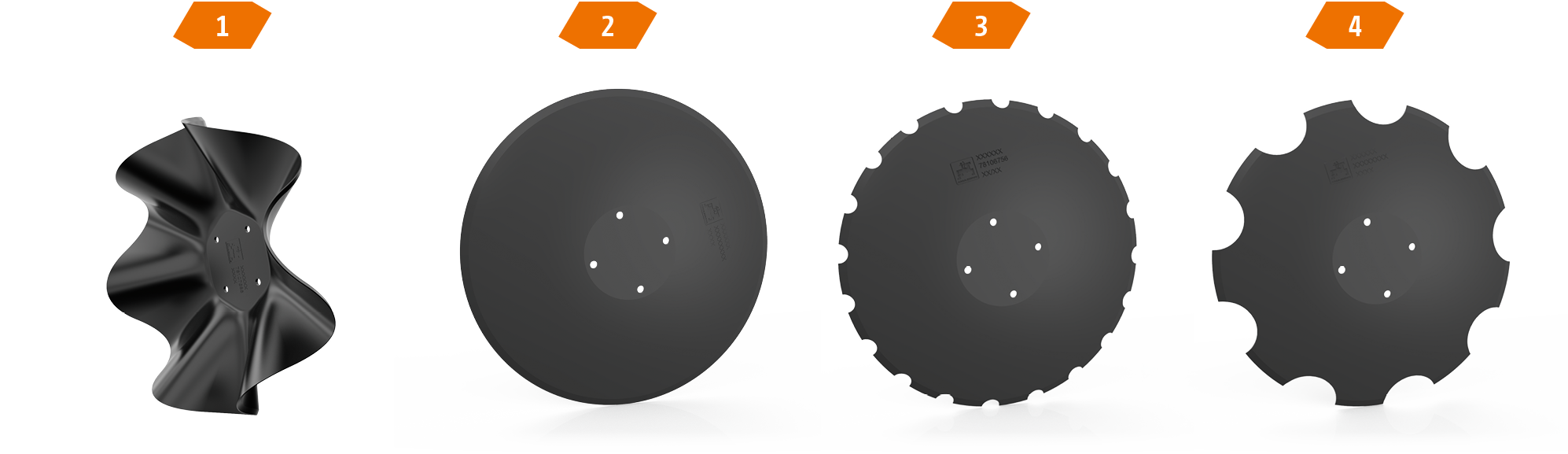

1. X-Cutter disc with wavy profile 480 mm
2. Catros⁺ 510 mm (smooth)
3. Catros⁺ 510 mm (fine serrated)
4. Catros⁺ 510 mm (coarse serrated)

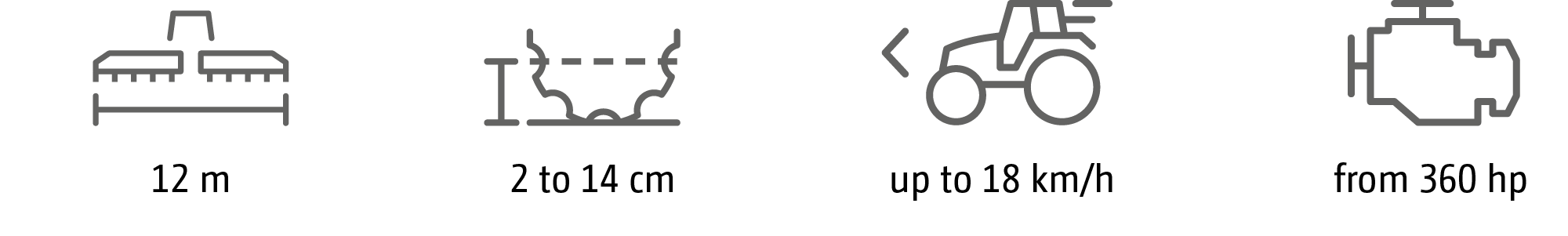

With a working width of 12 m for maximum performance

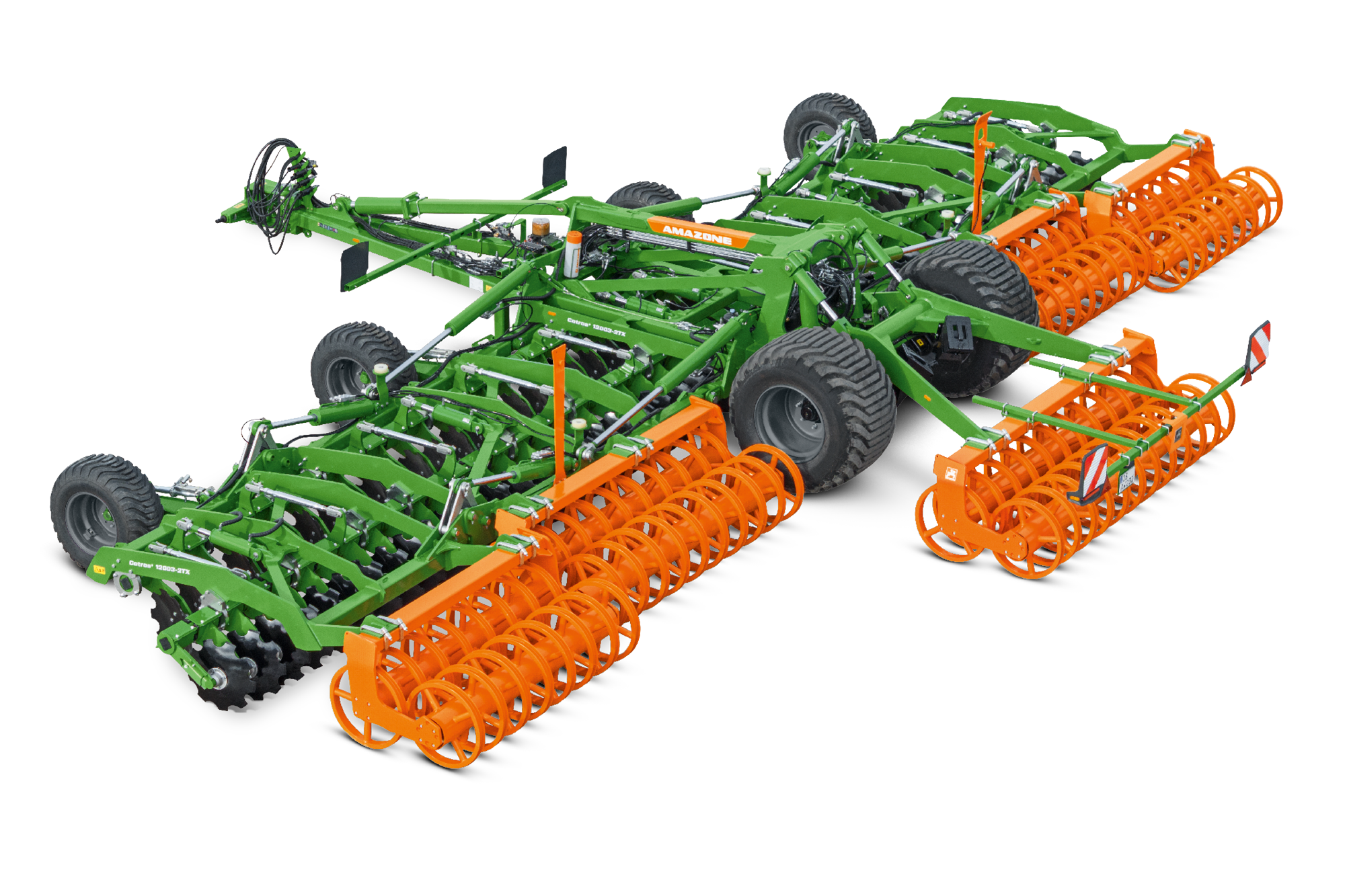

The new Catros⁺ 12003-2TX impresses with its proven TX running gear and a working width of 12 m. In addition to the normal 510 mm diameter discs, the X-Cutter disc, with a diameter of 480 mm, is now also available – ideal for intensive work at shallower depths. An extended disc element, with a working width of 12.25 m, is available as an option for use in Controlled Traffic Farming. Another new addition to the range is the Double U-profile roller, which ensures optimum reconsolidation. Thanks to the optional Comfort Click system, switching between the work and transport positions is quick and easy direct from the cab.

Advantages of the Catros⁺ 12003-2TX

• TX running gear with 5 section frame for even better contour following
• Optional X-Cutter disc
• DUW 580 Double U-profile roller
• Optional extended disc element for Controlled Traffic Farming systems

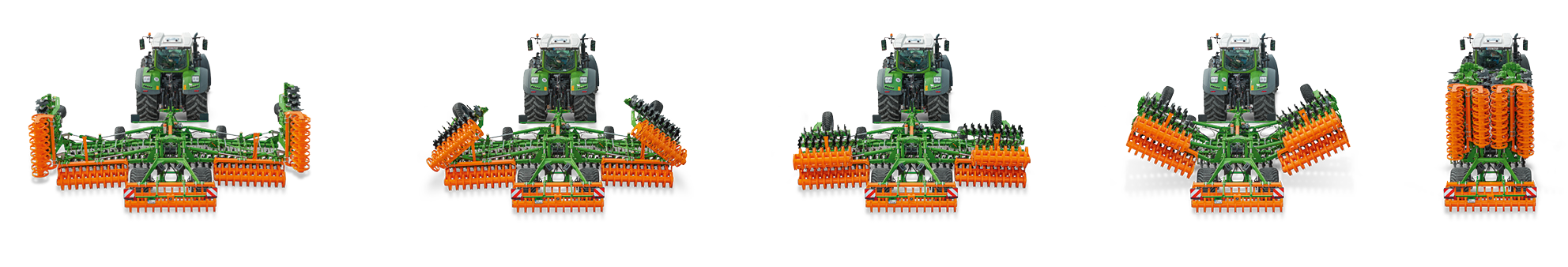

• Comfort Click system for comfortable switching between the transport position and work
