Catros⁺-2 mounted compact disc harrows

Extensive mounting and drawbar options are available for all compact disc harrows and any tractor. The flange plate allows the easy and quick mounting of any of the linkage options. In addition, the category of the lower linkage can be quickly changed. Only the linkage pins are interchanged for this purpose. As a result, the appropriate linkage can be selected for any tractor, no matter whether Cat. 2, 3, 3N or 4N lower link cross shafts, various towing eyes or the K80 ball coupling are used.

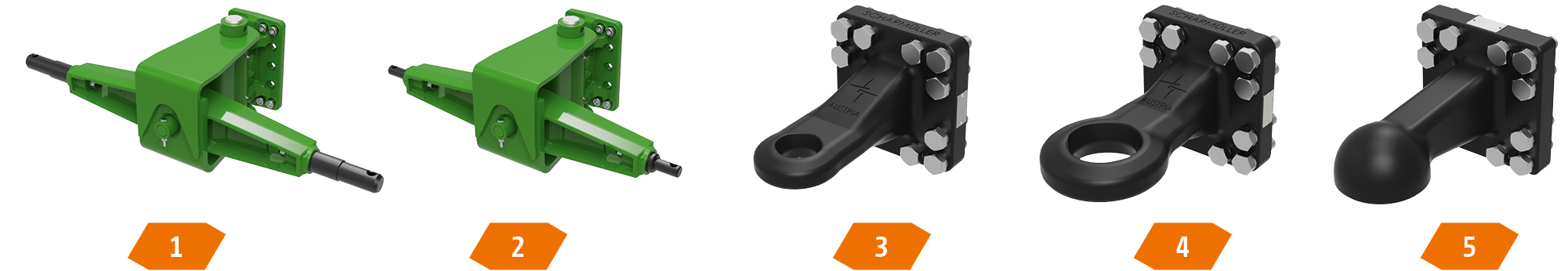

1. Lower linkage Cat. 4N
2. Lower linkage Cat. 3
3. Towing eye D=46
4. Towing eye D=79
5. Ball point coupling M20/K80

In order to increase the penetration into the soil on dry, hard soils, additional ballast weights are available as a special option. An additional weight set consists of 4 pieces, each weighing 25 kg. The maximum additional weight for rigid machines is 200 kg. Up to 400 kg is possible for folding three-point mounted machines and the Catros-2TS models (4 m to 7 m working width).
