AMAZONE booms in an aircraft wing design

Super-stable and, at the same time, super-light

Thanks to their special profile design, AMAZONE booms are extremely rigid and yet extremely light. Working widths of 15 to 28 metres allow optimum adaptation to the field sizes and topography on the farm with various folding options. The exceptional high quality ensures a long operational life even over very high acreages.

More information + Less information -

Superbly narrow transport width of only 2.40 m

The Super-S2 boom folds fully automatically in and out via hydraulic rams. In the transport position, the boom sits compactly behind the tank with a transport width of only 2.40 m and a transport height of 3.30 m. With steel profiles up to 140 mm wide with multiple bends, the Super-S2 boom is extremely strong.

More information + Less information -

Super-S2 boom: firm and steady

3-fold shock absorbed suspension for the most arduous of operational conditions

As standard, all AMAZONE booms are equipped with

  • springs and shock absorber pack for damping the vertical roll movements,
  • rubber buffer damping elements with ball suspension to damp down the horizontal yaw movements and
  • tension springs for the shock absorbed suspension of the entire boom.

As standard also are hydraulic height adjustment and guide skids that results in the perfect boom guidance and thus, the accurate longitudinal and lateral distribution of the spray agent.

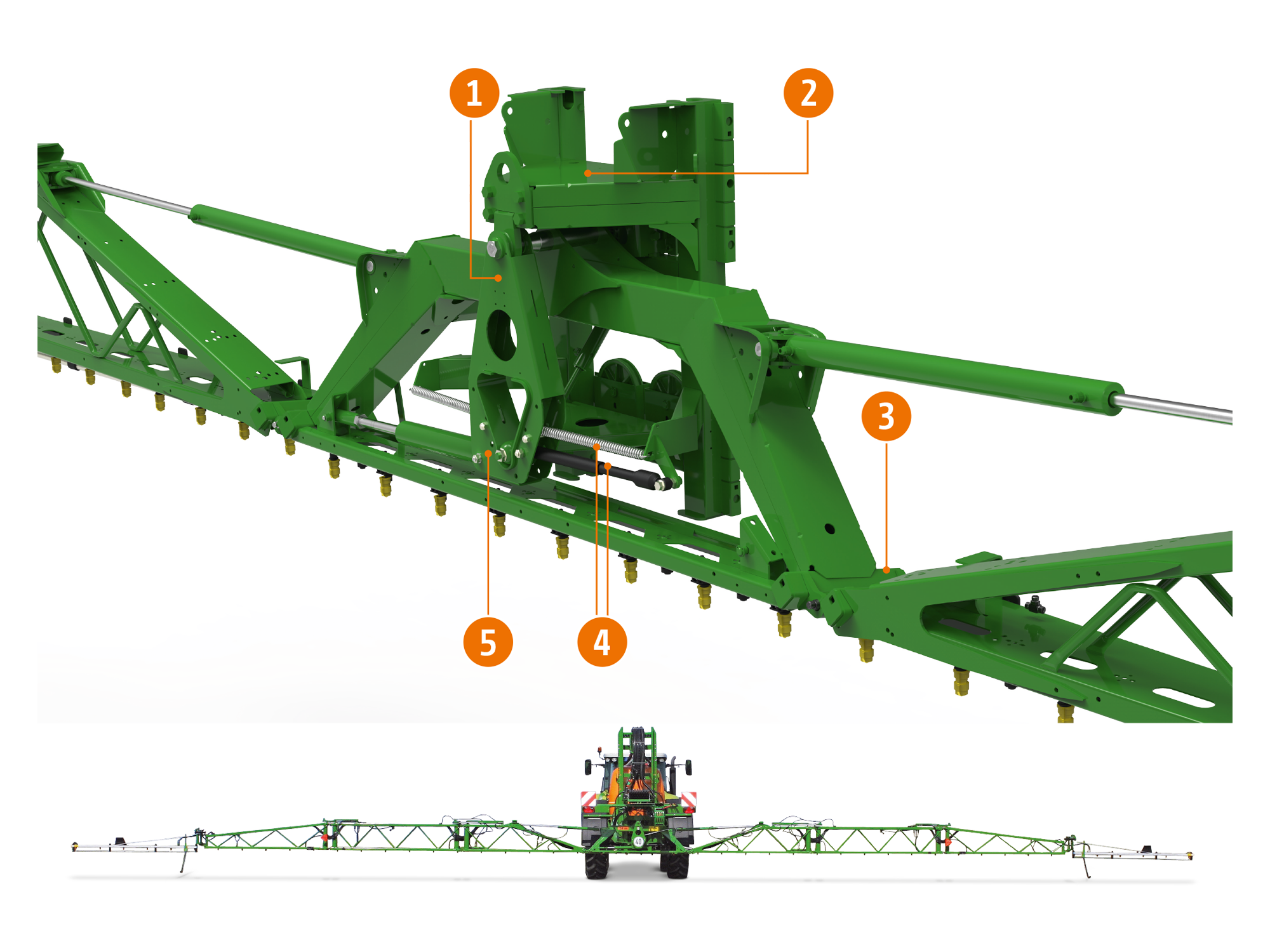

Super-S2 boom suspension

  1. Central pendulum point
  2. Spring damping system for reducing the horizontal swing movement
  3. Joint orientated across the direction of travel
  4. Spring damping system for reducing the vertical swing movement
  5. Boom pendulum lock
More information + Less information -

Maintenance-free and with a long service life

The decades of experience in boom design pay off: the conical hinge pin is the intelligent centre of a well thought-out boom philosophy! The boom pivots self-adjust against any play on the conical hinge pins, thereby ensuring an optimised boom function for the end user, even after many years.

The standard use of stainless steel, the use of automotive-industry standard, cathodic dip painting process and the targeted use of plastics and aluminium are the perfect guarantee of a long service life.

More information + Less information -

Pre-select folding

One-side folding via tractor spool valves is possible with the AmaSpray+ or an ISOBUS terminal.

The high level of flexibility offered by the pre-select folding function enables all boom sections to be folded individually. Both the left and right-hand sides can be folded in separately and independently of each other in order to adapt to any circumstances in your fields.


  1. Independent fold
More information + Less information -

Profi-fold

Profi-fold refers to the electro-hydraulic actuation of the boom via an oil circuit. The height adjustment, folding in and out, independent folding, boom width reduction and tilt adjustment functions (Profi-fold 1) can be easily controlled via the ISOBUS terminal or the multi-function joystick. Additional boom tip angling is possible with Profi-fold 2.


  1. Angling
More information + Less information -

DistanceControl with 2 sensors or DistanceControl plus with 4 sensors

The DistanceControl fully automated boom guidance system with 2 sensors or DistanceControl plus with 4 sensors is possible for the boom variants in conjunction with Profi-fold 1 or Profi-fold 2. In heavily differing crop heights, or in areas with partially lodged corn, it could be that the boom, when equipped with 2 sensors, dips into the crop. In this case, equipping the boom with four sensors will prevent this. The sensors are electrically connected in parallel and so it is always the sensor that is closest to the target surface that is actuated.


  1. Ultra-sound sensors
  2. Angle sensors
More information + Less information -

LED boom lighting for Super-S booms

For flexible and efficient operation at twilight and in the dark, LED boom lighting is available.

Two far-reaching LED work lights, mounted in the middle of the boom, ensure excellent visibility of all the nozzles at a glance.

More information + Less information -

LED individual nozzle lighting for Super-S2 booms

Professional work lighting is today the basis of a flexible, output-increasing solution to operating in twilight and at night. Illumination of the spray fans ensures complete control of the nozzle function at just one glance.

LED individual nozzle lighting picks out each individual spray fan. An absolutely immediate assessment of their operation down to the very last nozzle on the boom can be made.

More information + Less information -
