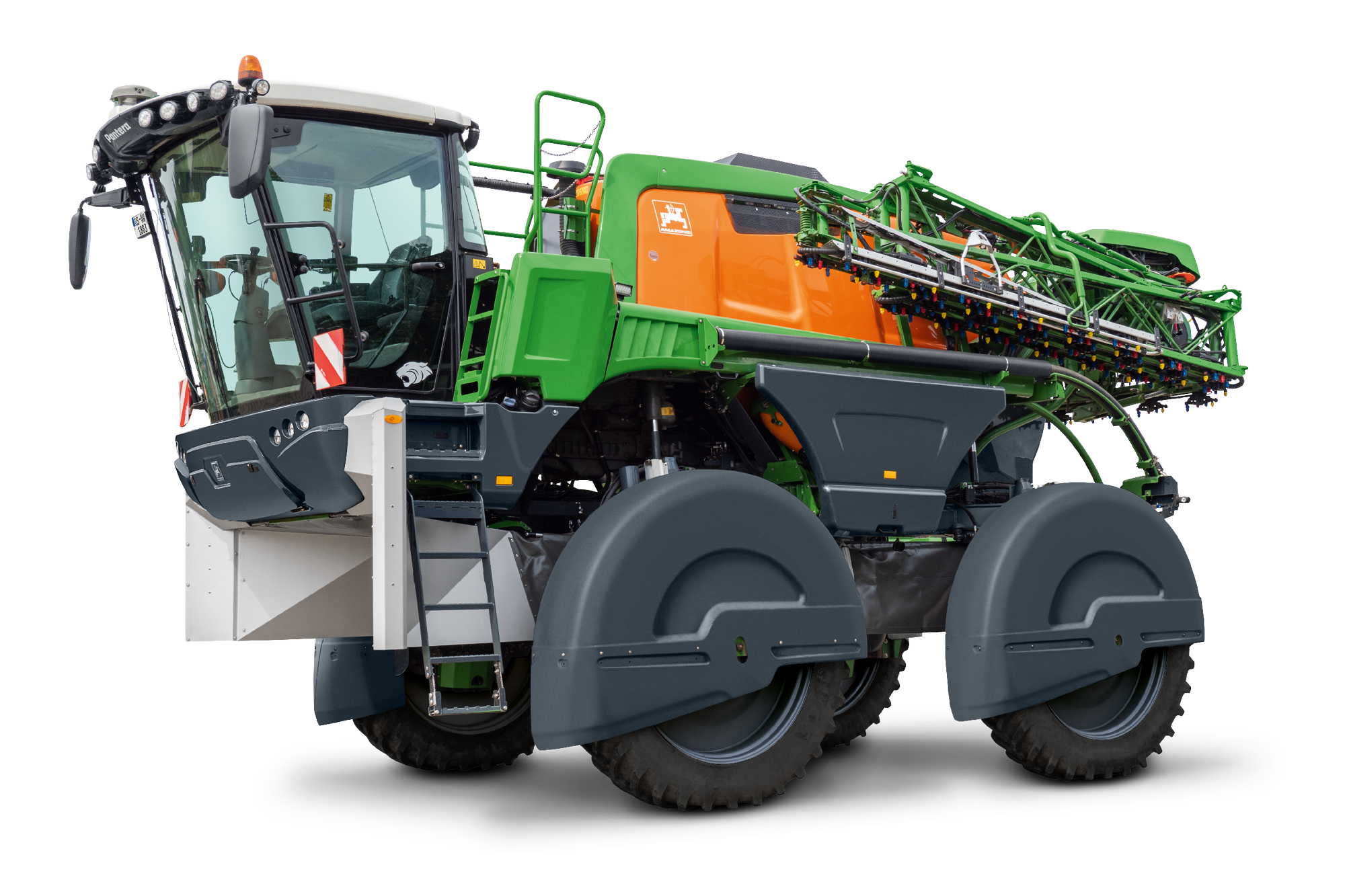

Pantera 4504 self-propelled sprayer

A spray lance on a 20 m long hose is used to clean off the outside of the self-propelled sprayer immediately after work whilst still in the field.

A 20-litre hand wash tank with a soap dispenser is available on the SmartCenter.

The central lubrication system offers maximum convenience by automatically supplying all lubrication points without the need for a time-consuming search and manual lubrication. This enables maintenance work to be significantly reduced and operational reliability further improved.

The central lubrication system is mounted in a clearly visible location in front of the spray agent tank. Central operation takes place conveniently via the AmaDrive 7.0 vehicle terminal.

A compressed air supply system is available for cleaning the machine, checking tyre pressures, and for when using the trailer coupling hitch.

A manoeuvring device is available for manoeuvring when away from public roads.

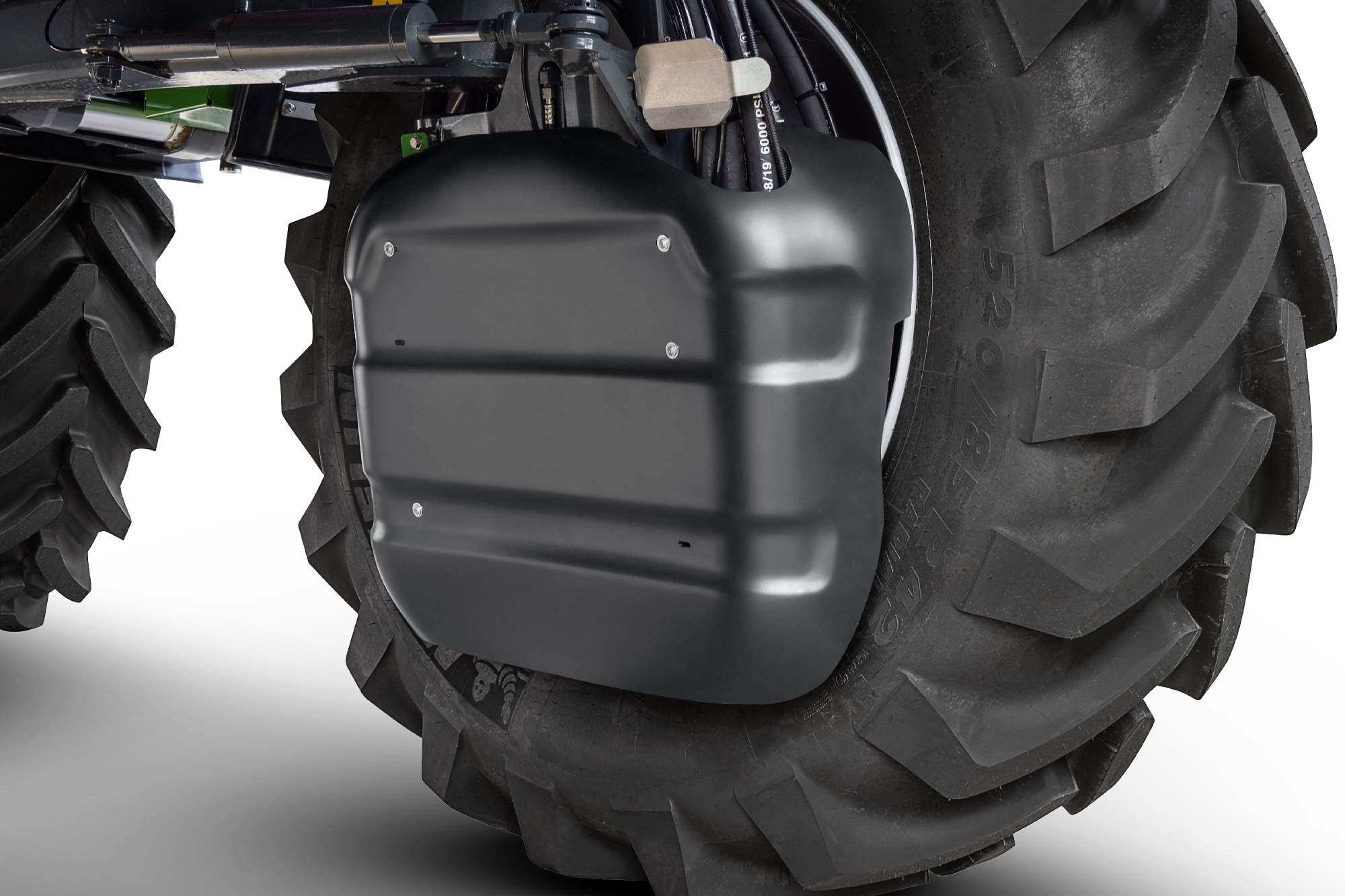

In addition to the standard drive wheel motor guards, AMAZONE offers an additional range of special equipment, such as the drive wheel gearbox covers, crop dividers and the underbelly cover.

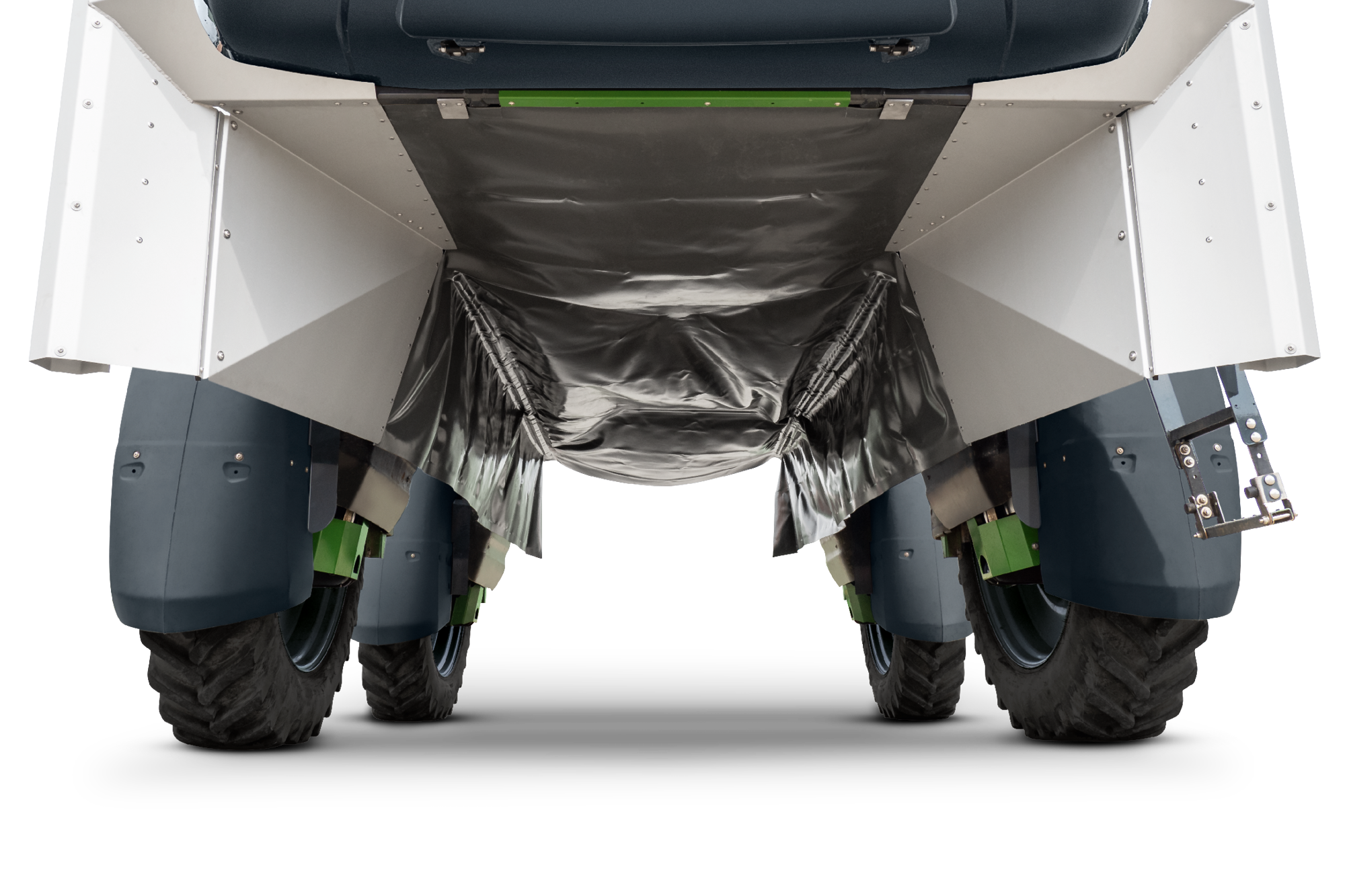

The SunflowerKit was specifically developed for the Pantera-HW, in order to be able to carry out plant protection and liquid fertiliser applications in tall sunflower crops without causing too much plant damage. The kit consists of crop dividers, wheel hub casings and a shaped, flexible underbelly sheet.

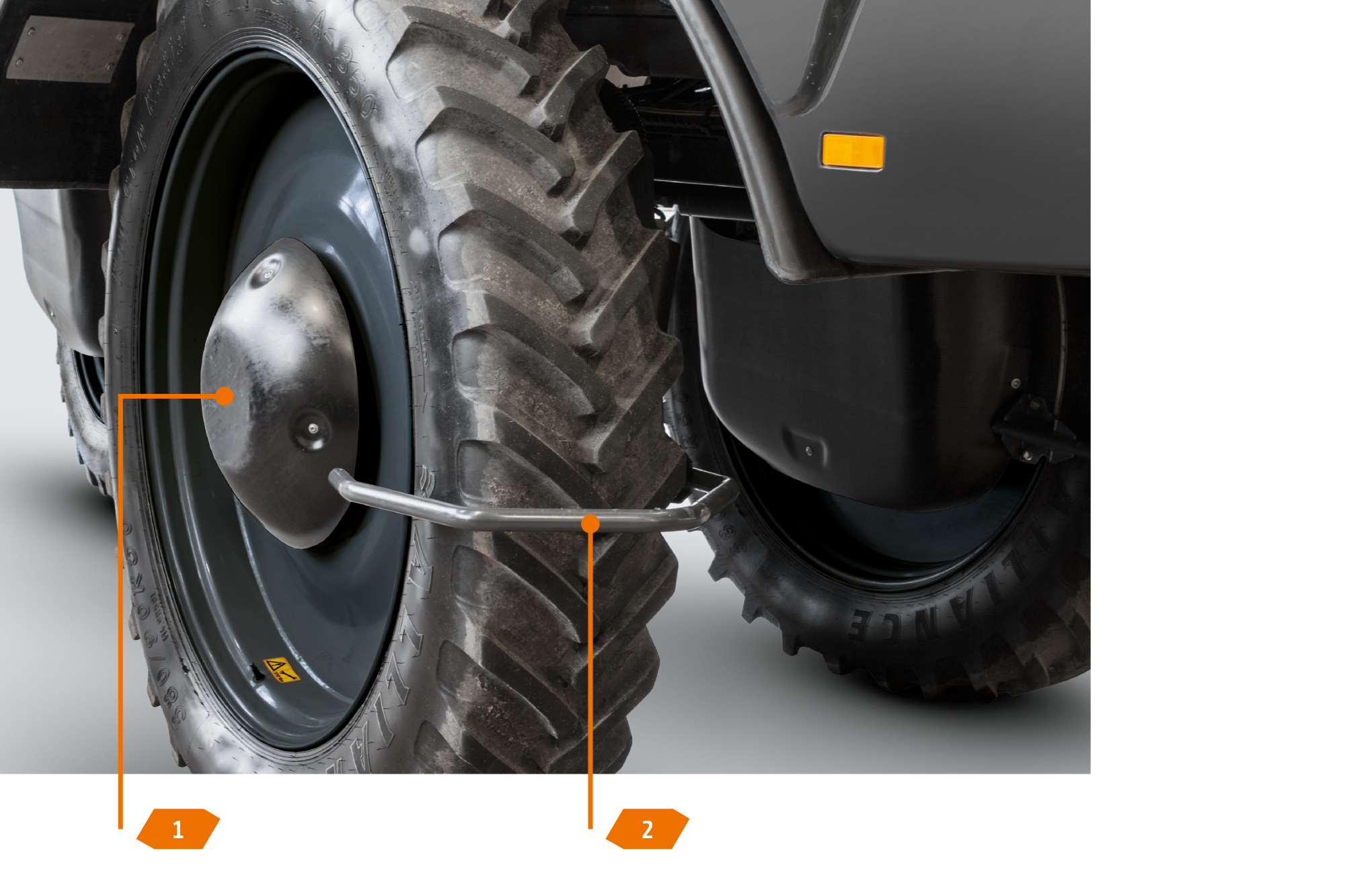

The crop dividers precisely separate the plants between the rows directly in front of the tyres. Thanks to the profile of the underbelly sheet and the properties of the flexible material, the sunflowers gently slide under the machine without hindrance.
