Part-width section control | Individual nozzle control

The DUS pressure recirculation system - proven more than 10,000 times

The AMAZONE DUS pressure recirculation system ensures a reliable circulation throughout the entire system. When starting the spraying operation, all the hoses including the spray lines are filled under pressure in the reverse direction with the mixed spray agent. This means the spray lines are always full and immediately ready to use over the entire working width. There is no waiting on the headland.

Every time individual part-width sections are shut off, during the turning operation and during transport, the spray liquid circulates continually thanks to the pressure recirculation system. This reliably prevents deposits, blockages or segregation in the spray lines.

During the cleaning operation, fresh water flushes the spray lines out right up to the nozzles without any spraying being necessary. During this cleaning procedure, the concentrated spray liquid is returned back to tank via the pressure recirculation system leaving the spray lines clean.

More information + Less information -

AmaSwitch – Electric individual nozzle switching with 50 cm part-width sections

Automatic 50 cm part-width section control

With AmaSwitch, AMAZONE offers the precise solution for automatic part-width section control on 50 cm sections. AmaSwitch is the ideal alternative for users who want to maximise the benefits of very precise switching in wedge shaped fields and areas of overlap, thanks to the 50 cm part-width section control.

Standard equipment with AmaSwitch includes the DUS pro high pressure recirculation system and, in addition, can be equipped with LED individual nozzle lighting.

More information + Less information -

Equipped with DUS pro pressure recirculation system as standard

With DUS pro, the spraying pressure is constant right up to each individual nozzle and at the set spraying pressure. Thanks to the conical spray lines, minimal residual spray volumes are achieved.


Conical spray line:
The dimensions of the spray line vary along the boom

  • Minimum residual volumes
  • Even flow rate


  1. 15 mm
  2. 24 mm
  3. 24 mm
  4. 20 mm
  5. 16 mm
More information + Less information -

3-fold nozzle body, with electric on/off switching

The technology behind AmaSwitch is based on a conventional, manually rotated, 3-fold nozzle body with electric individual on/off. The opening and closing is achieved via an electric valve which is fixed directly onto the nozzle body. In conjunction with GPS-Switch, it is thus possible to very precisely control 50 cm part-width sections in short work and on the headland. In addition to the automatic switching using 50 cm part-width sections, it is also possible to configure the amount of part-width sections from choice.

More information + Less information -

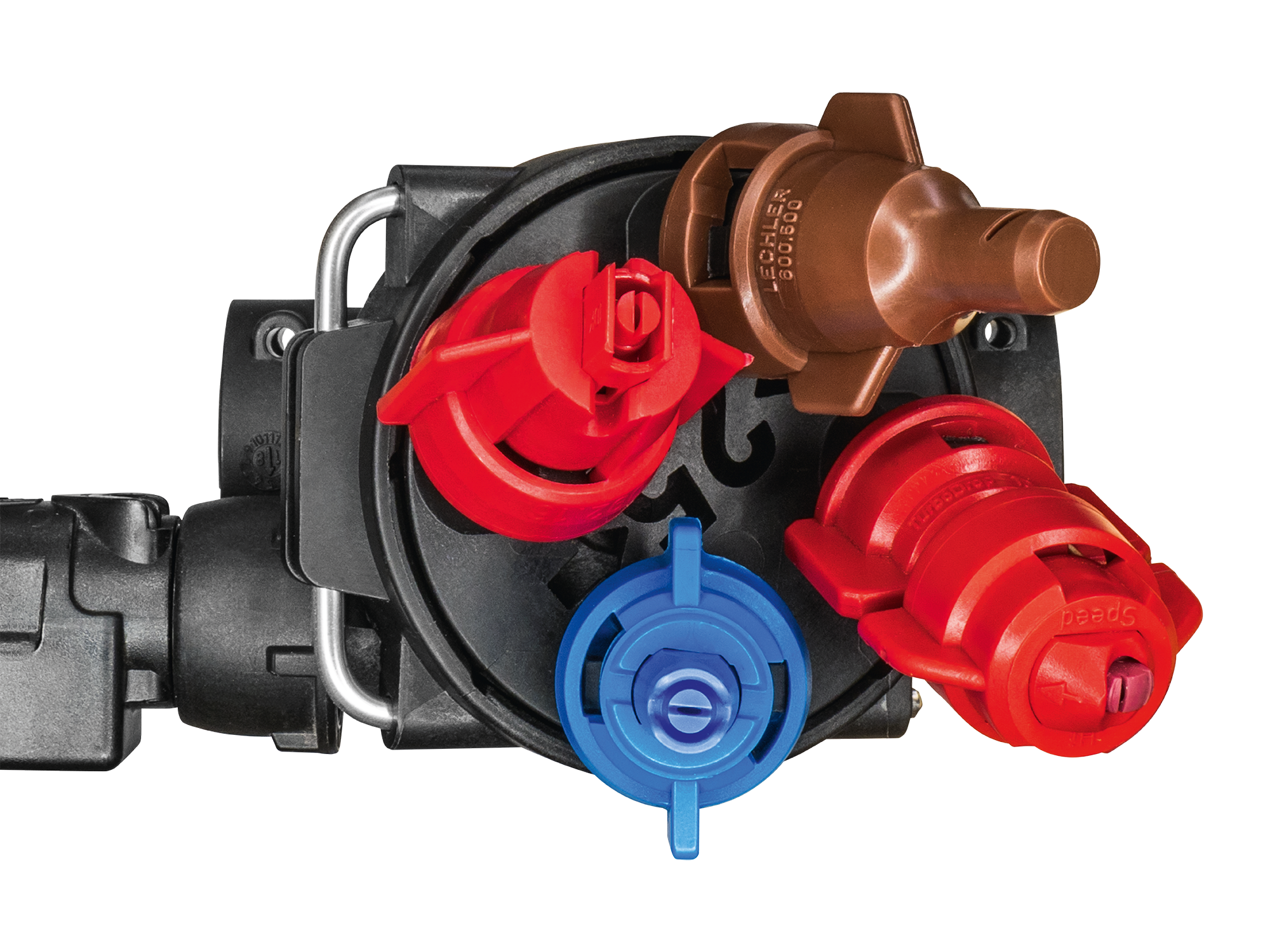

4-fold nozzle body, with the additional 25 cm nozzle spacing

In addition to the 3-fold nozzle body, AmaSwitch electric single nozzle control can also be equipped with a 4-fold nozzle body. In addition, a true 25-centimetre nozzle spacing can be achieved with the aid of an optional extension kit. This offers the benefit, in combination with specific 80° nozzles, to reduce the boom to target surface distance down to less than 50 cm.

More information + Less information -
