UF 02 mounted sprayer

The UF 02 can be equipped, from choice, with a single pump system that has a capacity of 150 l/min, 250 l/min or 300 l/min. During the filling procedure at a nominal pump speed, the full pump capacity is available for filling the spray agent tank. At the same time, either the contents of the induction bowl can be drawn out via the venturi or the total fill capacity can be increased up to 450 l/min.

Benefits of a piston diaphragm pump:

• Simple handling due to its self-priming capability at the start of the filling procedure
• Very high, consistent application rates with system pressures of up to 10 bar
• Can run dry and is liquid-fertiliser proof
• Long service life

The UF 1602 and UF 2002 can be equipped with the new hydraulic pump drive as an option. The hydraulic pump drive is completely integrated in the load-sensing hydraulics of the sprayer and offers a comfortable and flexible option for driving the spray pump.

Advantages of the hydraulic pump drive:

• Pump drive independent of the tractor
• Protection of the pump due to no excessive speeds
• Easy coupling to and uncoupling from the tractor
• Fuel-efficient
• Maintenance-free

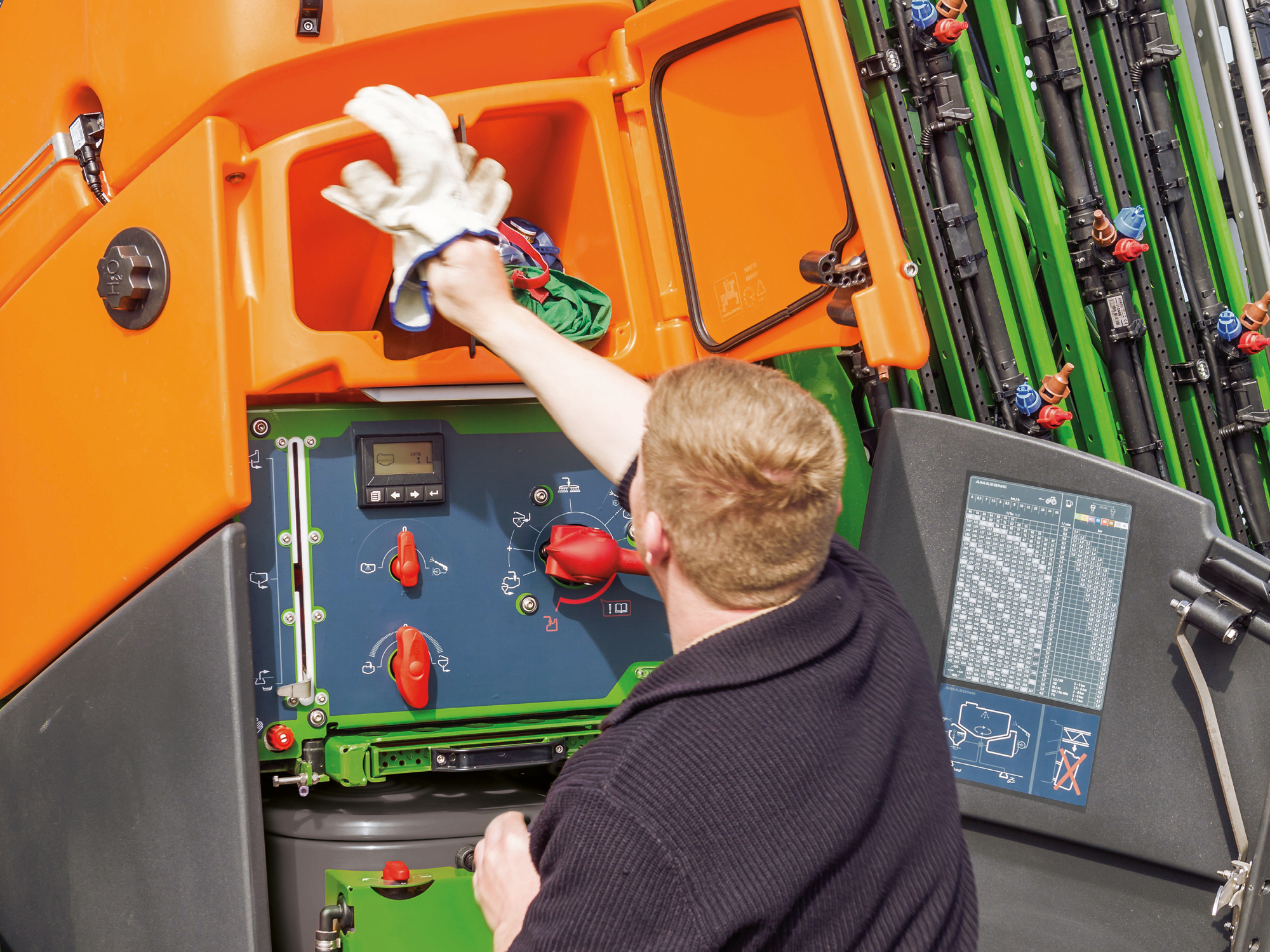

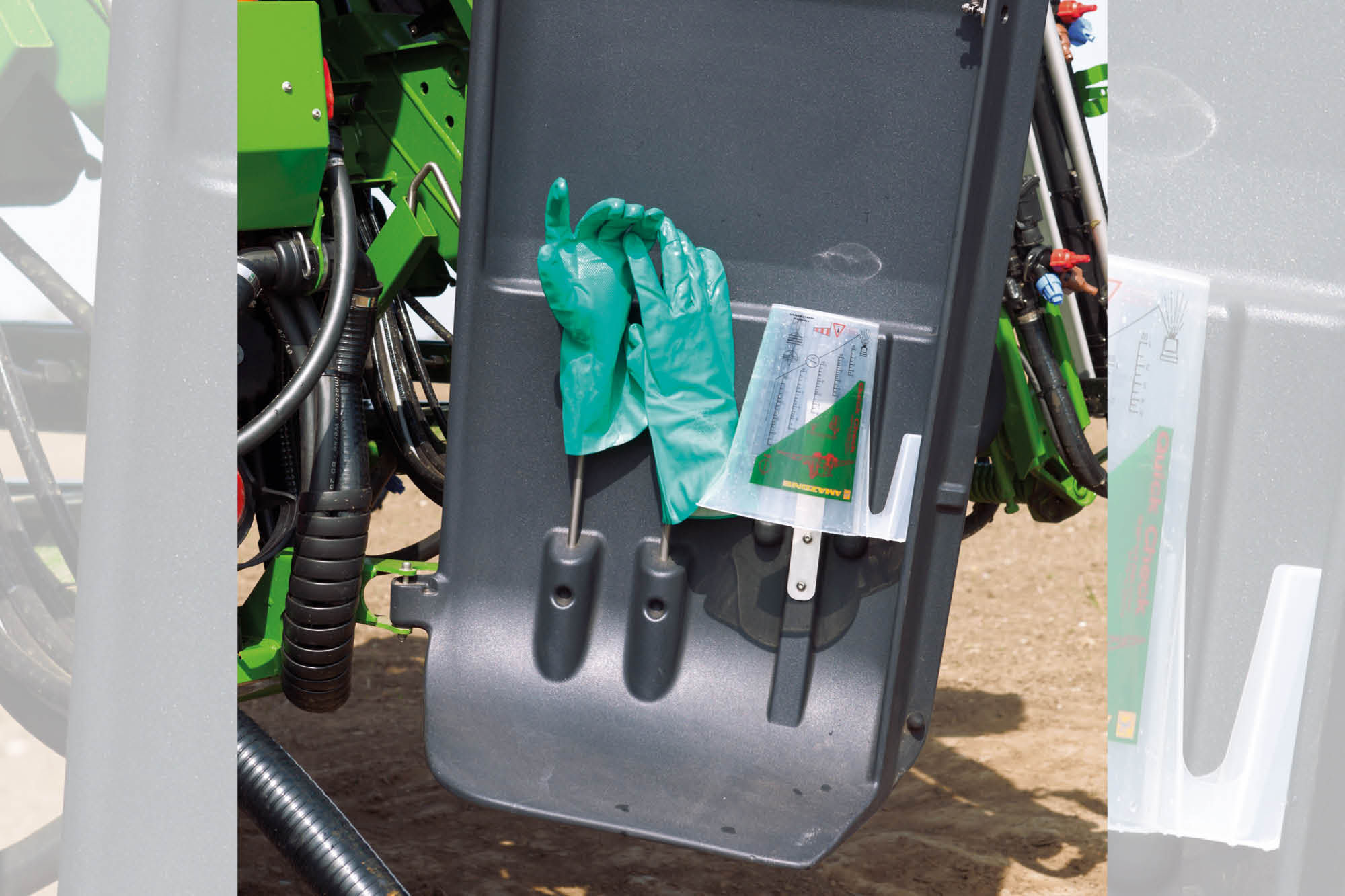

The new SmartCenter operator station is equipped with a large hinged door that protects all the relevant operating controls and the induction bowl from dirt and water splashes. In the inner panel of the swing door, a holder for gloves and a measuring jug is provided. As the swing door opens backwards towards the boom, it protects the operator from chemical contact on his clothing from the booms plus, at the same time, creates plenty of free space between it and the tractor. With Standard-Pack, or the optional Comfort-Pack, AMAZONE offers two particularly comfortable solutions for the operation of the UF 02.

The 20 l hand wash tank is positioned above the induction bowl and it is completely integrated into the machine design. The wash water runs directly into the induction bowl and is sucked into the tank. In addition, an easily accessible soap dispenser is positioned underneath the hand wash tank. The UF 02 comes as standard with a splash-proof clothing locker split into two with a capacity of 30 l in total for clean and contaminated protective clothing.

The benefits:

• Central layout of all relevant operating components; and all perfectly accessible
• Operator station, protected against dirt and splashes
• Splash-proof clothing locker with a capacity of 30 l
• Integrated hand wash tank with a tank volume of 20 l

SmartCenter with Standard-Pack – simple and intuitive operation

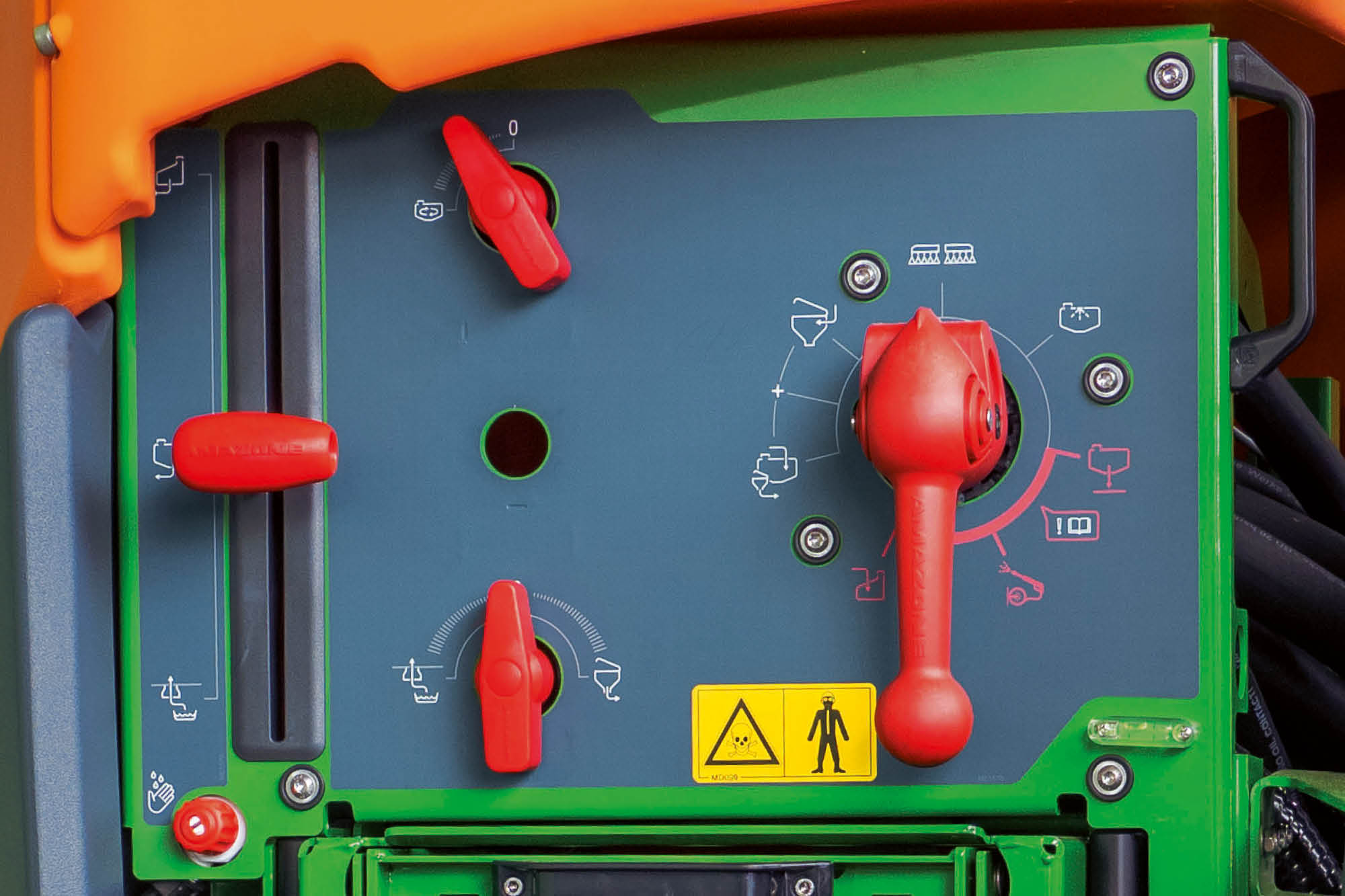

The UF 02 is operated mainly using a suction and a pressure tap with the Standard Pack. The suction tap determines from where the pump is going to draw the liquid from, whereas, correspondingly, the pressure tap determines where the pump will send the spray liquid to. In addition, the in-house developed 7-way pressure tap from AMAZONE simplifies control of the pressure side.

SmartCenter with Comfort-Pack – Operation made easy

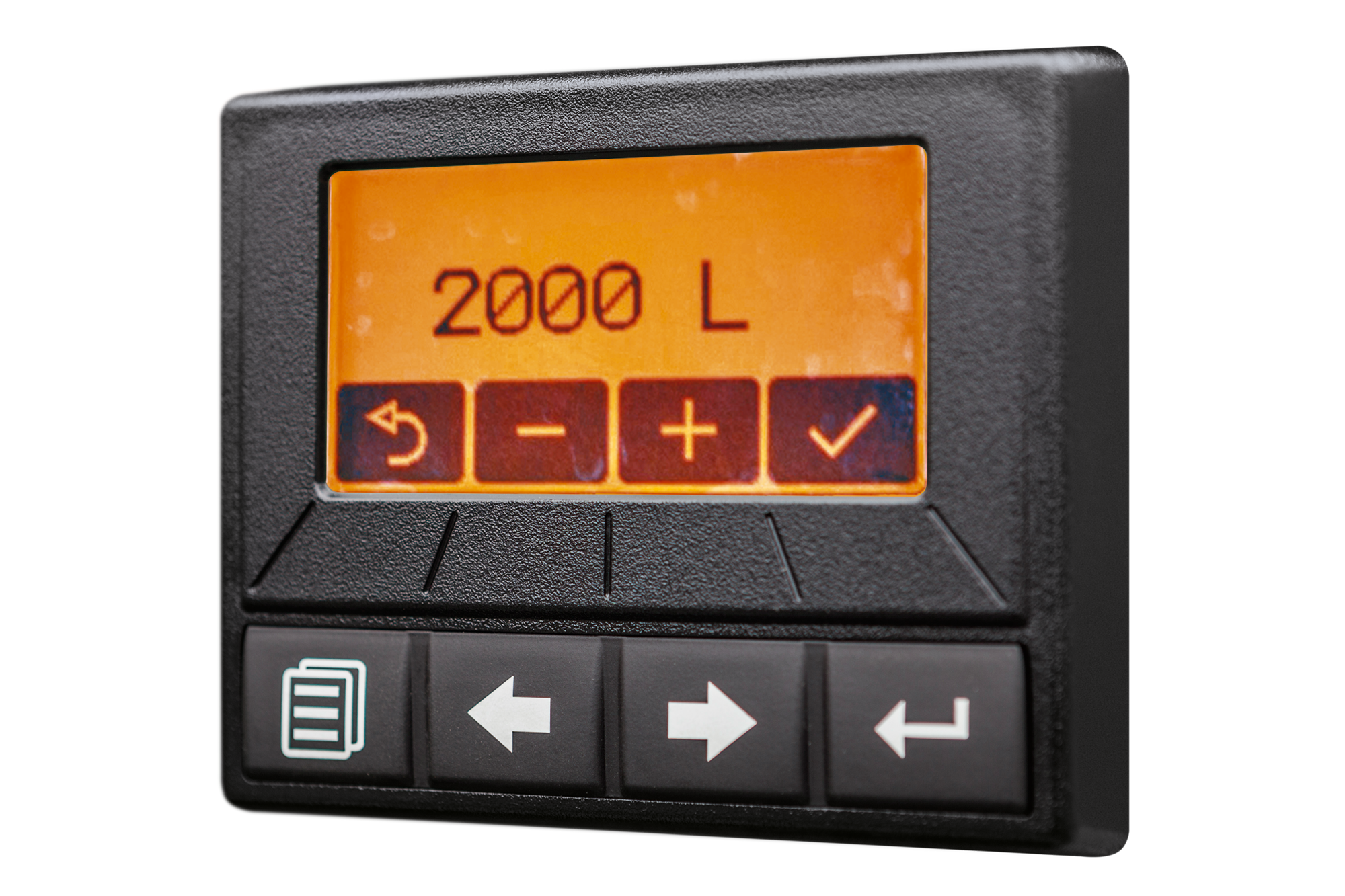

With Comfort-Pack, the TwinTerminal 3.0 comes as standard. Also, in addition, automatic fill stop for the suction fill is also included and, as an option, fill stop is also available when filling under pressure from a bowser. During application, the intensity of the agitation is regulated depending on the tank fill level. As the fill level decreases, the agitation capacity is automatically reduced down until it is completely switched off preventing the formation of foam at low tank volumes. In addition, the automatic agitation regulation offers auto-dynamic agitator control. This means: if larger application rates are required at the nozzle, the agitator output is reduced. When the nozzles are switched off on the headland, the agitation is automatically restored.

After the spraying operation is finished, Comfort-Pack provides fully automatic cleaning which can be controlled completely remotely from the tractor cab.

Additional functions such as boom rinsing, cleaning the spray liquid circuit from heavy deposits or a defined dilution of a subsequent tank mix in the field are all functions included within Comfort-Pack.

7-way pressure tap

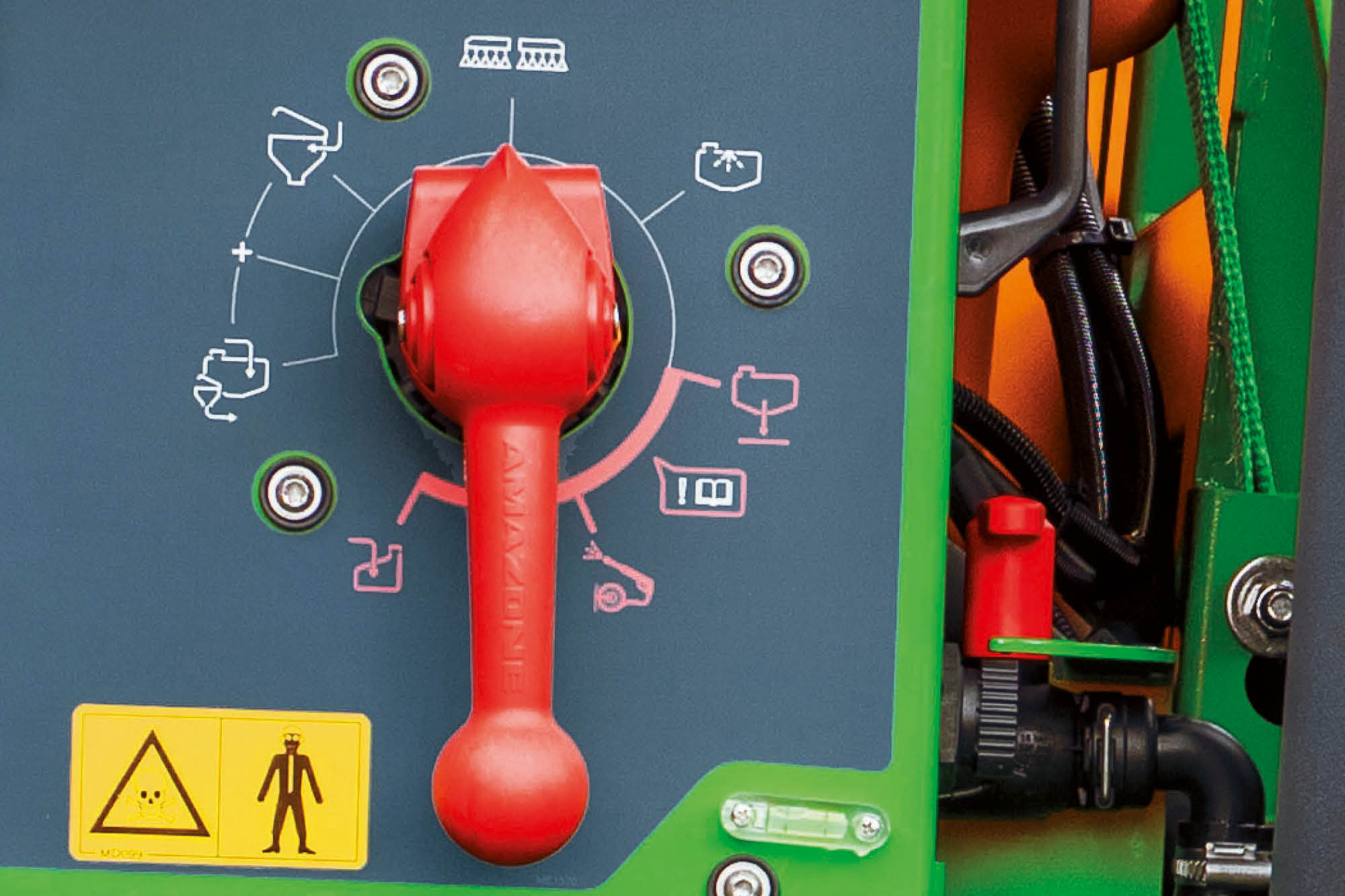

The UF 02 is equipped with a 7-way pressure tap. As opposed to a normal rotary ball valve, the in-house developed valve from AMAZONE consists of a cam and valve seats. Exclusive: when swivelling in and out the pressure tap, the relevant route for the liquid is reliably opened or closed.

Quick and safe with the induction bowl

Trouble-free filling with top performance

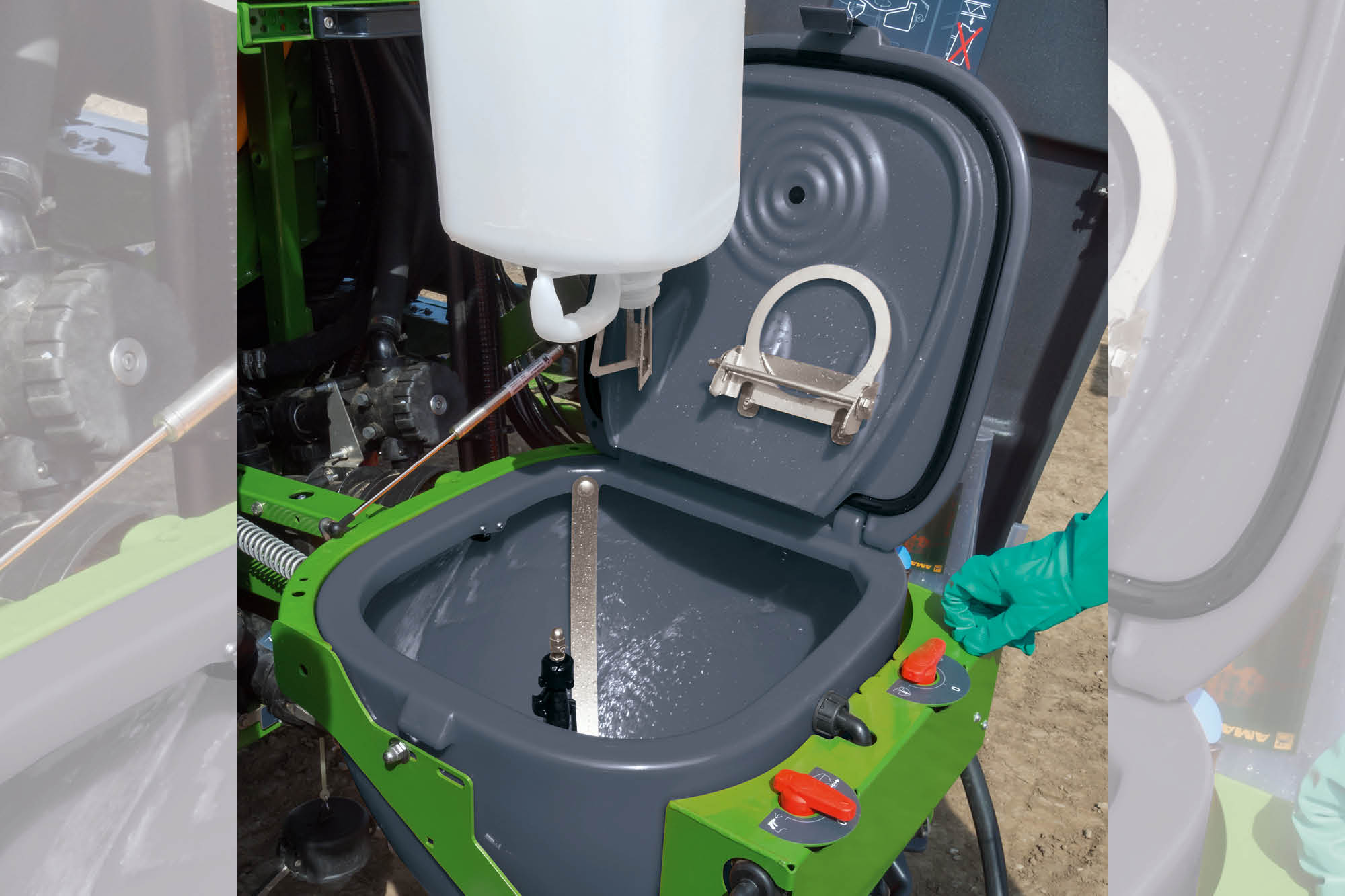

The 60 litre induction bowl is located directly below the operator controls. The phenomenal suction capacity of 150 l/min guarantees the quick, absolutely trouble-free filling and a complete emptying. For inducting powders or granular spray agents effectively, an additional mixing nozzle is positioned underneath the suction aperture which reliably prevents any blockage of the suction aperture. The mixing nozzle is infinitely-variable and can be operated in parallel to the infinitely adjustable output of the high-capacity rinse ring.

When suction or pressure filling, the induction bowl can be also supplied with fresh water using a steplessly adjustable 3-way valve!

The canister cleaning nozzle is activated simply by pushing down the canister or measuring jug. In the upper zone of the canister cleaning nozzle there is an additional, smaller contact area which is positioned where the nozzle can be activated, specifically for a more effective cleaning of the canister neck.

Details, such as the measuring jug holder and the drip tray for the canisters, located inside the dustproof and liquid-tight lid, provide the operator with an exceptionally pleasant operating environment. When the induction bowl is closed a complete internal cleaning can be carried out with the aid of the canister cleaning nozzle. The spray lance, included in the standard execution, is positioned to the right hand side of the induction bowl.

The benefits:

• Exceptionally quick, trouble-free filling
• Suction capacity of 150 l/min
• Fresh water supply during both suction and pressure filling
• Safe induction even of powder and granular spray agents, thanks to the additional mixing nozzle
• Practical folding measuring jug holder in the induction bowl lid
