Citan trailed seed drill

Simple and reliable
AmaLog⁺ is a simple and very reliable in-cab terminal for the Citan in combination with the mechanical metering drive. Operation is possible using a non-ISOBUS ready tractor.

AmaLog⁺ functions

• Tramline control
• Pre-emergence markers
• Fill level monitoring
• Hectare meter
• Forward speed readout
• Monitoring of the fan speed

One language, many benefits!
Each ISOBUS-enabled machine from AMAZONE comes with the latest technology and almost unlimited possibilities. It makes no difference whether you use an operator terminal from AMAZONE or an ISOBUS terminal fitted directly in the tractor. ISOBUS is an internationally recognised standard for communication between the operator terminal, tractors and connected implements on the one hand and Farm Management Information Systems on the other.

Operation with a wide variety of ISOBUS terminals
This means that ISOBUS enables you to take control of all your ISOBUS compatible equipment. You only have to connect the machine to the respective ISOBUS terminal and the usual operator interface appears on the monitor in your tractor cab.

Benefits of ISOBUS at a glance:

• International standardisation provides uniform interfaces and data formats, meaning that compatibility with other manufacturers is ensured
• Plug and Play between the machine, tractor and other ISOBUS equipment

AMAZONE machinery and operator terminals offer a range of functions which are very easy and safe to operate:

• Highest compatibility and safety function of your ISOBUS equipment
• No additional modules on the machine side. All ISOBUS machines from AMAZONE come ready-equipped with the necessary ISOBUS functions as standard
• Practice-oriented machine software and logical menu structure
• MiniView display with all AMAZONE terminals and additional ISOBUS terminals. See, for example, the machine data in the map view.
• Possibility of operating the machine via the tractor terminal or a twin terminal solution
• Flexible assignment of the map and machine view between the tractor terminal and the operator terminal
• Unique operation concept. Freely configurable displays and individual user interfaces for each driver
• Useful additional functions such as automatic boom lowering on AMAZONE crop protection sprayers
• Integrated Task Controller data logger function

Advantages of the AMAZONE machine software:

• User-oriented and intuitive
• Tailored to the machine
• Function scope above and beyond the ISOBUS standard

Full functionality

The AmaTron 4 ISOBUS operator terminal, developed in-house by AMAZONE, enables convenient tablet-style, touch-screen control of any ISOBUS-enabled agricultural machine. AmaTron 4 makes all ISOBUS functionality possible - with added convenience, user-friendliness and overviews. And yet: it performs even better in combination with AMAZONE agricultural machinery and guarantees full functionality when it comes to precision farming.

ROBUST!

• Low-reflection, 8" display with waterproof and dustproof aluminium housing
• Rear-mounted hand rest for a secure grip

WELL-DESIGNED!

• Practical and clear menu navigation for simple and intuitive use
• Actuation via touch screen or soft keys
• Simple documentation and job management: work first - then save the data
• Optional software licences for maximising every opportunity in precision agriculture

COMFORT!

• App carousel for quick and easy navigation at the swipe of a finger
• Freely configurable status bar - the most important parameters available at a glance, all of the time
• The practical quick-start menu allows quick and easy import and export of job data

AmaTron Twin App – extended display for user-friendly operation

The AmaTron Twin App offers the driver even more comfort during work, as GPS functions in the map view can also be displayed on a tablet in parallel with the machine operation on the AmaTron 4.

Advantages of the AmaTron Twin display enhancement:

• Uses an existing mobile device
• Greater clarity – all applications in view
• Comfortable control of GPS functions in the map view in parallel via the mobile device
• Clear, authentic representation of the machine in work and its part-width sections

Thanks to the AUX-N feature, you can operate multiple functions on the machine via the AmaPilot⁺ or any other ISOBUS multi-function joystick.

The benefits of AmaPilot⁺:

• Almost all the functions directly to hand via the 3 levels
• Adjustable palm rest
• Freely available key assignment

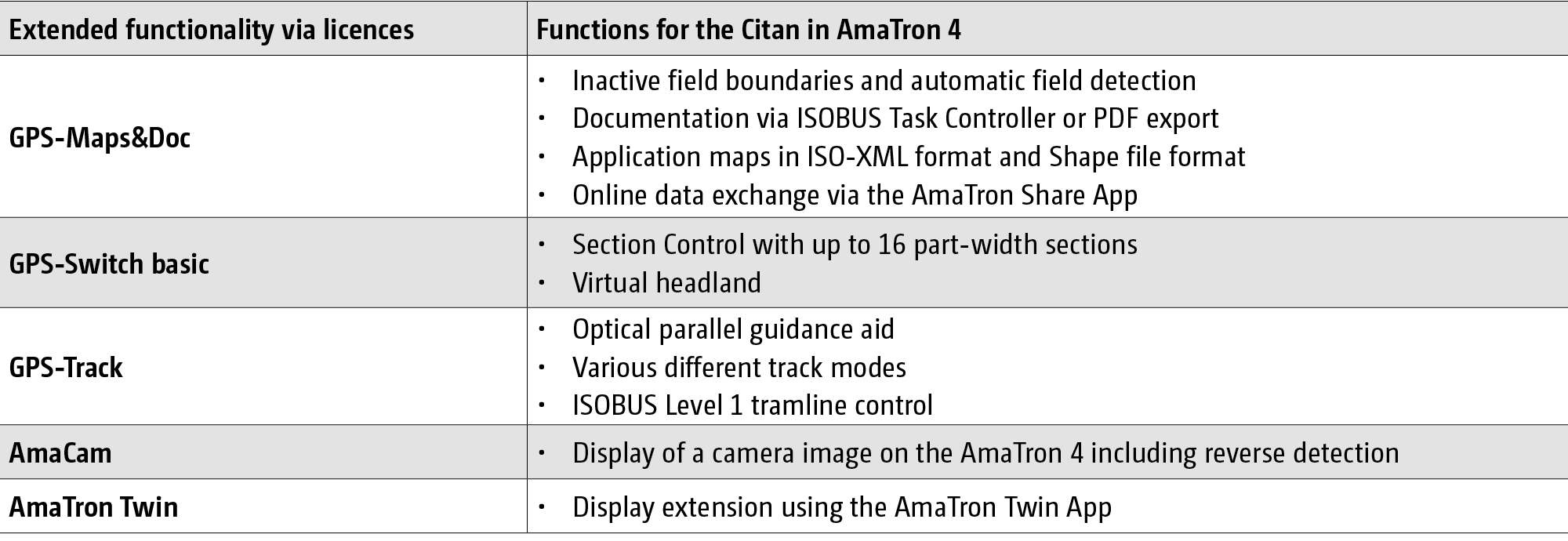

With the GPS-Maps&Doc licence, the AmaTron 4 can gather and document both machine data and georeferenced data via Task Controller (TC). Part-area, site-specific operation via application maps in either Shape file or ISO-XML format is also possible.

Advantages of GPS-Maps&Doc with the AmaTron Share App:

• Intuitive system for processing application maps
• Automatic part-area, site-specific regulation of the application rate
• Indication of inactive field boundaries and automatic field detection when approaching the area
• Optimum crop management through needs-based application
• Comfortable import of jobs in ISO-XML or Shape file format and export of completed jobs in ISO-XML format or as a job summary in PDF format via the AmaTron Share App
• Start a new task straight away and decide later whether the data is saved or not

AmaTron Share App for digital data transfer. Try it now!

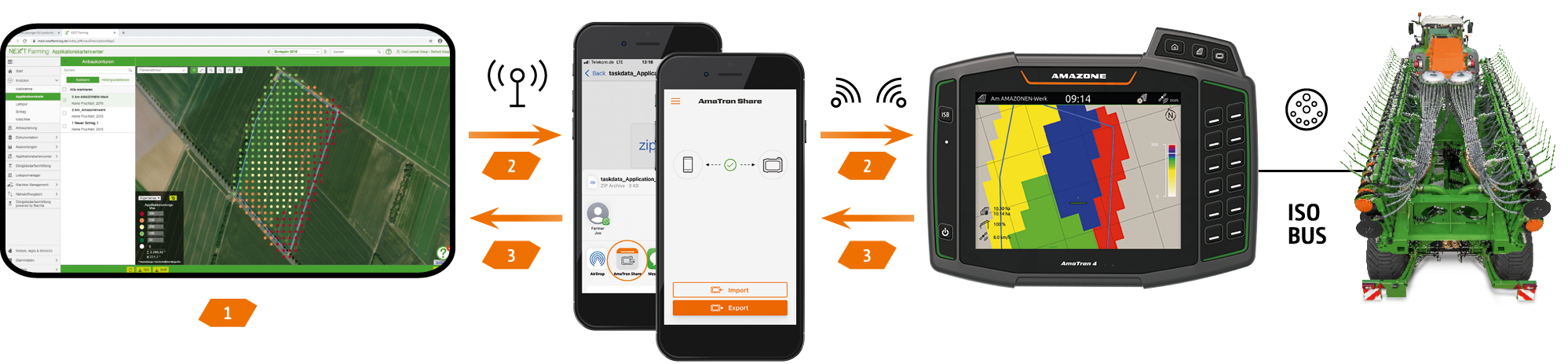

The AmaTron Share App, which is connected to the AmaTron 4 via Wi-Fi, allows all data to be conveniently transferred online. For example, the App enables application maps to be easily sent from the office to the AmaTron 4 for completion. Job data can also be sent to customers or back to the office as PDF documentation via the cloud, email or messenger services such as WhatsApp after the job has been completed. This is user-friendly data management!

1. Generation of an application map in a farm management information system for automatic part-area, site-specific control of the application rate via the AmaTron 4
2. ISO-XML and shape files
3. ISO-XML and PDF

The GPS-Track parallel guidance greatly helps with orientation in the field, especially on grassland or in areas without tramlines.

• With a virtual light bar in the status bar
• Automatic tramline control via GPS for seed drills
• Various track modes such as A-B lines or contour following
• Optional with AmaTron 4

Software licence for the display of one camera image on AmaTron 4 and up to two camera images on AmaPad 2.

• Software licence for displaying a camera image on AmaTron 4

Precise sowing is very important, in order to avoid over- and under-sowing in critical areas. A remedy for accurate placement is offered by the half-side control, which reduces the overall working width to half so that a significant saving is achieved, especially in wedge shaped fields and on the headland. The two halves of the drill each correspond to one controllable part-width section.

1. Virtual headland
2. Field and application maps for different seed rates possible
3. Worked area
4. With half-side shut-off
5. The drill automatically switches off precisely

If the operator terminal facilitates Section Control, such as GPS-Switch part-width section control from AMAZONE, the part-width sections are activated completely automatically and in relation to the GPS position. Once a field has been created, and then in automatic mode, the driver can concentrate fully on the operation of the towing vehicle, since the part-width sections are switched automatically in wedge shaped fields and on headlands.

Advantages of the automatic part-width section control:

• Stress relief on the driver
• Increase in precision especially at night or at higher speeds
• Fewer overlaps and gaps
• Saving on input costs
• Less crop damage and less environmental pollution

GPS-Switch

With GPS-Switch, AMAZONE offers GPS-based, fully automatic, part-width section control for all AMAZONE operator terminals and ISOBUS-compatible fertiliser spreaders, crop protection sprayers or seed drills.

GPS-Switch basic

• Automatic part-width section control of up to 16 part-width sections
• Creation of a virtual headland
• Automated boom lowering on AMAZONE crop protection sprayers
• Optional with AmaTron 4

GPS-Switch pro (as an extension of GPS-Switch basic)

• Automatic part-width section control with up to 128 part-width sections, in particular for crop protection sprayers with individual nozzle control
• Marking obstacles (e.g. water holes, pylons)
• Auto-zoom when approaching the headland
• Optional with AmaTron 4

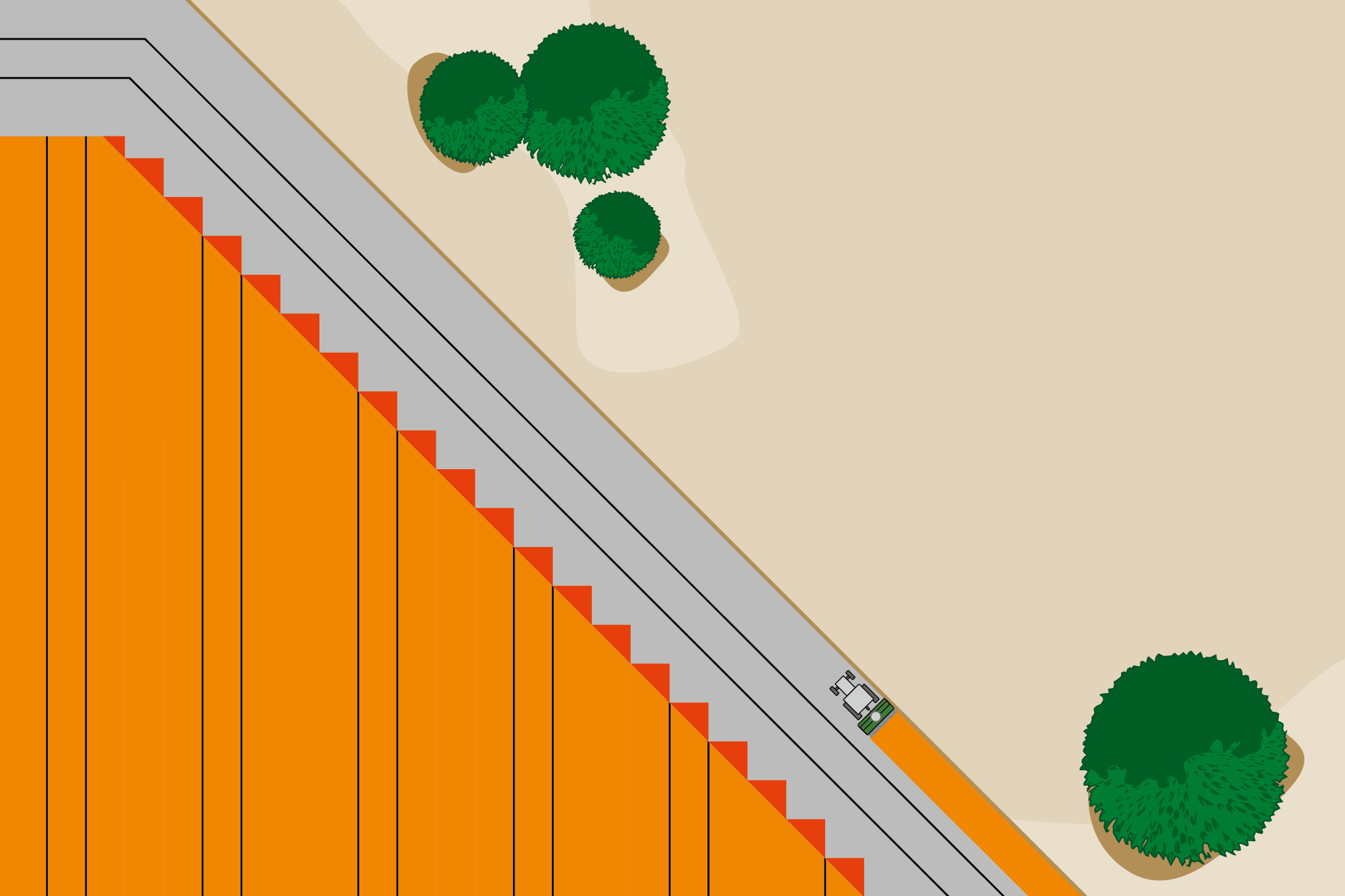

1. Over- or under-sowing with manual on/off control without GPS-Switch

• Automatic determination of the conveying time of seed flow from the metering unit to the sowing coulter
• Minimisation of misses and overlaps for good field hygiene
• Minimisation of the disease pressure results in fewer plant protection measures and simultaneous cost reduction

1. 2.7 sec.
2. 3.3 sec.
3. Metering unit
4. AutoPoint sensor
