Cirrus trailed cultivator drill

One language, many benefits!
Each ISOBUS-enabled machine from AMAZONE comes with the latest technology and almost unlimited possibilities. It makes no difference whether you use an operator terminal from AMAZONE or an ISOBUS terminal fitted directly in the tractor. ISOBUS is an internationally recognised standard for communication between the operator terminal, tractors and connected implements on the one hand and Farm Management Information Systems on the other.

Operation with a wide variety of ISOBUS terminals

Which means that ISOBUS enables you to take control of all your ISOBUS compatible equipment. You only have to connect the machine to the respective ISOBUS terminal and the usual operator interface appears on the monitor in your tractor cab.

Benefits of ISOBUS at a glance:

• International standardisation provides uniform interfaces and data formats, meaning that compatibility with other manufacturers is ensured
• Plug and Play between the machine, tractor and other ISOBUS equipment

AMAZONE machinery and operator terminals offer a range of functions which are very easy and safe to operate.

The benefits:

• Highest compatibility and safety function of your ISOBUS equipment
• No additional modules on the machine side. All ISOBUS machines from AMAZONE come ready-equipped with the necessary ISOBUS functions as standard
• Practice-oriented machine software and logical menu structure
• MiniView display with all AMAZONE terminals and additional ISOBUS terminals. See, for example, the machine data in the map view.
• Possibility of operating the machine via the tractor terminal or a twin terminal solution
• Flexible assignment of the map and machine view between the tractor terminal and the operator terminal
• Unique operation concept. Freely configurable displays and individual user interfaces for each driver
• Integrated Task Controller data logger function

Advantages of the AMAZONE machine software:

• User-oriented and intuitive
• Tailored to the machine
• Function scope above and beyond the ISOBUS standard

Full functionality

The AmaTron 4 ISOBUS operator terminal, developed in-house by AMAZONE, enables convenient tablet-style, touch-screen control of any ISOBUS-enabled agricultural machine. AmaTron 4 makes all ISOBUS functionality possible - with added convenience, user-friendliness and overviews. And yet: it performs even better in combination with AMAZONE agricultural machinery and guarantees full functionality when it comes to precision farming.

ROBUST!

• Low-reflection, 8" display with waterproof and dustproof aluminium housing
• Rear-mounted hand rest for a secure grip

WELL-DESIGNED!

• Practical and clear menu navigation for simple and intuitive use
• Actuation via touch screen or soft keys
• Simple documentation and job management: work first - then save the data

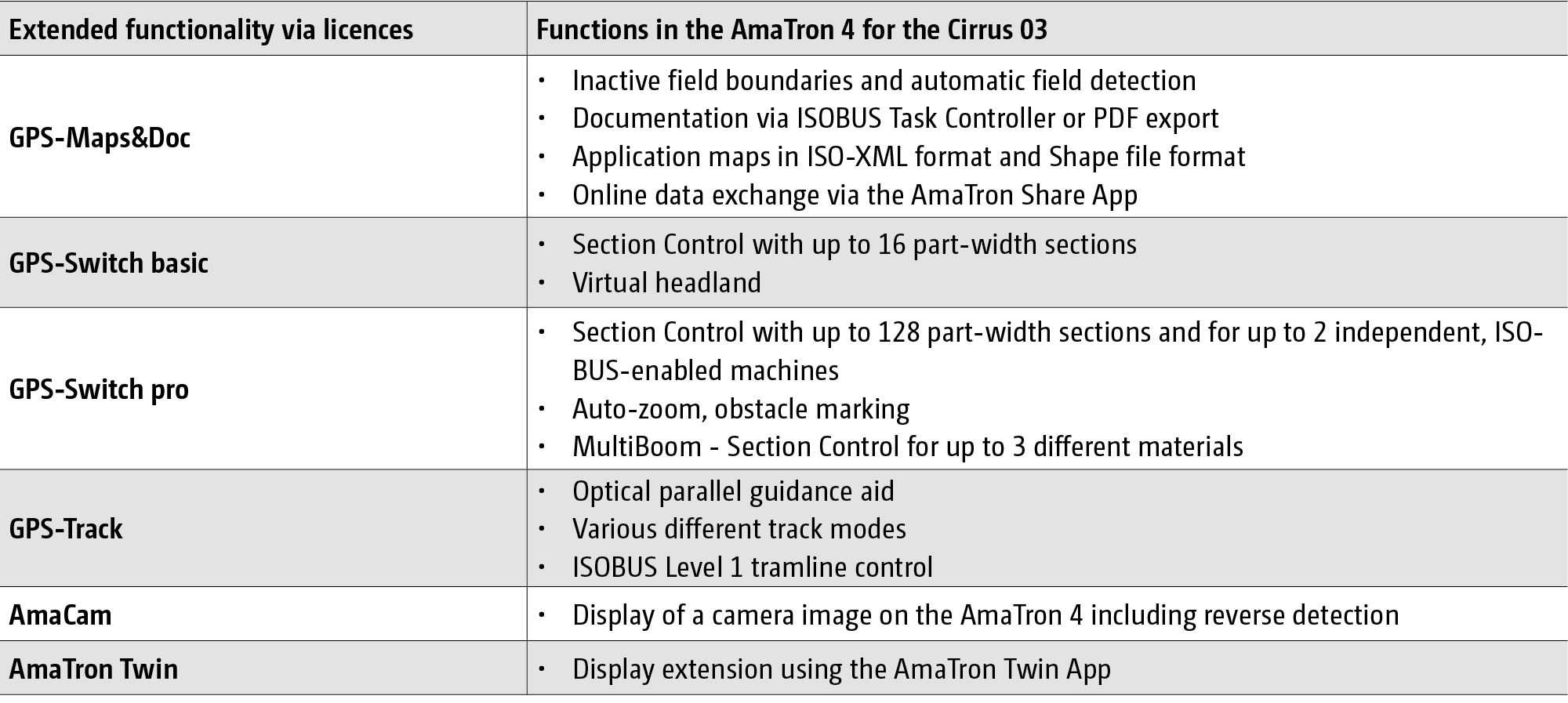

• Optional software licences for maximising every opportunity in precision agriculture

COMFORT!

• App carousel for quick and easy navigation at the swipe of a finger
• Freely configurable status bar - the most important parameters available at a glance, all of the time
• The practical quick-start menu allows quick and easy import and export of job data

AmaTron Twin App – extended display for user-friendly operation

The AmaTron Twin App offers the driver even more comfort during work, as GPS functions in the map view can also be displayed on a tablet in parallel with the machine operation on the AmaTron 4.

Advantages of the AmaTron Twin display enhancement:

• Uses an existing mobile device
• Greater clarity – all applications in view
• Comfortable control of GPS functions in the map view in parallel via the mobile device
• Clear, authentic representation of the machine in work and its part-width sections

Thanks to the AUX-N feature, you can operate multiple functions on the machine via the AmaPilot⁺ or any other ISOBUS multi-function joystick.

The benefits of AmaPilot⁺:

• Almost all the functions directly to hand via the 3 levels
• Adjustable palm rest
• Freely available key assignment

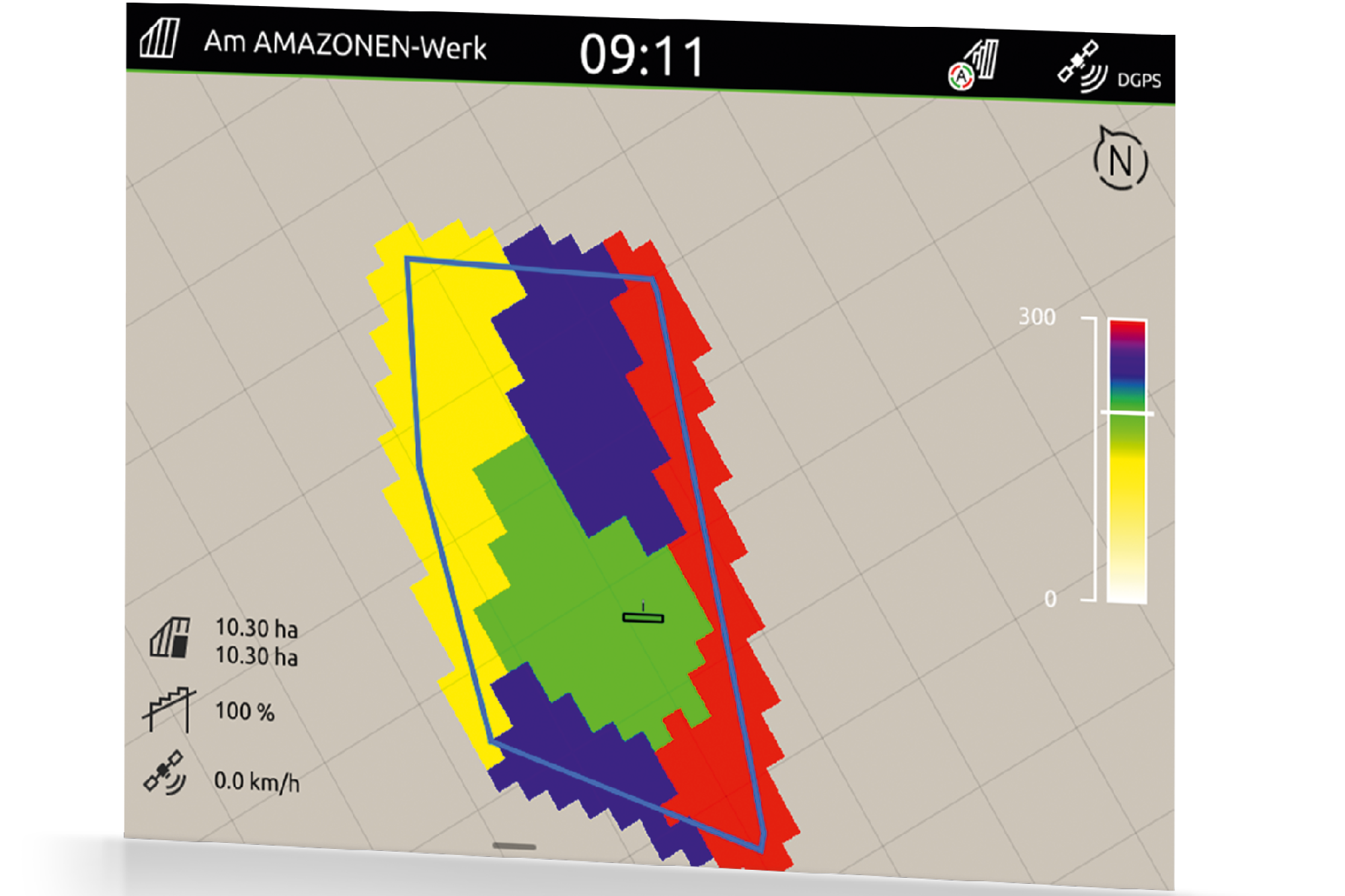

GPS-Maps&Doc with data exchange via the AmaTron Share App
With the GPS-Maps&Doc licence, the AmaTron 4 can gather and document both machine data and georeferenced data via Task Controller (TC). Part-area, site-specific operation via application maps in either Shape file or ISO-XML format is also possible.

Advantages of GPS-Maps&Doc with the AmaTron Share App:

• Intuitive system for processing application maps
• Automatic part-area, site-specific regulation of the application rate
• Indication of inactive field boundaries and automatic field detection when approaching the area
• Optimum crop management through needs-based application
• Easy import of jobs in ISO-XML format or shape format and export of completed jobs in ISO-XML format or as a job summary in PDF format via the AmaTron Share App
• Start a new task straight away and decide later whether the data is saved or not

GPS-Track
The GPS-Track parallel guidance greatly helps with orientation in the field, especially on grassland or in areas without tramlines.

• With a virtual light bar in the status bar
• Automatic tramline control via GPS for seed drills
• Various track modes such as A-B lines or contour following
• Optional with AmaTron 4

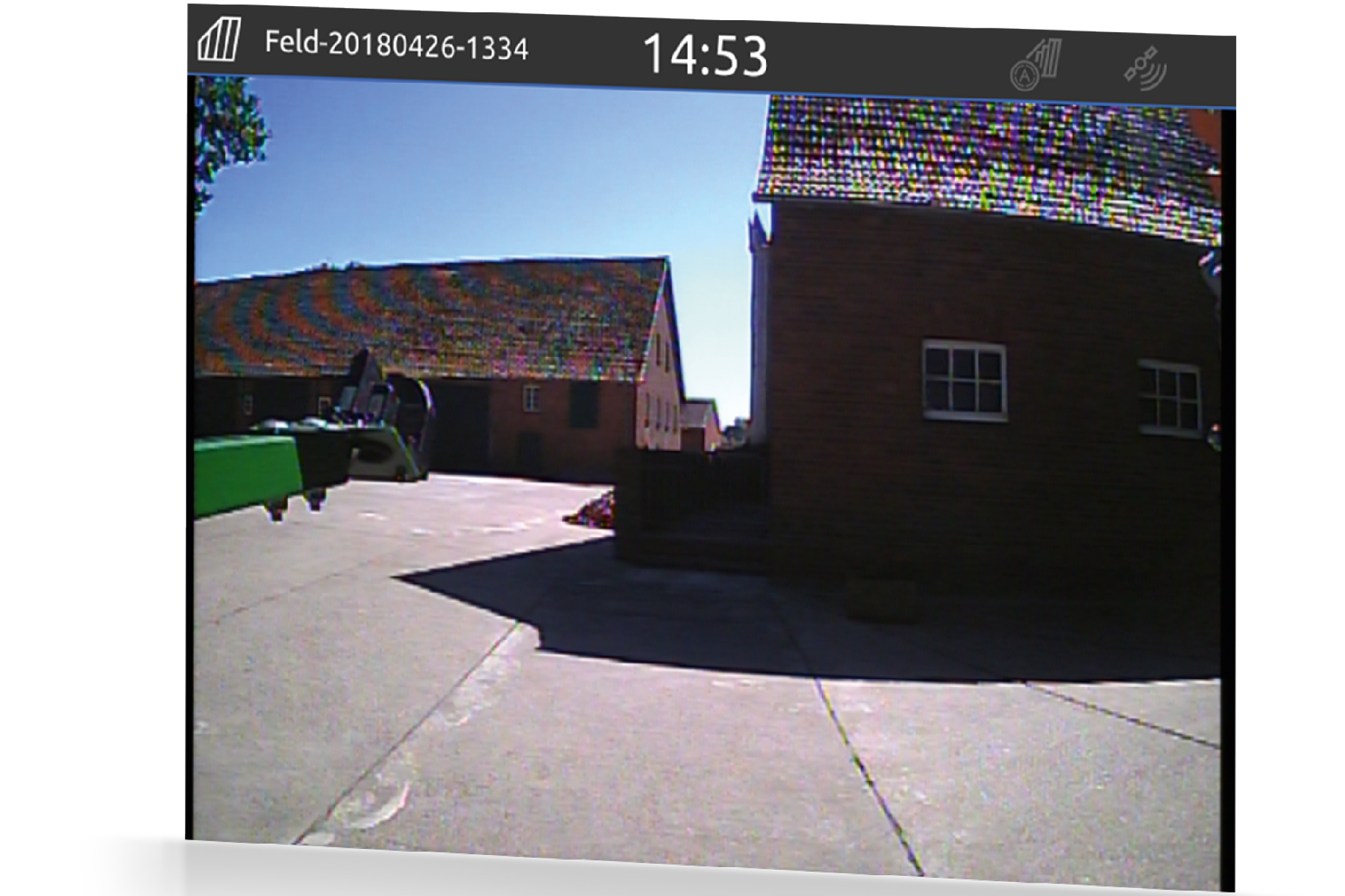

AmaCam
Software licence for displaying a camera image on AmaTron 4.

• Automatic display of the camera image on AmaTron 4 when reversing

AmaTron Share App for digital data transfer. Try it now!

The AmaTron Share App, which is connected to the AmaTron 4 via Wi-Fi, allows all data to be conveniently transferred online. For example, the App enables application maps to be easily sent from the office to the AmaTron 4 for completion. Job data can also be sent to customers or back to the office as PDF documentation via the cloud, email or messenger services such as WhatsApp after the job has been completed. This is user-friendly data management!

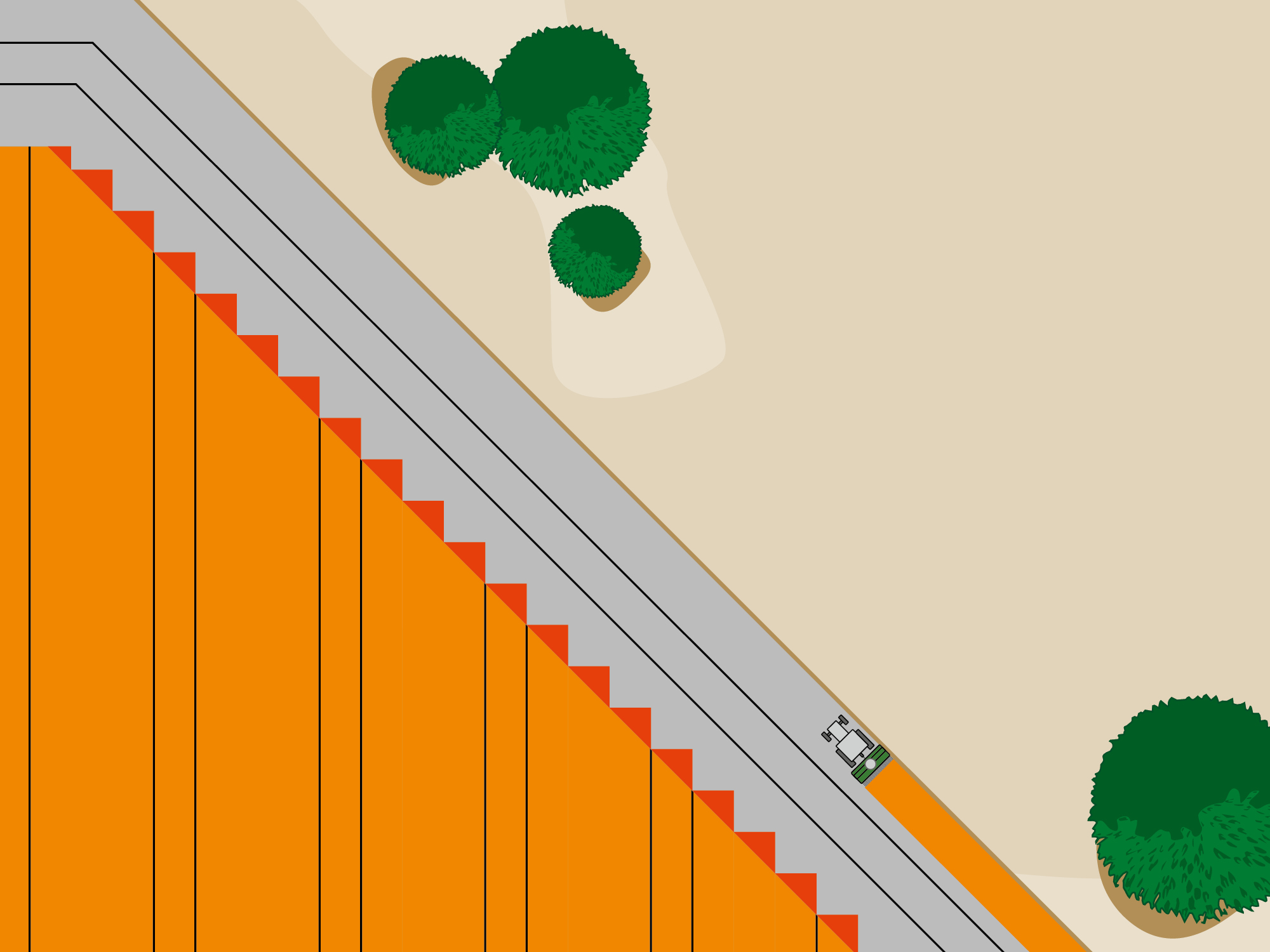

GPS-Switch

With GPS-Switch, AMAZONE offers GPS-based, fully automatic, part-width section control for all AMAZONE operator terminals and ISOBUS-compatible fertiliser spreaders, crop protection sprayers or seed drills.

GPS-Switch basic

• Automatic part-width section control of up to 16 part-width sections
• Creation of a virtual headland

GPS-Switch pro (as an extension of GPS-Switch basic)

• Automatic part-width section control with up to 128 part-width sections and for up to 2 independent ISOBUS-enabled implements
• Auto-zoom when approaching the headland and obstacle marking
• MultiBoom - Section Control for up to 3 different materials

Automatic switching on and off of the Cirrus

If the operating terminal has Section Control functionality, such as the GPS-Switch part-width section control from AMAZONE, the part-width sections can be switched on and off fully automatically depending on the GPS position.

MultiBoom – even more precise

For the Cirrus-CC, the seed and the fertiliser are metered by two different metering units and applied at two different delivery points using the Double-Shoot method. Since the FerTeC coulter runs in front of the roller and the sowing coulter behind the roller on the Cirrus-CC, GPS-Switch must switch the two metering units with a time offset, so that the fertiliser is placed at exactly the same point on the headland as the seed. This time-shifted control of several metering units can be achieved using the new MultiBoom control.
