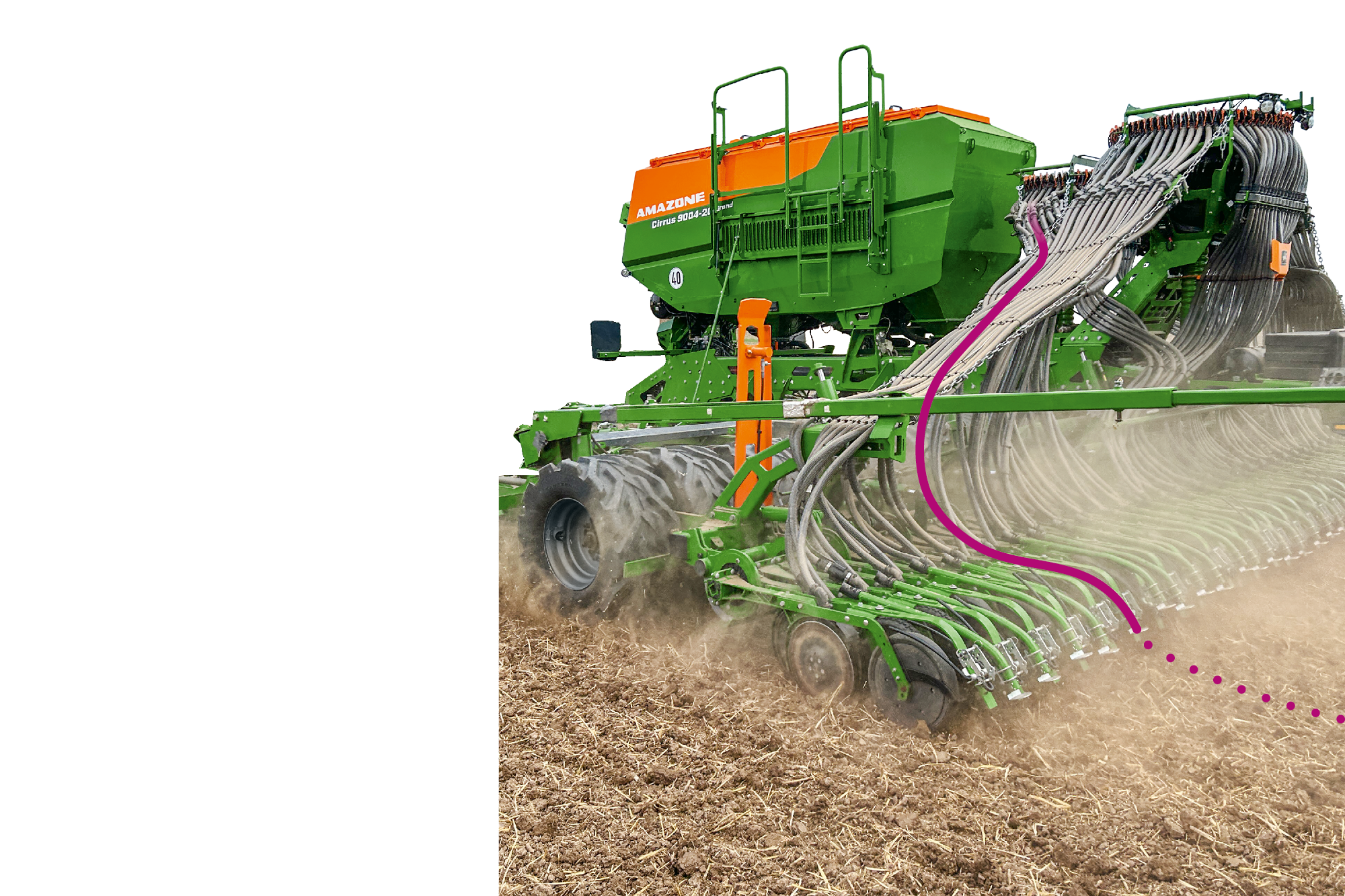

Cirrus Grand trailed cultivator drill

The Cirrus 04 represents maximum efficiency in modern agriculture. It combines performance with smart technology and high flexibility – for even crops in all soils and any operating conditions. The TwinTeC plus double disc coulter and innovative distributor head with MultiSwitch single row switching achieve a very high degree of precision. Ideal seedbed preparation by utilising the various front tool options available and the Matrix profile tyres for reconsolidation in strips allow the sowing of homogeneous crops, even on heterogeneous surfaces. Multi-chamber hoppers, high delivery rates and high working speeds make for maximum efficiency.

Cirrus 04 from AMAZONE – Precise. Flexible. High output.

New standards in precision, flexibility and output

1. Twin-chamber or three-chamber pressurised hopper for a range of different applied materials with precision metering using either the Single-Shoot or Double-Shoot process.
2. Different front tools such as the T-Pack tyre packer, Crushboard with guide wheels or just outer guide wheels.
3. Disc element for efficient preparation ahead of sowing.
4. Precision distributor head with MultiSwitch single row control for accurate and cost-effective distribution of seed and fertiliser.
5. Perfect reconsolidation in strips with Matrix profile tyres and independent suspension for unrestricted manoeuvrability.
6. TwinTeC plus double disc coulter with precision depth control on either 12.5 or 16.6 cm row spacing.

The Cirrus Grand with three-chamber hopper for pioneering establishment methods
The three-chamber hopper has a total capacity of 5,900 litres and offers high flexibility and easy accessibility for the operator. Up to three different applied materials can be individually metered at a ratio of 40 : 50 : 10. For example, rape, fertiliser and slug pellets can be applied in a single pass using the Single-Shoot process. In addition, wheat can be sown together with the simultaneous application of fertiliser and micro-granules. All products are delivered precisely to the same point in the seed furrow, which ensures efficient application.

Double-Shoot process

Optionally, the applied materials can now be deposited on the surface via a second distributor head through baffle plates, as shown in the picture, or via an additional outlet on the coulter at a second, shallow placement depth.
