Centaya Super harrow-mounted seed drill

Goes right to the limit of practical operation and placement

RoTeC pro coulters are maintenance-free and work very reliably, even with large amounts of straw and plant residues. The cutting disc ensures that the soil is opened and the furrow former provides a clean and well-shaped seed furrow. The Control 10 depth guidance disc, or the Control 25 depth guidance roller, prevent the soil from sticking to the sowing disc, thereby ensuring that the pre-selected sowing depth is precisely maintained.

Advantages of the RoTeC pro coulter

• High-performance single disc coulter for wet and cohesive soil types
• High level of self-cleaning through the depth guidance roller
• Decoupling of coulter guidance and reconsolidation
• Up to 55 kg additional coulter pressure
• Hydraulic coulter pressure adjustment

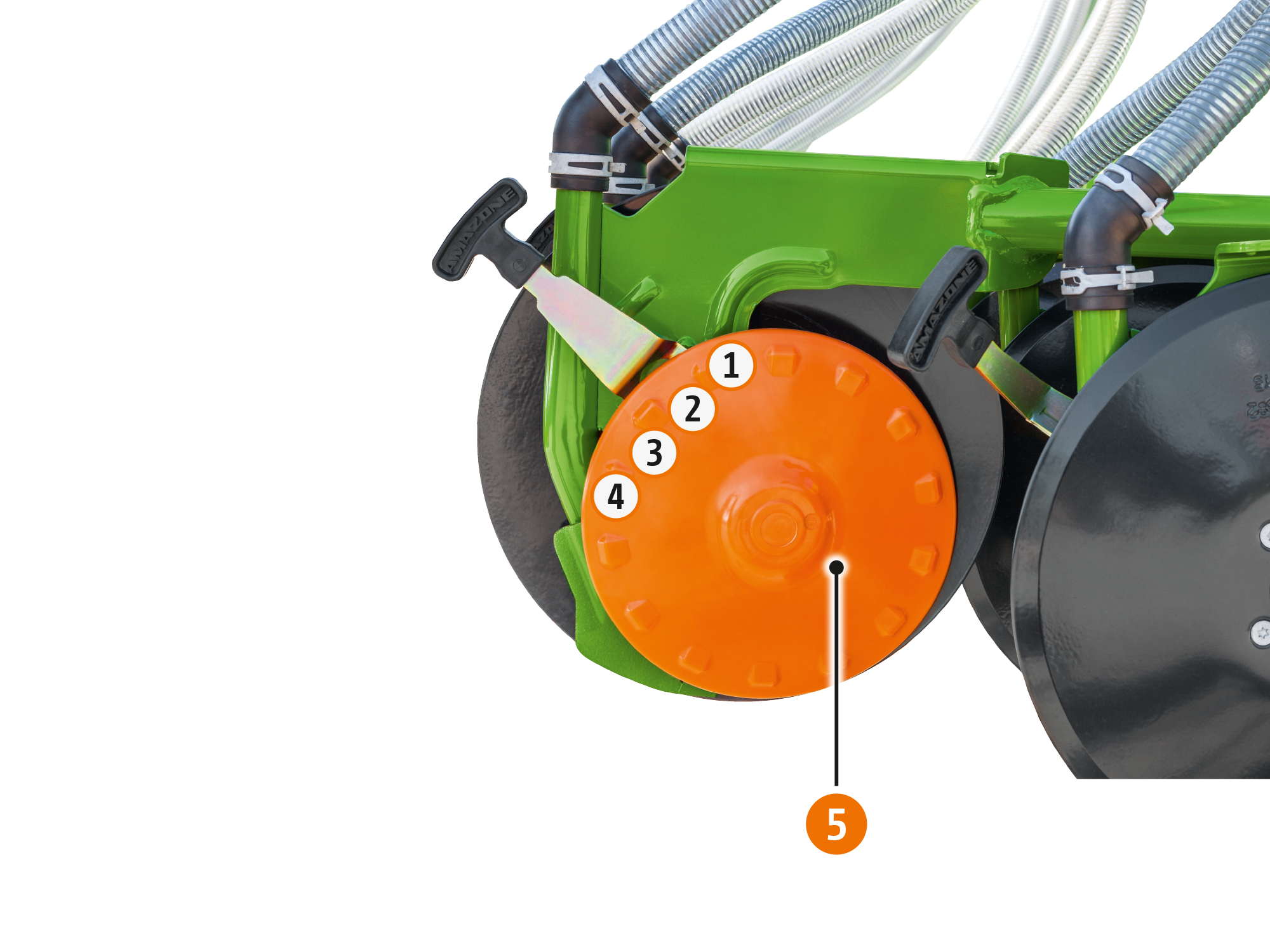

1.    Accurate setting in 4 steps.
2.    Reinforced support arm with a coulter pressure of up to 55 kg. Hydraulic coulter pressure adjustment.
3.    Control 10 depth guidance disc or Control 25 depth guidance roller for consistent sowing depth control. The depth control element actively cleans the sowing disc during use.
4.    Furrow former for a clean profile seed furrow.
5.    Sowing disc ∅ 400 mm, made of boron steel, working angle of 4° for smooth operation of the coulter.
6.    Exact harrow for excellent seed coverage.

RoTeC coulter: tried and tested 2,000,000 times over!

Ingenious independent depth control of the coulters and the following harrow

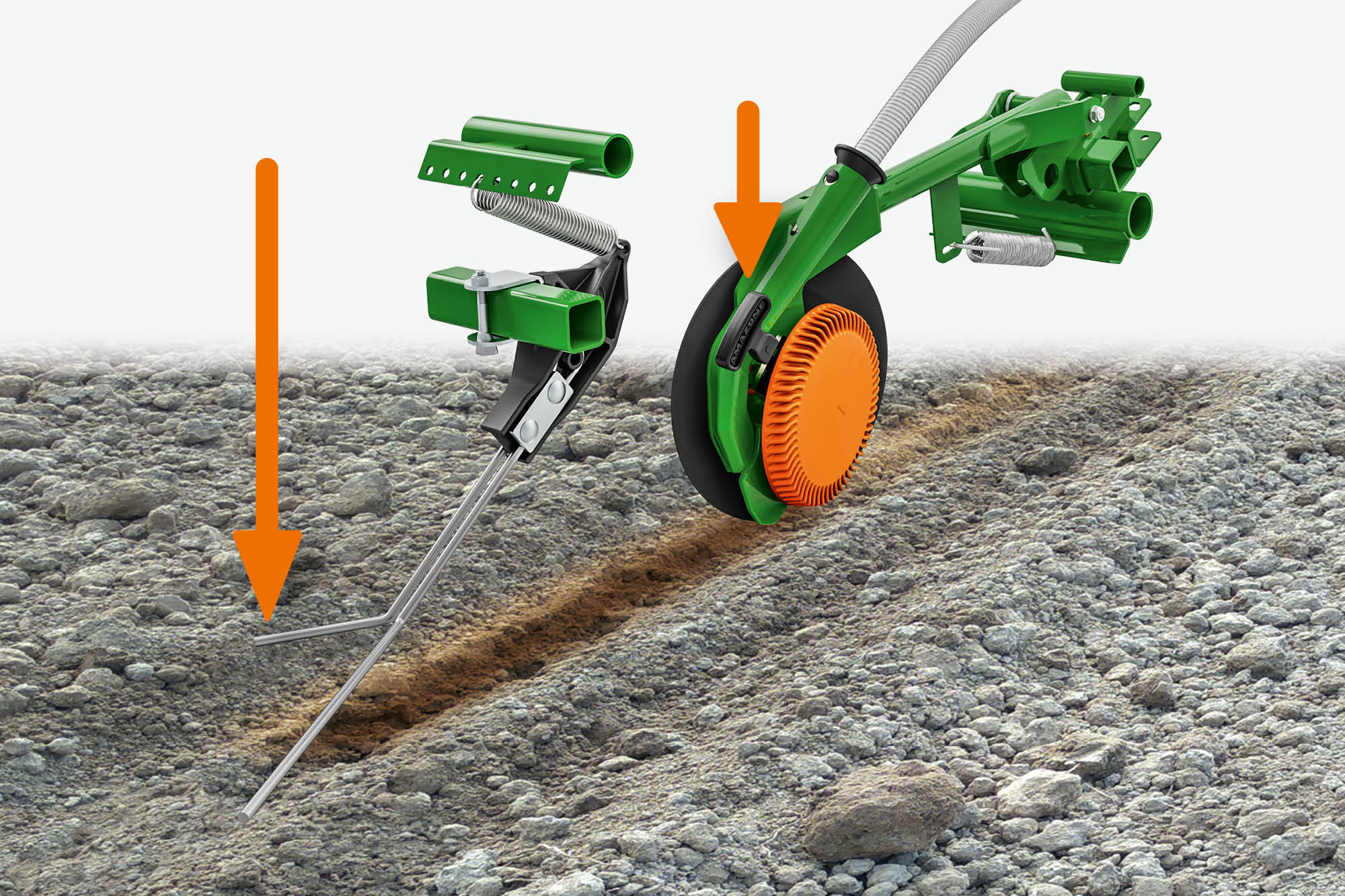

One of the unbeatable advantages of the RoTeC coulter is that there is no connection between depth control and the reconsolidation system. This means that the coulter is raised only once when passing a stone. Furthermore, the coulter pressure and harrow pressure can be adjusted independently of one another. This very even and accurately controlled way of guiding the RoTeC pro coulter is ensured by the Control 10 depth guidance disc with its 10 mm wide contact area or the Control 25 depth guidance roller with its 25 mm wide contact area which are mounted directly on the side of the coulter.

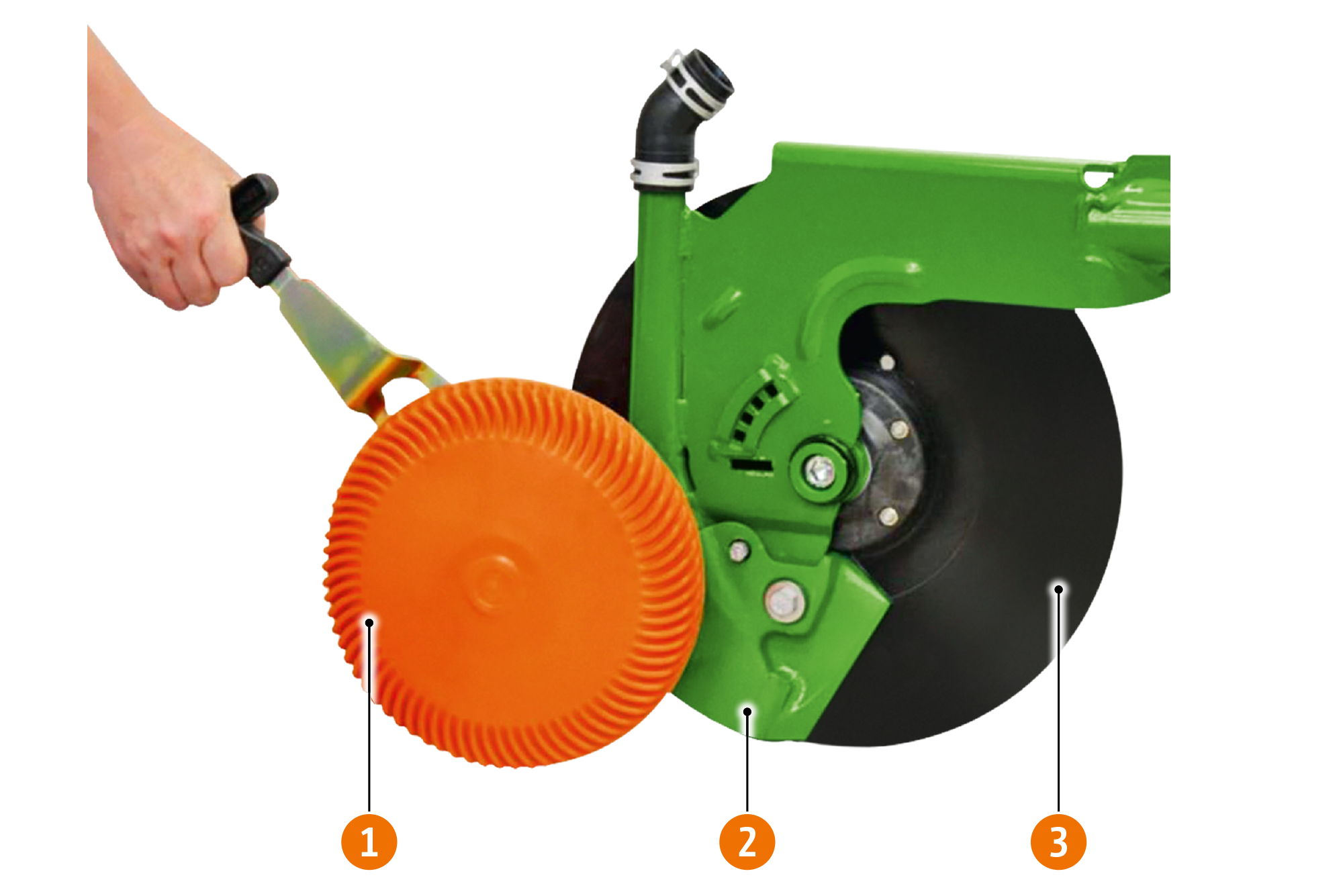

The basic setting of the sowing depth takes place without tools and in four levels directly on the coulter.

Coulter pressure adjustment

RoTeC pro coulters operate with a coulter pressure of up to 55 kg. In this case, the actual effective coulter pressure is comparatively higher with AMAZONE, because the pressure is not distributed between the coulter and the following press roller, but acts solely on the coulter. Working with less coulter pressure is possible without any problem when sowing rape or when early sowing in dry conditions.

Precise and easy adjustment

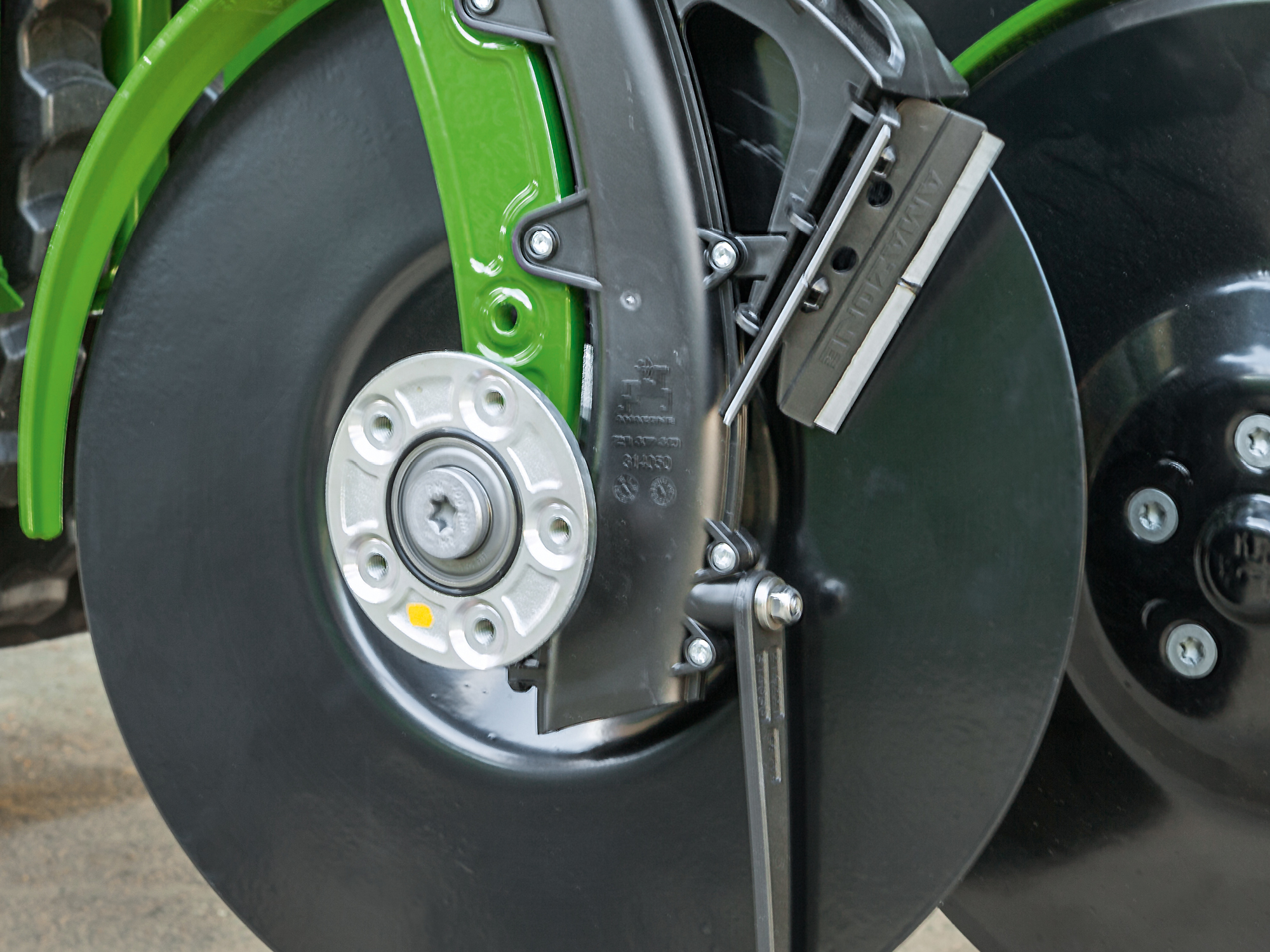

Inside view of the maintenance-free TwinTeC double disc coulter
1. Adjustable harrow: the angle of attack is adjusted according to the degree of straw residues present.
2. Perfect parallelogram with the top link for central adjustment of the sowing depth from 0 to 6 cm.
3. Centralised, 100% independent adjustment of the placement depth and the coulter pressure.
4. TwinTeC coulters mounted on rubber elements for shock absorption and central adaptation of the coulter pressure from 0 to 60 kg.
5. Protective steel front plate.
6. Removable shims to compensate for disc wear.
7. Discs fastened at 5 points with recessed Torx screws. No wear on the fixing discs.
8. Maintenance-free bearings. No lubrication points for the maintenance-free coulter.
9. Double disc ∅ 340 mm, angle of 10°, row spacing 12.5 and 15 cm.
10. Internal scraper – optionally in a HD variant.
11. Depth control /Press rollers: 50 or 65 mm wide (optional scrapers).

Precision performance with a coulter pressure of up to 60 kg

Equipped with the high-performance TwinTeC coulter, the seed drill has a precise and robust double disc coulter. With a disc diameter of 340 mm and a coulter pressure of 60 kg, the coulter achieves very precise and neat seed placement, even at higher speeds and in inconsistent soils. Thanks to the parallelogram guidance of the coulter, the coulter pressure and the placement depth can be adjusted independently, so that optimum seed placement is ensured. The coulter impresses with its smooth running, even under the most difficult of conditions.

Advantages of the double disc coulter:

• Its highest levels of flexibility permit central independent adjustment of the placement depth and the coulter pressure
• High-precision seed placement as a result of its very smooth and tidy running
• Consistent sowing depth with a high constant
• coulter pressure of up to 60 kg
• Best ground contour following for the coulter, based on the parallelogram coulter guidance
• Simple central working depth adjustment
• Reliable blockage-free sowing, even under difficult conditions, as a result of the high throughput ability

Central setting of the sowing depth

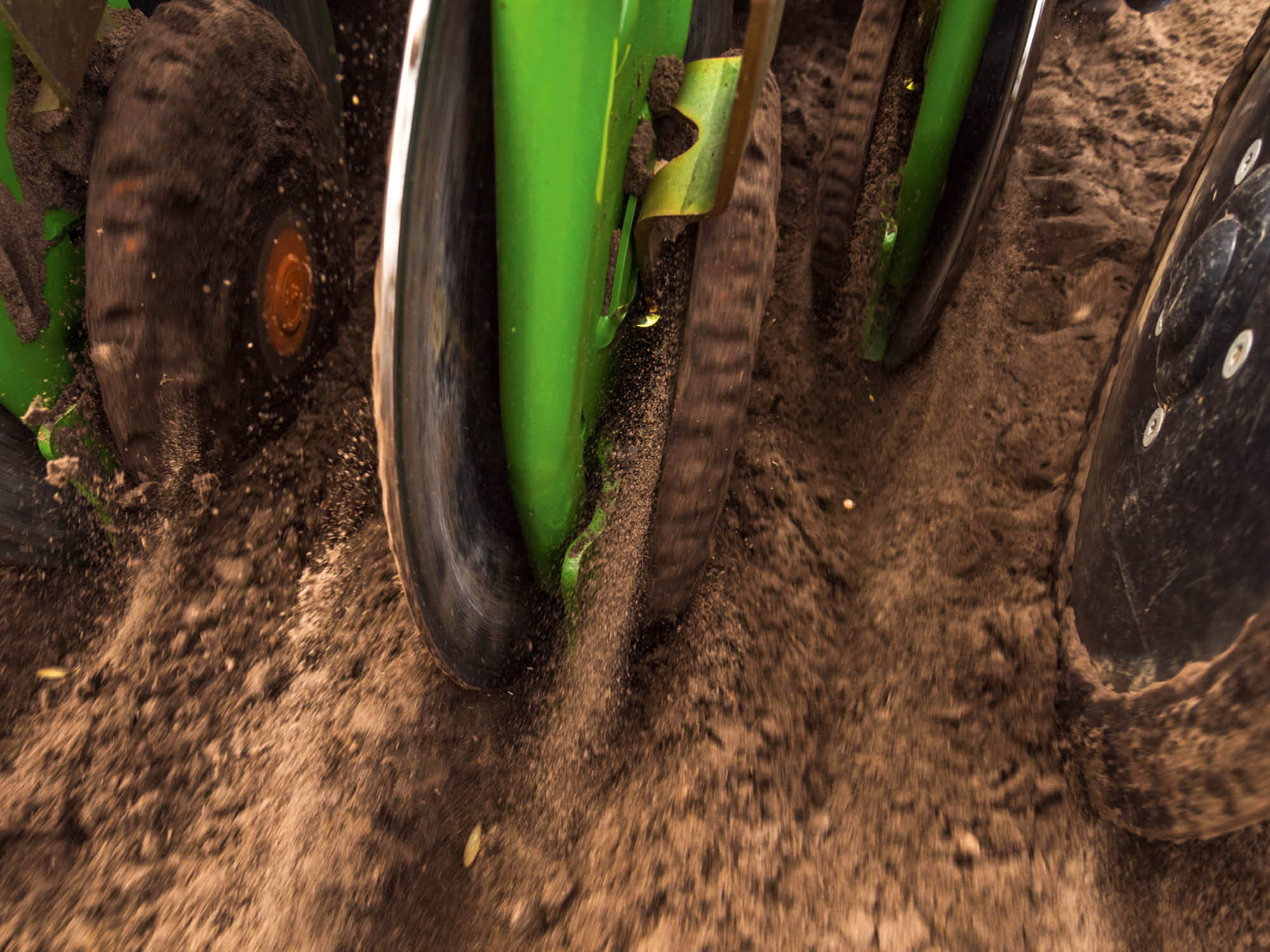

A depth guidance roller behind each TwinTeC coulter provides precise depth guidance, thereby ensuring that the placement depth of each individual TwinTeC coulter is maintained. Thanks to the large coulter clearance of 195 mm and the linkage to the depth guidance roller via the top guided roller carrier, sufficient space remains, meaning that blockage-free operation is possible. Due to the narrow angle of attack of the
sowing discs of 10°, excellent material passage is ensured even at high forward speeds and with large amounts of crop residues.

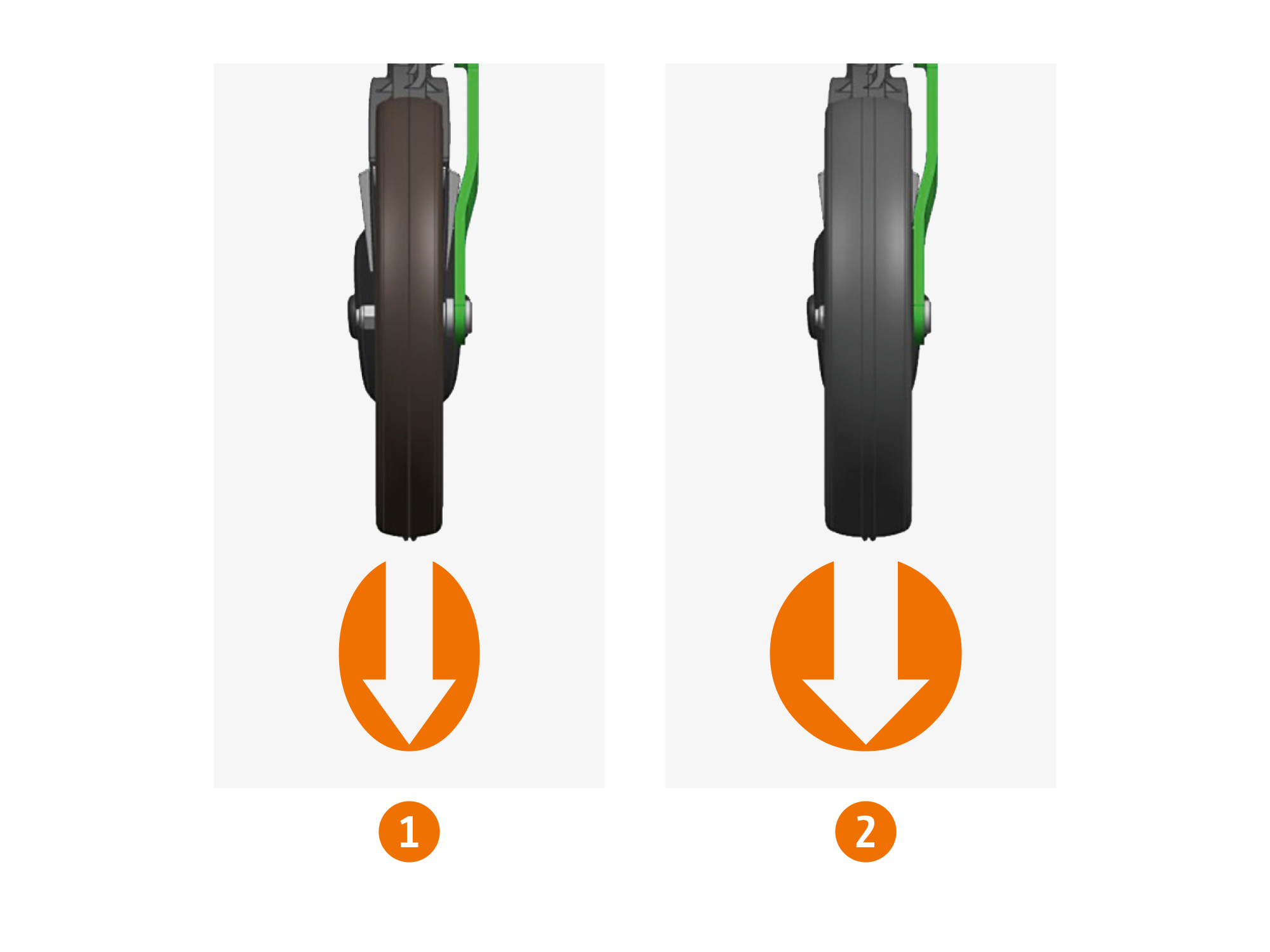

Two different depth guidance rollers are available. The Control 50 mm depth guidance roller has a high through passage and is ideal for heavy, hard soils. On the other hand, the Control 65 mm depth guidance roller offers a higher carrying capacity, which is ideal for lighter soil types.


Comfort hydraulics for Centaya Super – Everything under control!

The special comfort hydraulic system for the Centaya Super enables the hydraulic functions of coulter pressure, coulter lift and harrow lift to be controlled via the ISOBUS terminal. Technically, just one tractor spool valve is required. It is then possible to switch between these functions in the operator terminal.

The advantages of Comfort hydraulics

• Optimum adaption of the coulter pressure to the field conditions
• Easy reading of the coulter pressure
• Restricting the upper and lower limits of the coulter pressure

1. Button for activating the desired function
2. Currently selected hydraulic function (coulter pressure in this case)
3. Control panel for setting the selected function (coulter pressure in this case)

Hydraulic coulter pressure adjustment of the Centaya Super with coulter lift of up to 145 mm

The hydraulic coulter pressure adjustment enables the coulter pressure of the Centaya Super to be adjusted conveniently from the tractor cab. The coulters can also be lifted out by up to 145 mm. The coulter lift is an extremely useful option for working in field corners. As an option, up to 5 additional springs can be fitted on each side to mechanically increase the coulter pressure in the vicinity of the tractor wheel marks.

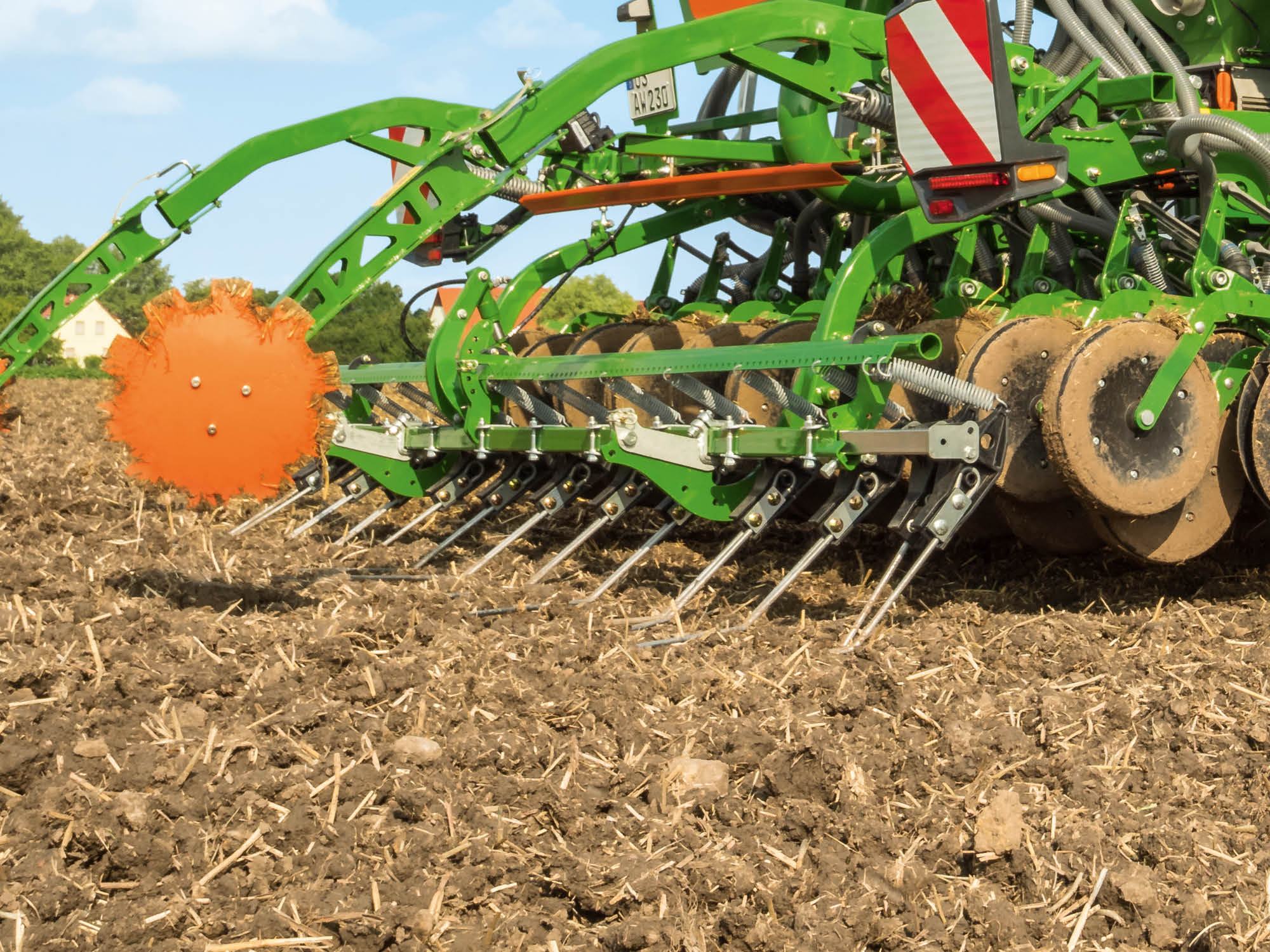

The Exact harrow tine has a thickness of 10 mm, is low-wearing and provides excellent seed coverage. The Exact harrow serves for both coverage of the open seed furrows and for levelling. It operates without blockage, even where there are large amounts of surface straw. Individual, pivoting harrow elements allow it to adapt to uneven ground and achieve an even seed coverage.

The harrow pressure is adjusted mechanically by pre-tensioning the harrow springs. When equipped with hydraulic harrow pressure adjustment, a minimum and maximum value is predefined by inserting pins. As a result, the harrow pressure and the coulter pressure can be simultaneously matched to changing soil types via just one tractor spool valve whilst on the move.

Exact S following harrow
With its 12 mm tine diameter, the Exact S following harrow offers even more wear area and is therefore resistant to the most arduous of operational conditions.

The TwinTeC coulter can be equipped with an integrated harrow as an option. The coulter harrow is a standard feature of the TwinTeC special coulter. The coulter harrow provides additional loose soil on top of the seed furrow.

The advantages of the coulter harrow:

• Depth control with a suspended harrow bracket
• Adjustable in seven steps up to 150 mm
• 3 possible intensity settings (30 degrees, 45 degrees, 60 degrees)
• Low lifting power requirement as a result of the compact design
