ZA-X mounted spreader

ZA-X - the proven spreader with working widths of up to 18 m

Model: ZA-XW 503
Working widths (m) with OmniaSet spreading discs 10 – 18
Hopper capacity (l): 500 – 700 (up to 1,000 kg payload)
Extension options: with 1 x S 200

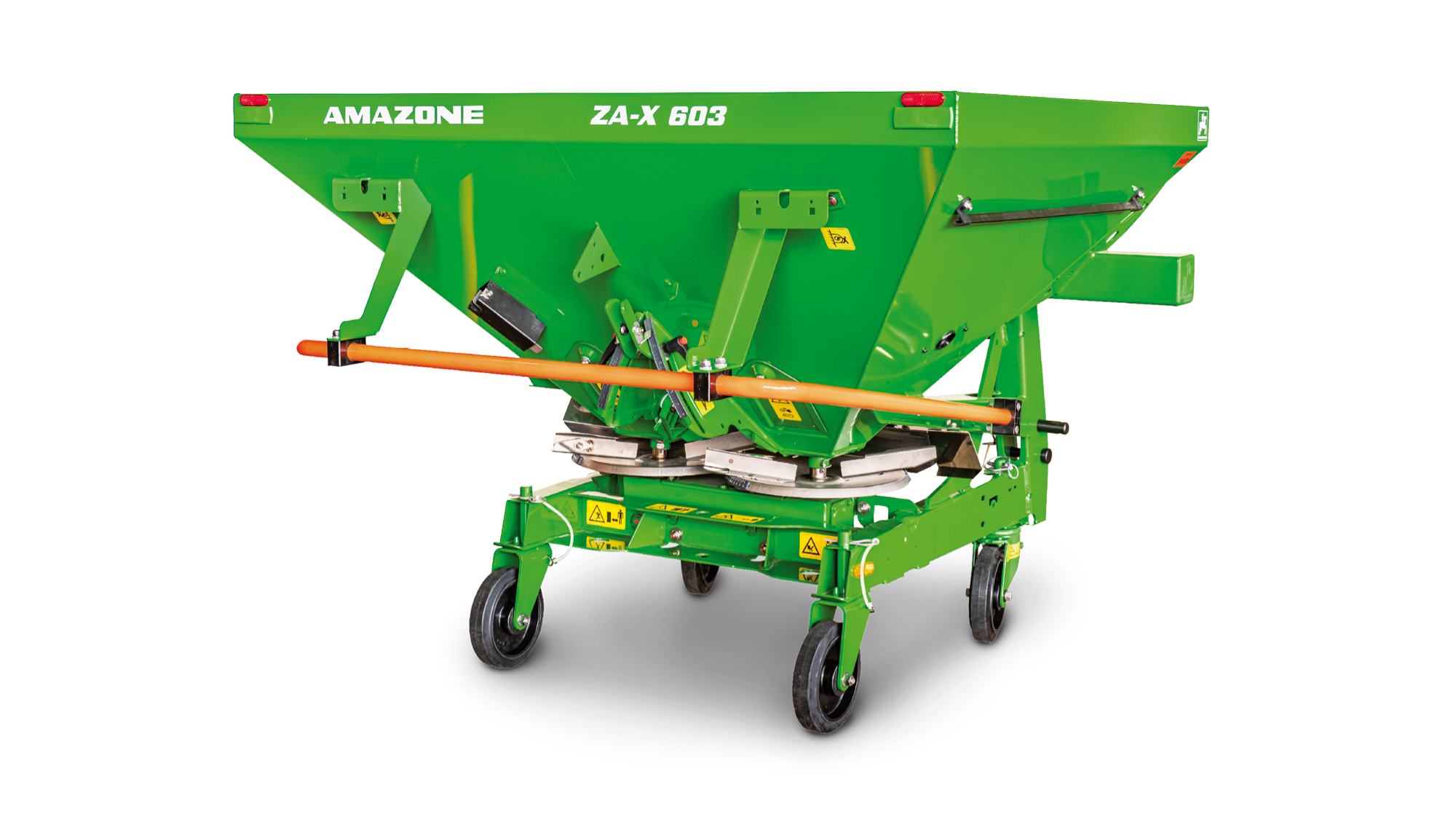

Model: ZA-X 603
Working widths (m) with OmniaSet spreading discs: 10 – 18
Hopper capacity (l): 600 – 850 (up to 1,000 kg payload)
Extension options: with 1 x S 250

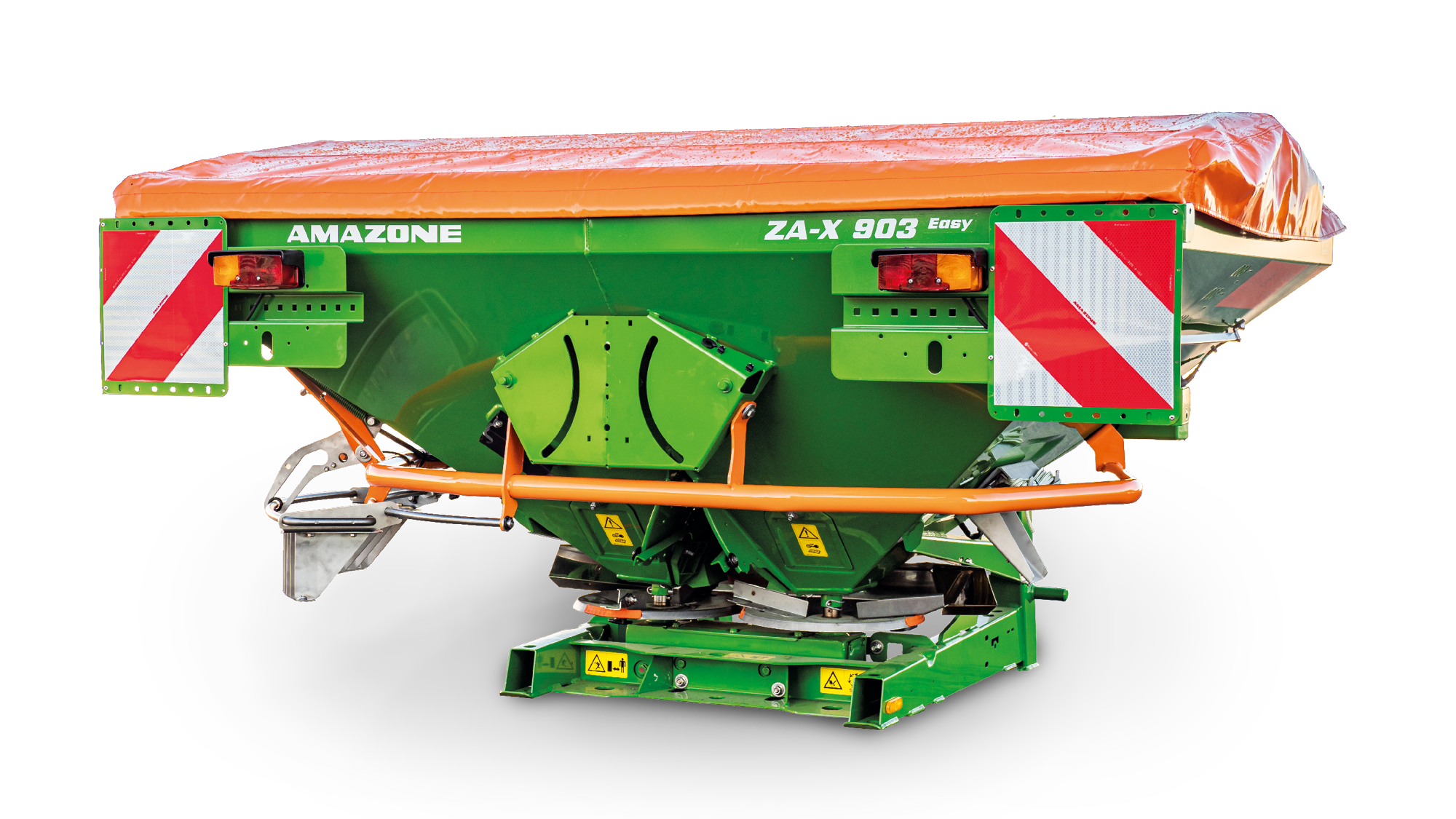

Model: ZA-X 903
Working widths (m) with OmniaSet spreading discs: 10 – 18
Hopper capacity (l): 800 – 1,700 (up to 1,800 kg payload)
Extension options: with 1 x S 350 or with 1 x L 800

Model: ZA-X 1403
Working widths (m) with OmniaSet spreading discs: 10 – 18
Hopper capacity (l): 1,000 – 1,750 (up to 1,800 kg payload)
Extension options: with 1 x S 350

Simple, direct operation of the ZA-X mounted spreader

The ZA-X mounted spreader, with hydraulic shutter actuation, provides a simple option for independent actuation of the left- and right-hand on/off shutters via two double-acting hydraulic spool valves on the tractor.

The application rate shutters below the apertures can be manually adjusted via a setting lever on the left- and right-hand side.

The benefits:

• Individual hydraulic shutter control of each actuation via two double-acting spool valves
• A simple 3-way valve is also available if your tractor does not have sufficient spool valve connections.
• No operator terminal required

Twin hopper means automatic monitoring. If one side empties more quickly than the other, it can be immediately checked whether a foreign object is blocking the opening or whether the levers are evenly positioned on the stops. The twin hopper design enables optimised steep hopper walls. Unlike single tip hoppers, these guarantee an extremely even fertiliser flow, even on slopes, with very little fertiliser left.

The narrow S 200, S 250 and S 350 extensions provide a reduced transport width. Direct filling from a tipping trailer or big bags is no problem.

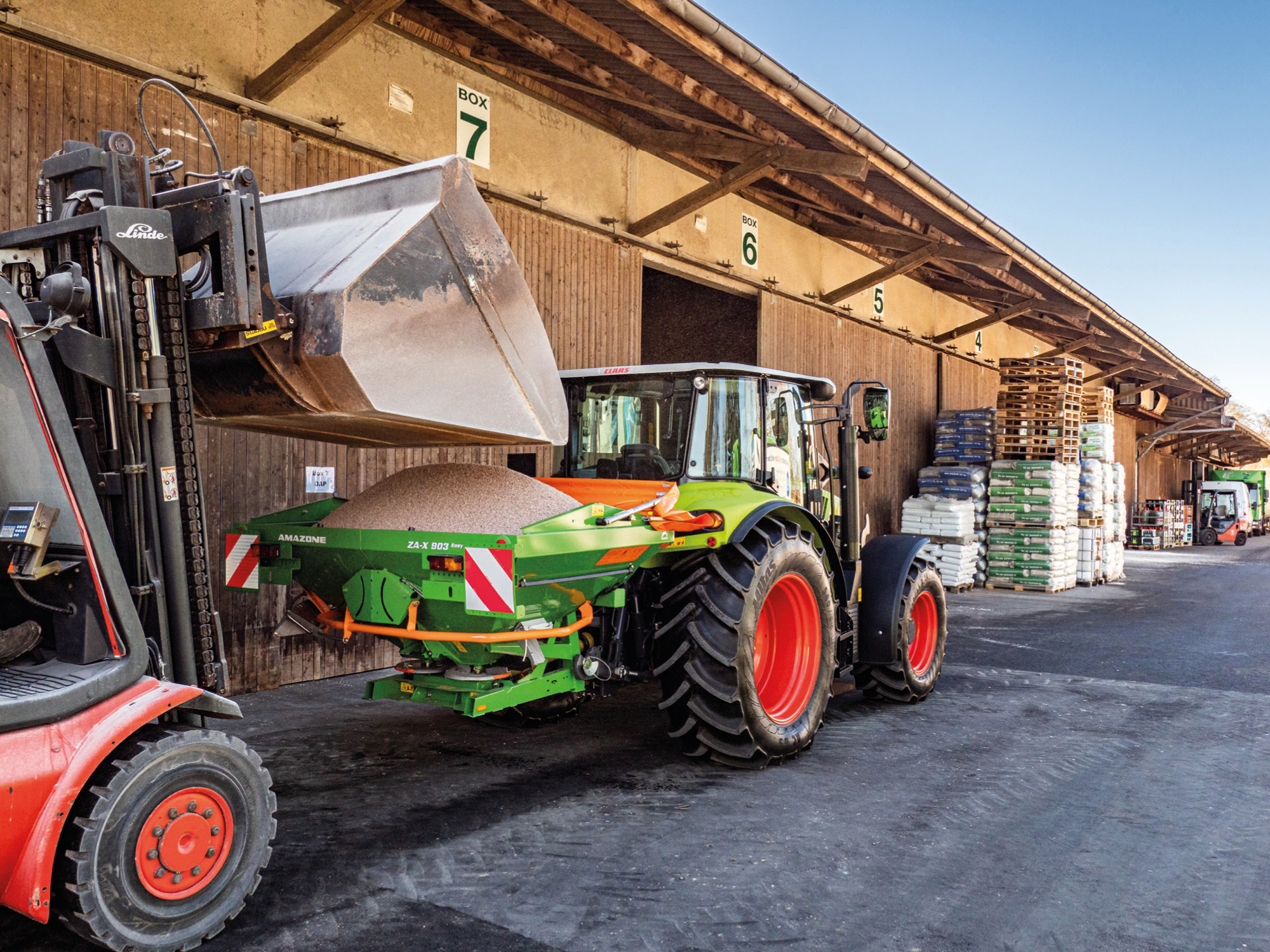

The large filling width of 2.48 m provides you with an adequate margin when loading with wide buckets. The wide L extension is particularly recommended for the use of large industrial front loading shovels.
