He who weighs, wins! – ZA-V Profis with weigh cell frame
No calibration. Just enter the spread rate and drive off! There is nothing simpler.
The weighing system offers controlled convenience and more reliability. It enables on-line determination of the different spreading material properties with two 200 Hz load cells – providing a high level of measuring accuracy. It automatically compares the actually applied rate with the pre-determined rate. Deviations in the flow characteristics, for example when spreading blended mineral fertilisers, are detected and the spreader is re-adjusted automatically via the electric metering shutter slides. In addition, the applied rate is accurately documented for field-related nutrient application. In addition, the applied rate is accurately documented for field-related
nutrient application. In addition, the application rate can be altered at any time by pressing a button on the ISOBUS terminal.
The advantages
Regulating/calibrating under all operating conditions:
- Side, border and water course spreading
- Spreading in wedge-shaped fields
- Using application maps/N-sensors
Accurate weight measurement:
- Display of residual volume
- Residual area and residual hopper level display
- Documentation of the total volume spread
Filling aid in combination with the Profis weighing system
Initial flashing followed by the constant lighting up of the work lights signals that the fill level has been reached.

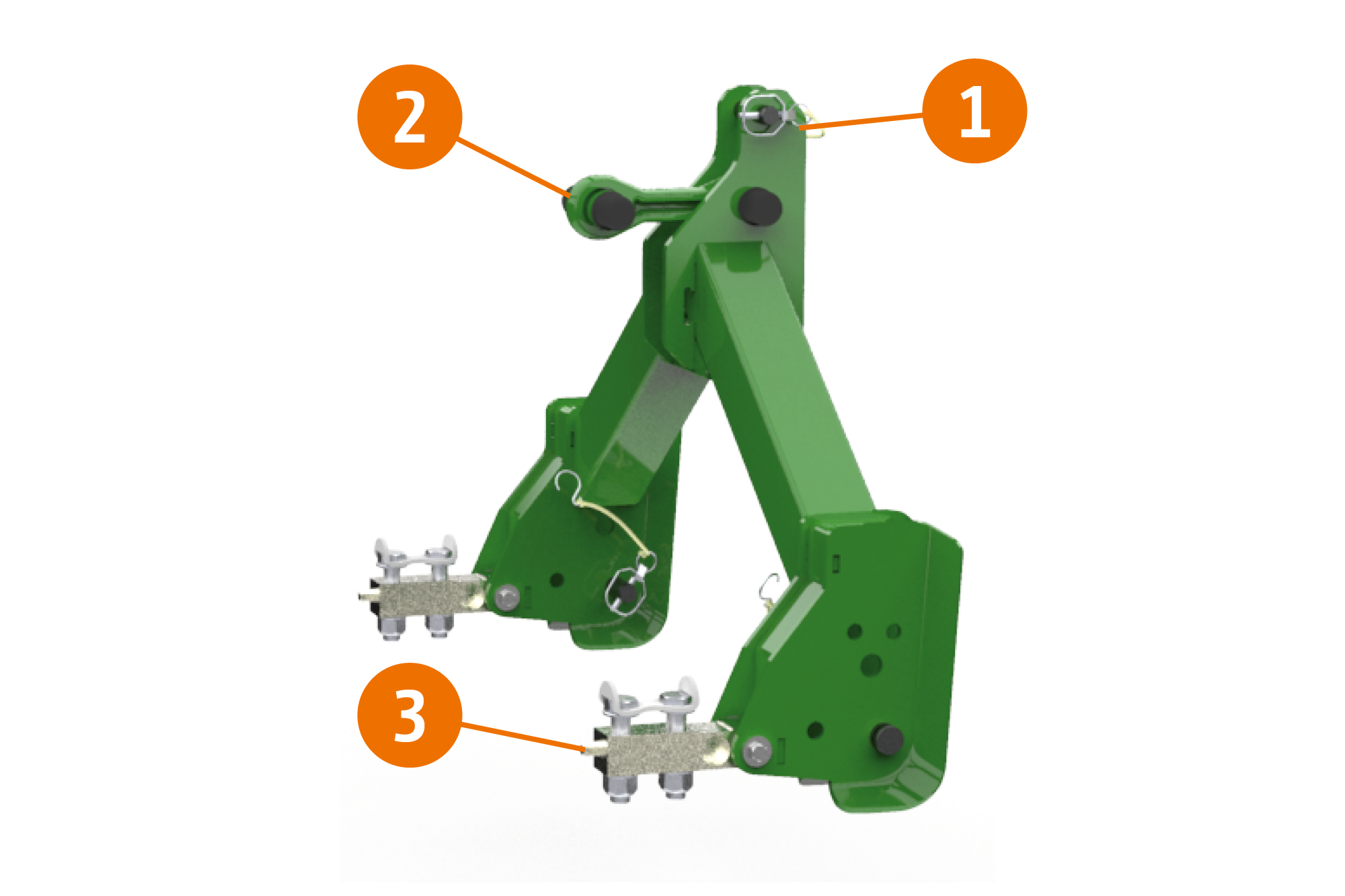

1) Weighing frames
2) Horizontally aligned tie bars
3) Weighing cells
