Furrow width adjustment

Tyrok – mechanically simple

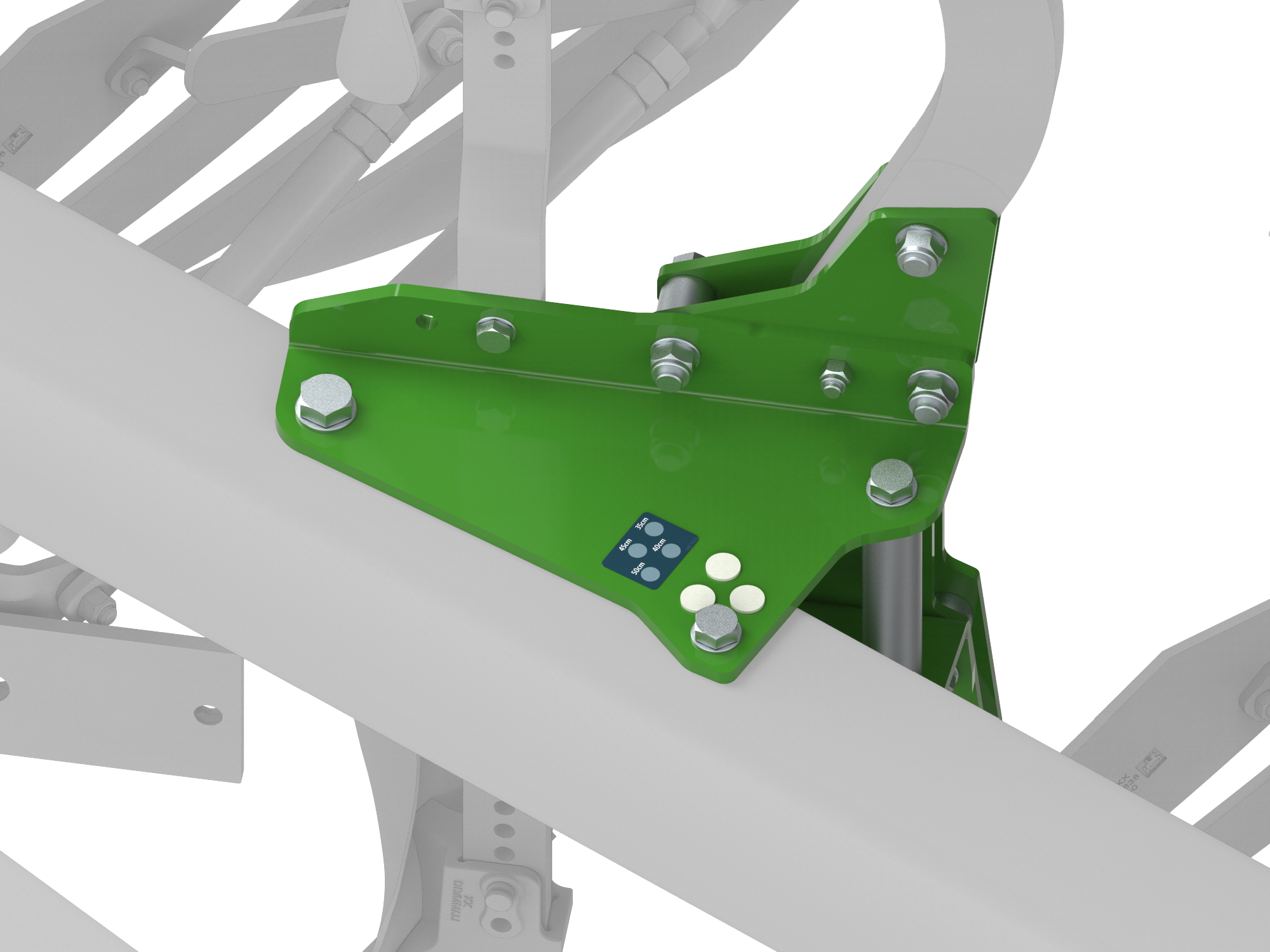

The standard furrow width adjustment can be altered in 4 steps by manually pivoting the leg fixing consoles. The implement can therefore easily be adapted to different conditions (soil conditions, tractor, etc.). When the furrow width is adjusted, all the soil-engaging metal and support wheels are also automatically adjusted. No additional correction is necessary.

More information + Less information -

Tyrok V – comfortable hydraulic operation

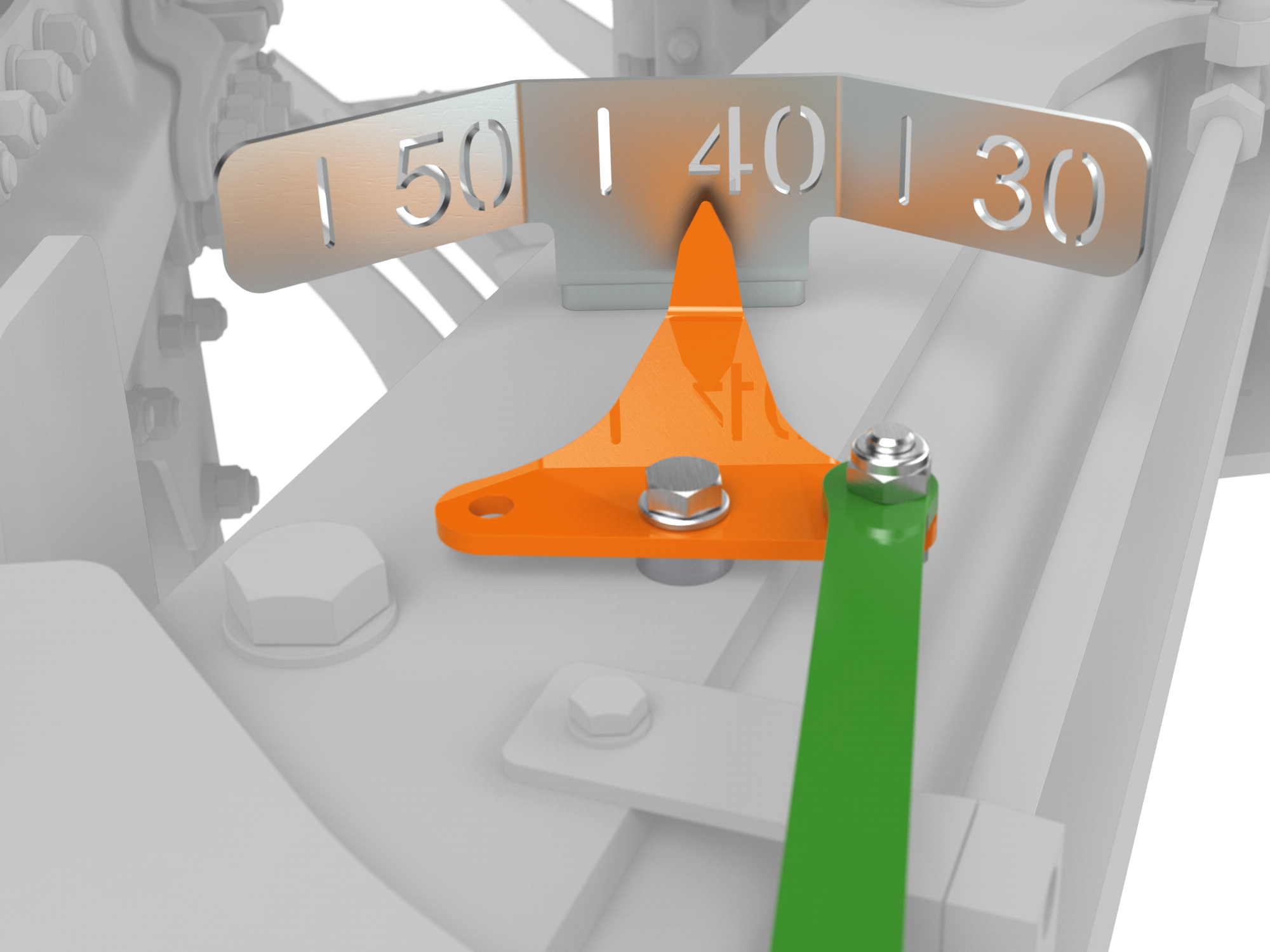

The furrow width can be smoothly and hydraulically adjusted from the tractor on the Tyrok V. A very clearly visible display, consisting of a scale and indicator, keeps the driver informed of the furrow width setting. The integrated kinematics of the Tyrok V also automatically set the pull point, the front furrow width, all the soil engaging tools and the support wheel.


The advantages of the Tyrok V

  • Variable furrow width from 33 cm to 55 cm per body
  • Automatic adjustment of the front furrow when changing the furrow width thanks to AutoAdapt
  • No readjustment necessary
  • Comfortable and time-saving operation


More information + Less information -

Front furrow width – Always the right setting

AutoAdapt – Automatic adjustment of the front furrow when changing the furrow width

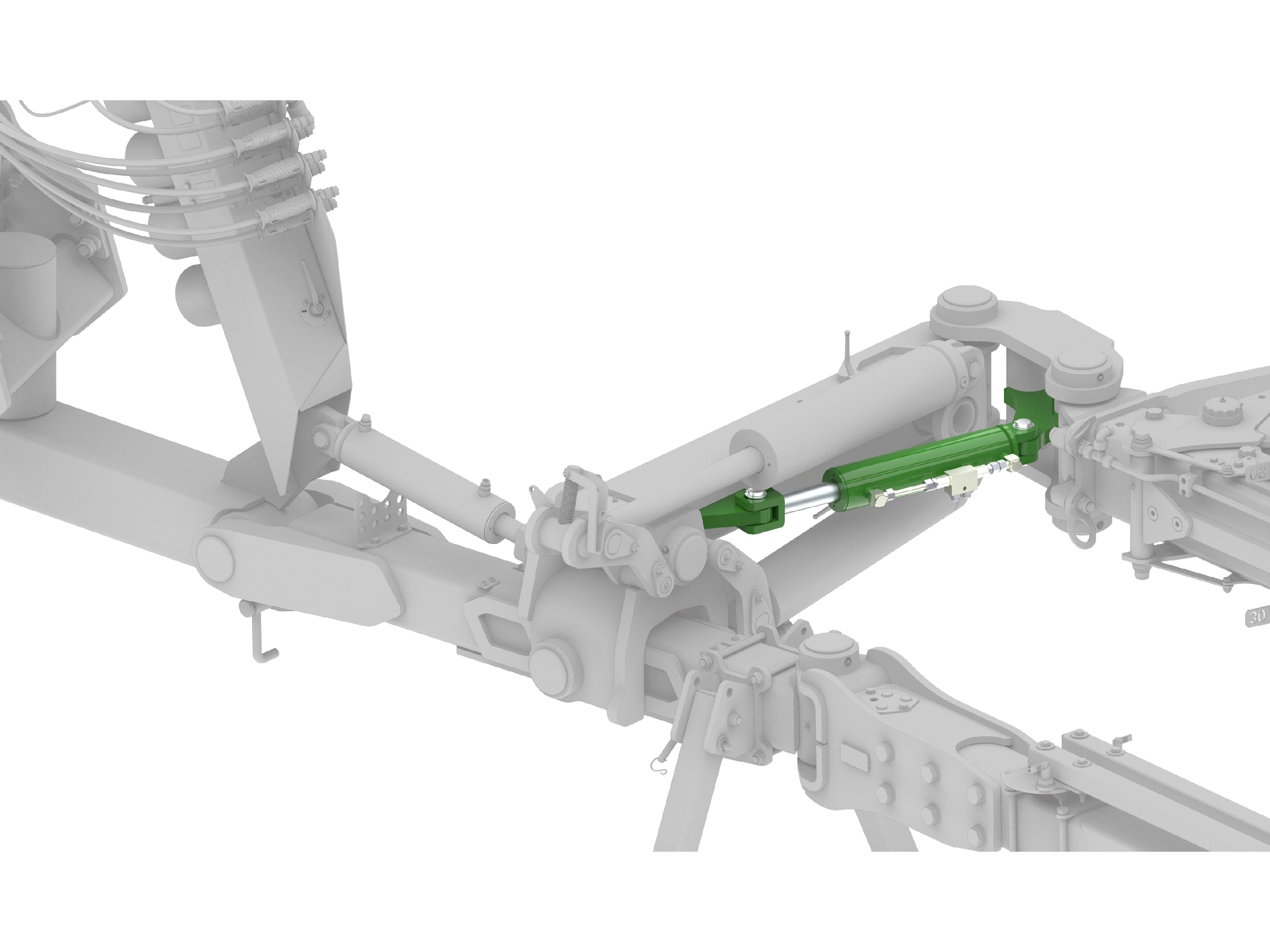

The front furrow width is automatically adjusted when changing the furrow width to enable a perfect matching up even under changing conditions. The standard hydraulic adjustment of the front furrow guarantees high quality operation under all conditions. You can also react quickly and easily to changing conditions since the front furrow can also be adjusted on the move. The swing arm is controlled directly by the cylinder during the process. As a result, inside wheel track dimensions from 1.2 m to 1.6 m are possible.


The advantages thanks to AutoAdapt:

  • Simple and comfortable adjustment of the front furrow to the furrow width
  • Precise connection
  • Robust, low-wear system for basic adjustment
  • Highly responsive, even on the move, owing to direct control of the first body
  • Perfect plough profile even on variable soils, slopes or when changing tractors
