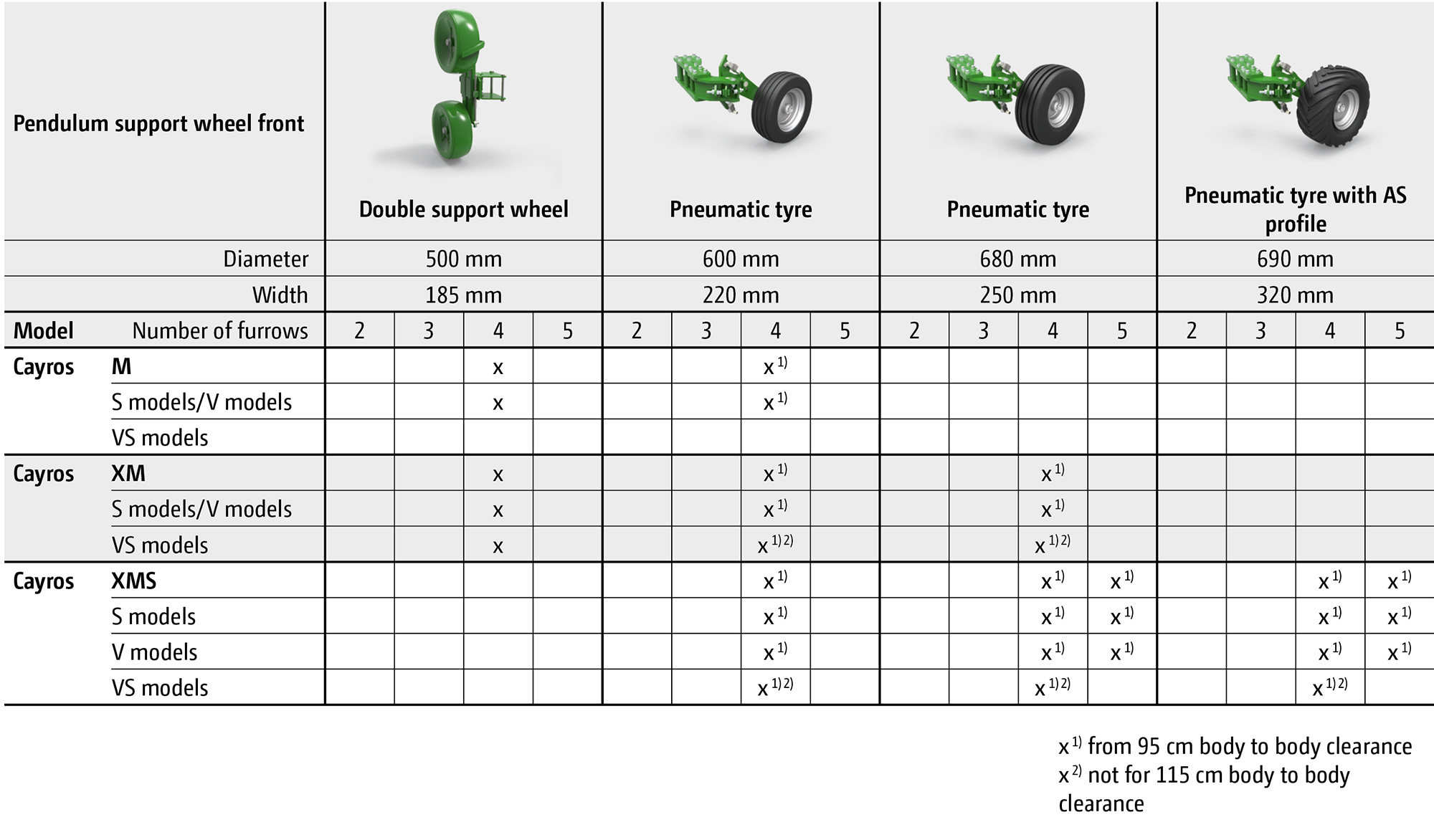

Wheel ∅ 500 mm steel x 185 mm wide
Suitable for: M & XM ploughs, all beam heights
Mounting position: On next to last body for optimum field edge ploughing

Wheel ∅ 600 mm x 200 mm width
Available for: XM, XMS, XS ploughs

Wheel ∅ 580 mm air-filled tyre with cleated profile x 270 mm wide
Suitable for: Only for 4 furrow M – XMS

Wheel ∅ 600 mm air-filled tyre x 220 mm wide
Suitable for: Only for 4 furrow M – XMS

Wheel ∅ 680 mm air-filled tyre x 250 mm wide
Suitable for: 4 furrow XM – XMS, 5 furrow XMS with some limitations

Wheel ∅ 690 mm pneumatic tyre with AS profile x 320 mm width
Available for: For 4 and 5 furrow XMS XS pro

Wheel Ø 500 mm steel x 185 mm wide
Suitable for: All ploughs up to 4 furrows and beam height max. 78 cm

Wheel ∅ 550 mm air-filled tyre x 160 mm wide
Suitable for: all ploughs up to 4 furrows and beam height max. 78 cm

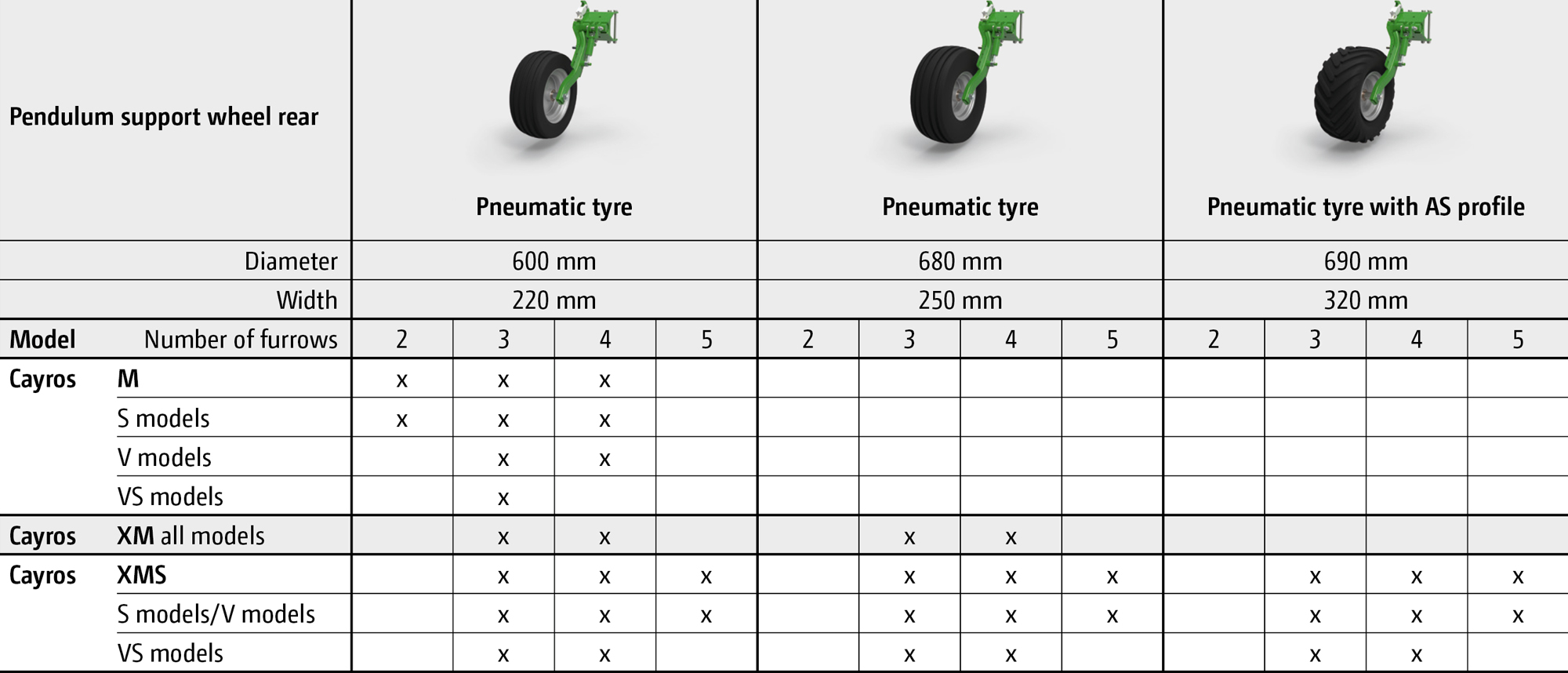

Wheel Ø 600 mm air filled tyre x 220 mm wide
Suitable for: All ploughs from M range and beam height up to 82 cm

Wheel Ø 680 mm air filled tyre x 250 mm wide
Suitable for: All ploughs from M range

Wheel ∅ 690 mm pneumatic tyre x 320 mm width
Available for: All ploughs from the XMS series onwards

Wheel ∅ 550 mm air-filled tyre x 160 mm wide
Suitable for: All ploughs up to 4 furrows and beam height max. 78 cm

Wheel ∅ 600 mm air-filled tyre x 220 mm wide
Suitable for: M/XM/XMS/XS (not for 6 furrow or 5 furrow S and/or V ploughs)

Wheel ∅ 680 mm air-filled tyre x 250 mm wide
Suitable for: XMS/XS (not for 6 furrow or 5 furrow S and/or V ploughs)

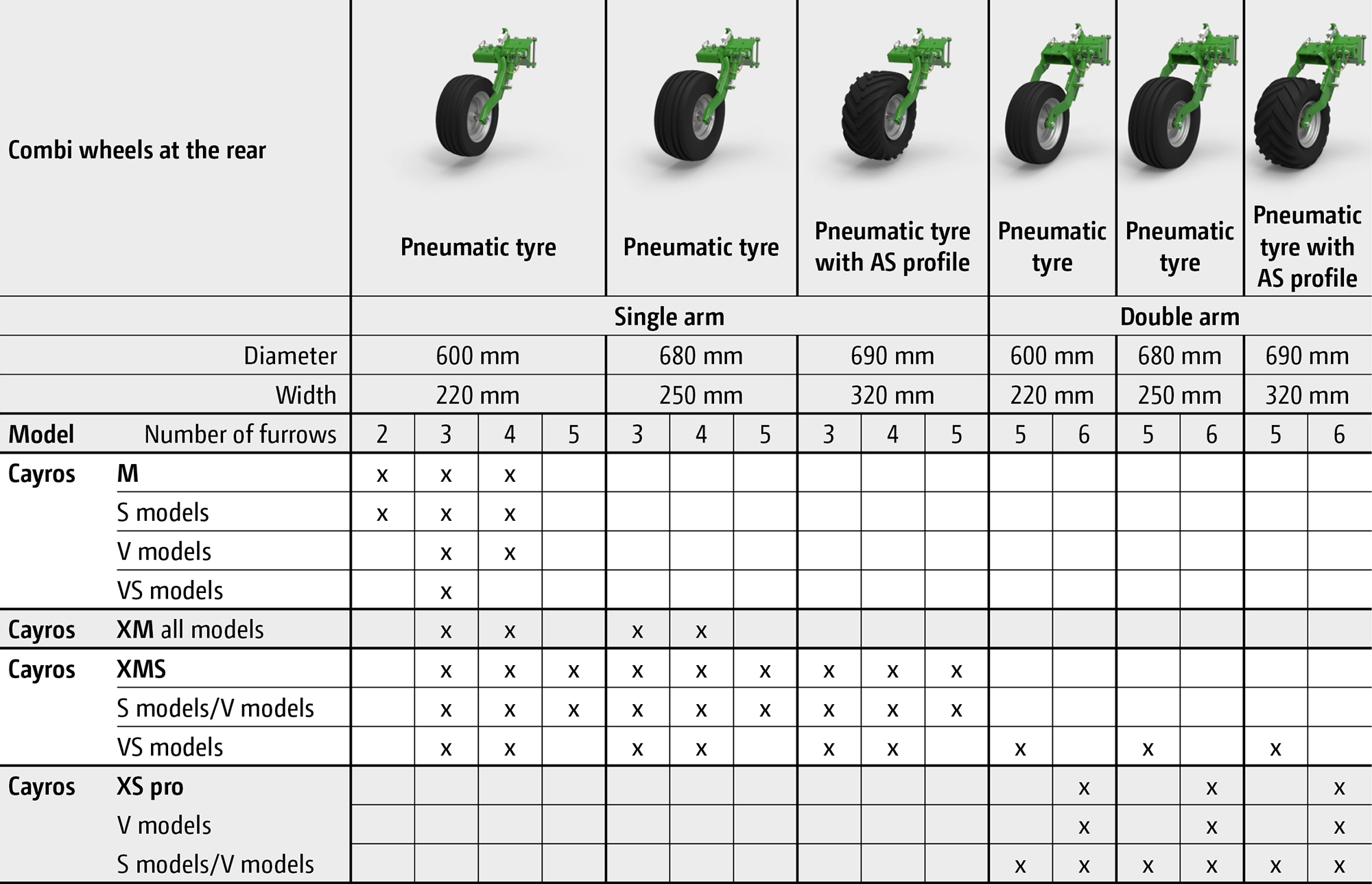

Wheel Ø 690 mm pneumatic tyre x 320 mm width with AS profile
Available for: All ploughs from the XMS series onwards

Wheel ∅ 600 mm air-filled tyre x 220 mm wide – heavy-duty version (twin arm)
Suitable for: All 6 furrow or 5 furrow S and/or V ploughs

Wheel ∅ 680 mm air-filled tyre x 250 mm wide – heavy-duty version (twin arm)
Suitable for: All 6 furrow or 5 furrow S and/or V ploughs

Wheel Ø 690 mm pneumatic tyre x 320 mm width with AS profile (double arm)
Available for: Ploughs from the XMS–VS series onwards

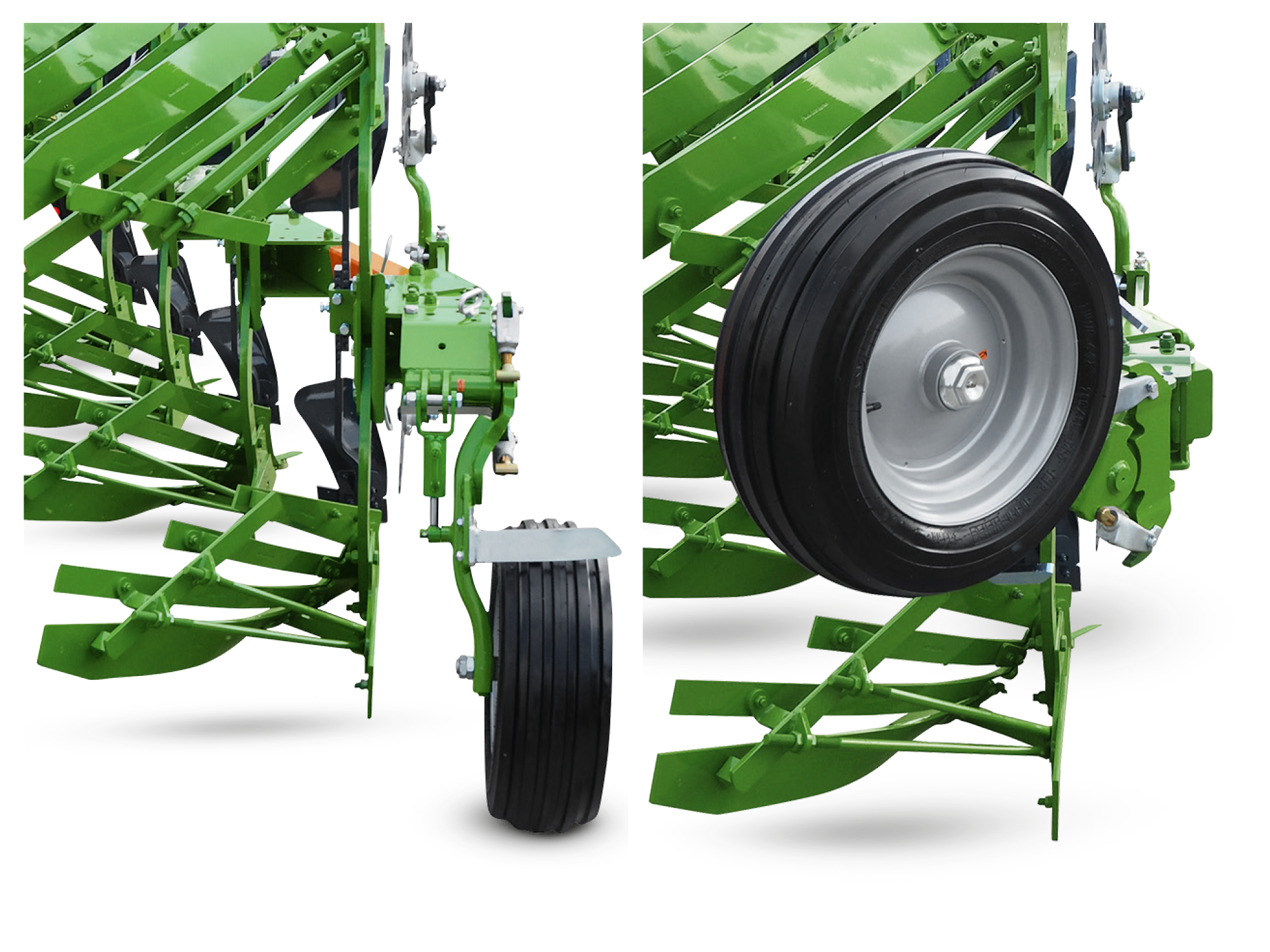

“For ploughing without compromise, Amazone now has a swivel adapter for the hinged support wheel. This swivels the wheel up behind the last furrow – a fantastic feature!”

(“Landwirt Österreich” Cayros M 950 practice test · 03/2019)
